our solutions > workshop range > PORTABLE DOT PEEN

Marking machine
E-MARK

A portable all-in-one solution
Autonomous and mobile
Robust and compact

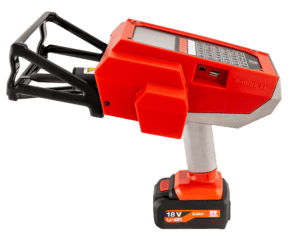

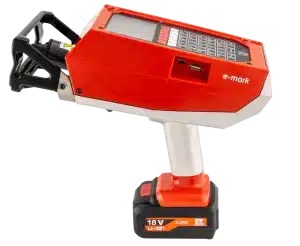

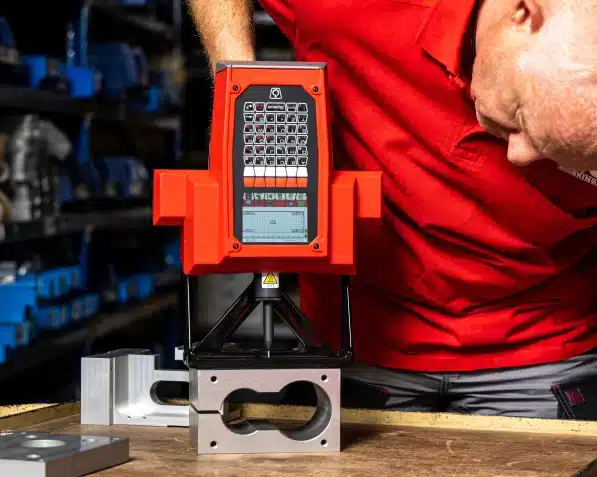

handheld dot peen marking machine E-Mark
Description

The E-MARK is a PORTABLE CORDLESS DOT PEEN marking machine that can mark all types of material, from plastic to treated steel with a hardness of up to 62 HRC.

It can operate for long periods on its INTEGRAL BATTERY.
This mobile and portable marking machine is fully autonomous due to its integral 18V Li-Ion battery, giving up to 4 HOURS OF CONTINUOUS USE.

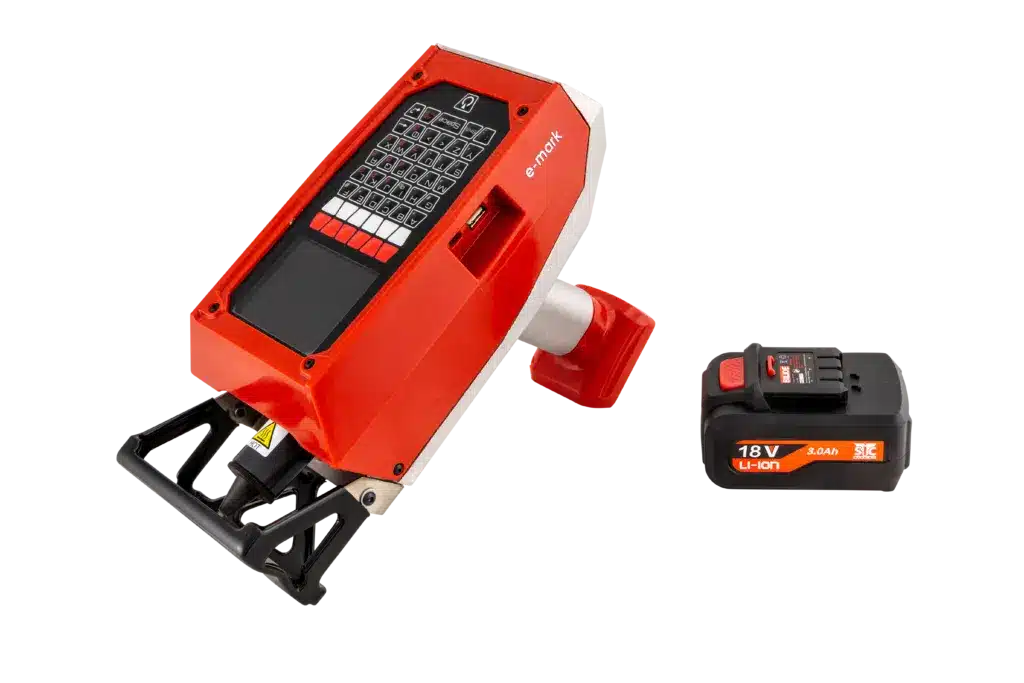

The E-MARK dotn peen marking device comes with two batteries and a fast charger, in a convenient carrying case, which allows you to continue working with one battery while the other is being charged.

The robust E-MARK design is based on an aluminium alloy casting, which makes it particularly suitable for severe INDUSTRIAL ENVIRONMENTS.

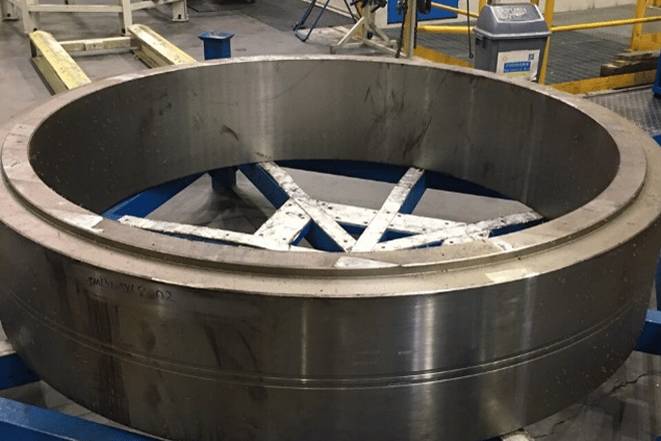

Its high striking force makes it especially suitable for marking heavy or very large parts.

The E-MARK is also extremely ergonomic and EASY TO USE.
For example, the stylus/piece distance is very simple to adjust using the adjustment knob under the marking head.
The E-MARK is also a very light marking gun (3.2 kg), in spite of its basic metal structure.

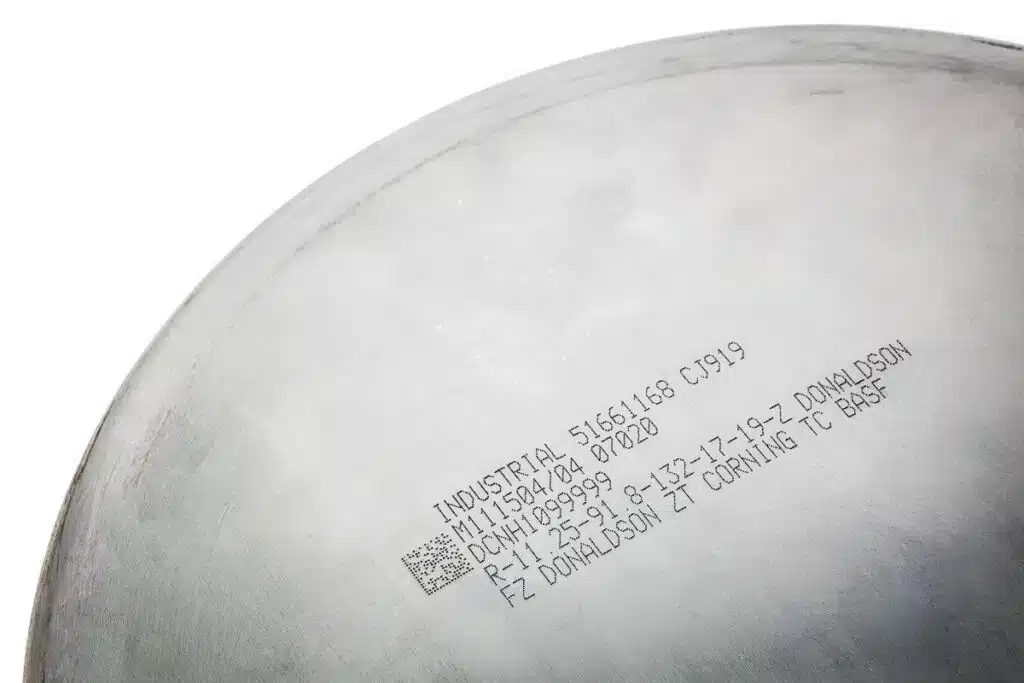

The E-MARK can mark ALPHANUMERIC TEXT, LOGOS,  or 2D DATAMATRIX CODES.

The dot peen technology provides RELIABLE AND PERMANENT MARKING directly in the material, through a tungsten carbide stylus that strikes a series of dots at a very high rate.

Mechanical specifications

Dimensions

288 x 271 x 135 mm

Marking window

60 x 25 mm

Weight

3.2 kg

Electronic specifications

Memory

100 MB

Colour LCD screen

320 x 240 pixels

Keyboard

49 keys, with protection membrane

Power

100W

Battery

Li-ion 18V (4 hours normal operation)

Control software

Marking

Alphanumeric, serial numbering or text, Datamatrix code, logo

Marking file capacity

Transfer through USB memory stick

Fonts

4×6, Arial, Courier, OCR, OCR-A, OCR_BOLD, Comic and Comic_B

Edit or create files

Access to all parameters

Impact force

1 to 9

Marking depth

0.3 mm depending on material

Dot spacing resolution

0.05 mm

Password

1 level

Options

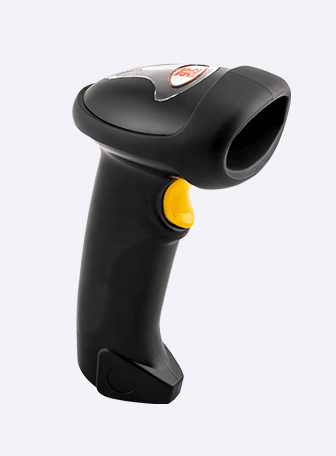

1D/2D BLUETOOTH BARCODE READER

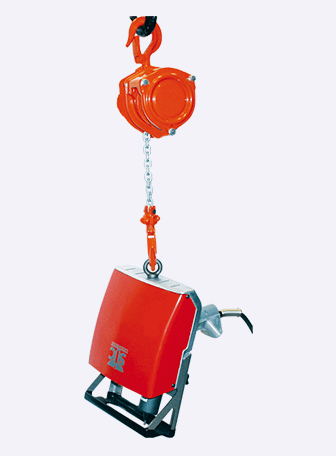

ATTACHMENT RING + BALANCER

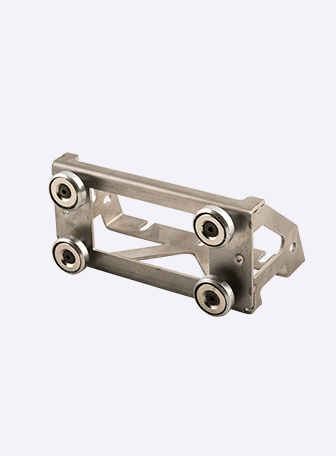

SUPPLEMENTARY FRONT PANELS (3 TYPES TO CHOICE, DEPENDING ON APPLICATION)
