Marking machine

E-MARK XL

Large marking window
Autonomous and mobile
Robust and compact
machine de marquage micro percussion  emark xl
Description

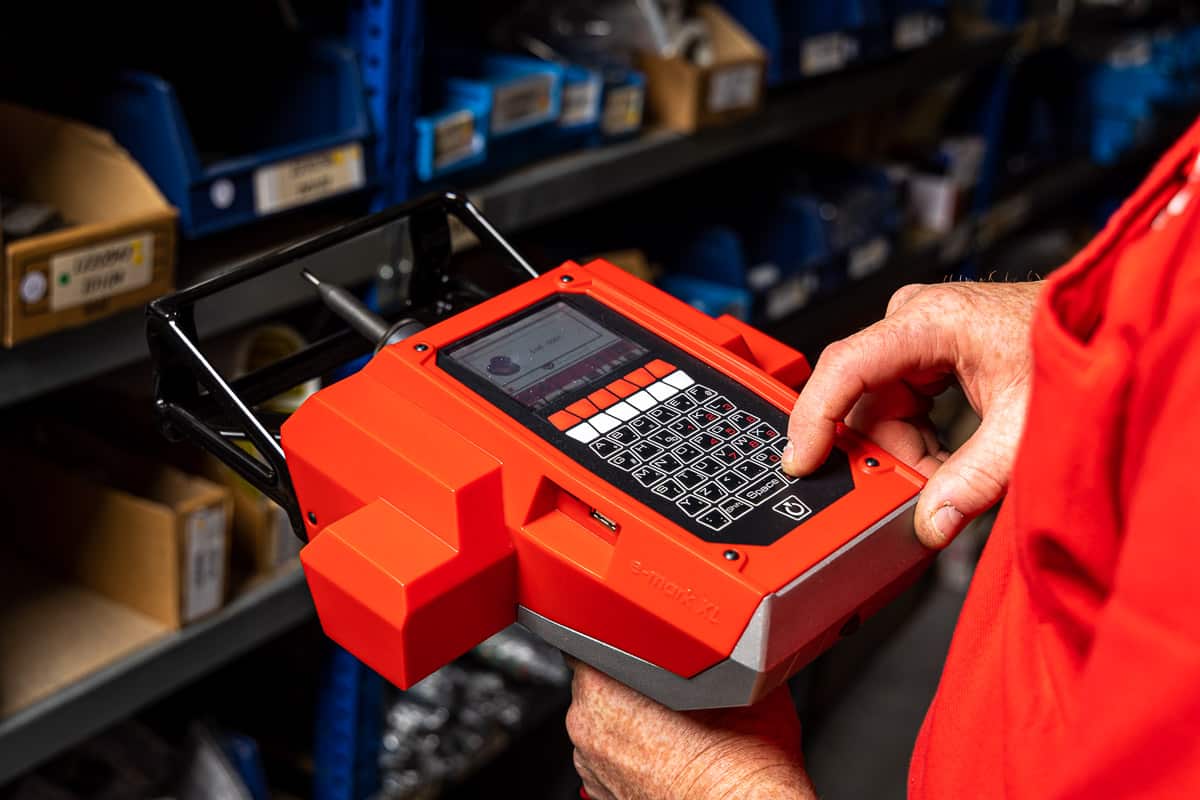

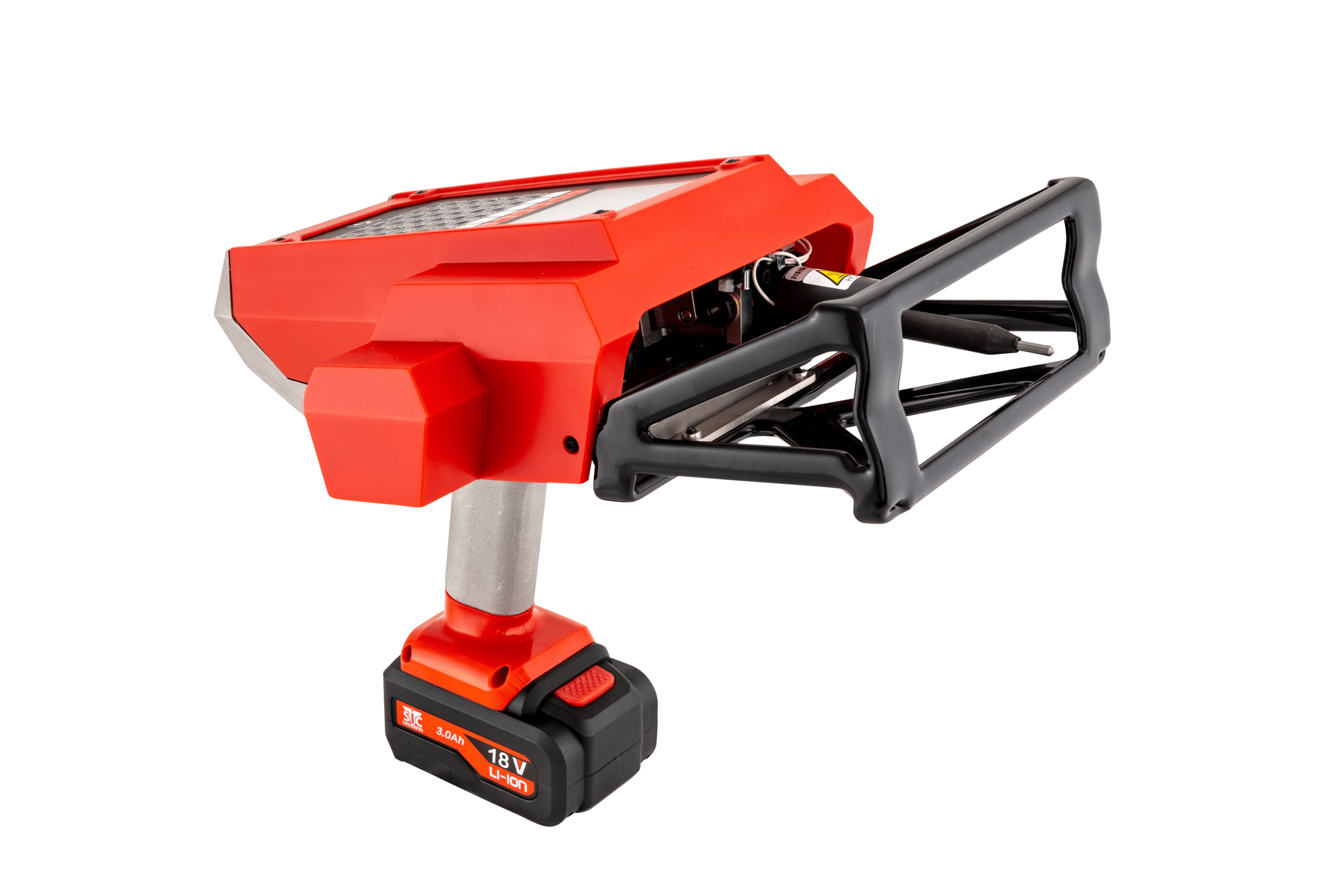

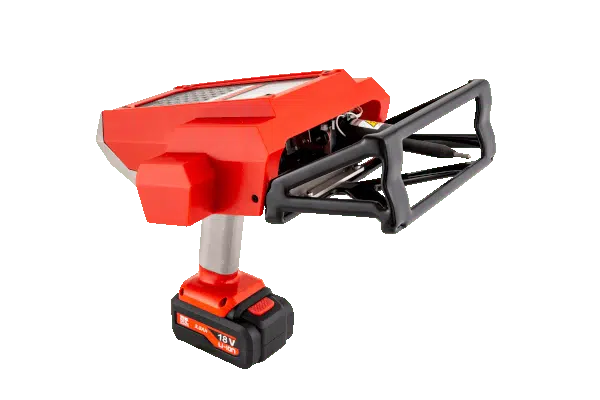

The E-MARK XL is a cordless portable dot peen marking machine that features A VERY LARGE MARKING WINDOW: 120 x 40 mm.

It can operate for long periods on its integral battery.

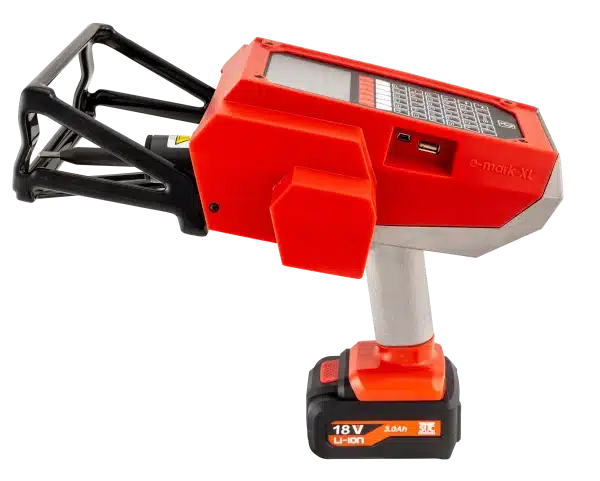

This MOBILE AND PORTABLE MARKING MACHINE is fully autonomous due to its integral 18V Li-Ion battery, giving up to 4 HOURS OF CONTINUOUS USE.

The E-MARK XL comes with two batteries and a fast charger, in a convenient carrying case, which allows you to continue working with one battery while the other is being charged.

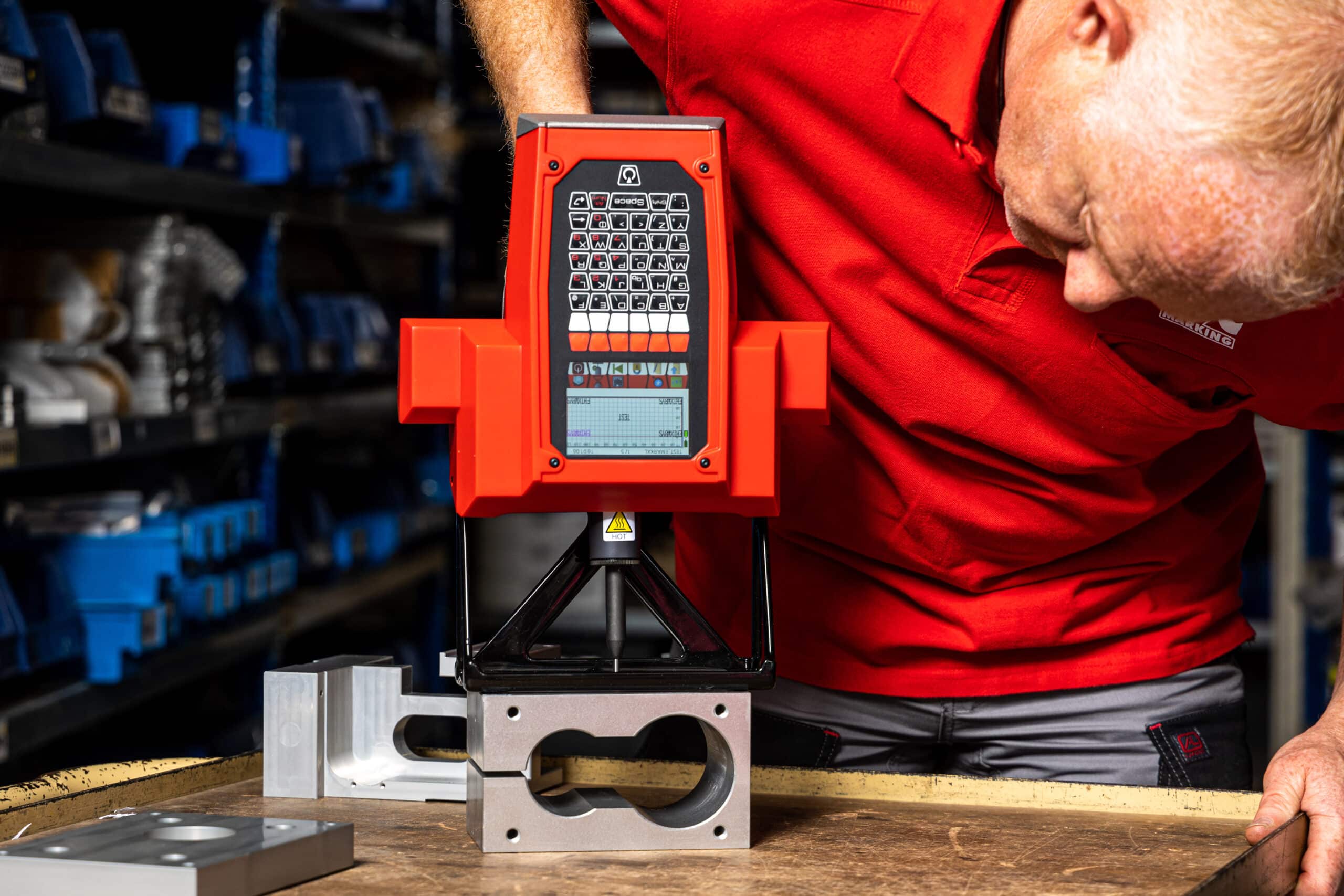

The E-Mark XL is a robust design with a cast alloy base. It is particularly suitable for DEMANDING INDUSTRIAL ENVIRONMENTS. Its high striking force makes it especially suitable for marking heavy or very large parts.

The E-MARK XL is also ERGONOMIC AND VERY EASY TO USE.
For example, the stylus/piece distance is very simple to adjust using the adjustment knob under the marking head.

The E-MARK XL is also a very light marking gun (3.6 kg), in spite of its basic metal structure.

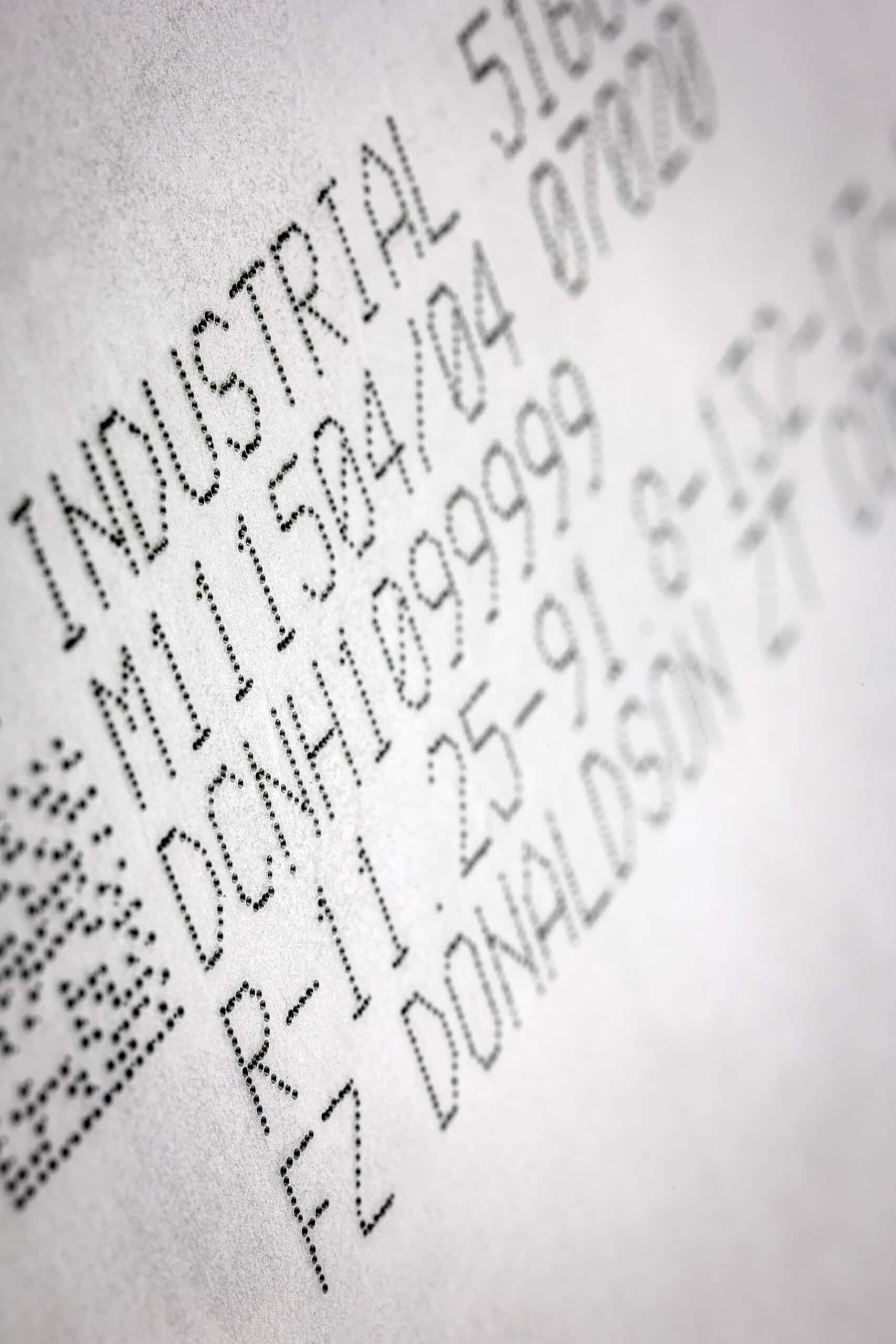

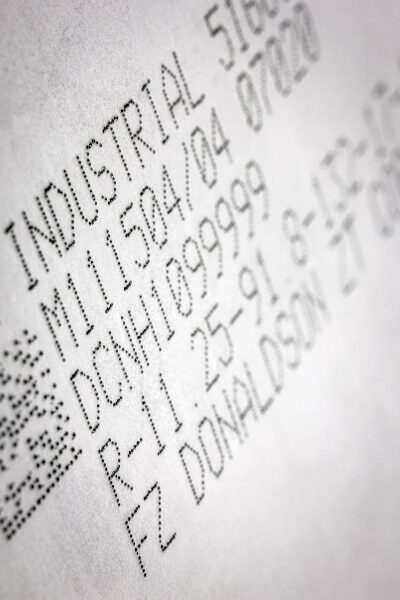

The E-MARK XL can mark alphanumeric text, logos, or 2D Datamatrix codes.

The dot peen technology provides RELIABLE AND PERMANENT MARKING directly in the material, through a tungsten carbide stylus that strikes a series of dots at a very high rate.

Zoom

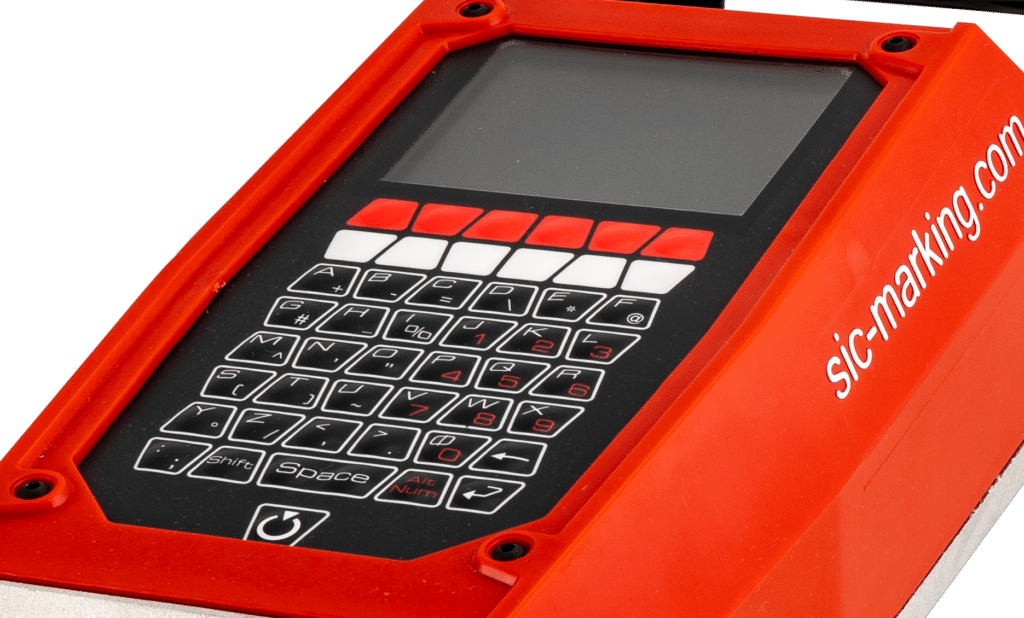

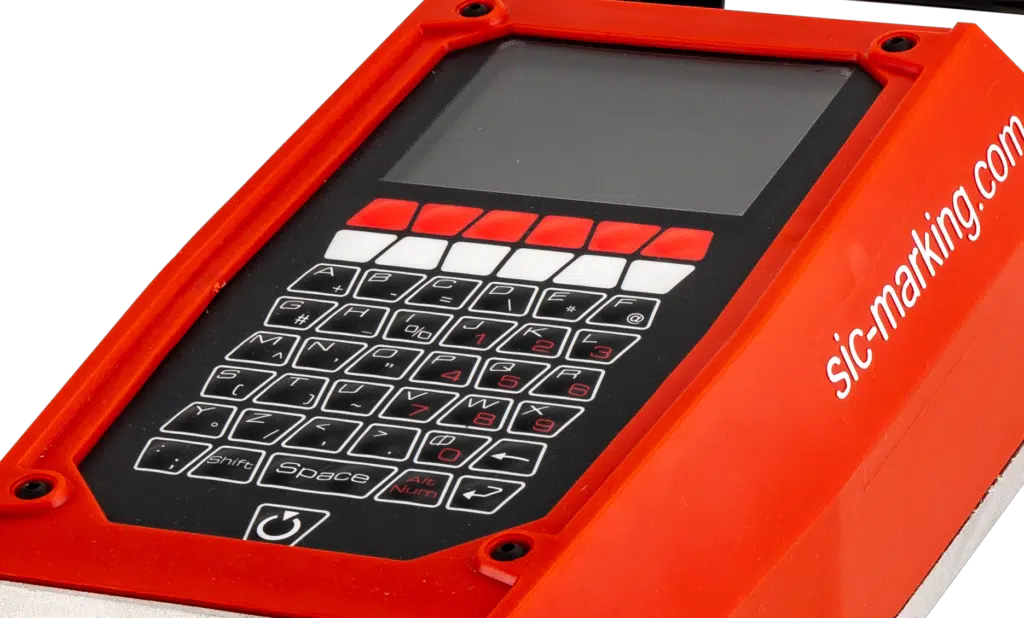

controleur E1

The E-MARK XL has an onboard E1 CONTROLLER and new software that allow all your marking files to be easily programmed or modified, directly on the marking gun.
The software is very INTUITIVE and is controlled through a big colour screen, protected by a plastic membrane.

A PC SOFTWARE SUITE (supplied) also allows marking files to be created, and transferred to the marking gun through its integral USB port.

Mechanical specifications

Dimensions

330 x 254 x 270 mm

Marking window

120 x 40 mm

Weight

3.6 kg

Electronic specifications

Memory

100 MB

Colour LCD screen

320 x 240 pixels

Keyboard

49 keys, with protection membrane

Power

100W

Battery

Li-ion 18V (4 hours normal operation)

Control software

Marking

Alphanumeric, serial numbering or text, Datamatrix code, logo

Marking file capacity

Transfer through USB memory stick

Fonts

4×6, Arial, Courier, OCR, OCR-A, OCR_BOLD, Comic and Comic_B

Edit or create files

Access to all parameters

Impact force

1 to 9

Marking depth

0.3 mm depending on material

Dot spacing resolution

0.05 mm

Password

1 level

Options

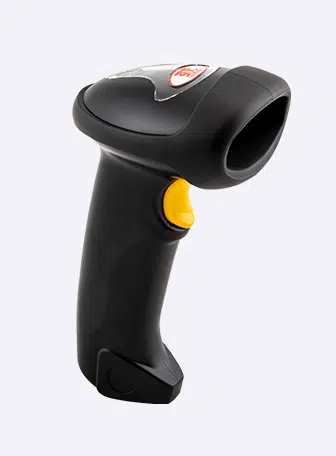

1D/2D BLUETOOTH BARCODE READER

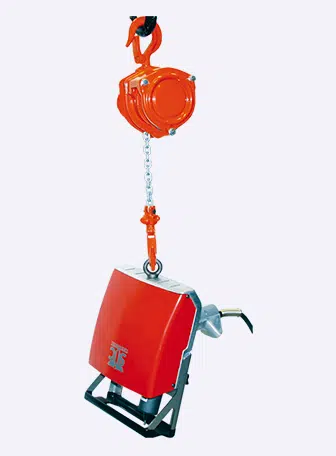

ATTACHMENT RING + BALANCER

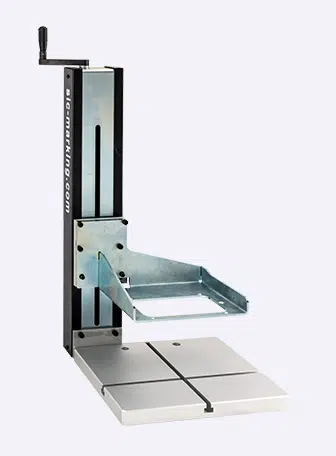

COLUMN BASE FOR PORTABLE MARKING SYSTEM
