Portable marking machine e-TOUCH EVO, dot peen integrated portable machine

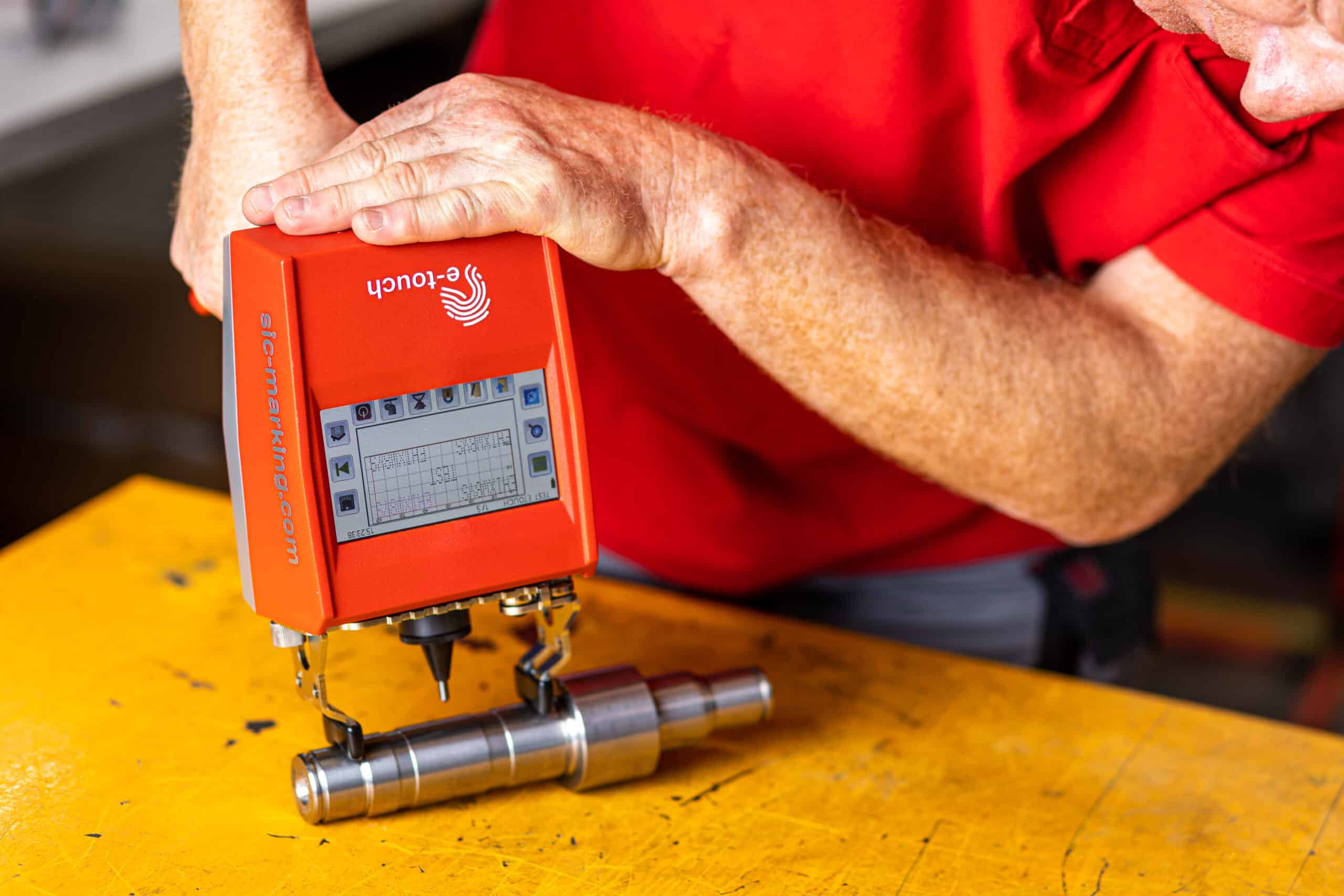

The e-TOUCH EVO is an all-in-one portable marking machine with a touchscreen. It is an economical, compact, and lightweight solution, weighing just 1.9 kg.

This dot peen marking gun features three interchangeable contact faces that can be changed without tools, allowing it to adapt to different industrial environments and marking conditions.

Its touchscreen can be operated with or without gloves, making it easy to create marking files quickly and easily.

Thanks to its dot peen marking technology and tungsten carbide stylus, it delivers durable, permanent marking of text, logos, and 2D DataMatrix codes.

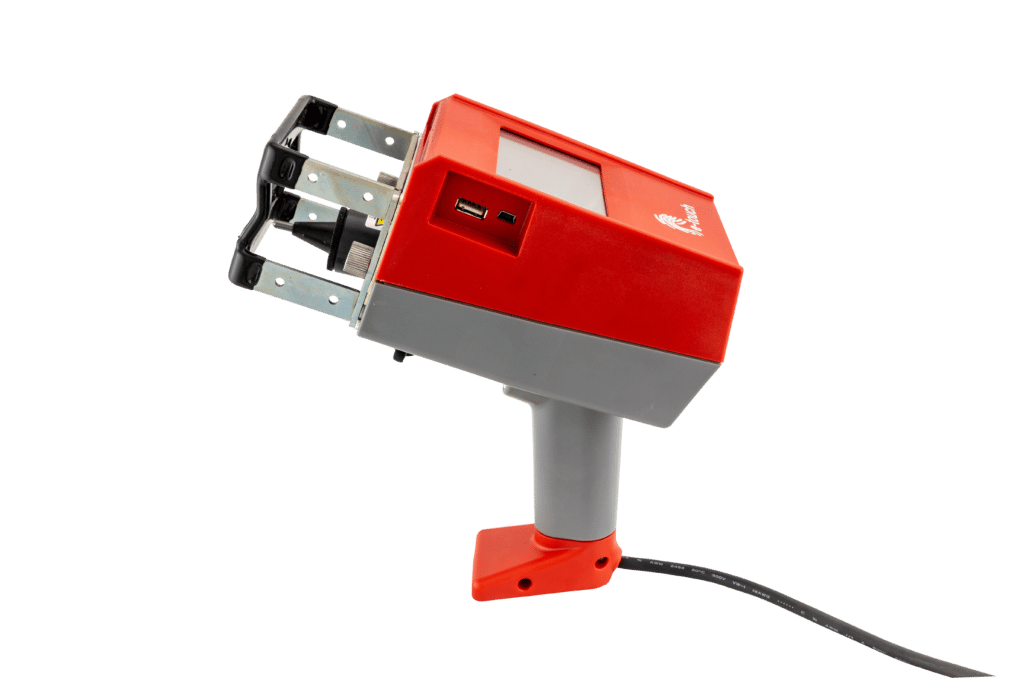

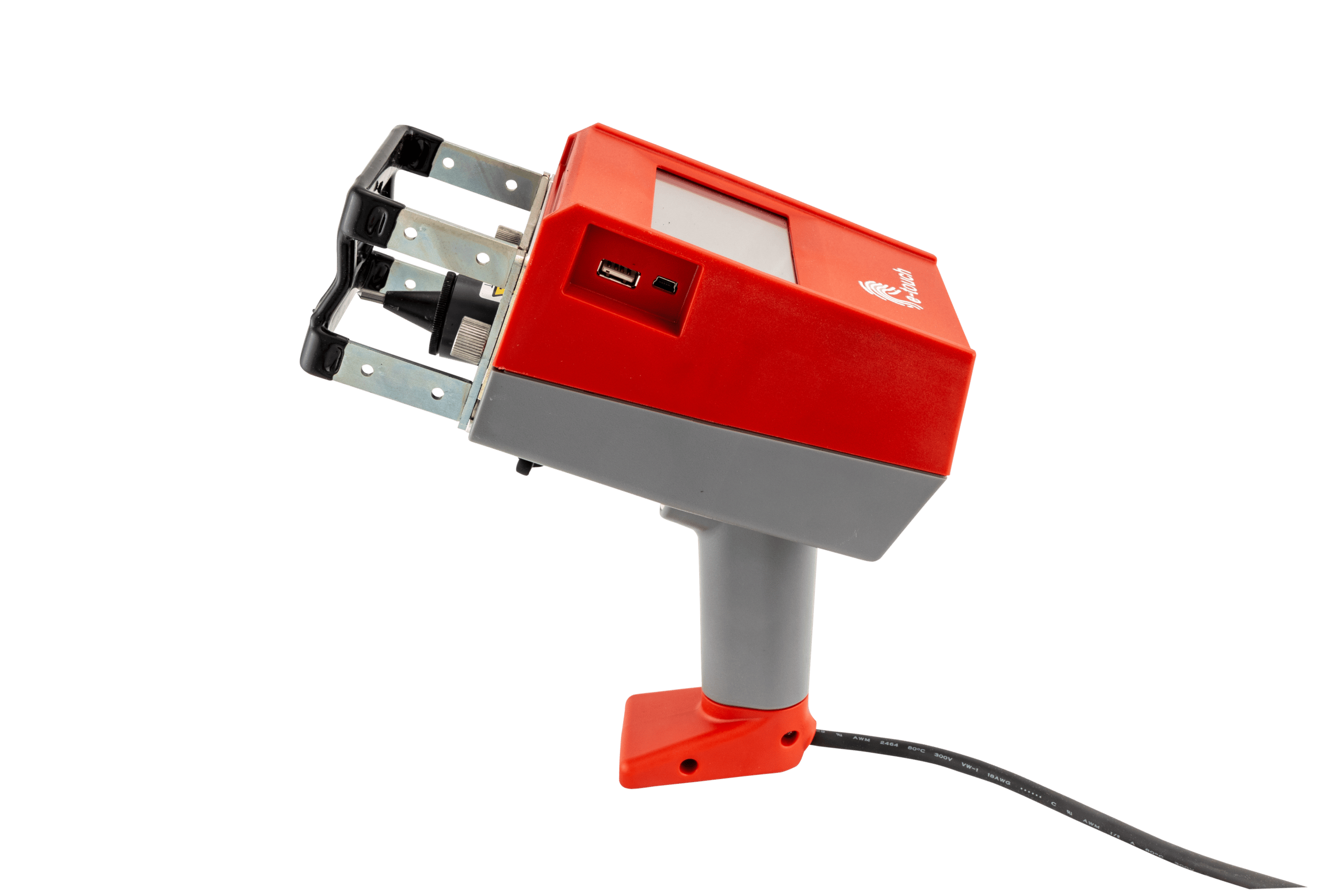

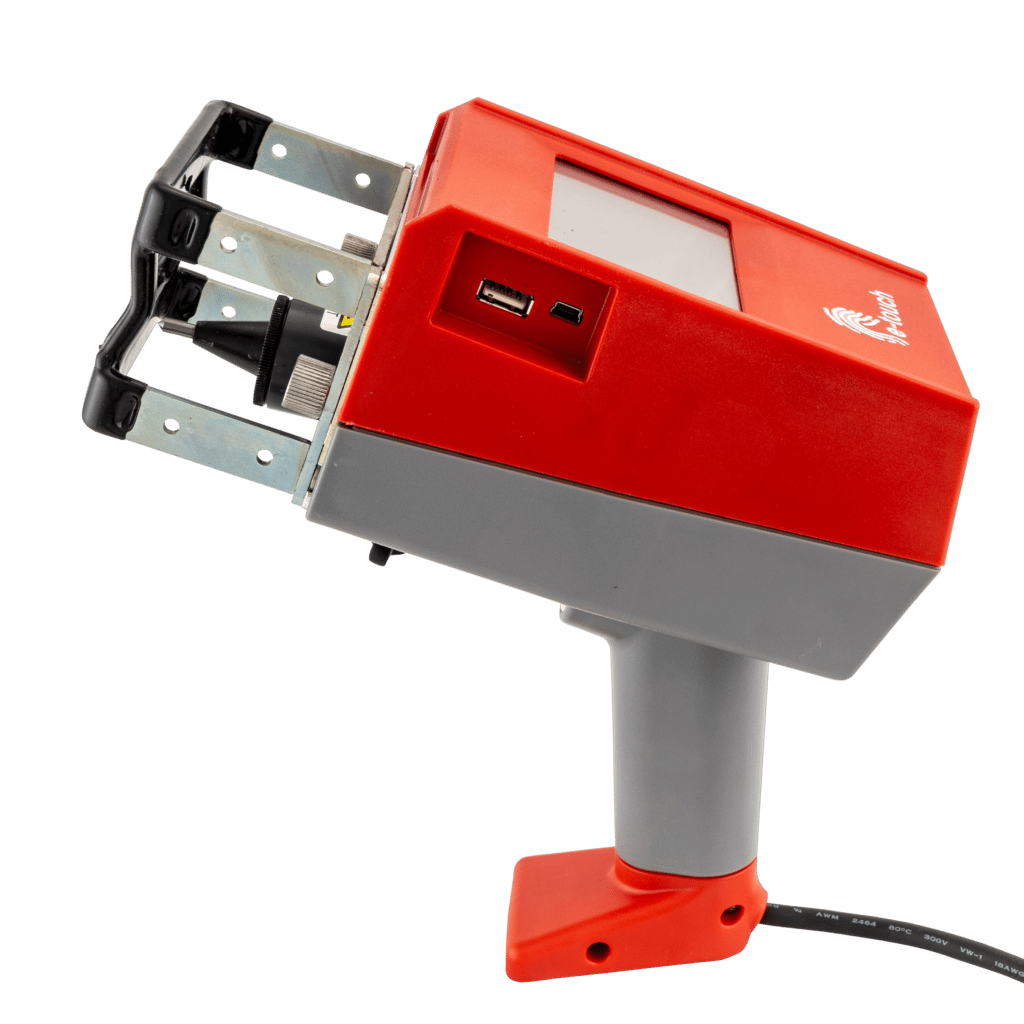

The e-TOUCH EVO handheld marking gun weighs less than 2 kg and is highly compact, measuring 220 x 210 x 125 mm. Its internal metal structure makes it robust despite its lightweight design.

An ergonomic handle and excellent weight distribution make the machine easy to handle.

Its design allows users to program the machine with both hands. The touchscreen can be operated with or without gloves, making it particularly suitable for industrial environments.

The large display allows users to preview the marking exactly as it will appear on the part.

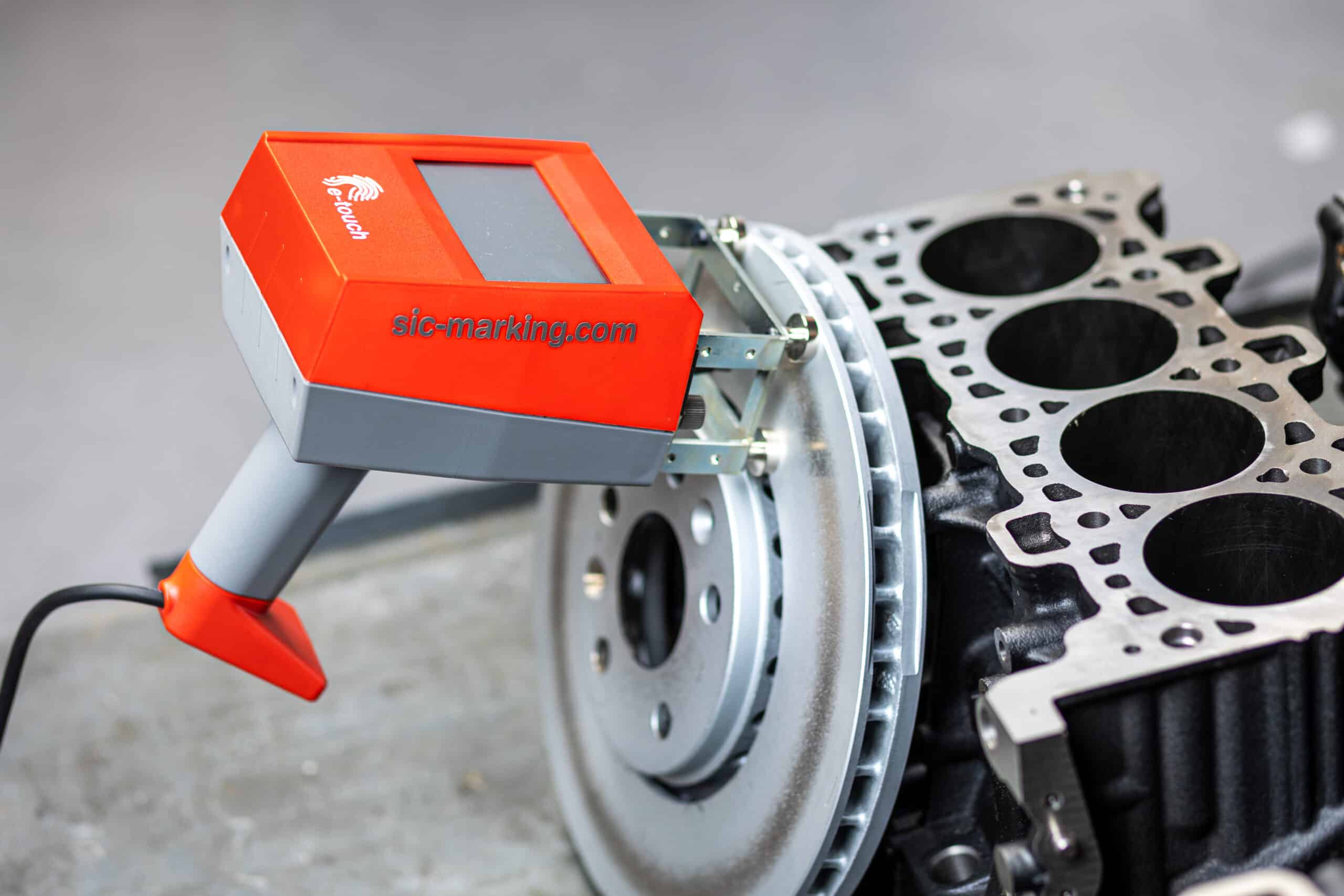

The e-TOUCH EVO portable marking machine uses dot peen technology to mark industrial parts. It can mark alphanumeric text, logos, and 2D DataMatrix codes.

Dot peen marking technology delivers reliable, permanent marking directly on the material using a tungsten carbide stylus that creates a series of impacts at a very high rate.

Power cable	5 meters
Screen	Touch-sensitive
Power	100W
Marking window	60 x 25 mm
External dimensions	210 x 125 x 220 mm
Weight	1,9 kg
Stylus	Tungsten carbide
Memory space	Over 2,000 files

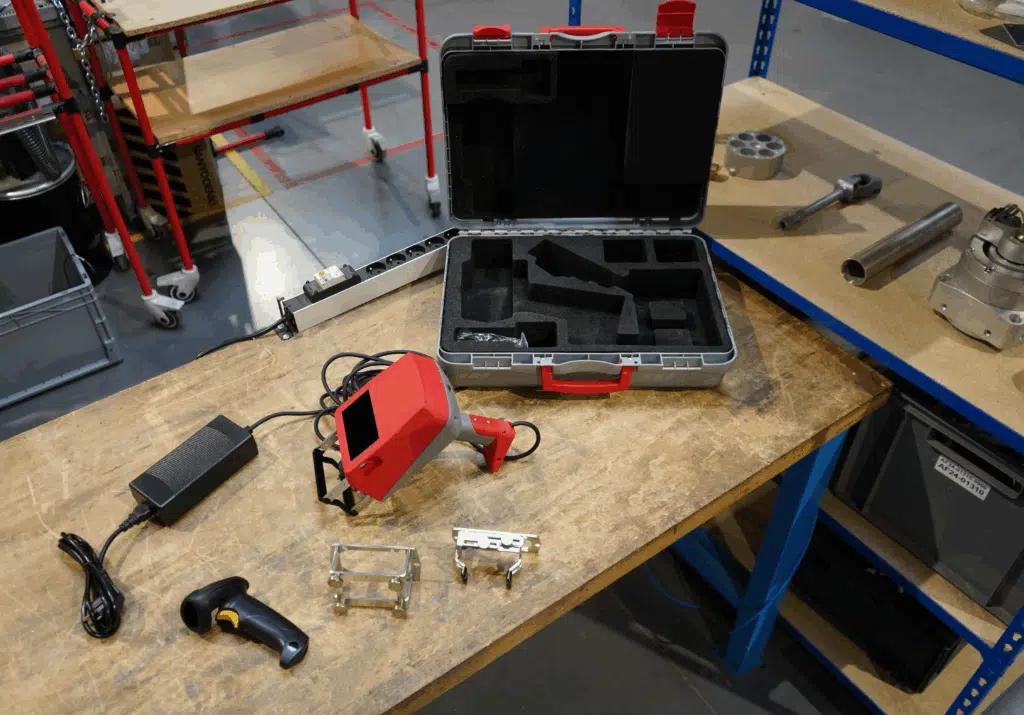

The barcode reader allows automatic and fast selection of the file and content to be marked, eliminating the possibility of input errors. It can read 1D and 2D codes, including QR and Datamatrix codes. It features a Bluetooth connection, ensuring wireless communication with the machine.

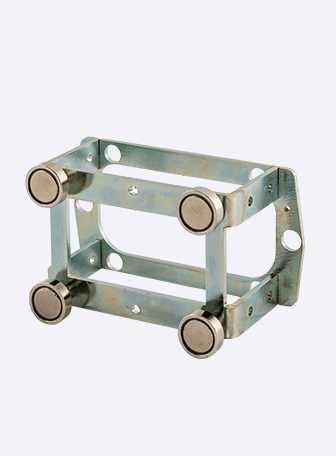

The e-TOUCH EVO has three optionally available interchangeable support faces : one with a non-slip surface, one that is smaller and adjustable, and one that is magnetic. They can be quickly exchanged without tools, allowing immediate adaptation to any part geometry, whether large, cylindrical, or with small surfaces.

The column base option transforms the portable marking gun into a stable, stationary workstation, allowing for precise positioning and easy height adjustment depending on the part. Ideal for repetitive series or small parts, it offers stability, quality, and consistency in marking, while retaining the versatility of the e-TOUCH EVO.
