Laser station XL-BOX

Large workspace
Choice of manual / motorised axes
Can be integrated into robotic cells
Marcatore Laser con Ampia Area di Lavoro XL-BOX
Description

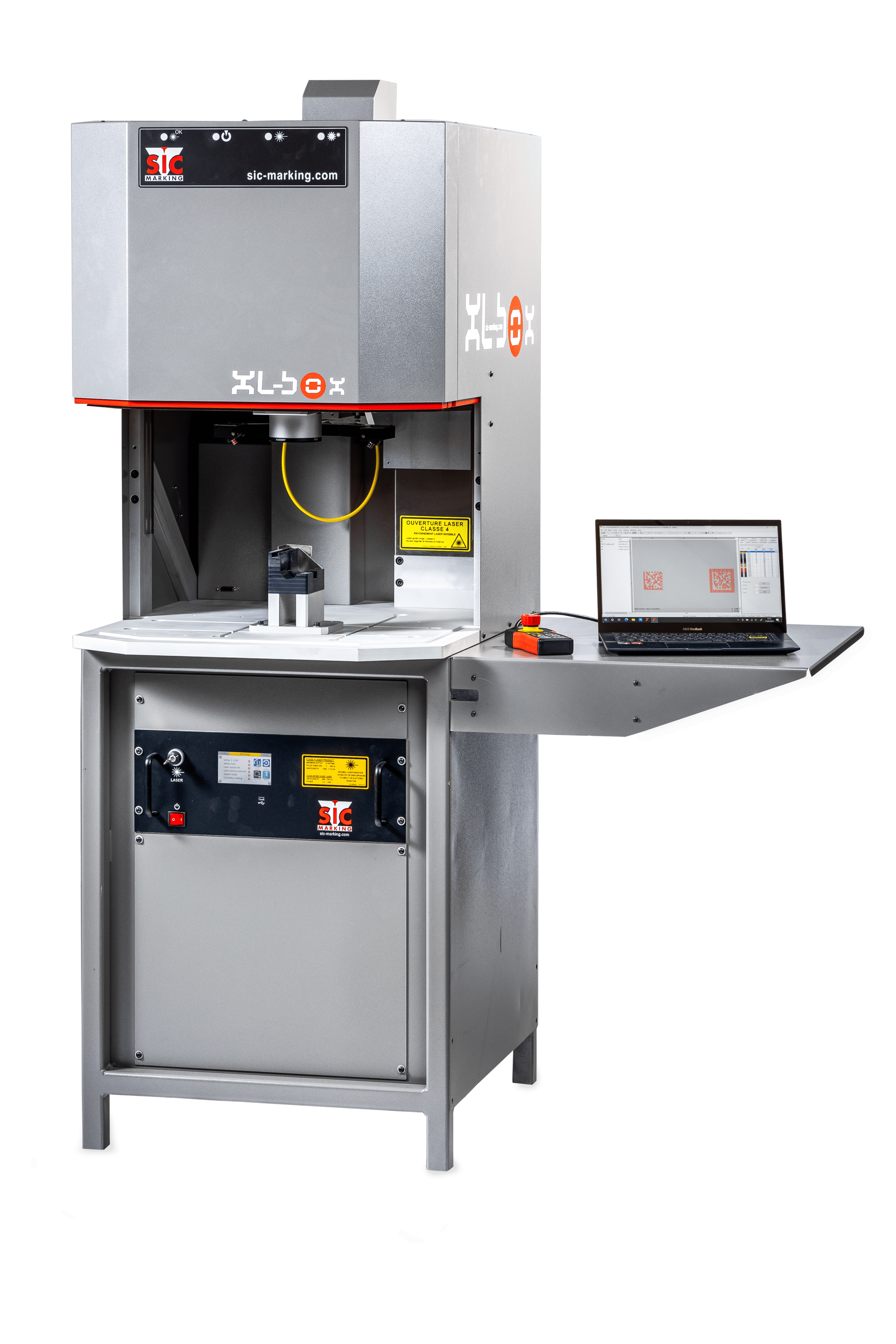

The XL-BOX is a MULTI-FUNCTION LASER MARKING STATION that can be used by an operator or integrated in a robotised cell.
The ytterbium-enhanced SIC Marking fibre laser is a latest generation technology that enables HIGH QUALITY MARKING WITHOUT AFFECTING THE MATERIAL, irrespective of the material (steel, aluminium alloy, stainless steel, titanium, plastics, etc.) and with a shorter cycle time.

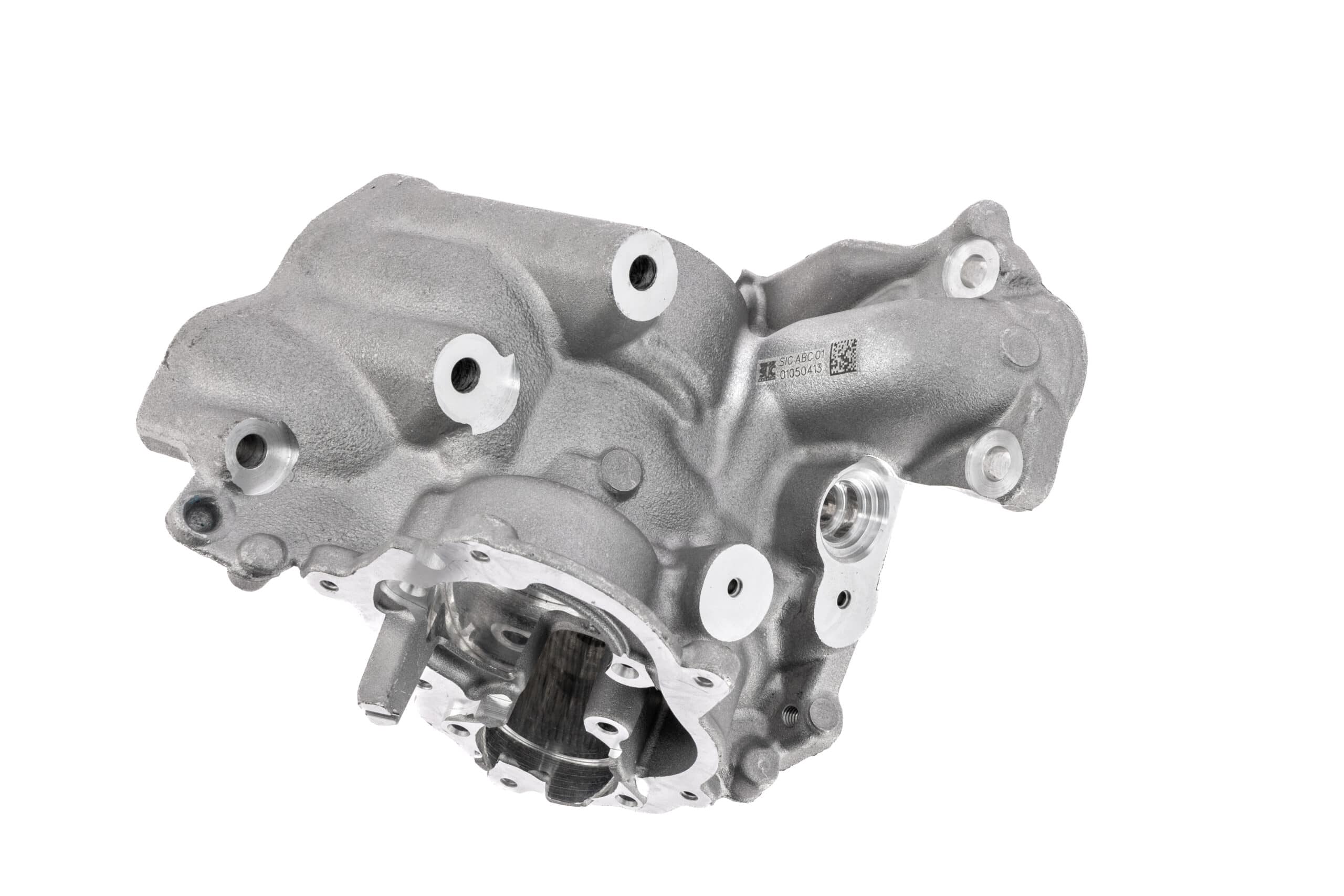

The marking may be alphanumeric codes, barcode or 2D Datamatrix codes.
The XL BOX provides HIGH CONTRAST ENGRAVING, READABLE WITH THE NAKED EYE, OR instantaneously by READING CAMERAS INTEGRAL with the station.
Small, medium and even large production runs can be marked, as the XL-BOX is designed for HIGH RATE marking.

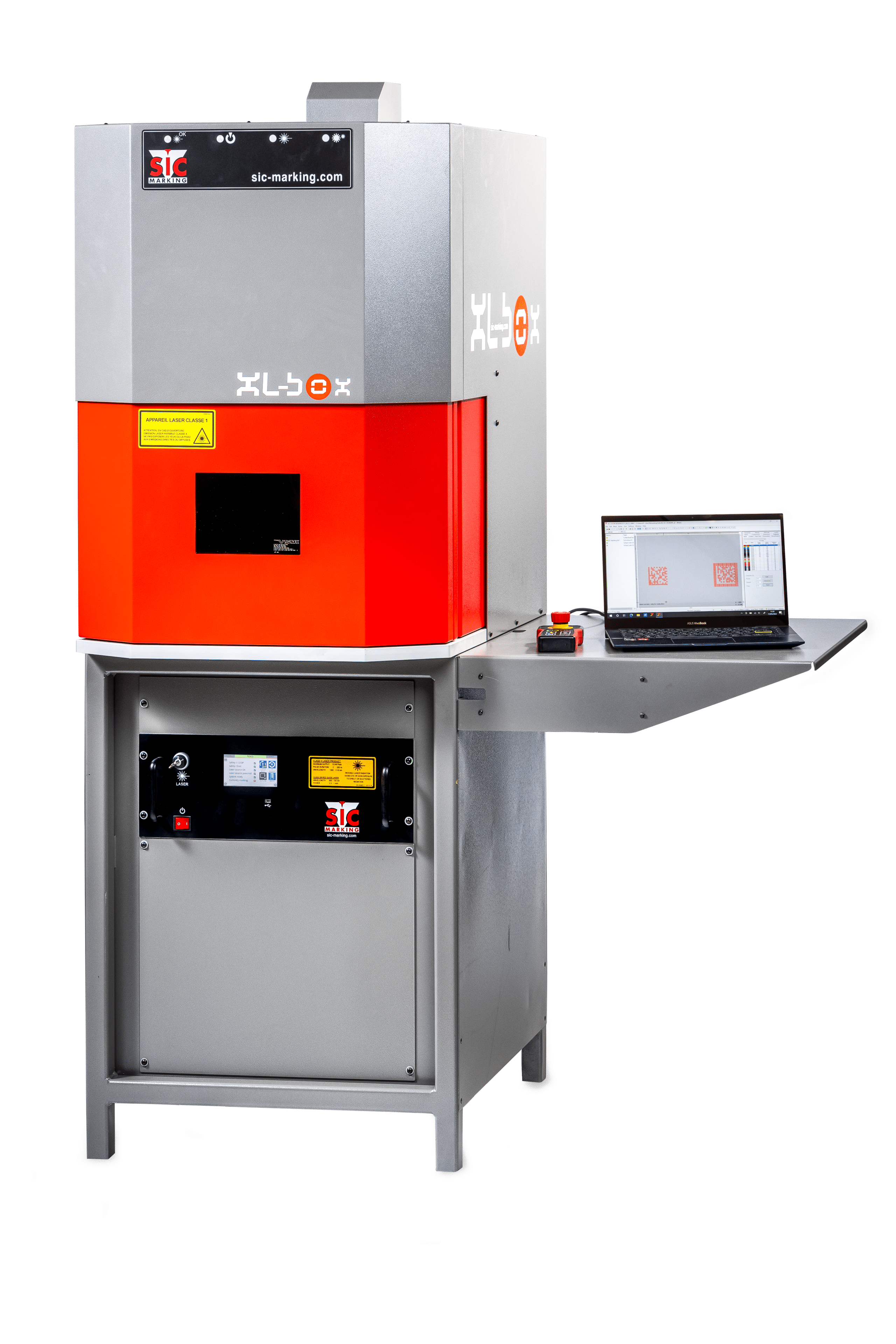

Used as a standalone unit, the station is very ROBUST AND ERGONOMIC for the operator, providing access to a VERY LARGE WORK ZONE (570*564 mm) from the 3 sides.

The UNIQUE AND INTUITIVE PRODUCTION SOFTWARE is easy to use, even for personnel without much experience in laser technology.

When the XL-BOX laser station is integrated into a robotised cell, ONLY ONE CONNECTION TO THE LASER CONTROL RACK is needed for the island PLC to manage the entire station.
The station can thus communicate marking data, open and close the automatic door to load and unload parts, start the marking or start up the fumes evacuation.

The XL-BOX equipment provides MAXIMUM SAFETY during use.
In addition to a CLASS 1 safety enclosure (standard EN 60825-1), the laser XL-BOX has a PL-E SAFETY LEVEL, WHICH IS THE HIGHEST POSSIBLE ACCORDING TO STANDARD ISO 13849-1.

The system status is indicated by LED lights in the top strip on the enclosure.

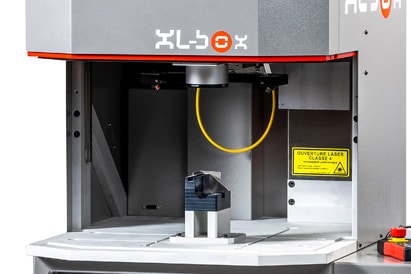

The interior of the work zone is lit up by LEDs, providing optimum working conditions for the user.

The XL-BOX is available with castors and a table for a PC.

Zoom
marquage laser

POSSIBLE OPTIONS TO ORDER

Different enclosure dimensions, specific tools, supplementary movements (Z axis, rotary axis, automatic axis), etc. may be added, to meet your own needs.

3D marking (ability to mark one or more parts of different heights) or the integral reading system are also available as options.

Mechanical specifications

Marking window

60 x 60*mm – 100 x 100 mm – 170 x 170 mm – 220 x 220*mm – 300 x 300*mm (*consult us)

Overall dimensions (l x d x h)

655 x 755 x 995 mm

Work zone

570 x 564 mm

Dimensions of parts marked

Maximum height 370 mm, Maximum length 570 mm

Security

Class 1 safe closing of enclosure (standard EN 60825-1)

Electronic specifications



Source

SIC Marking ytterbium-enhanced fibre laser

Operating procedure

Pulsed (variable frequency)

Wavelength

1064 nm

Optical fibre length

3 m

Mean power

20W, available in 30W

Focusing

Integral laser pointer

Cooling

Air cooled only

Control software





Software

SIC Laser PC

Settings

Several stylus settings (speed, power, frequency, etc.)

Font options

True Type, 1D barcode, 2D Datamatrix

Imported files

Images (.bmp, .jpg) and vector files (.plt, .dxf, .ai)

Marking

Cylindrical parts

Database function

Link with external files (.txt, .xls)

Input / Output

Integral

Utilisation

Create and edit marking files (drawing, text, barcode, Datamatrix, etc.)

Options

ROTARY D-AXIS

INTEGRATED READ FUNCTION

SIC FACTORY AUTOMATION SOFTWARE
