XL BOX laser marking machine, XL BOX large-format laser engraving station

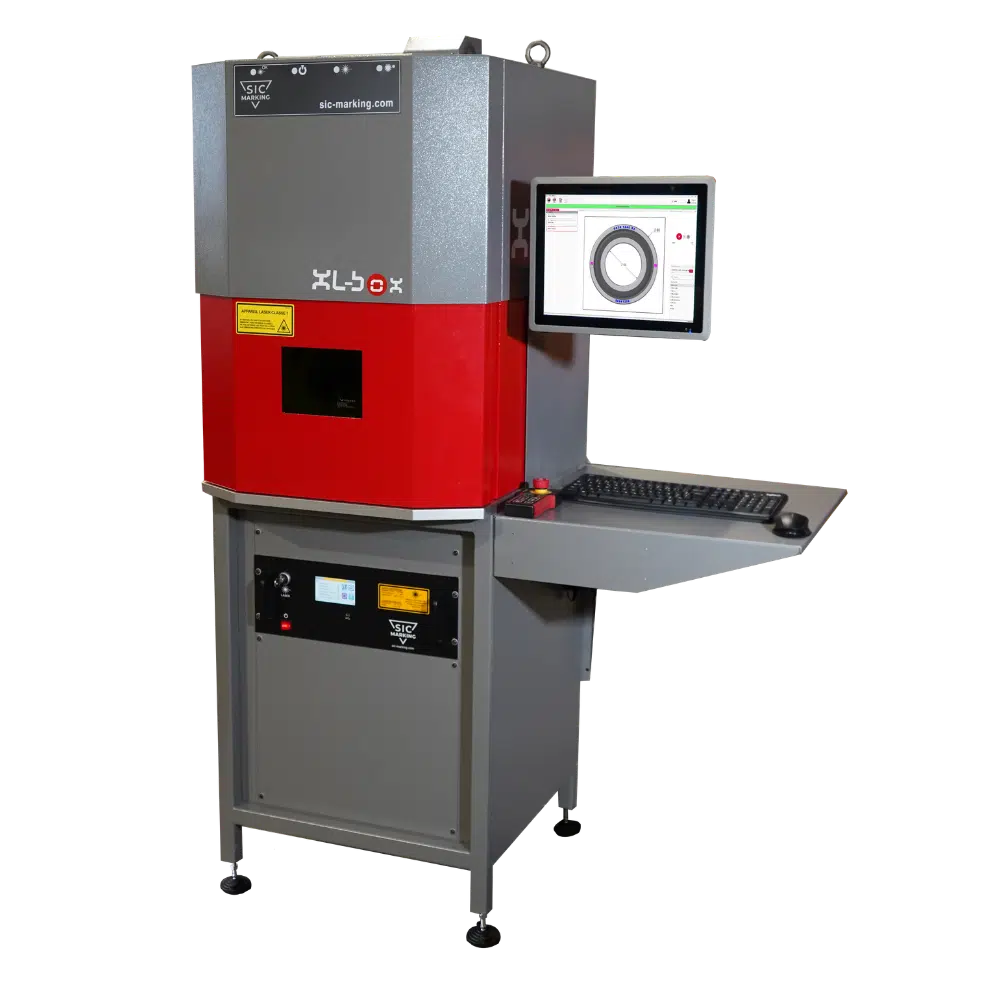

The XL-BOX is a versatile laser marking machine and laser marking station that can be operated manually or integrated into a robotic cell. SIC MARKING’s ytterbium-doped fiber laser uses next-generation technology to deliver high-quality marking without damaging the material, regardless of the material being marked, including steel, aluminum, stainless steel, titanium, and plastics. It also helps reduce cycle times.

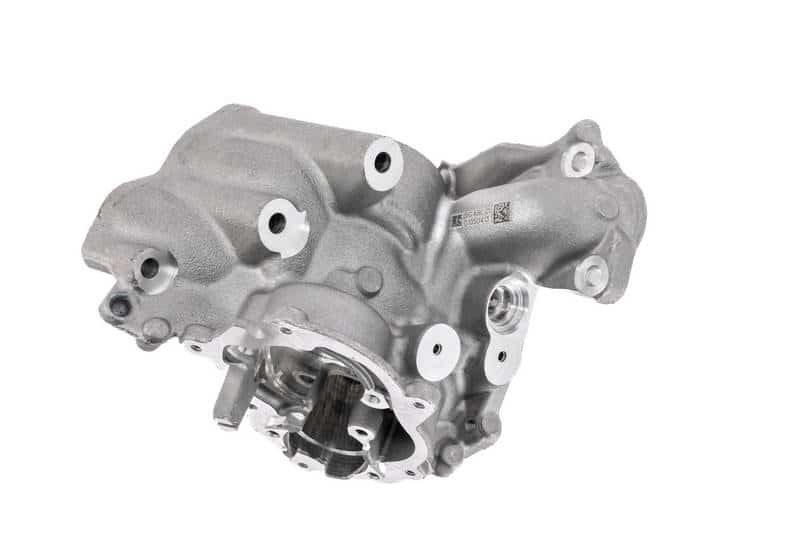

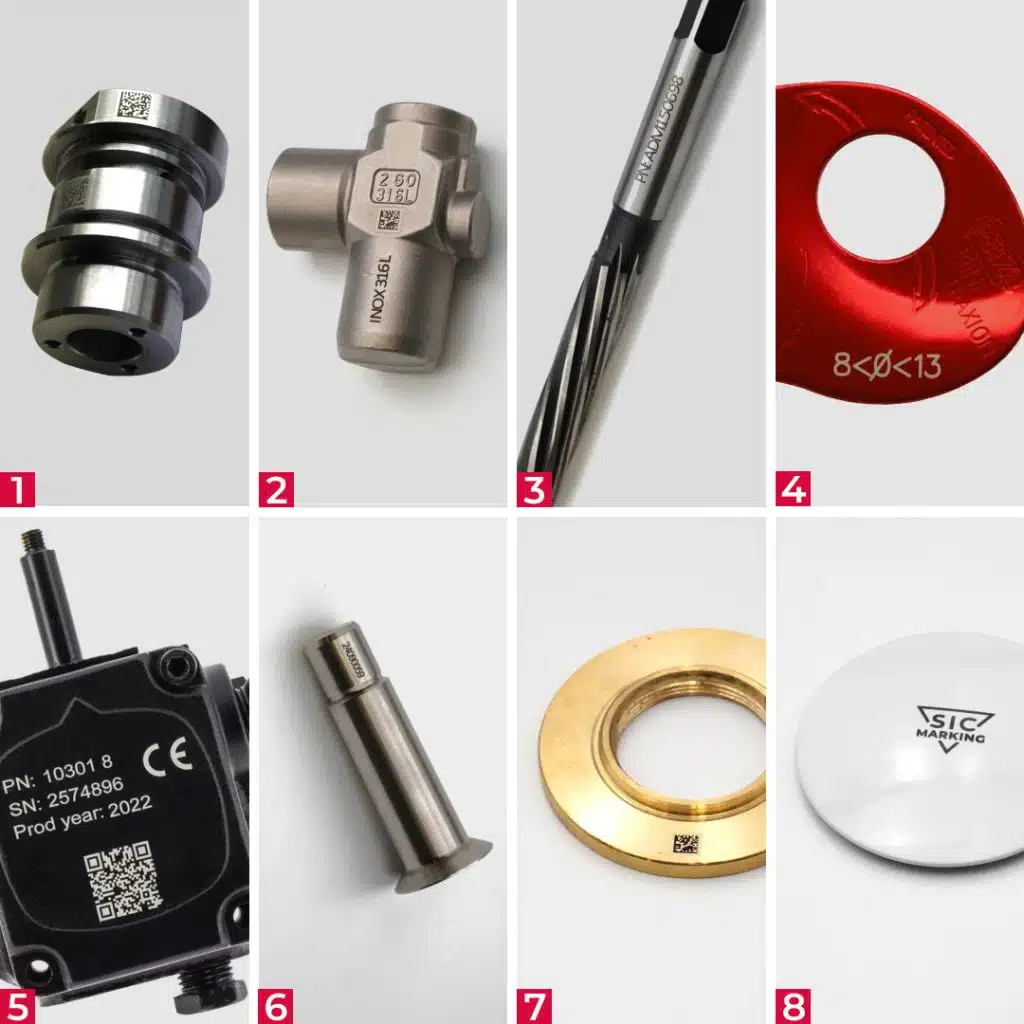

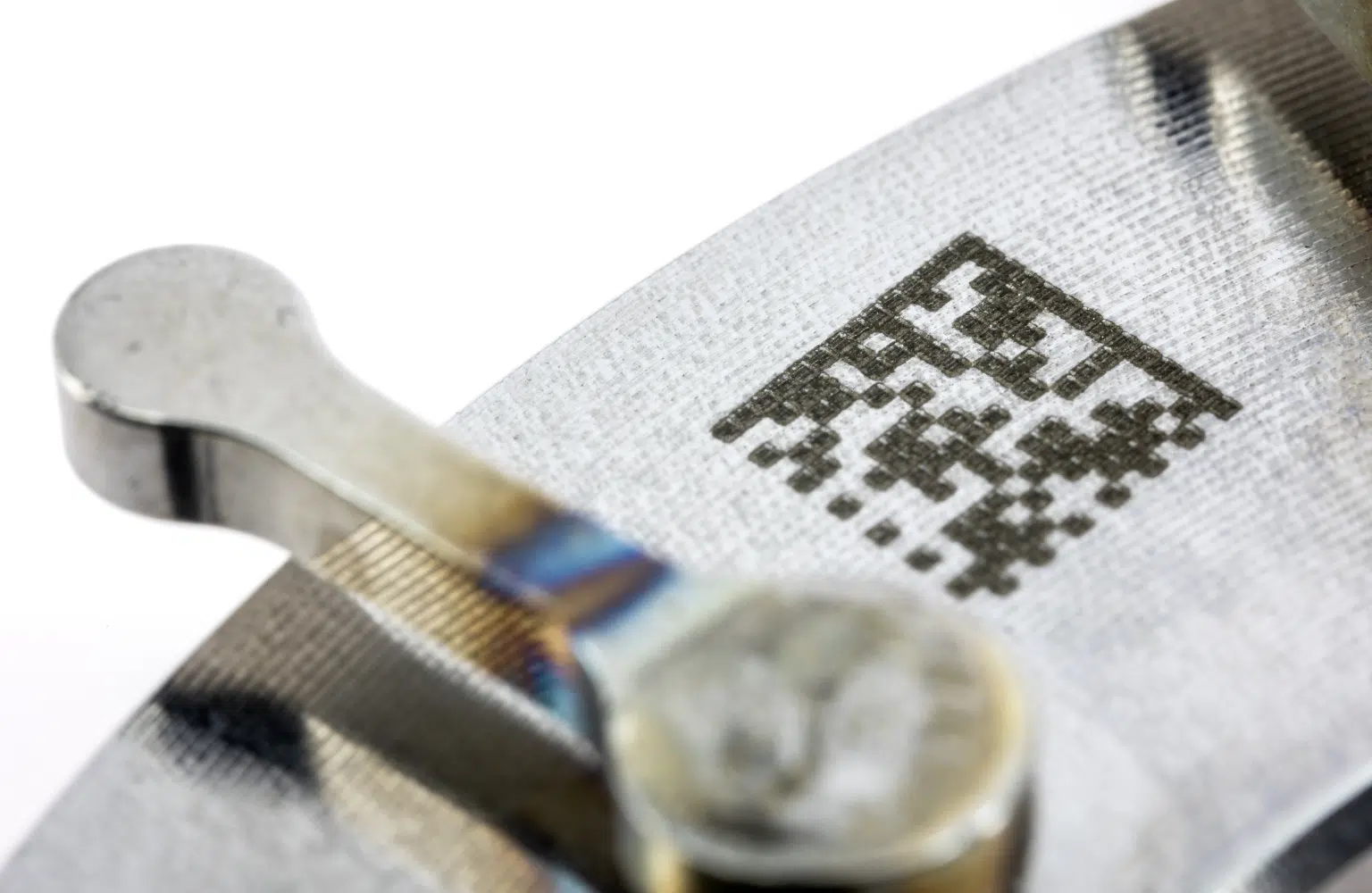

The XL-BOX can mark alphanumeric codes, barcodes, and 2D DataMatrix codes. It produces high-contrast engravings that are readable by the naked eye or instantly by integrated code-reading cameras. Suitable for small, medium, and large production runs, the XL-BOX is designed for high-speed marking.

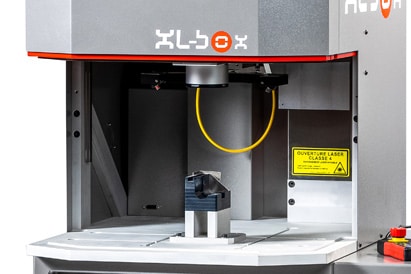

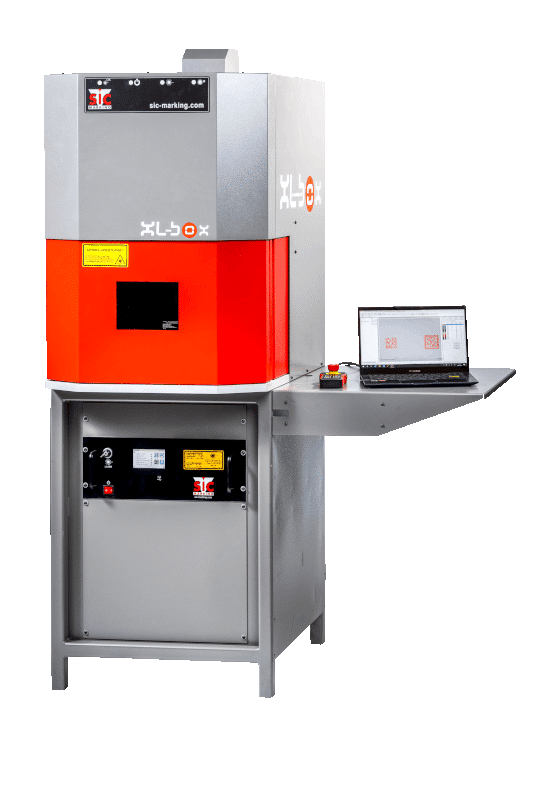

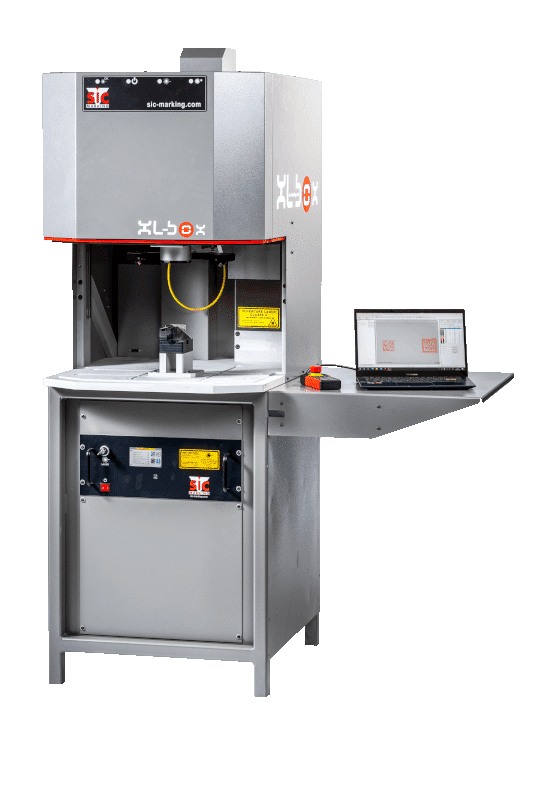

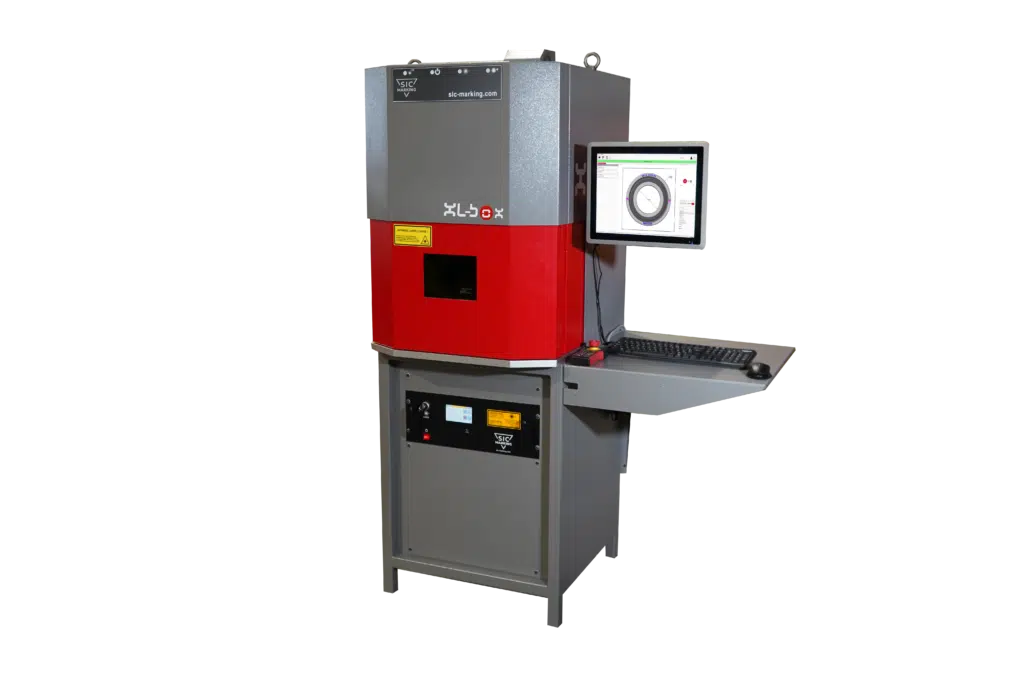

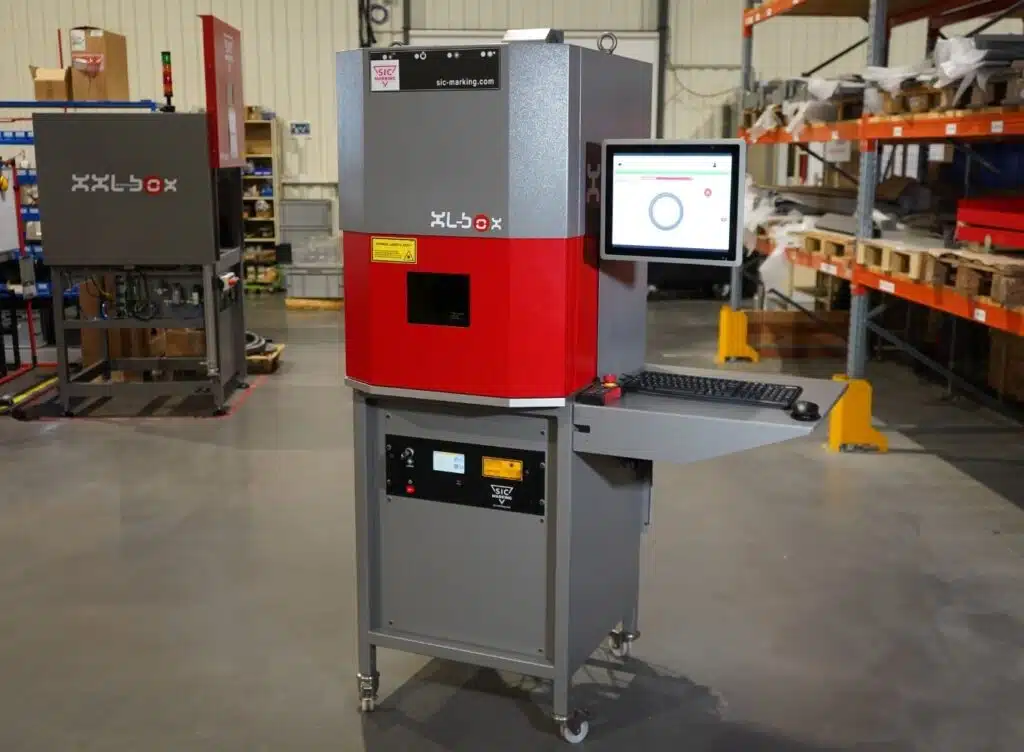

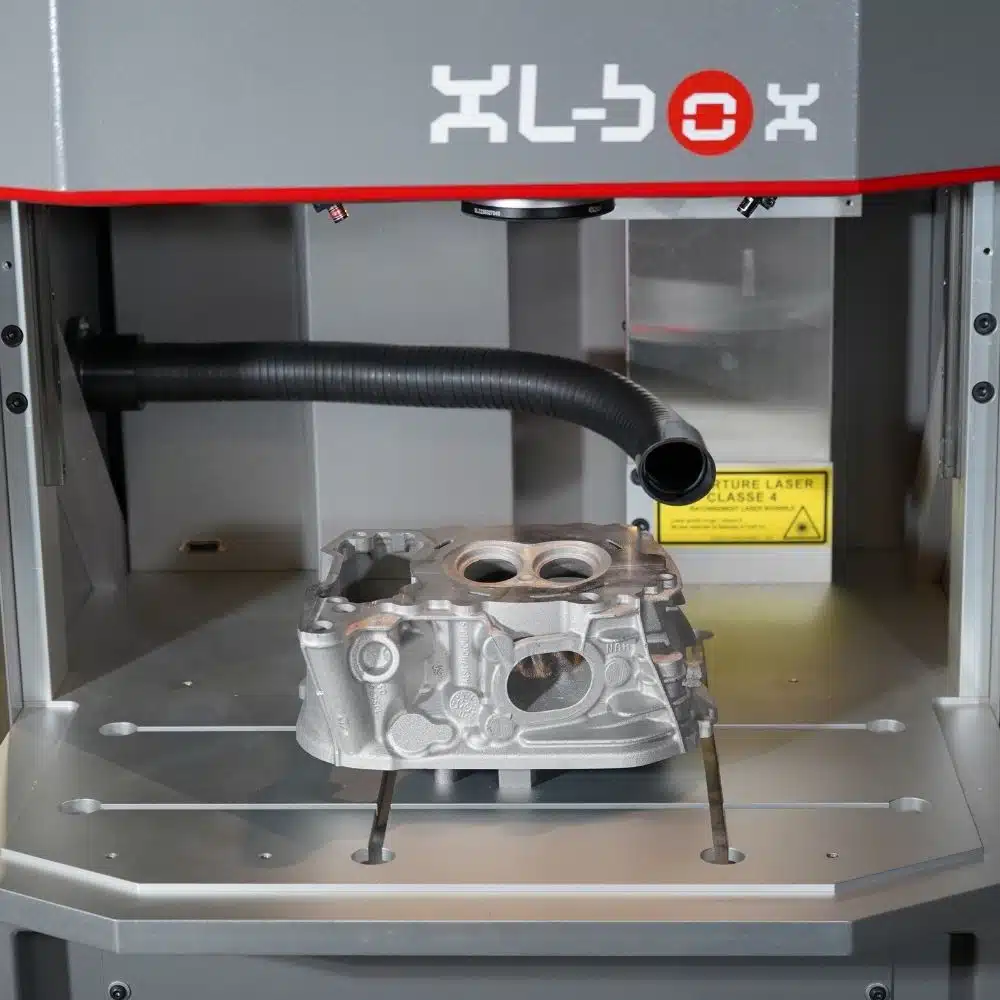

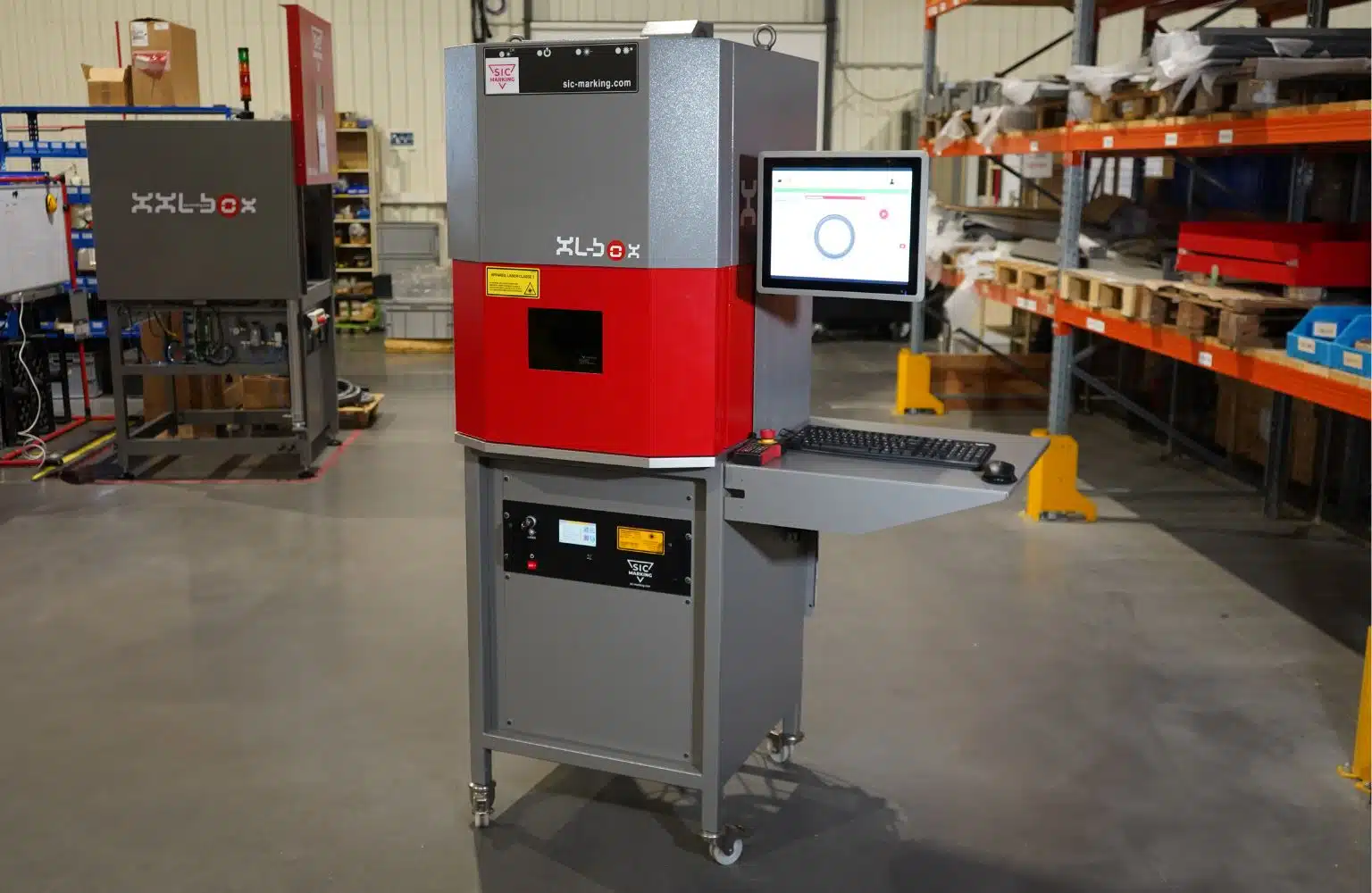

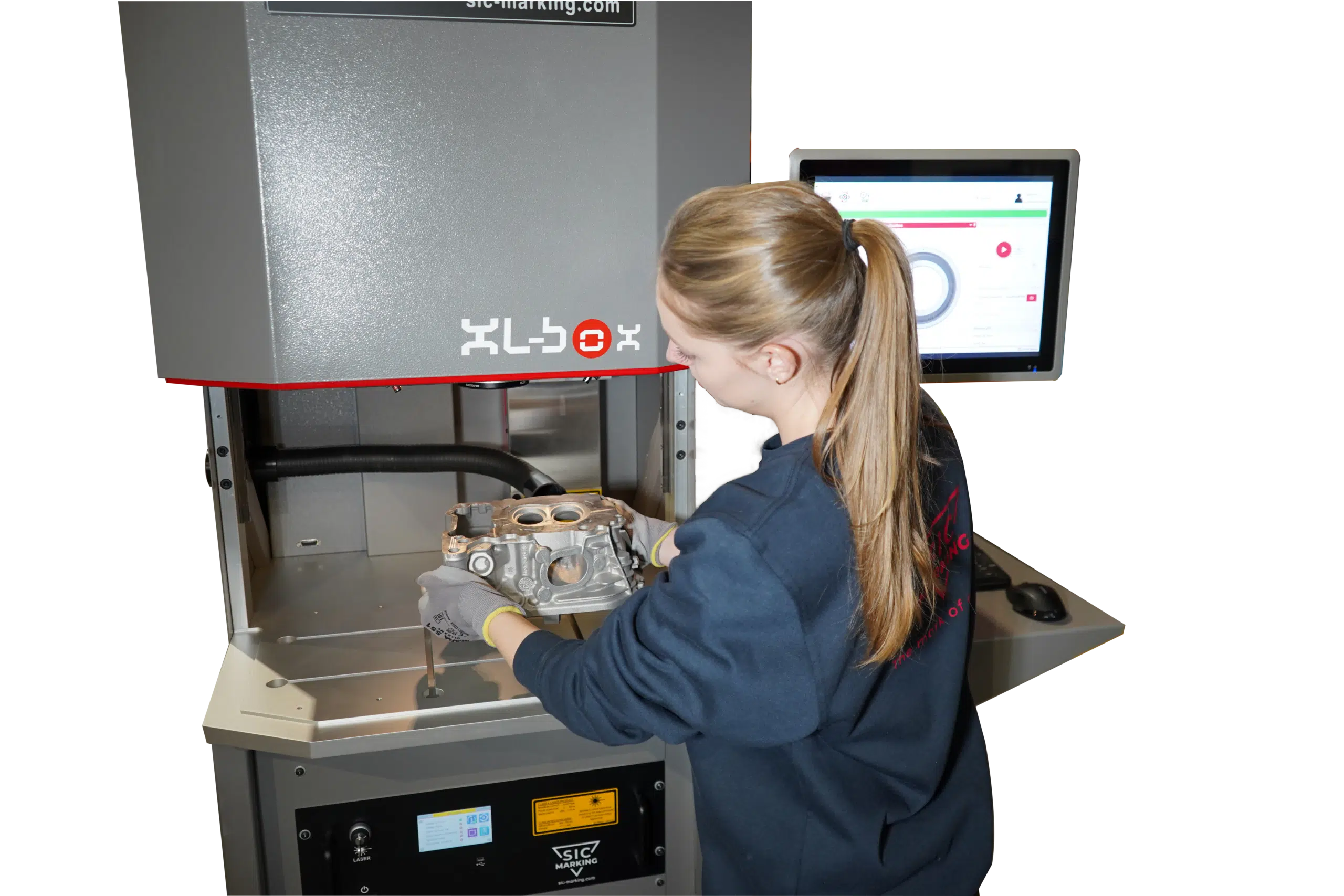

When used as a standalone workstation, the station is robust and ergonomic, providing operators with access to a large work area from three sides.

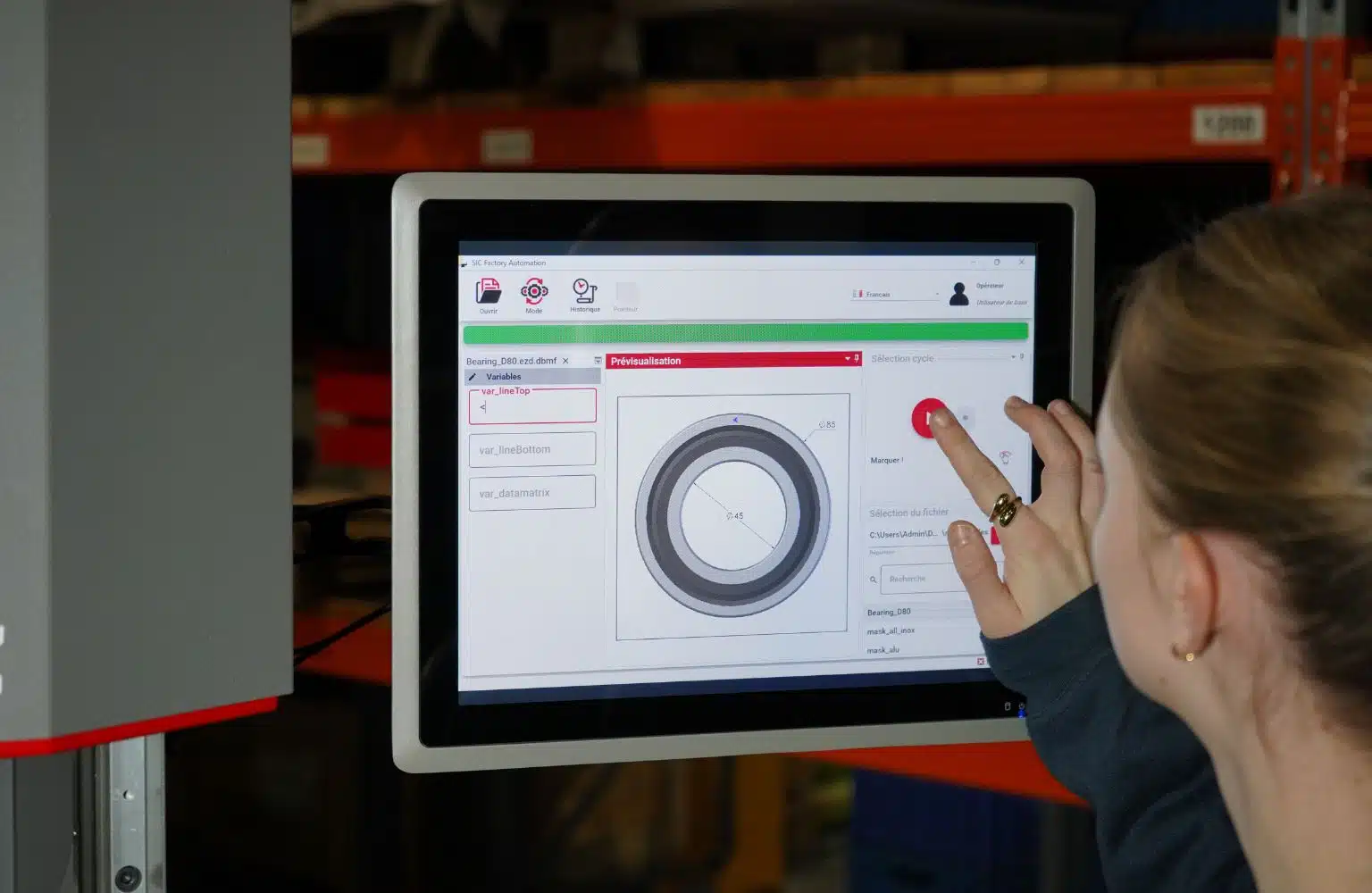

Its unique, intuitive production software is easy to use, even for personnel with limited experience in laser technology.

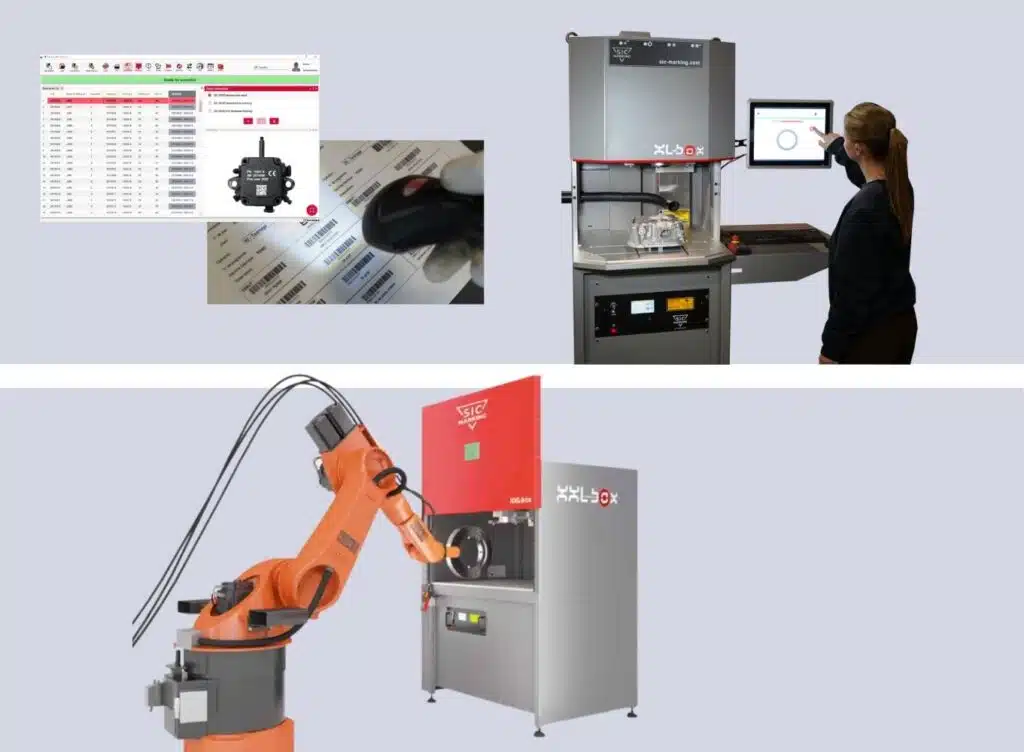

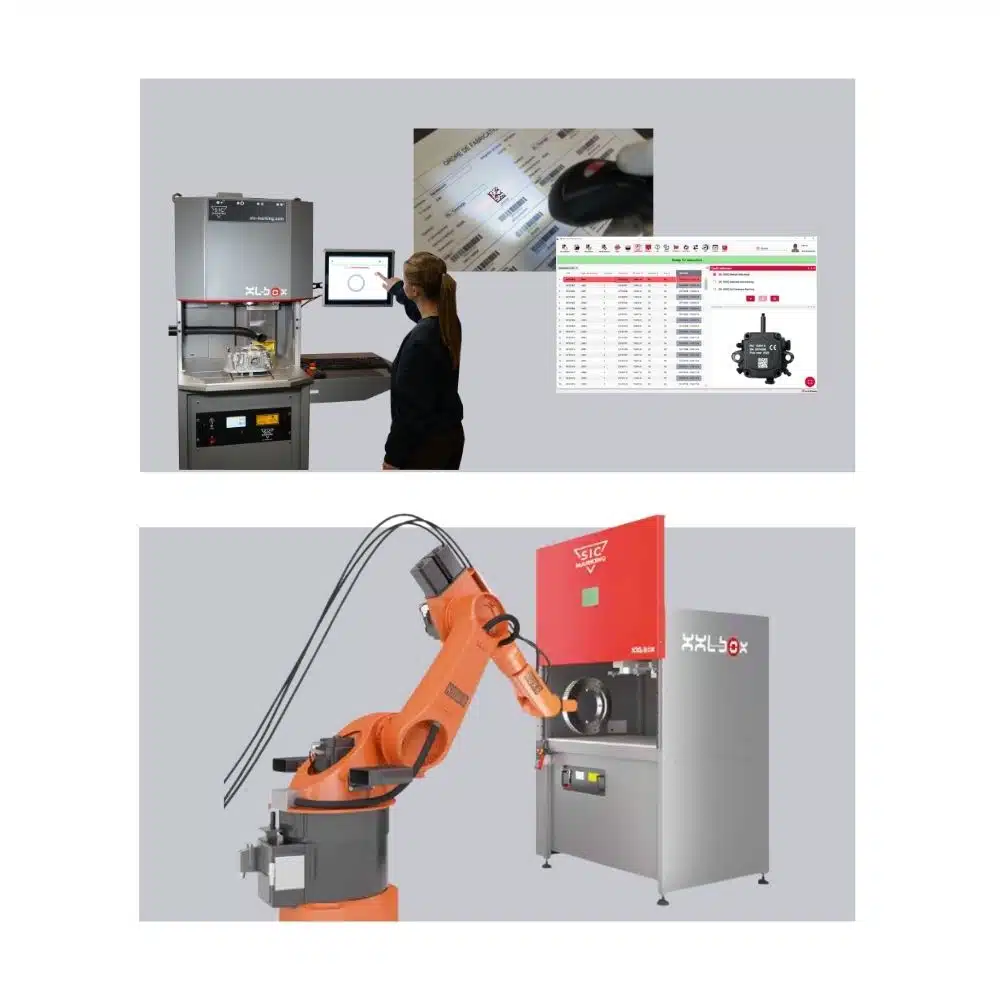

When the XL-BOX laser marking station is integrated into a robotic cell, a single connection to the laser control rack allows the cell’s PLC to manage the entire station. It can transmit marking data, open and close the automatic door for loading and unloading parts, start the marking cycle, and activate the fume extraction system.

The XL-BOX is equipped to provide maximum safety during operation. In addition to a Class 1 safety enclosure compliant with EN 60825-1, the XL-BOX laser system offers Performance Level e (PL e), the highest level specified by ISO 13849-1.

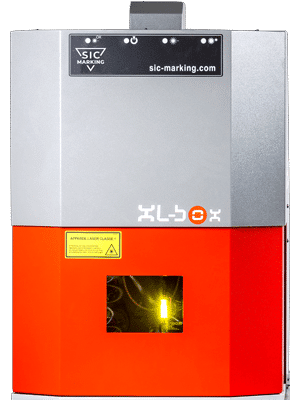

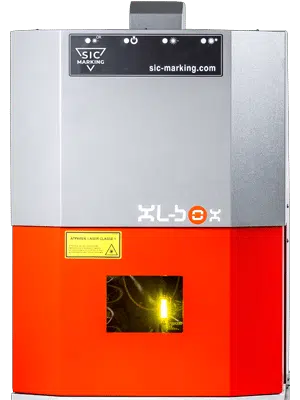

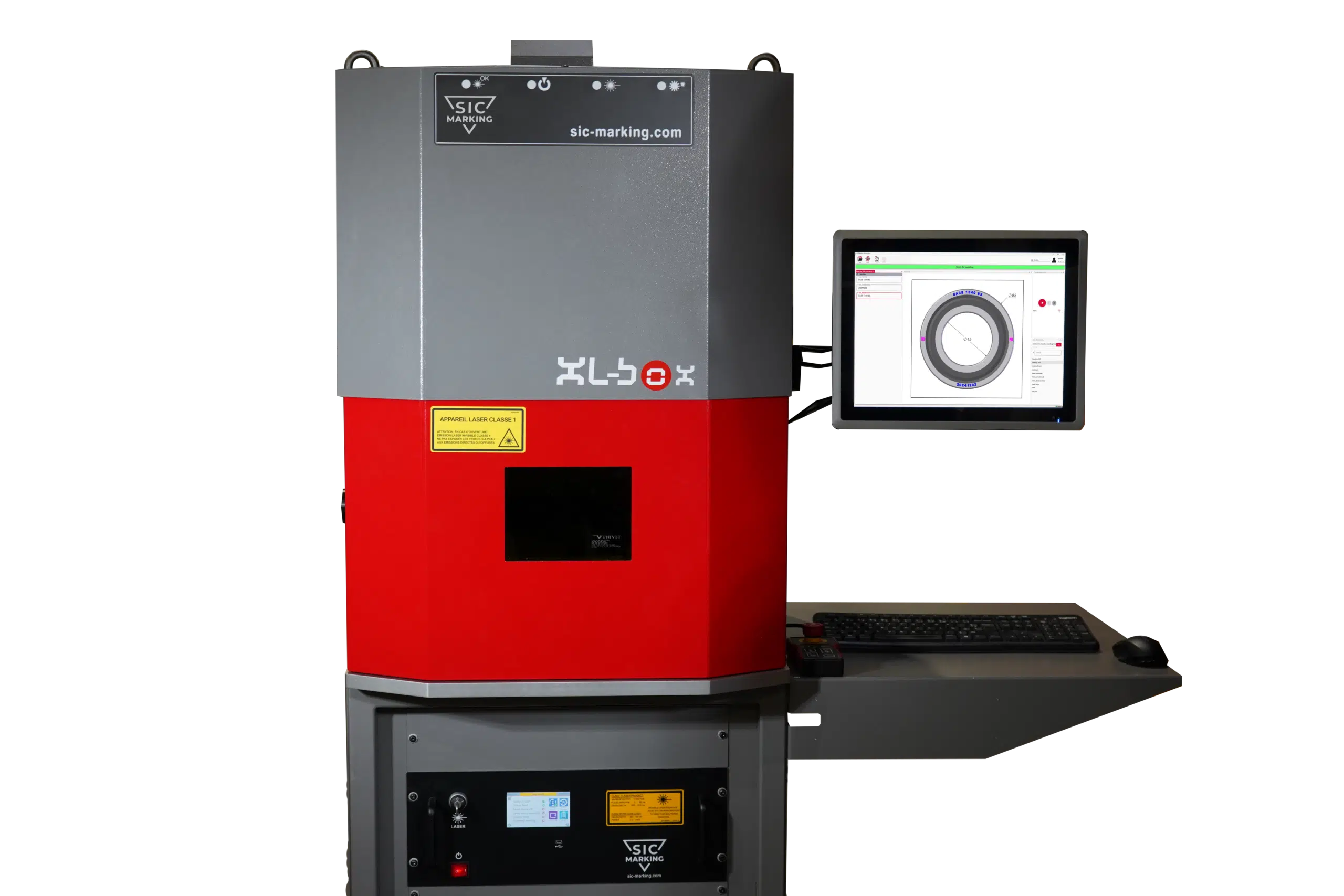

LED indicators integrated into the upper enclosure strip display the system status. LEDs also illuminate the inside of the work area to provide optimal working conditions for the operator.

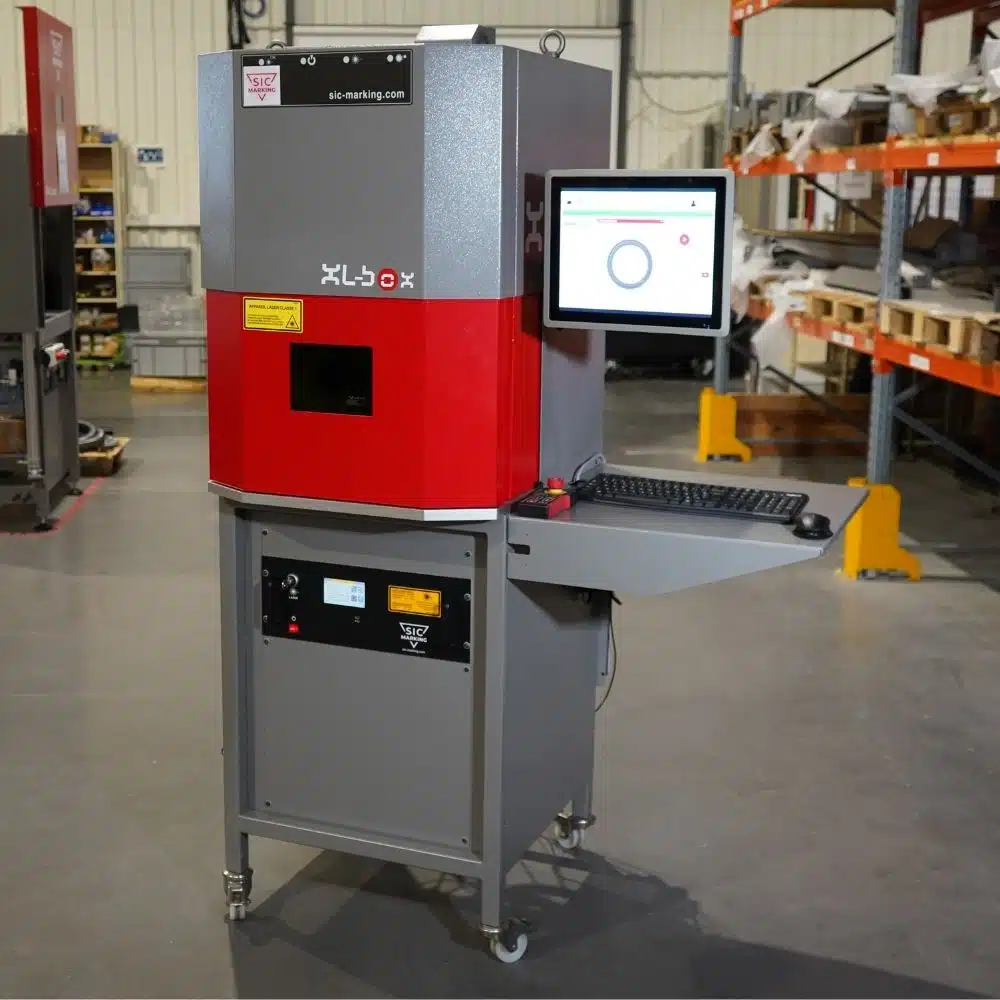

The XL-BOX is available with optional casters and a PC shelf. This laser marking station provides a solution tailored to industrial marking requirements, whether used as a standalone workstation or integrated into a production line.

Marking window	60 x 60mm - 100 x 100 mm - 170 x 170mm - 220 x 220mm - 300 x 300mm (consult us)

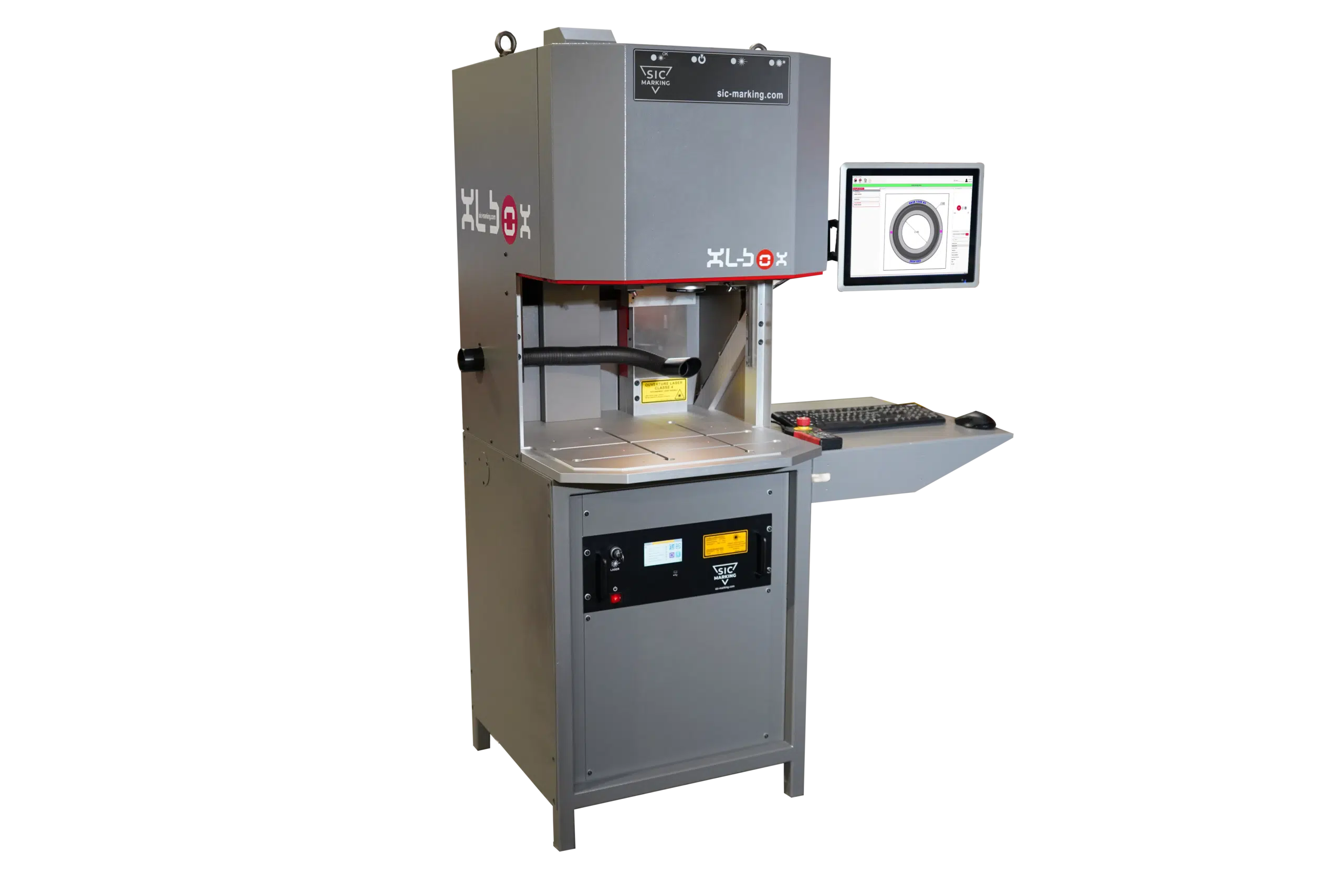

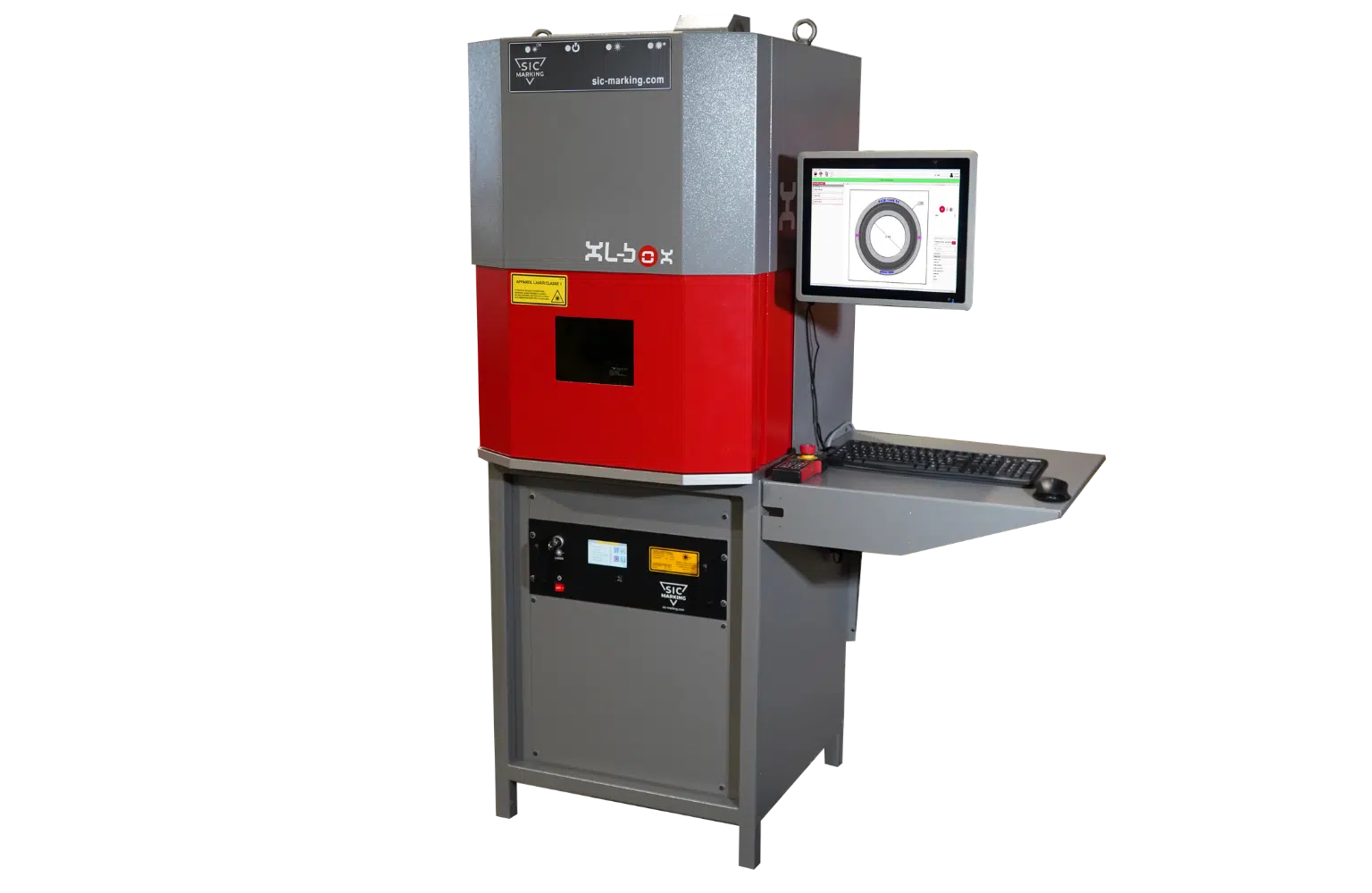

Overall dimensions (l x d x h)	655 x 755 x 995 mm

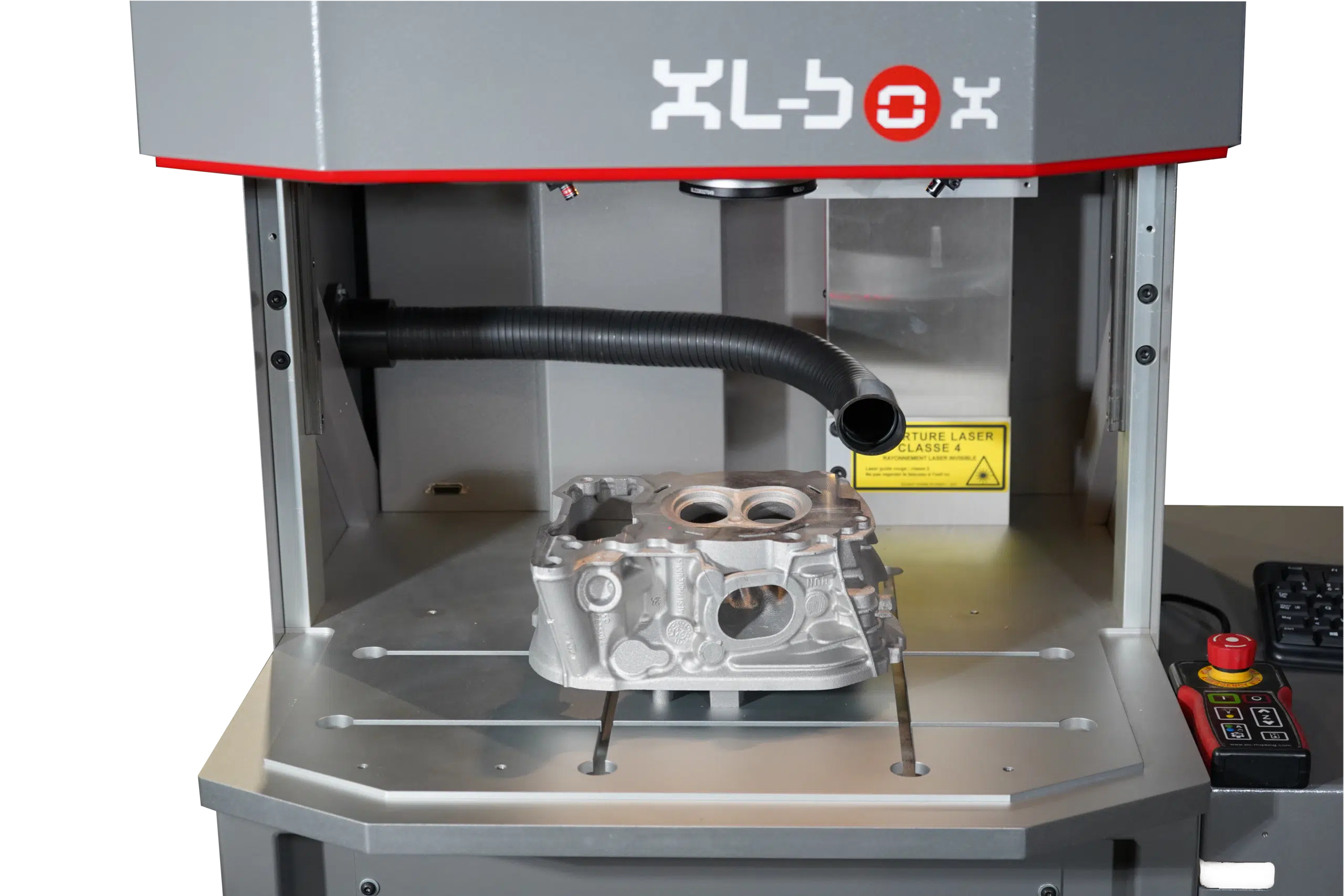

Dimensions of parts marked	Maximum width: 570 mm, maximum depth: 564 mm, maximum height: 240 to 445 mm depending on the marking window (*contact us)
Security	Class 1 safe closing of enclosure (standard EN 60825-1)
Source	SIC Marking ytterbium-enhanced fibre laser
Operating procedure	Pulsed (variable frequency)
Wavelength	1064 nm
Optical fibre length	3 m
Mean power	20W, available in 30W
Focusing	Integral laser pointer
Cooling	Air cooled only
Software	SIC Laser PC
Settings	Several stylus settings (speed, power, frequency, etc.)

The barcode reader allows automatic and fast selection of the file and content to be marked, eliminating the possibility of input errors. It can read 1D and 2D codes, including QR and Datamatrix codes. It features a Bluetooth connection, ensuring wireless communication with the machine.

The integrated reading function allows automatic replay of 2D and 3D codes. Once the cycle is started, these are immediately read in the same program sequence without any additional movement. The reader communicates the read result with an evaluation of the code quality. The proposed system allows a reading of the code whatever its position in the marking window.

The 3D marking function gives the possibility to mark in a volume at more or less 40 mm from the focal plane. The marking quality and the laser speed are maintained. This function also allows a quick change of reference in the case of parts with variable height.

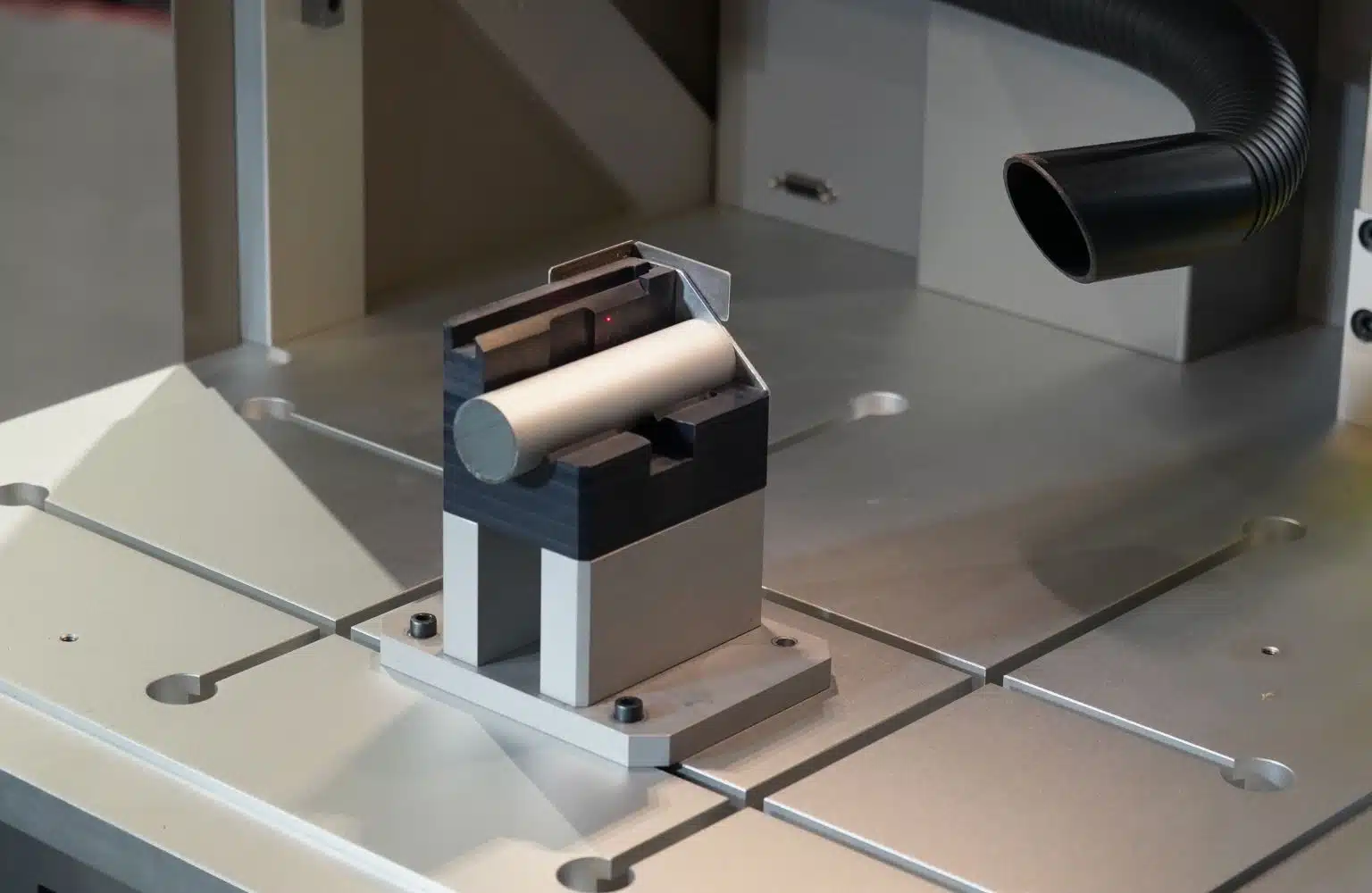

The rotary axis enables marking on cylindrical or series parts in rotation, ensuring precise and uniform marking across the entire surface. It optimizes productivity by automating the marking process without manual repositioning.

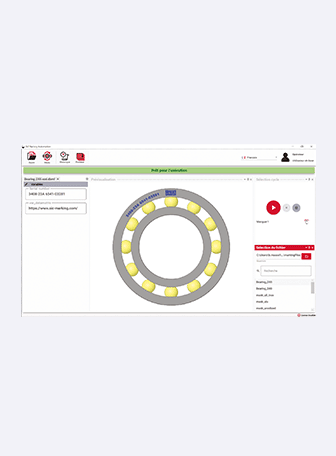

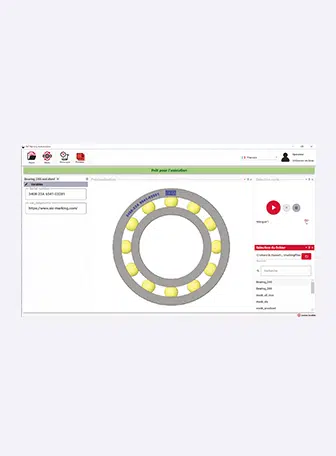

This integrated management software simplifies the automation of marking tasks. It provides complete control over machines, production data management, and workflow optimization to improve productivity and reduce human errors.

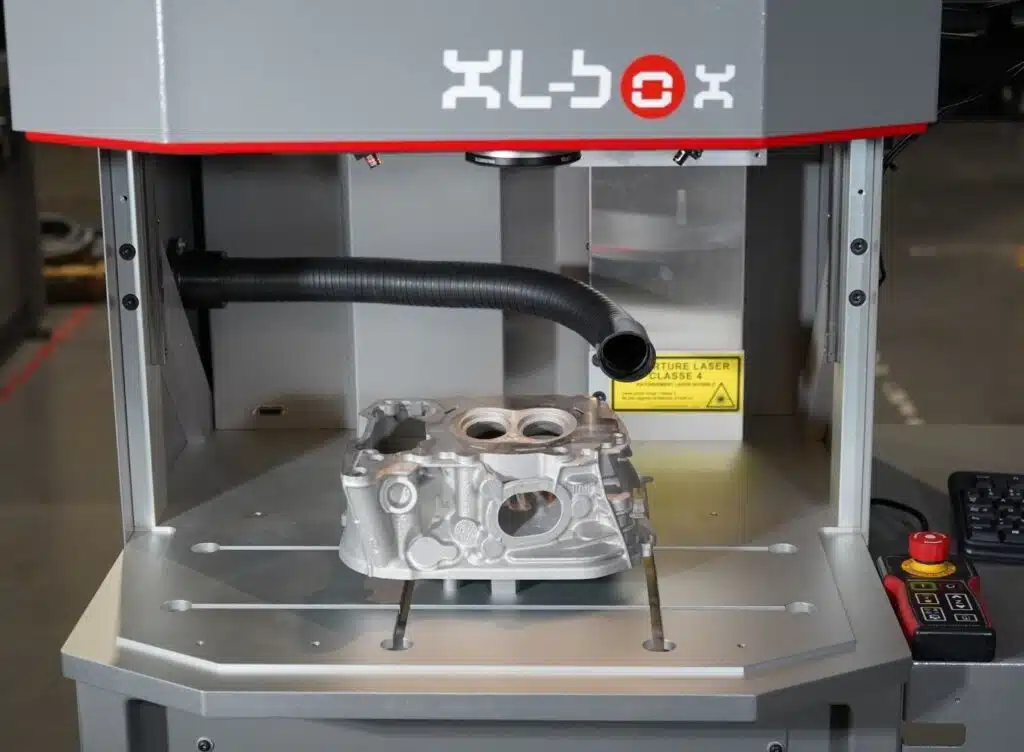

The fume extractor is essential for protecting operators from emitted fumes and maintaining optimal marking quality. It effectively removes particles and fumes generated during laser marking, preventing accumulation on parts or lenses. By safeguarding operators and equipment, it extends system lifespan and complies with industrial safety standards.
