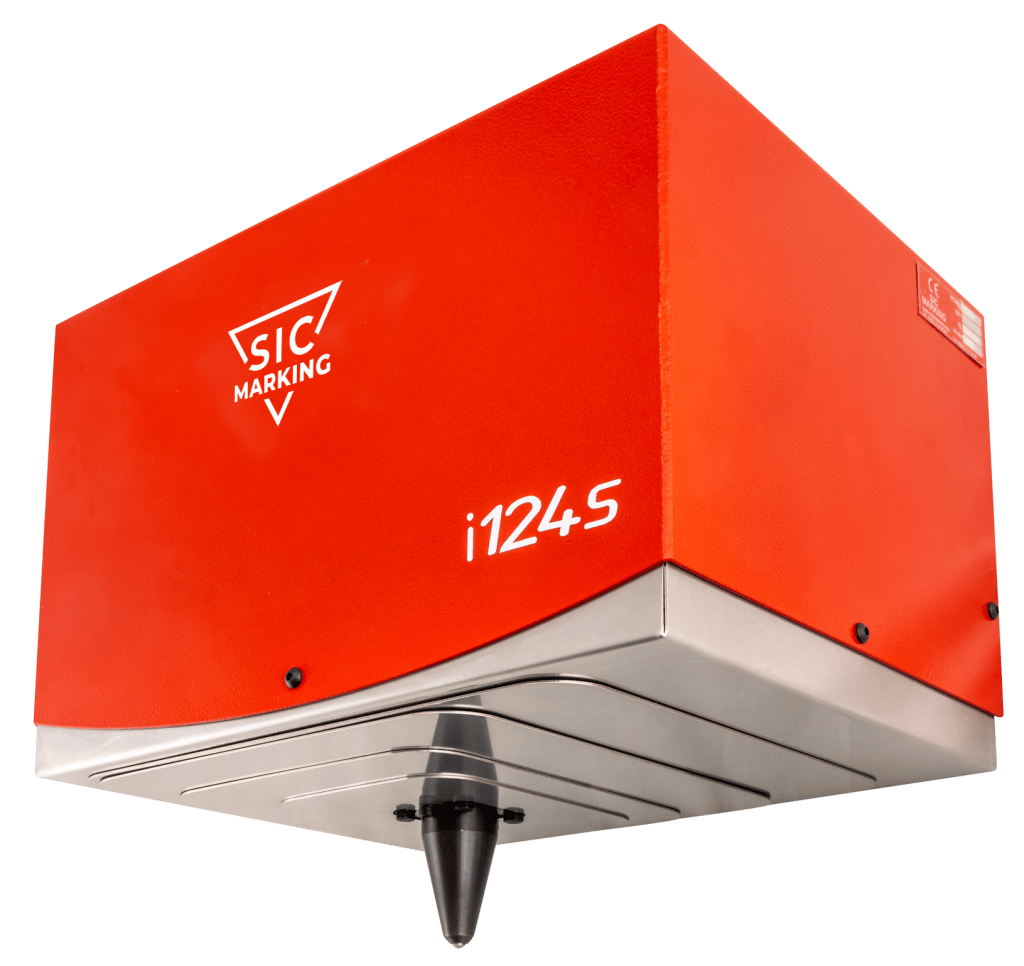

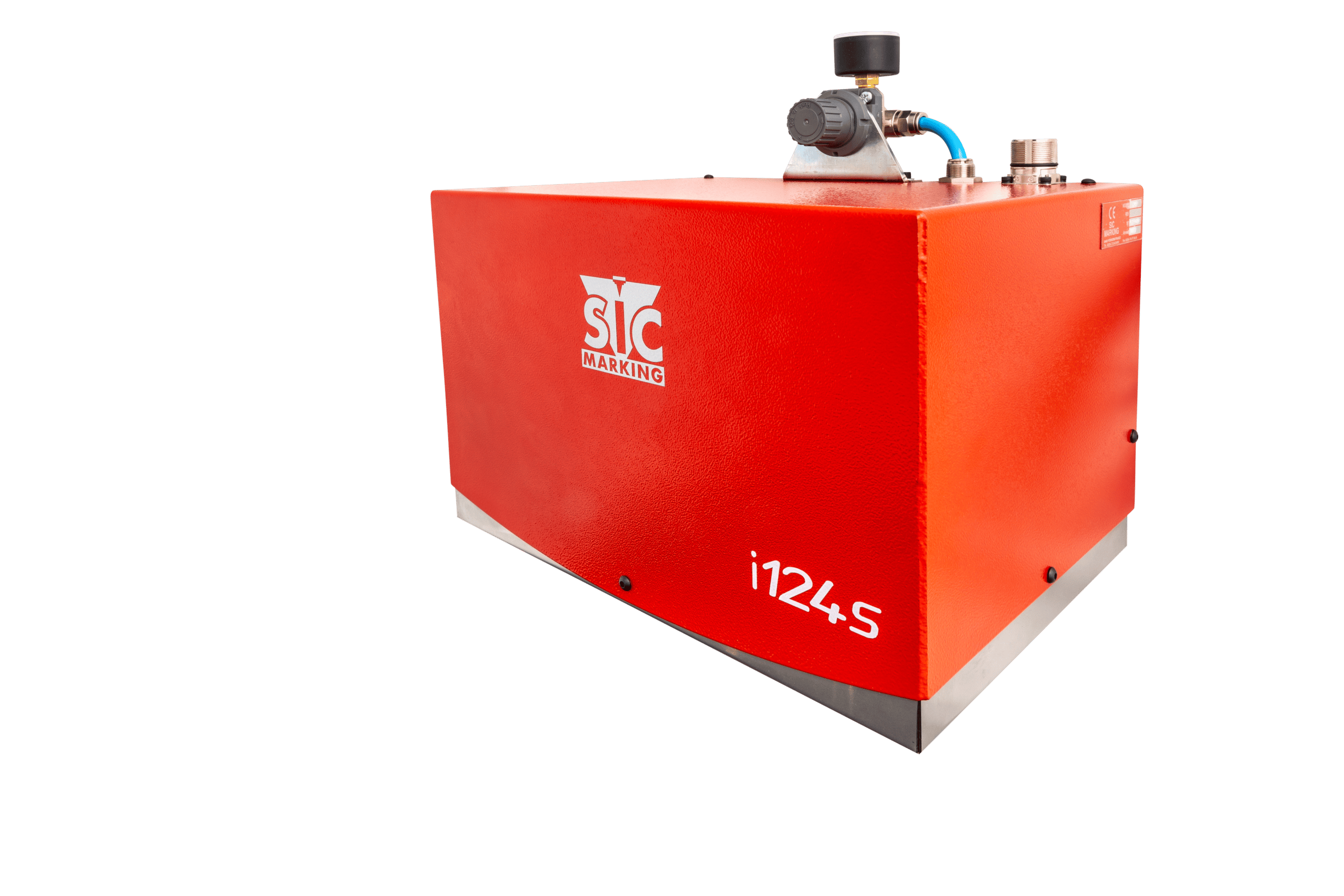

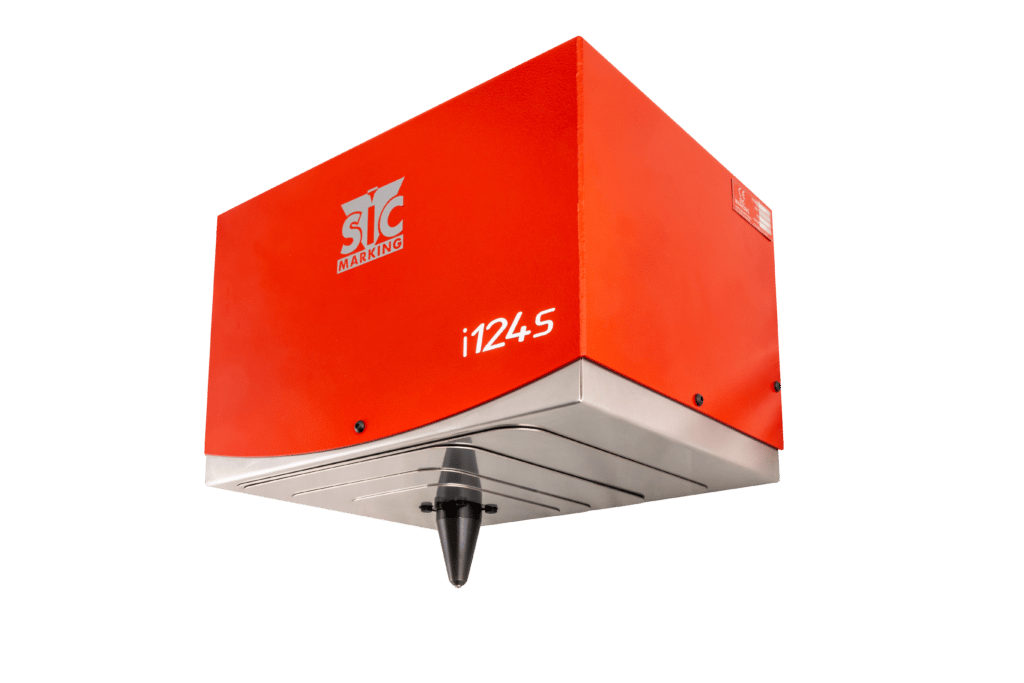

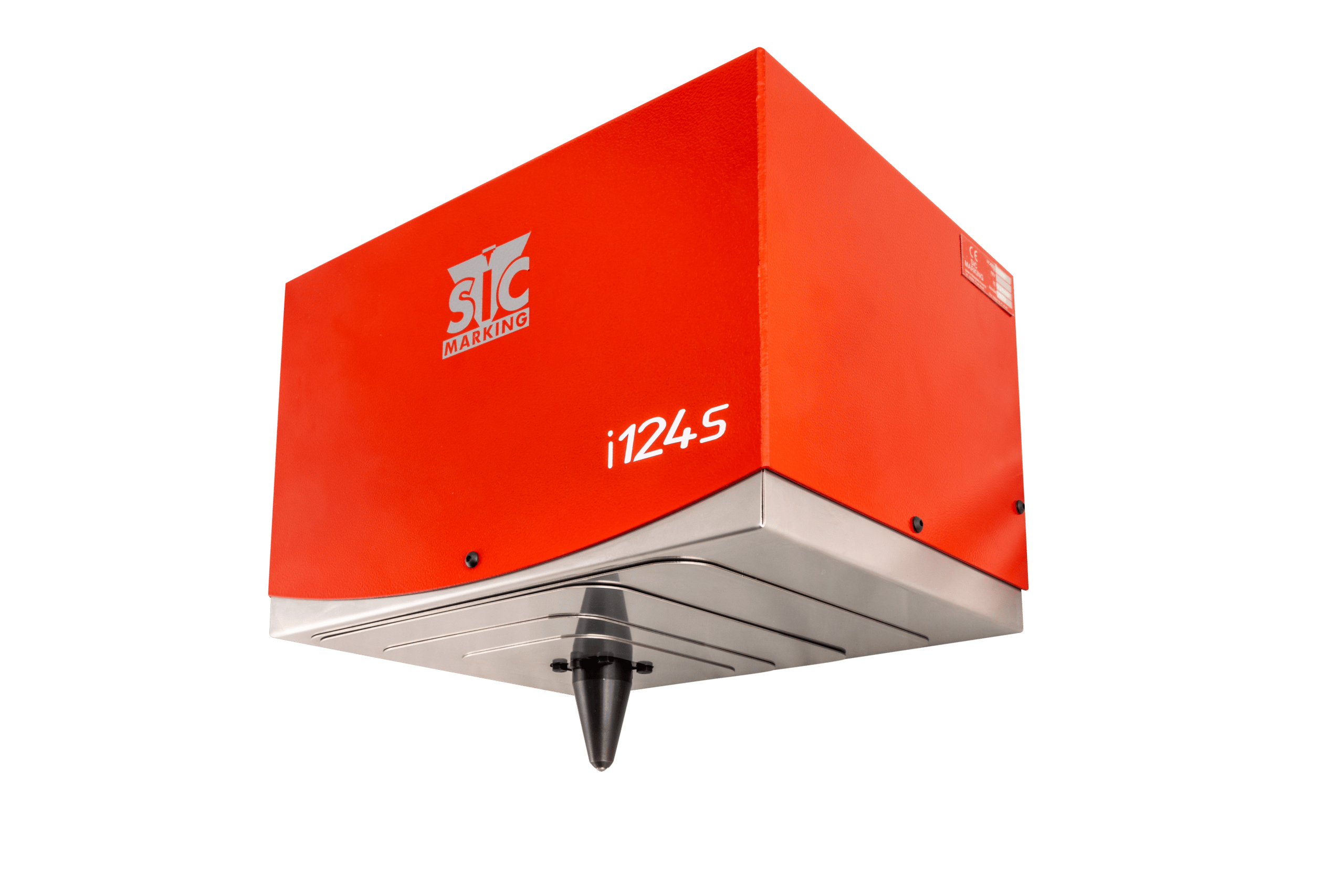

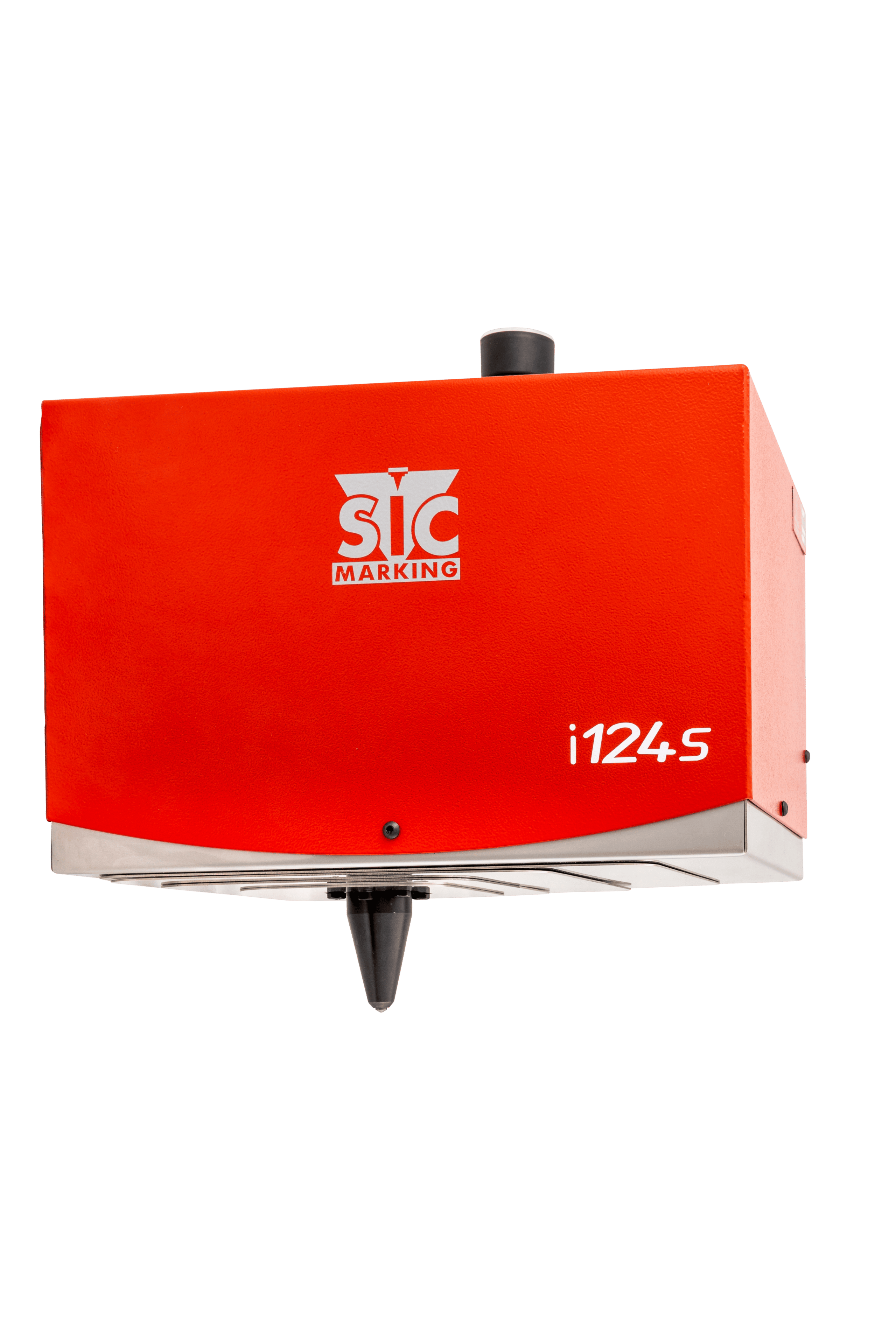

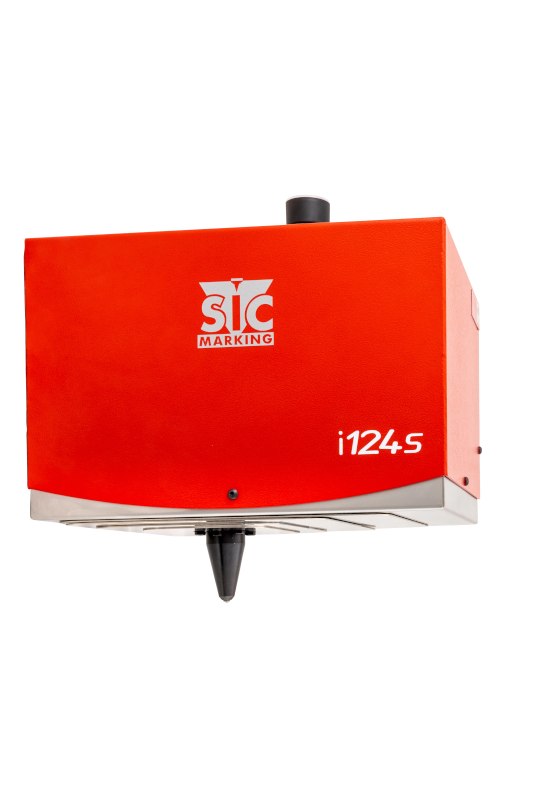

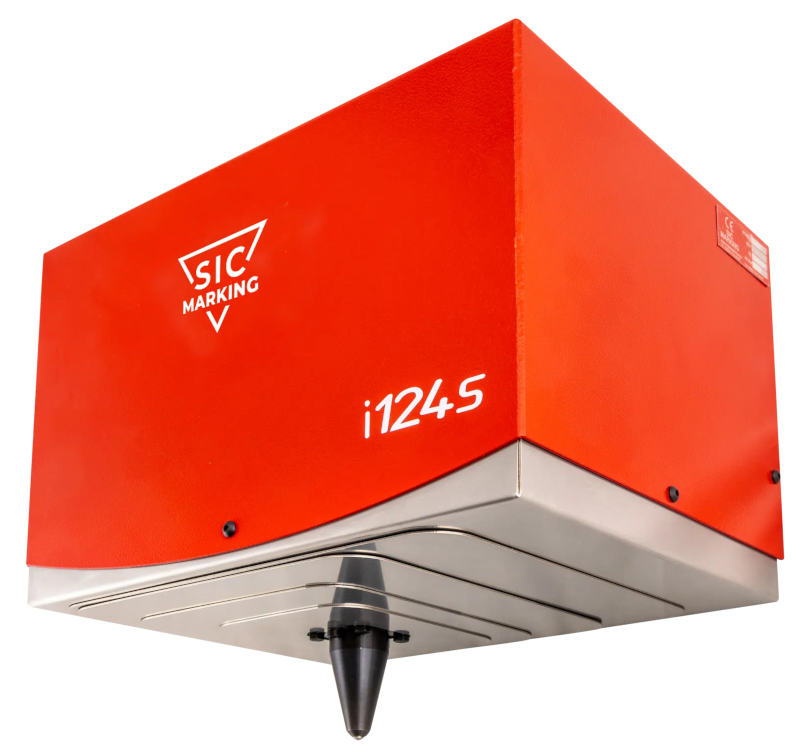

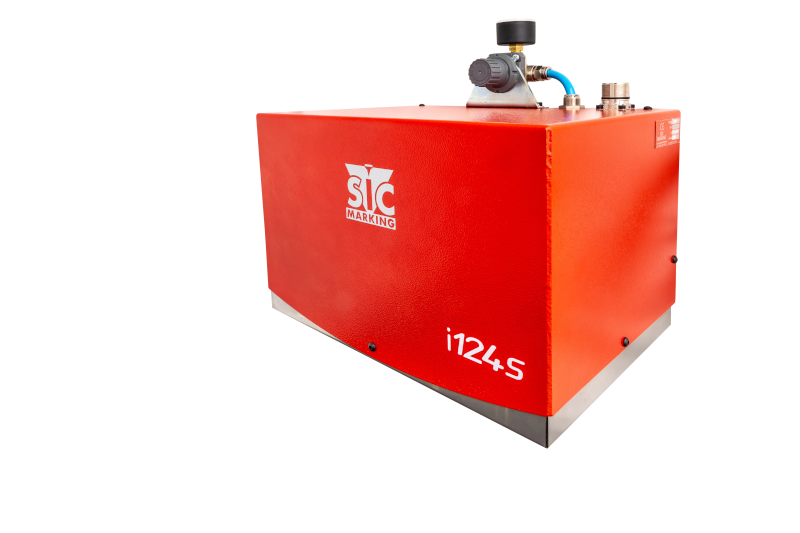

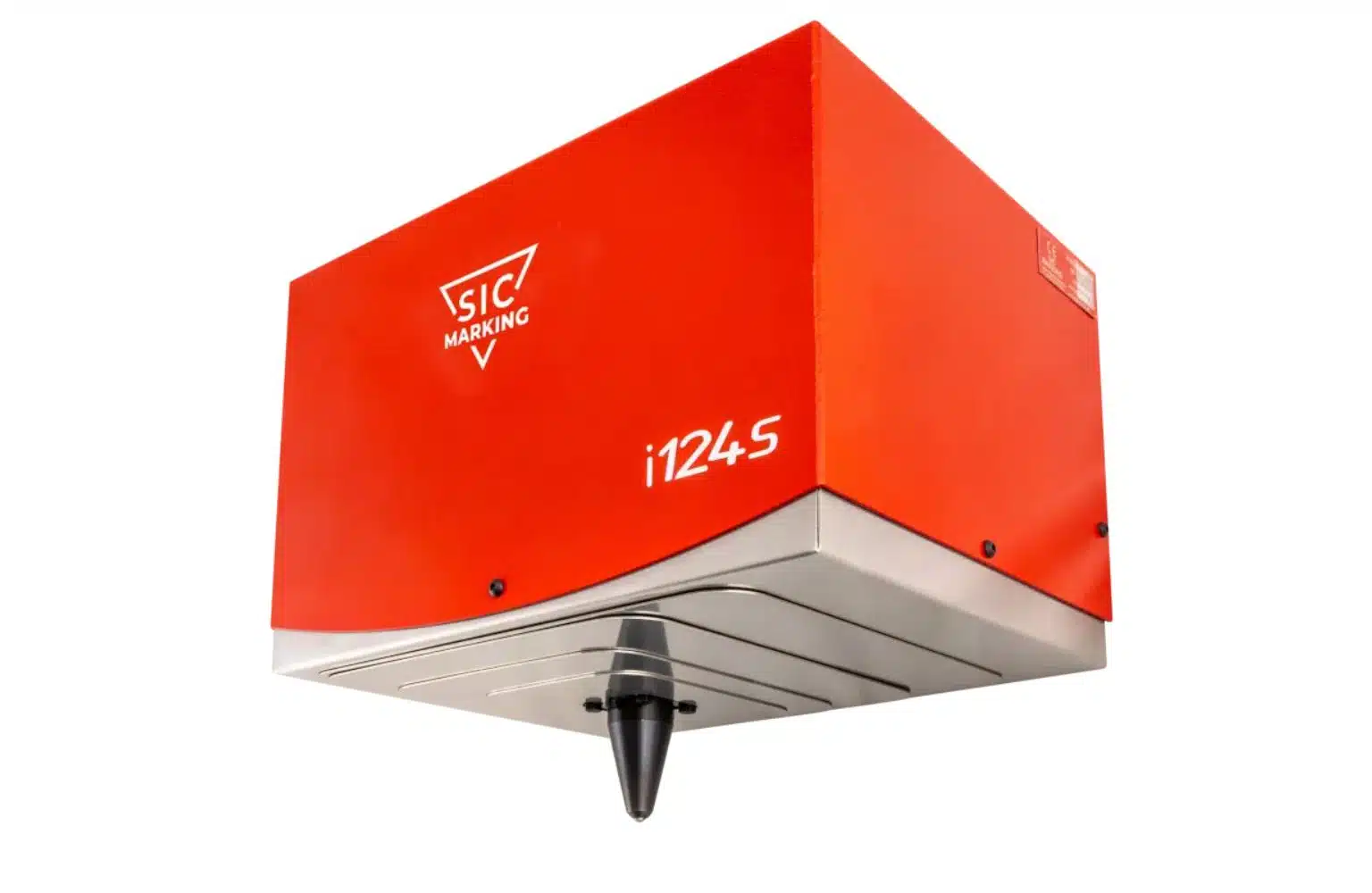

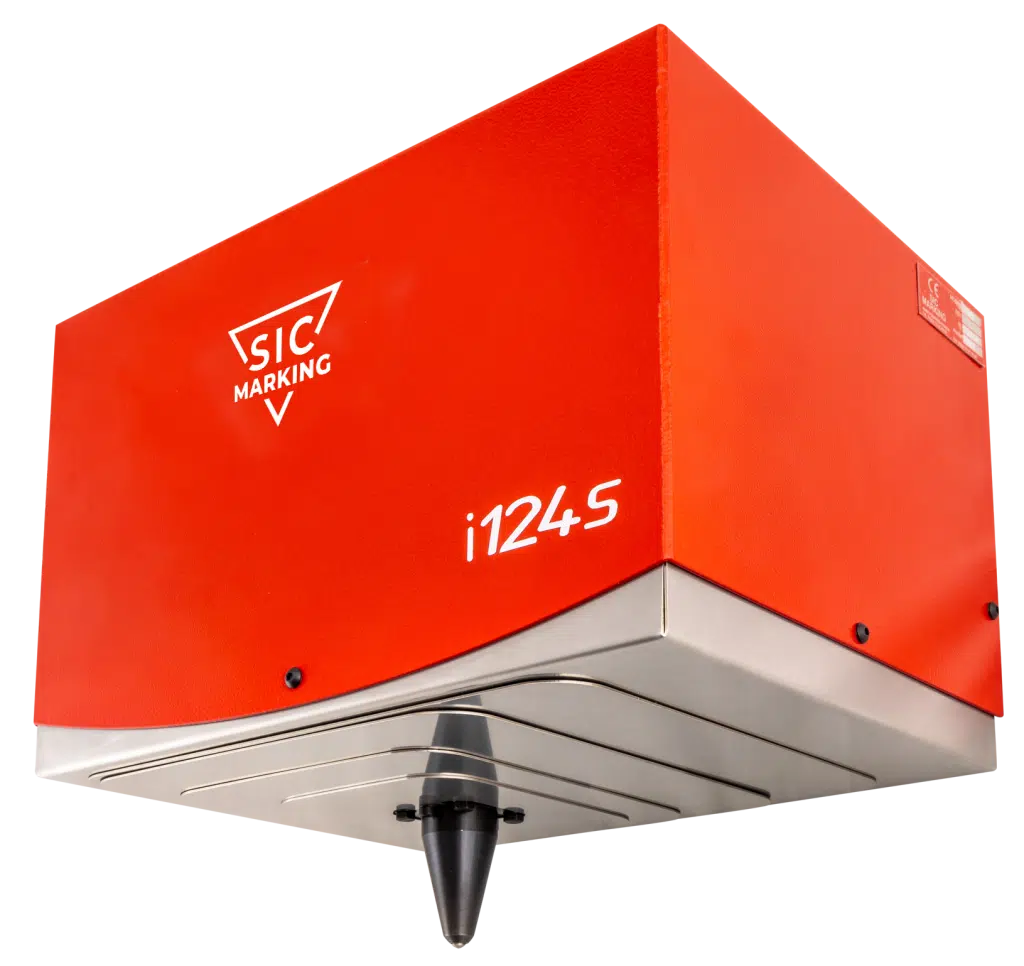

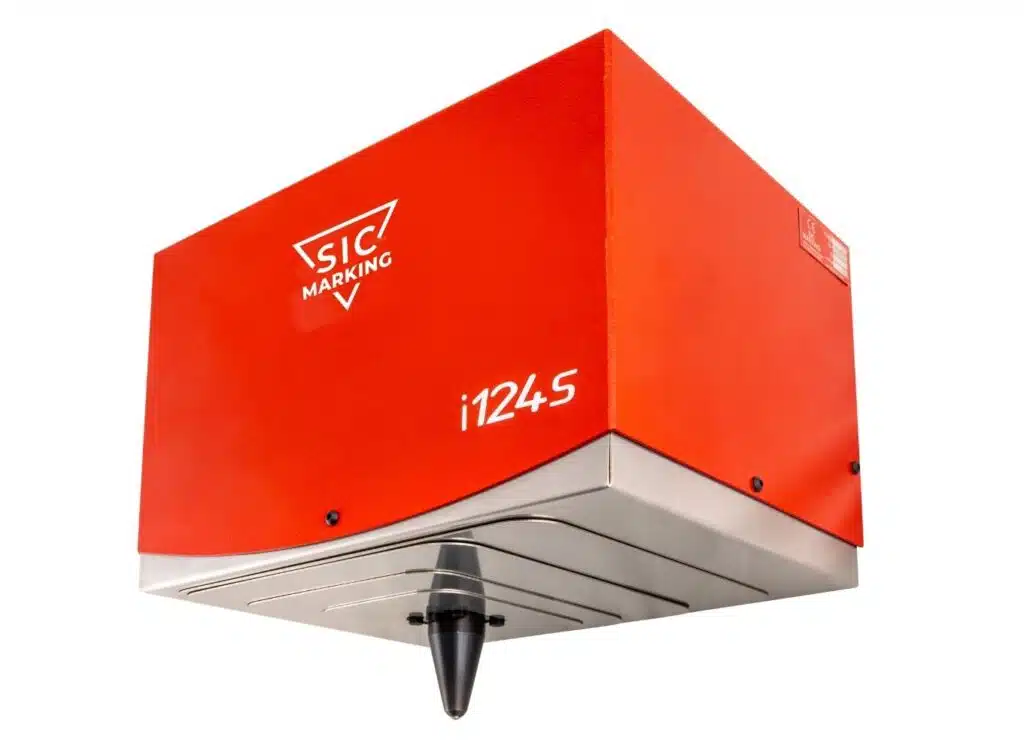

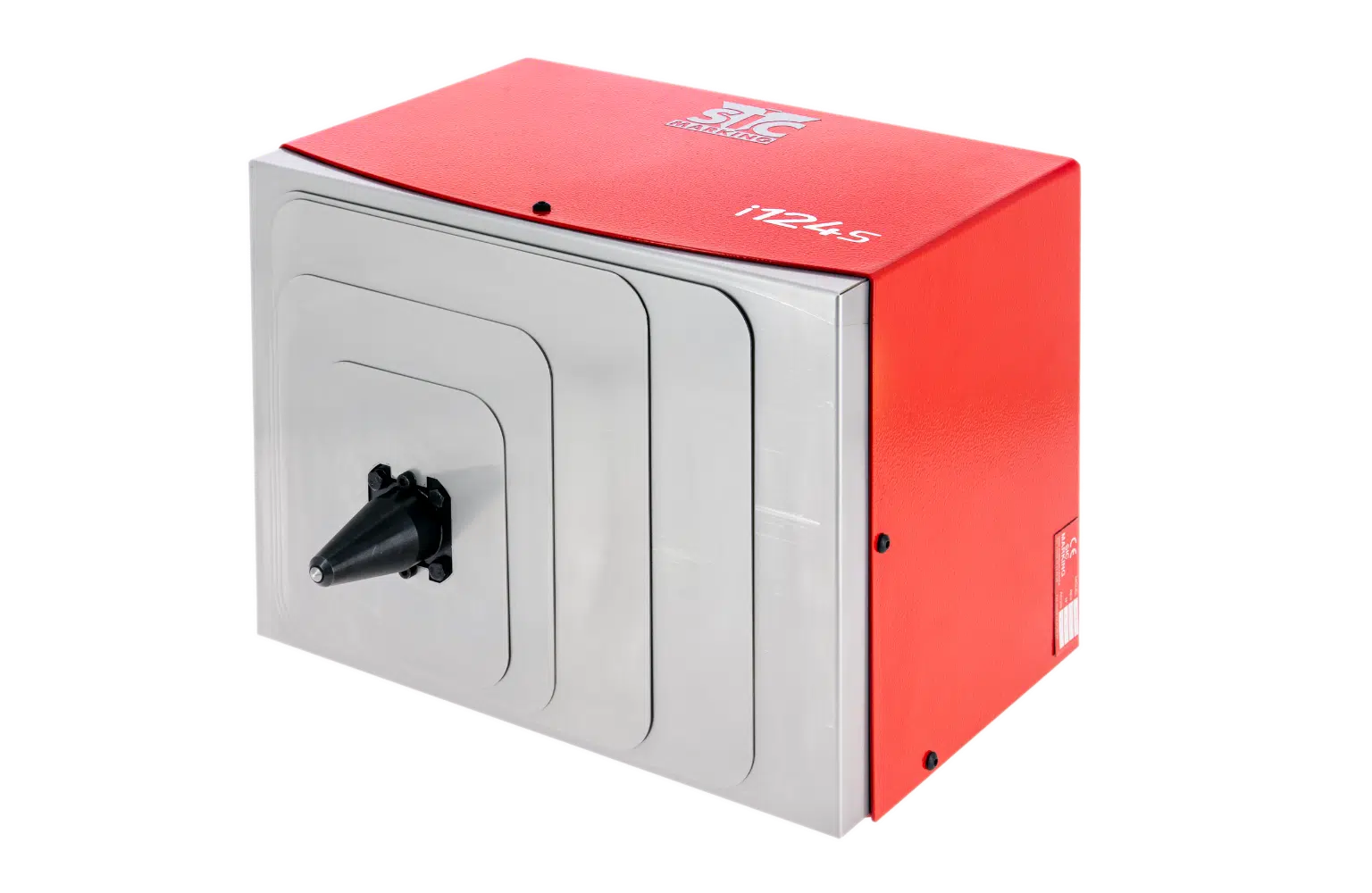

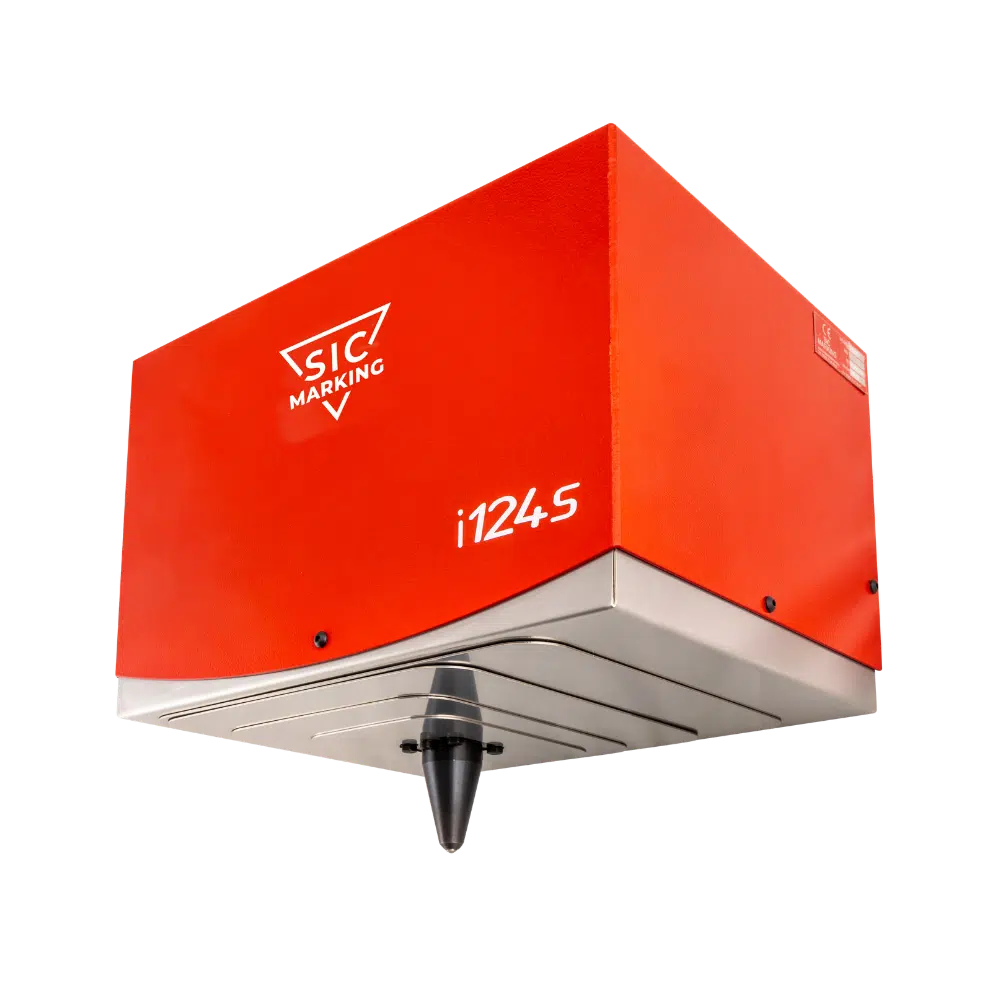

The I 124S is a scribe marking machine that can easily be integrated into a production line.

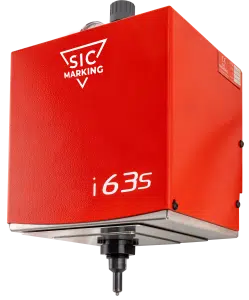

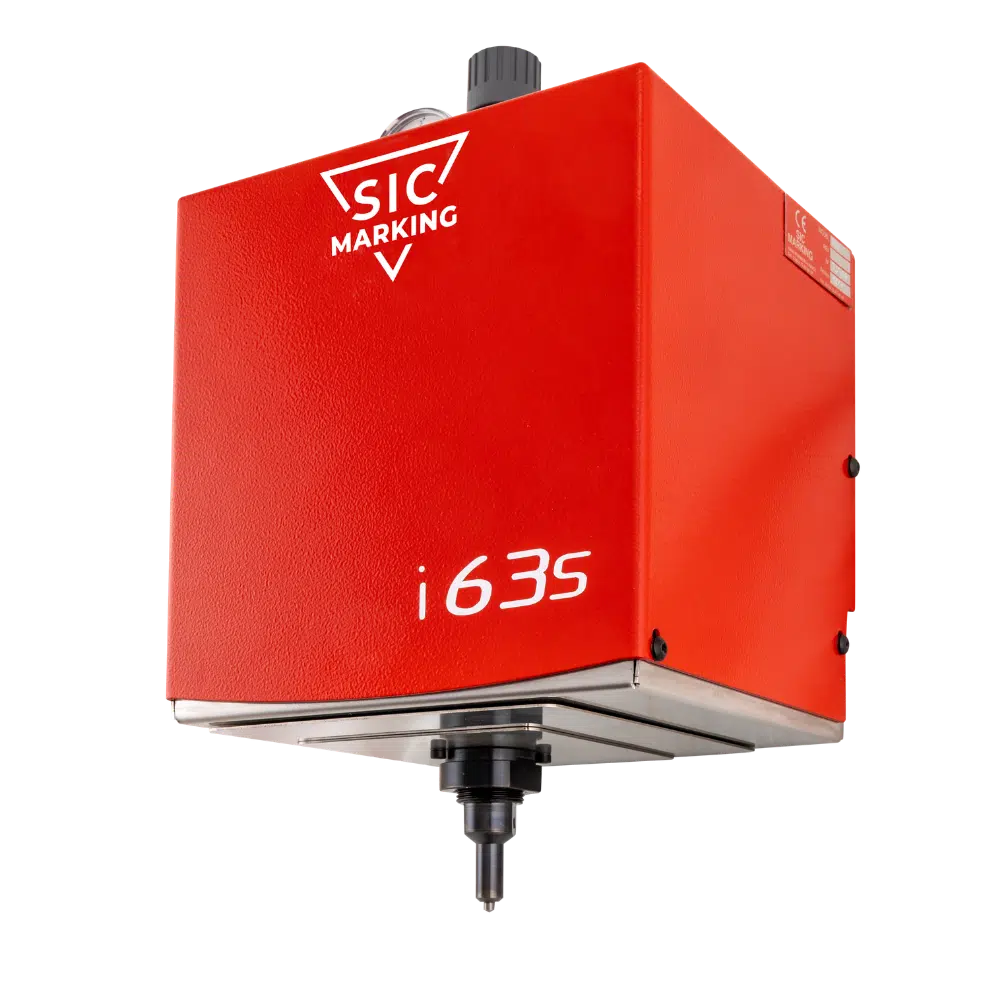

It differs from the I 63S by its wide marking window (120 mm x 60 mm).

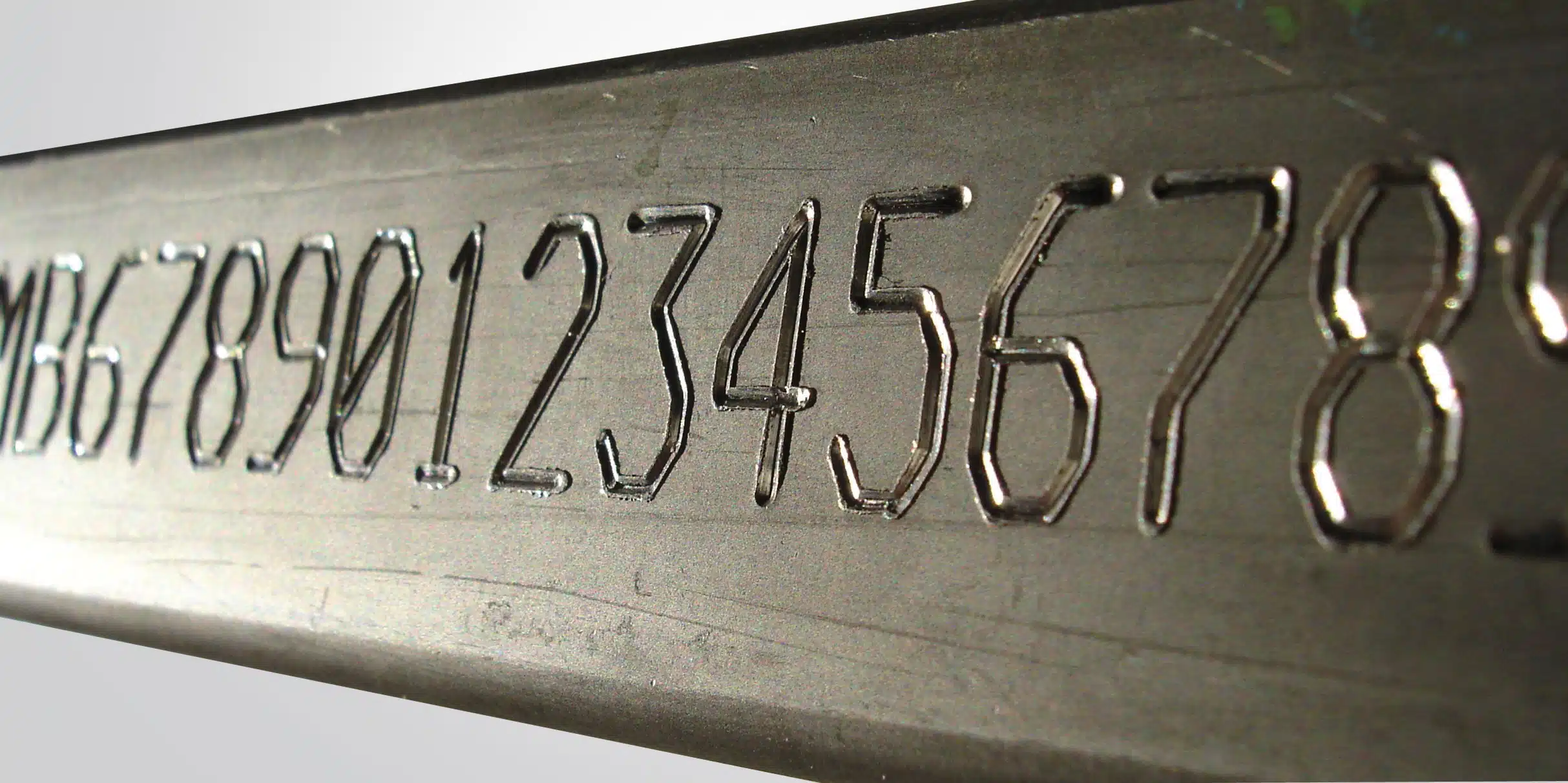

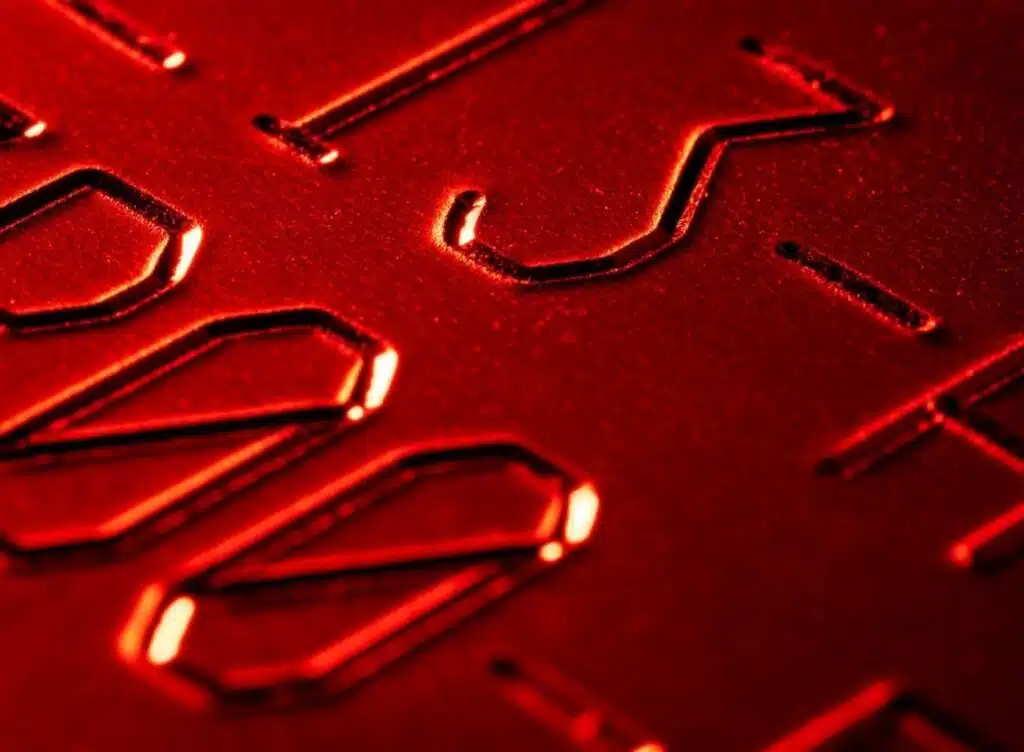

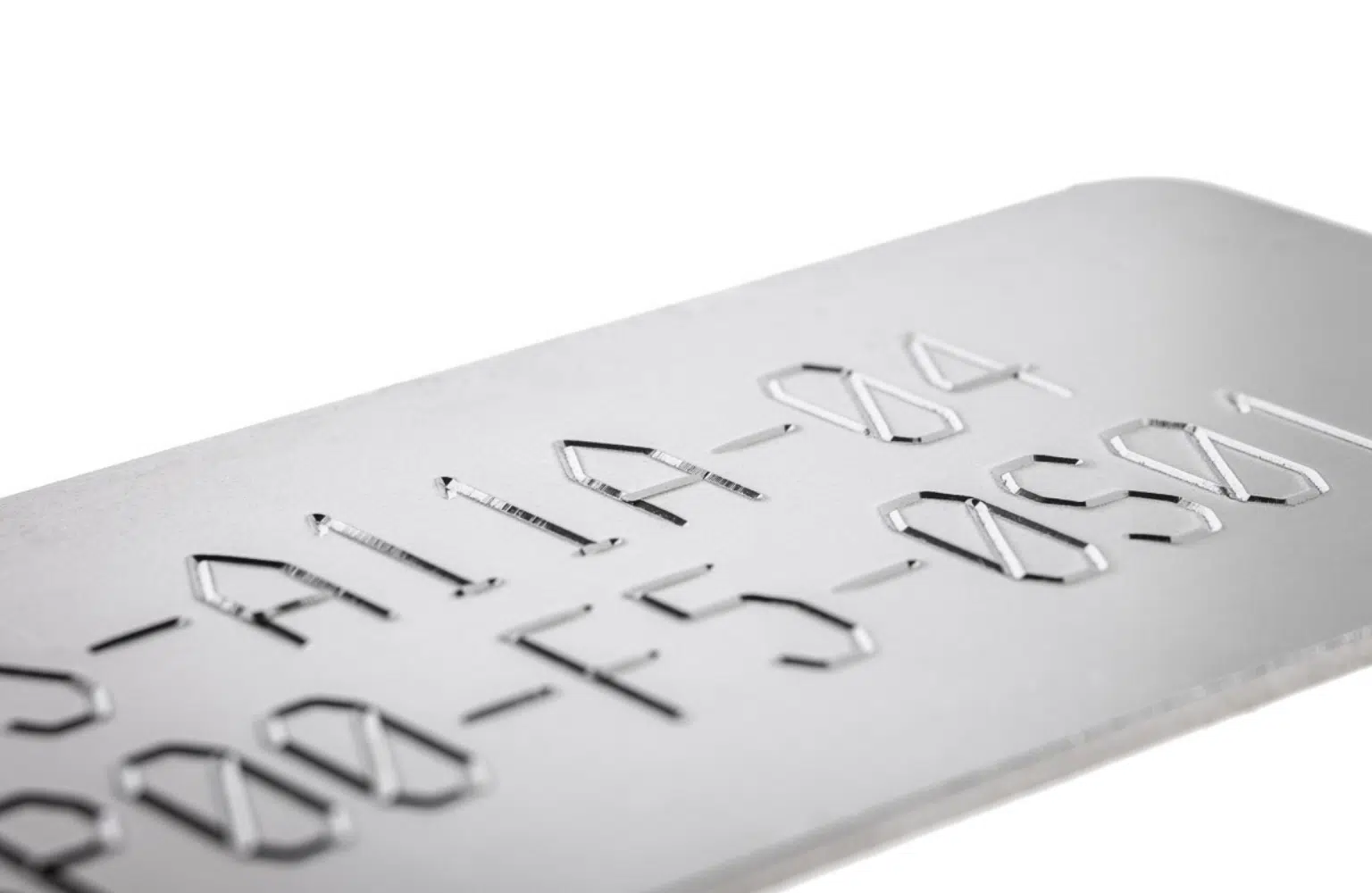

Scribing is a marking technology that is quieter than dot peening.

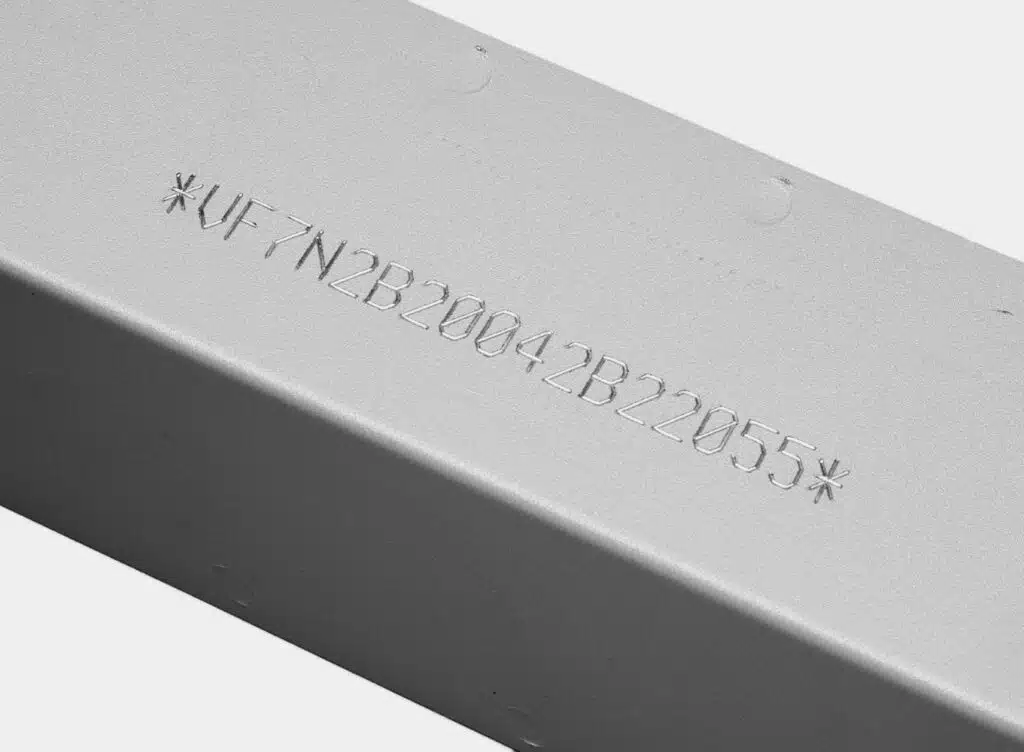

The E10R I 124S is powerful and is therefore ideal for deep scribing on all types of material.

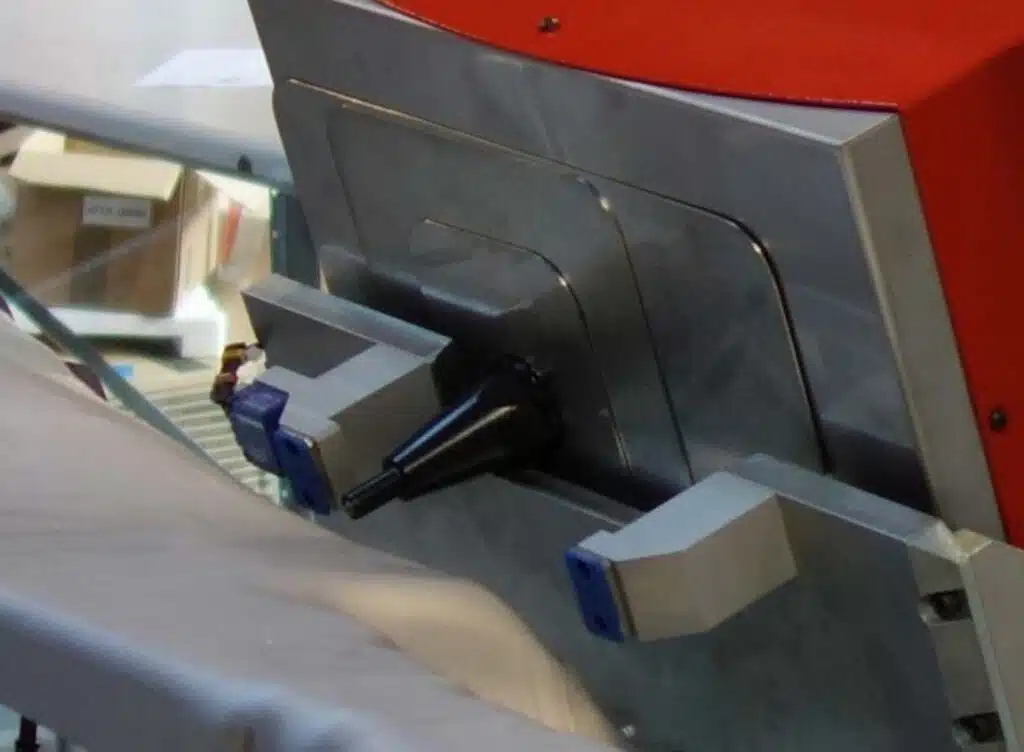

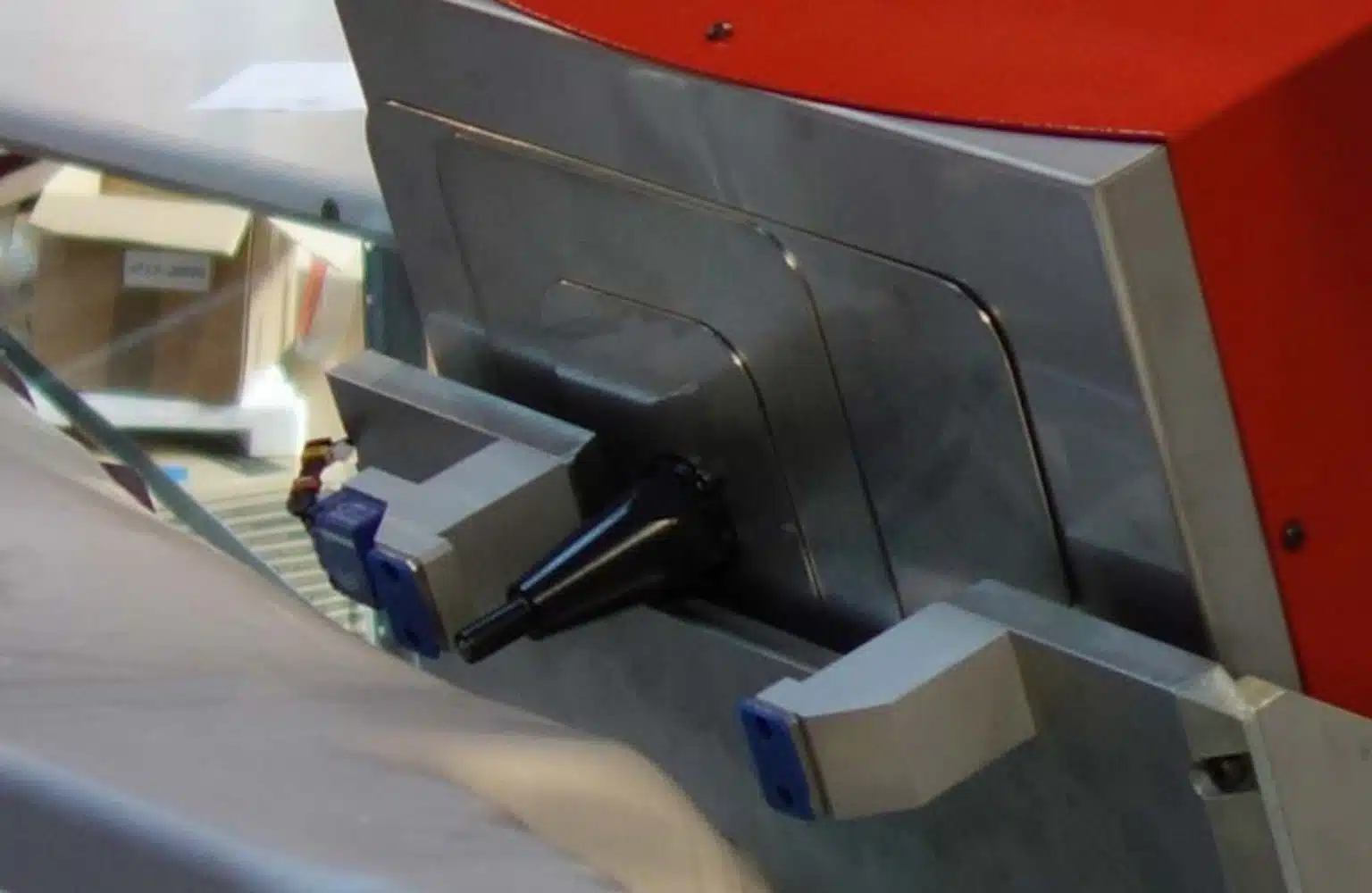

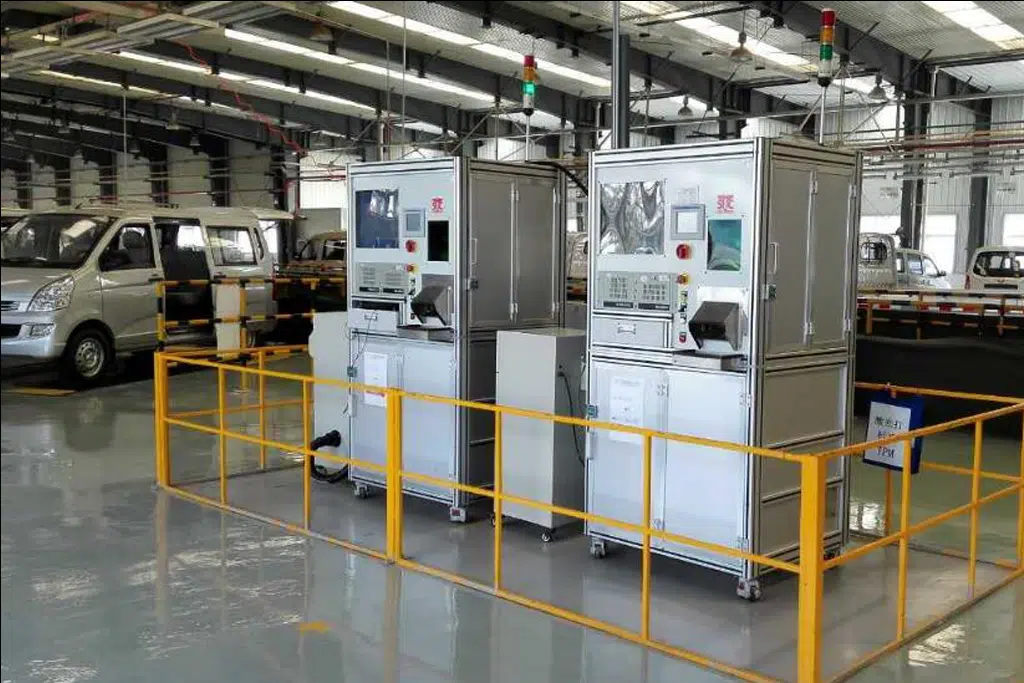

The robust structure of the I 124s is protected against projections by stainless steel bellows and a full cowling. The machine can therefore be integrated into difficult environments and operate at high rates.
The E10 is complete and powerful, and can be completed with optional supplementary boards, such as Profinet, Profibus or Ethernet IP communication boards, or axis control boards (translation or rotation).
The E 10 R variant is ideal for the integrable range, due to its small size and vertical mounting, which allow it to be installed in a standard electrical cabinet.
Its easy integration and programming make it very simple to use. Utilisation cost is low as no maintenance or consumables are needed.
120 x 60 mm
18 kg
230 x 300 x 357.5 mm
Carbide or diamond tip 60 mm
5 m (10 or 15 m on option)
6 bar
2 mm
112 x 380 x 222 mm or 140 x 380 x 222 mm with DIN rail kit (option)
5 kg
95 x 54 mm
Qwerty with waterproof membrane
300 W
Single phase, 85 to 260 V AC, 50-60Hz
2 (3rd and 4th axis on option)
More than 2000
7110 KB
Serial numbering, date/time tags
Creation from the PC software
Arial, Courier, OCR and OCRA
Angular, Radial, Inverted and Mirror
Up to 5 characters per second
From 0.1 mm to 99 mm
9 levels
Up to 0.5 mm
0.05 mm
Up to 8 mm
Maximum 10
3 security levels
Password protected
Self-Diagnostic component
17
RS232, RS422, USBx2, RS485, Profibus and Ethernet on option
16
USB
5V-0.5A and 24V-0.5A

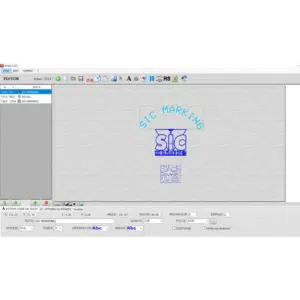

Creation and transfer software
PC software or USB memory stick
Option

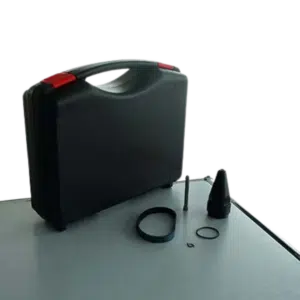

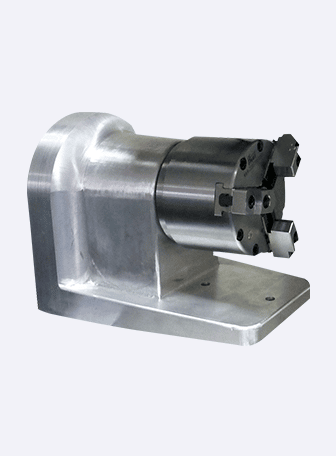

HIGH CAPACITY D AXIS FOR E10 RANGE
The rotary axis is heavy duty and is dedicated to the E10 range.
It can mark on the generator line of a circular piece.
A 3/4 axis board is needed for the marking controller.
The D-axis comprises:
The benefits:

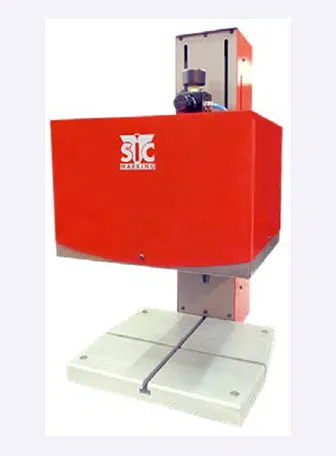

STRENGTHENED COLUMN BASE FOR SCRIBING AND DEEP DOT PEENING MACHINE
The column base is strengthened for machines i124s (diameter 50 mm) and i124D.
The benefit:
This system can also be used for systems with a specific marking window.

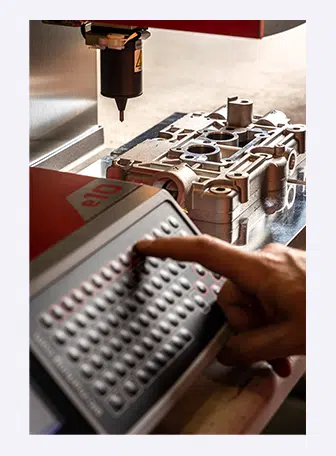

E10 R CONTROLLER
The E10 R controller provides a very fast startup and navigation, through a latest generation micro-controller.
The E10 R offers the same functions as the E10.
In addition, it can be directly integrated on a chassis or mounted in the vertical position.

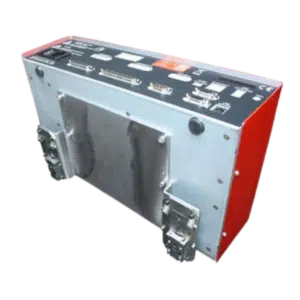

With the DIN rail mounting kit it can be integrated directly in an electrical cabinet.
The benefits:
– Connections facing upwards
– Connections downwards simply by turning the cover over.
