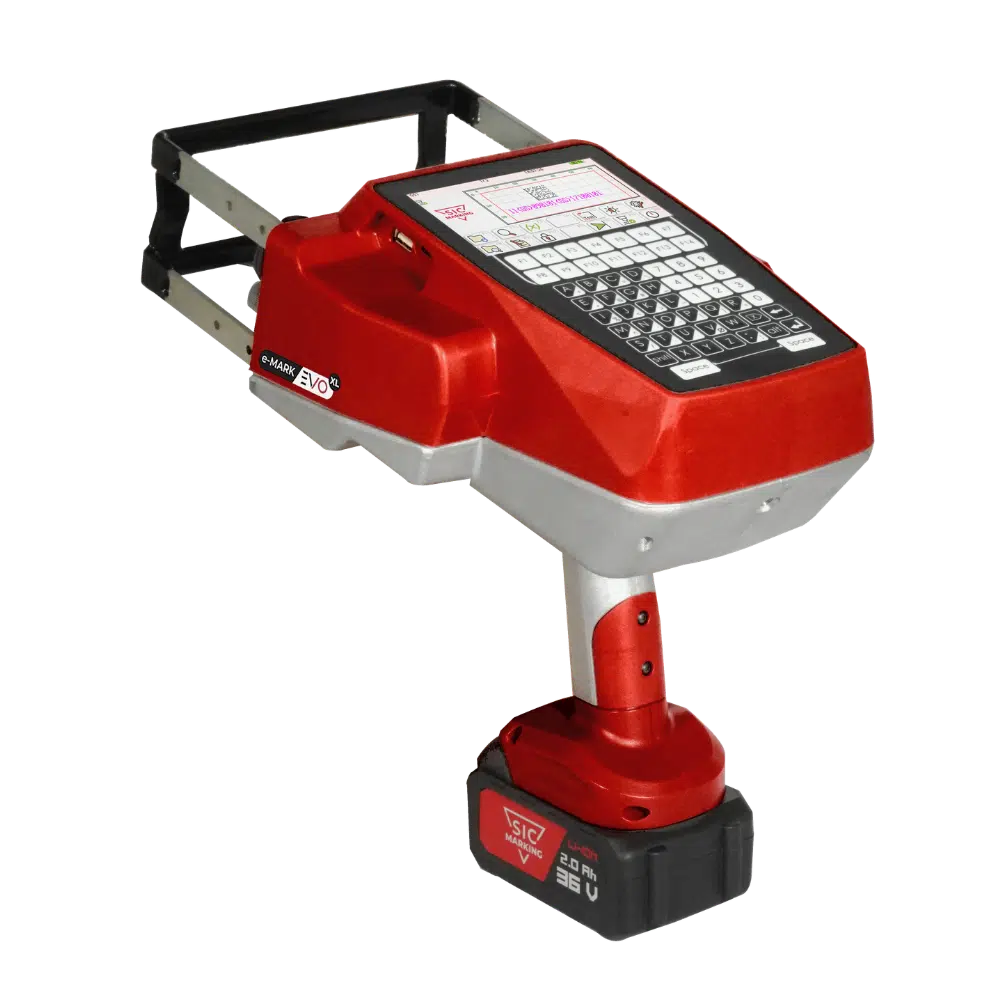

Dot peen marking gun E-MARK EVO XL, light cordless portable engraver

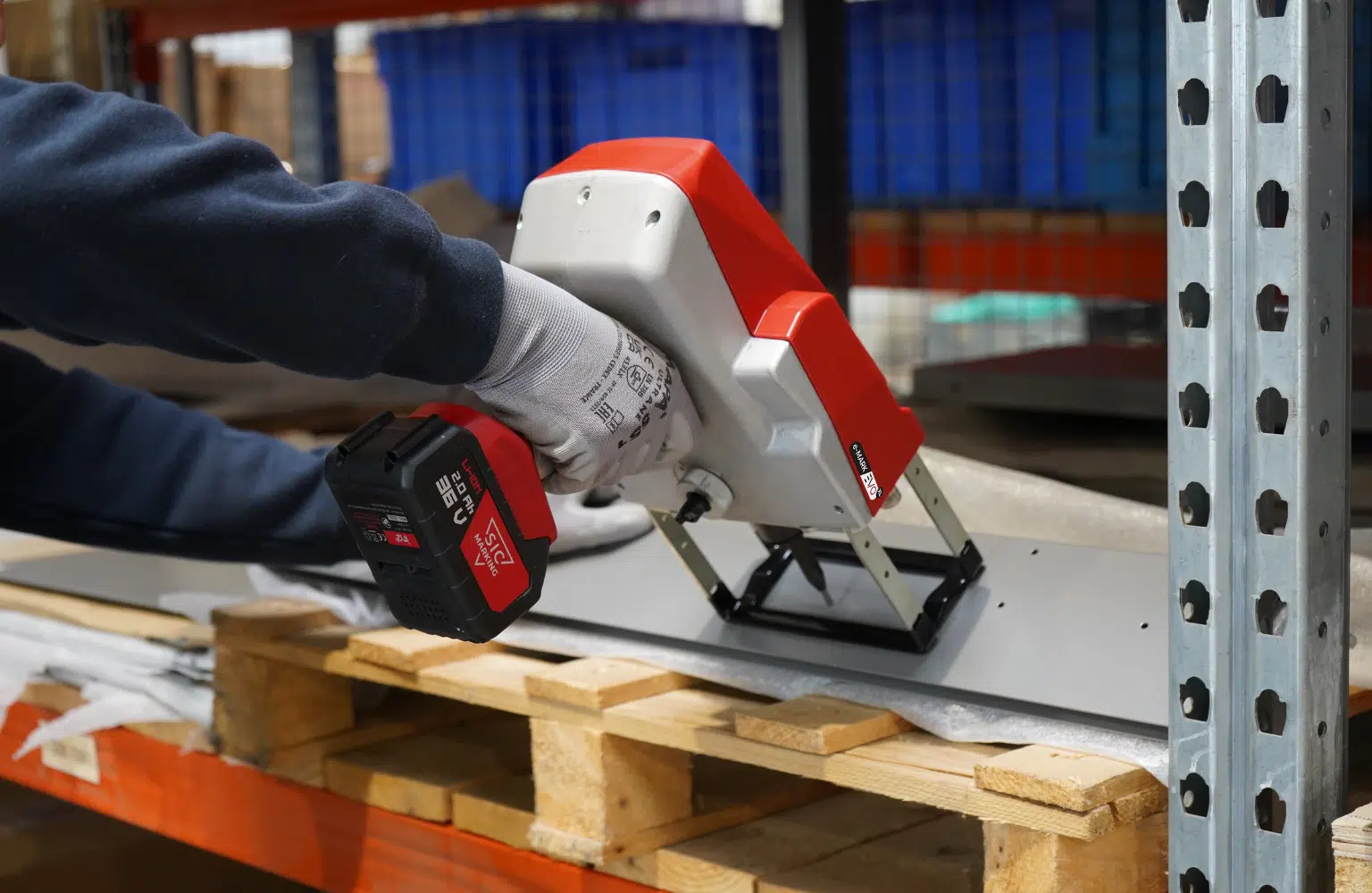

The e-MARK EVO XL is a portable, wireless dot peen marking machine featuring an extra-large marking window of 120 x 40 mm.

It stands out for its long battery life thanks to its integrated battery. This portable marking machine is fully autonomous thanks to its 36 V battery and can operate continuously for up to 3 hours.

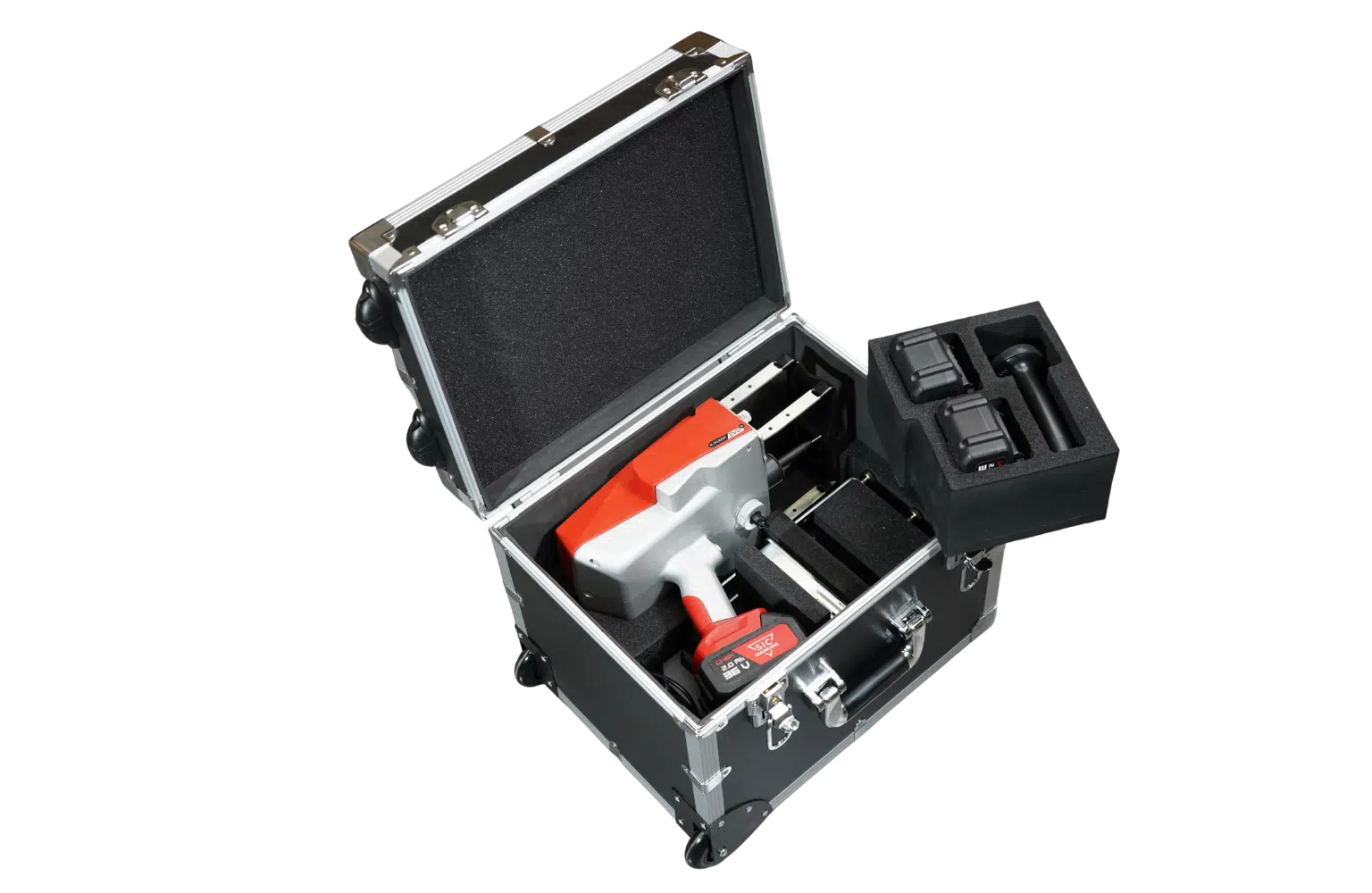

The e-MARK EVO XL comes with two batteries, a fast charger, and a dedicated carrying case, allowing you to keep working with one battery while the other charges.

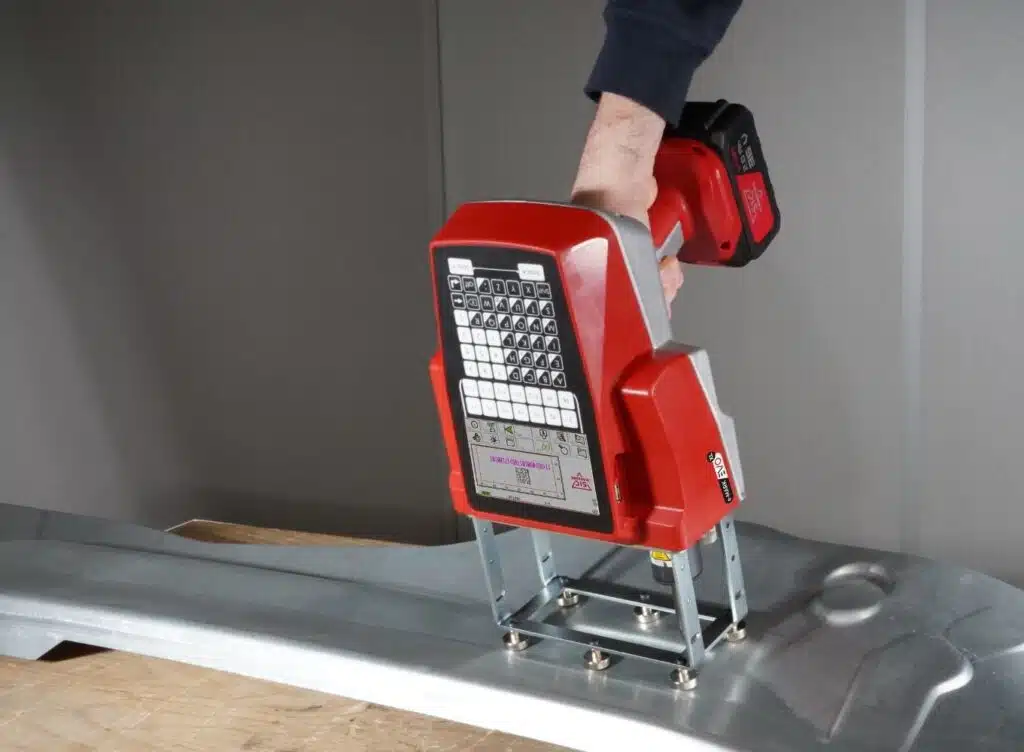

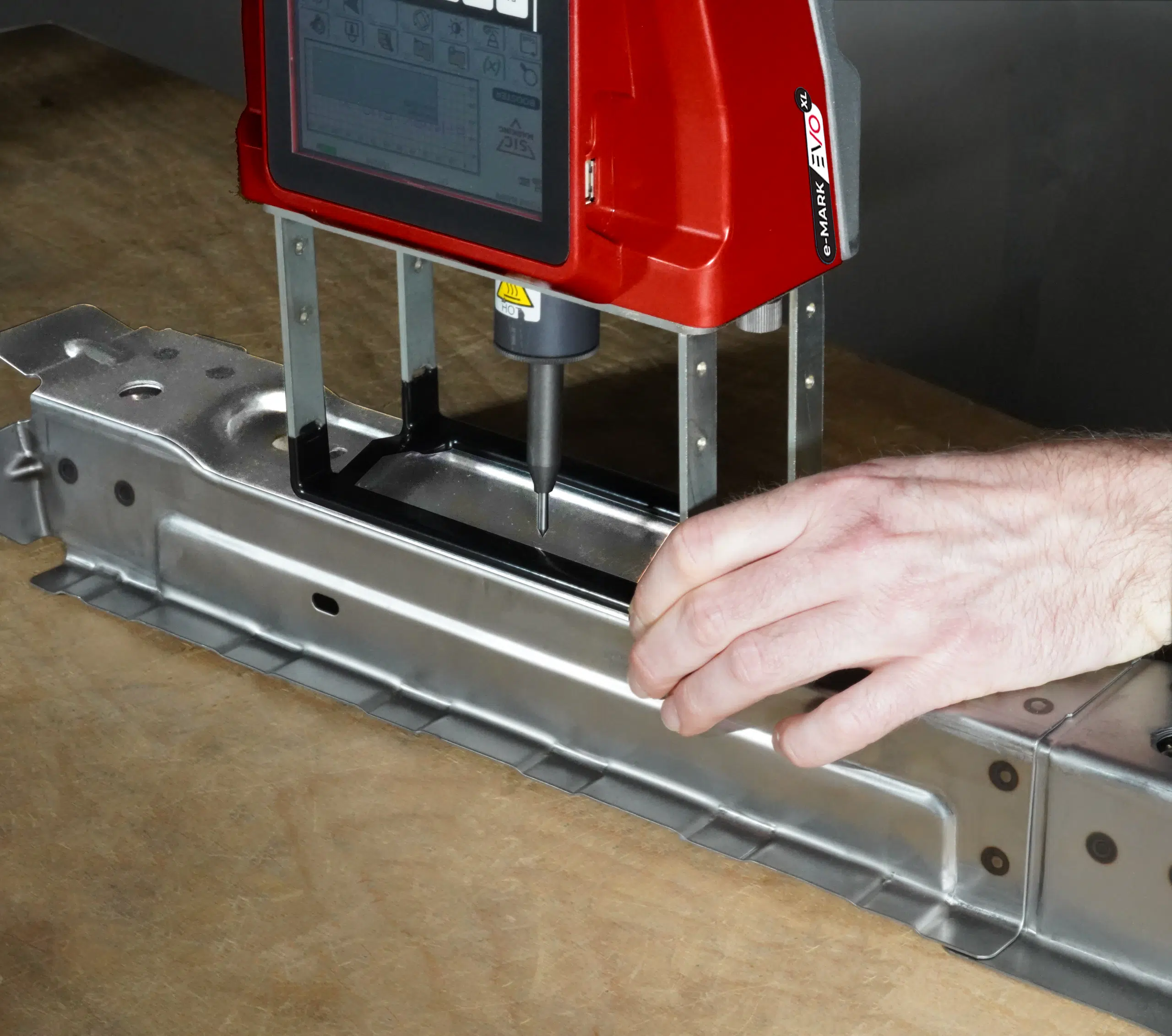

With its robust design, featuring a cast aluminum body and handle, the e-MARK EVO XL is particularly well suited to demanding industrial environments. Its high striking force makes this portable marking machine especially suitable for marking heavy or bulky parts.

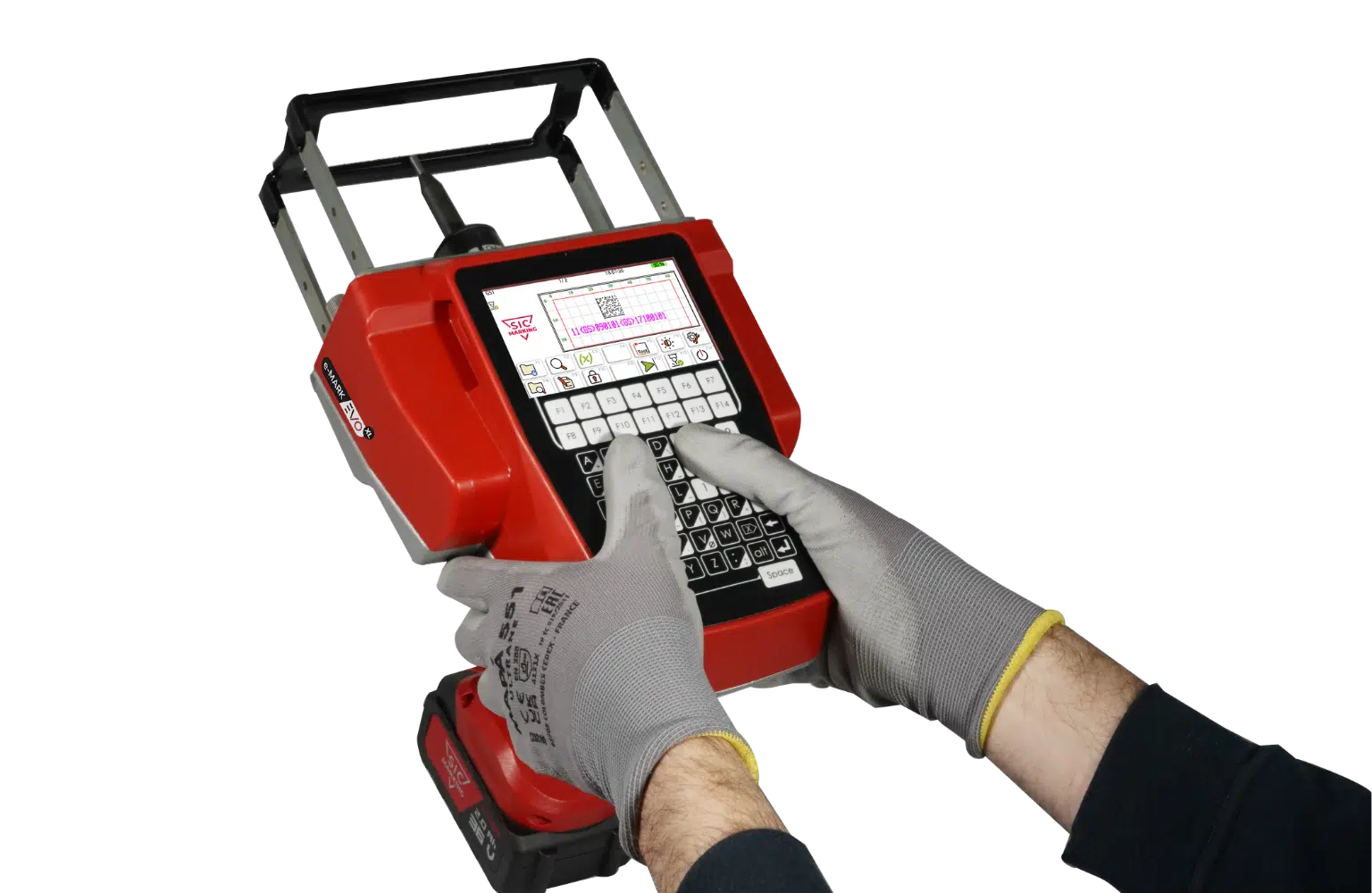

The e-MARK EVO XL also stands out for its ergonomic design and ease of use, with an onboard programming interface and an industrial membrane keyboard for intuitive operation.

Despite its cast aluminum construction, the e-MARK EVO XL remains a compact, lightweight marking gun, weighing just 4.2 kg.

It can mark alphanumeric text, logos, 2D DataMatrix codes, and QR codes.

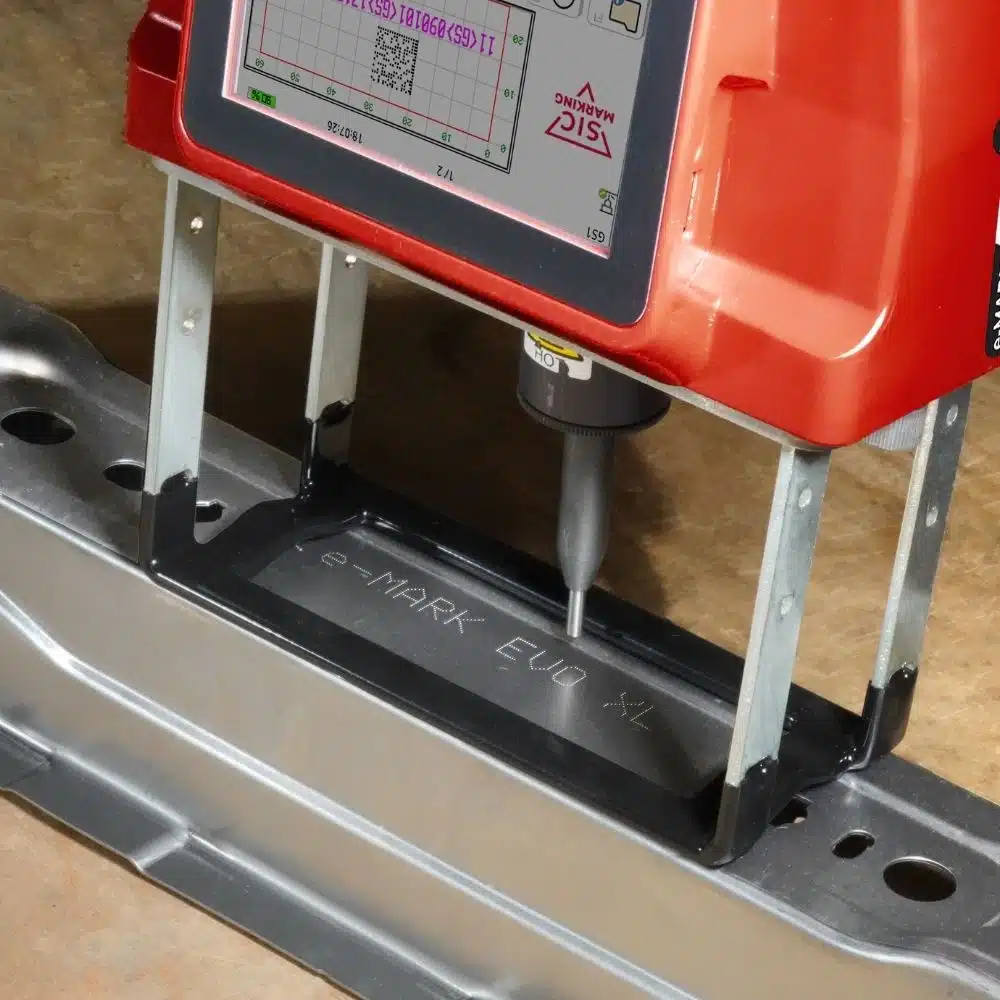

Dot peen marking technology delivers reliable, permanent marks directly on the material using a tungsten carbide stylus that creates a series of impacts at a very high rate. This portable, wireless dot peen marking machine provides an autonomous solution for marking industrial parts.

Marking window	120 x 40 mm
Power supply	36 V battery
Autonomy	3 hours
External dimensions	331 x 293 x 196 mm
Weight	4,2 kg
Stylus	Tungsten carbide
Memory space	More than 2,000 files

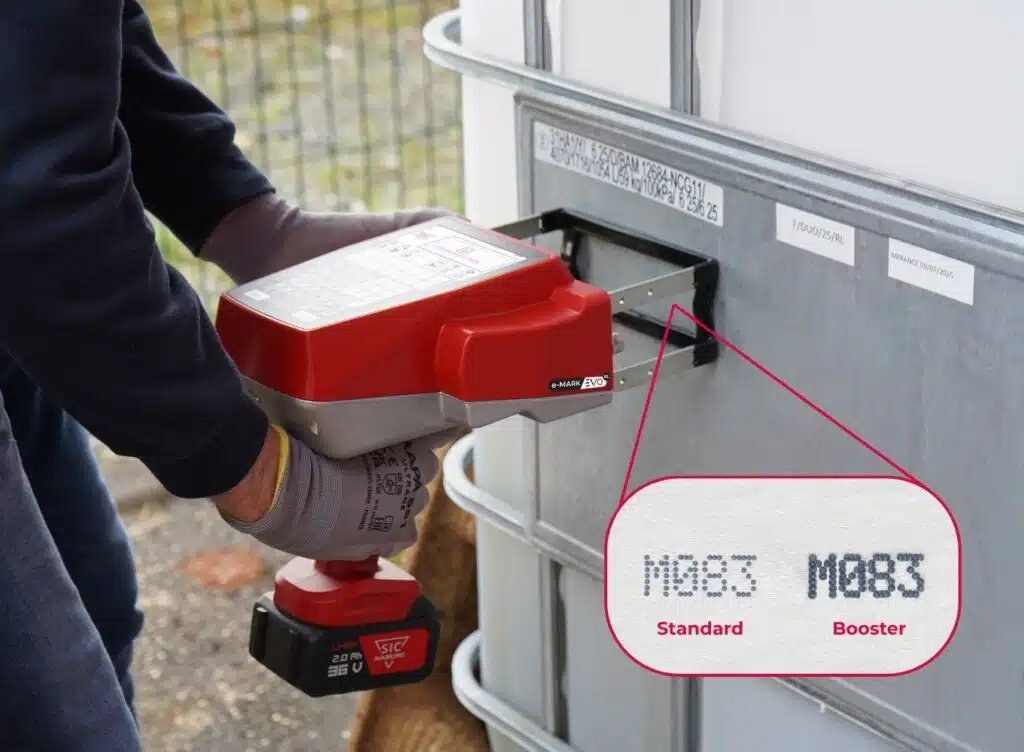

The Booster option is a card integrated into the e-MARK EVO XL that ensures fast, precise, and deep marking, providing excellent visibility even after painting or surface treatment.

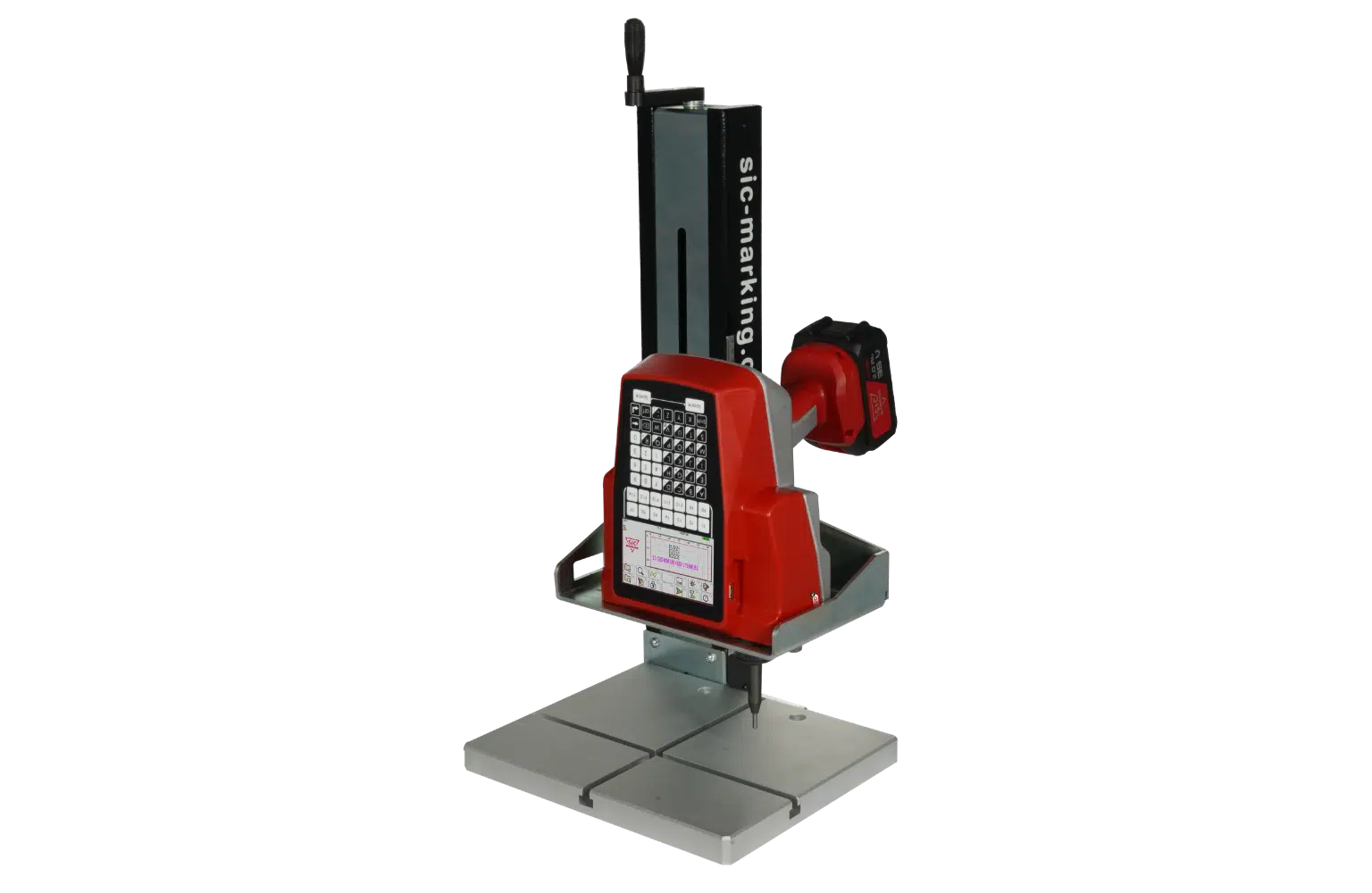

The column base option transforms the portable marking gun into a stable, stationary workstation, allowing for precise positioning and easy height adjustment depending on the part. Ideal for repetitive series or small parts, it offers stability, quality, and consistency in marking, while retaining the versatility of the e-MARK EVO XL.

The barcode reader allows automatic and fast selection of the file and content to be marked, eliminating the possibility of input errors. It can read 1D and 2D codes, including QR and Datamatrix codes. It features a Bluetooth connection, ensuring wireless communication with the machine.

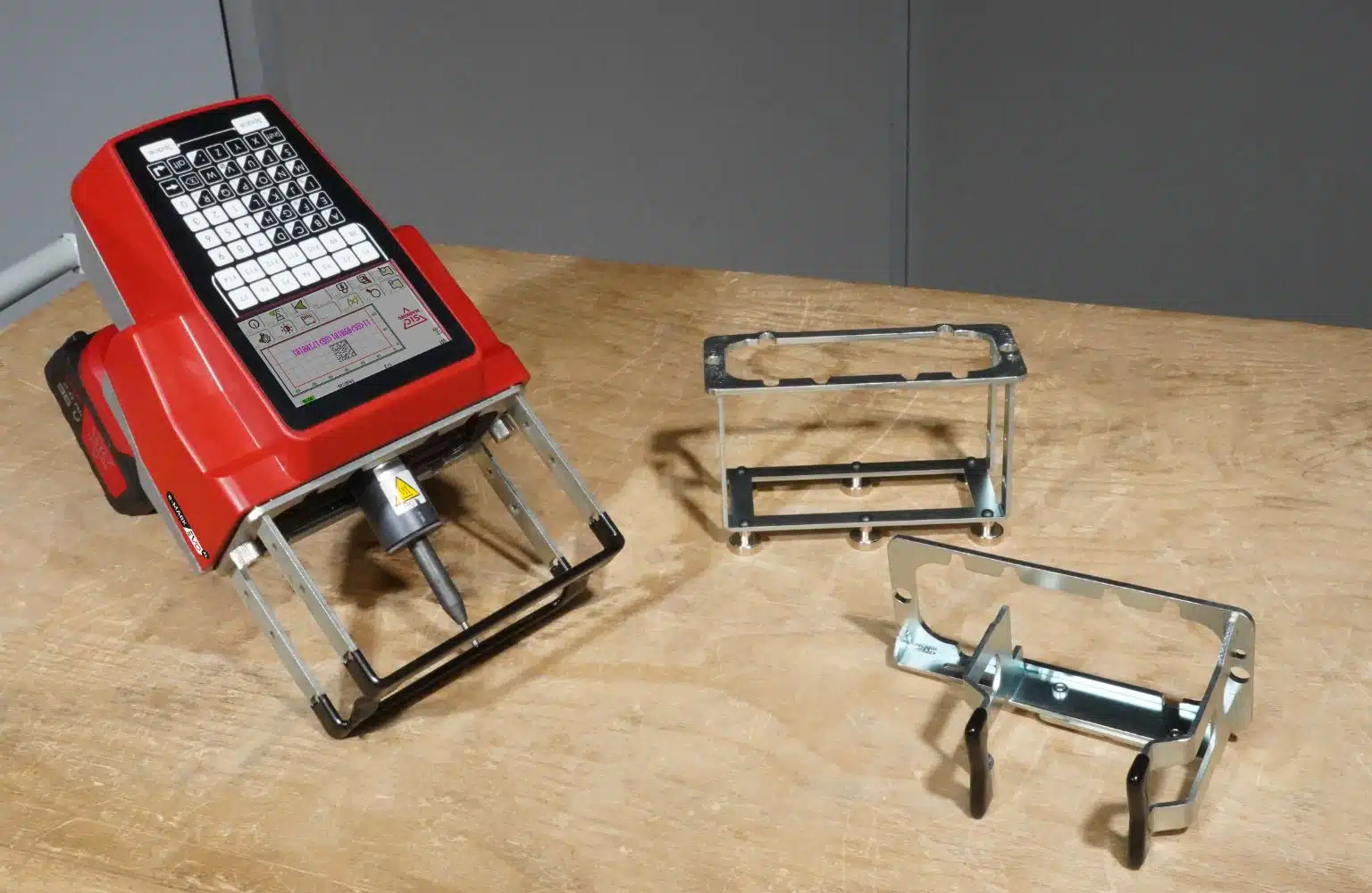

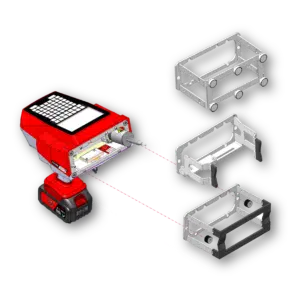

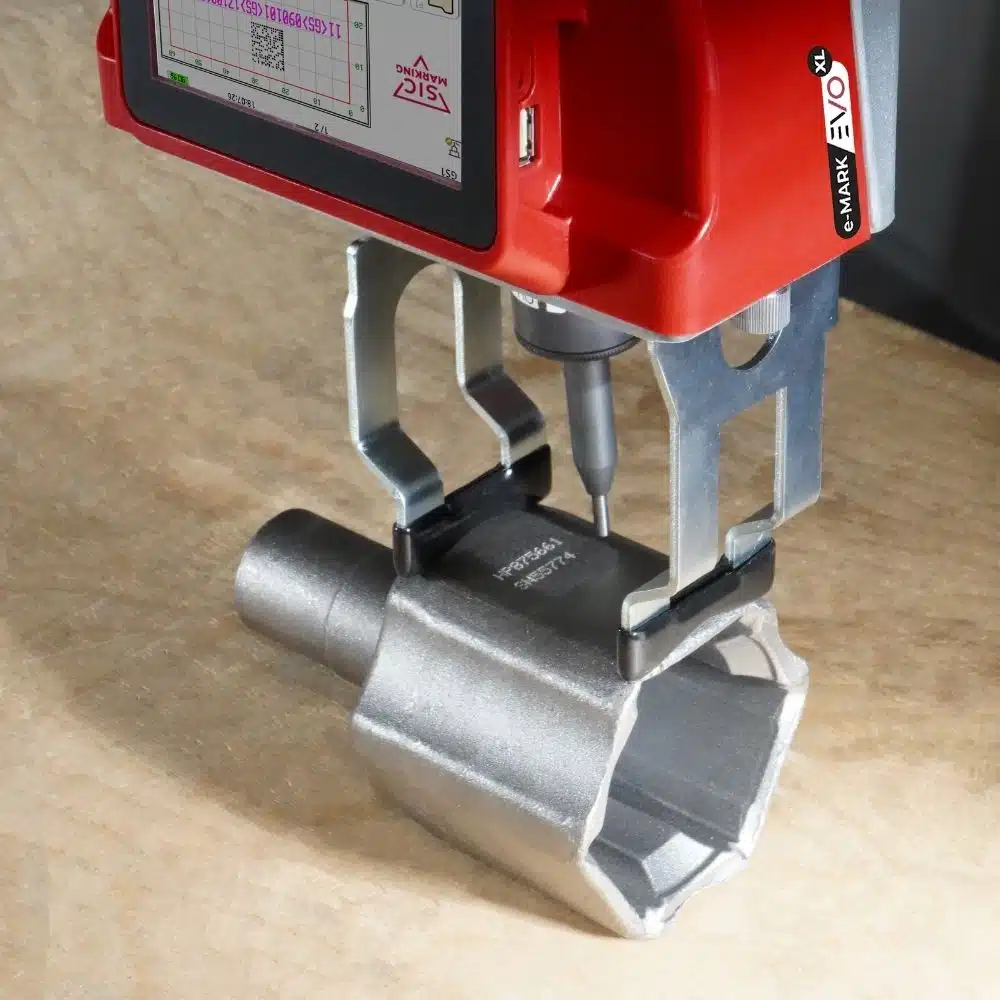

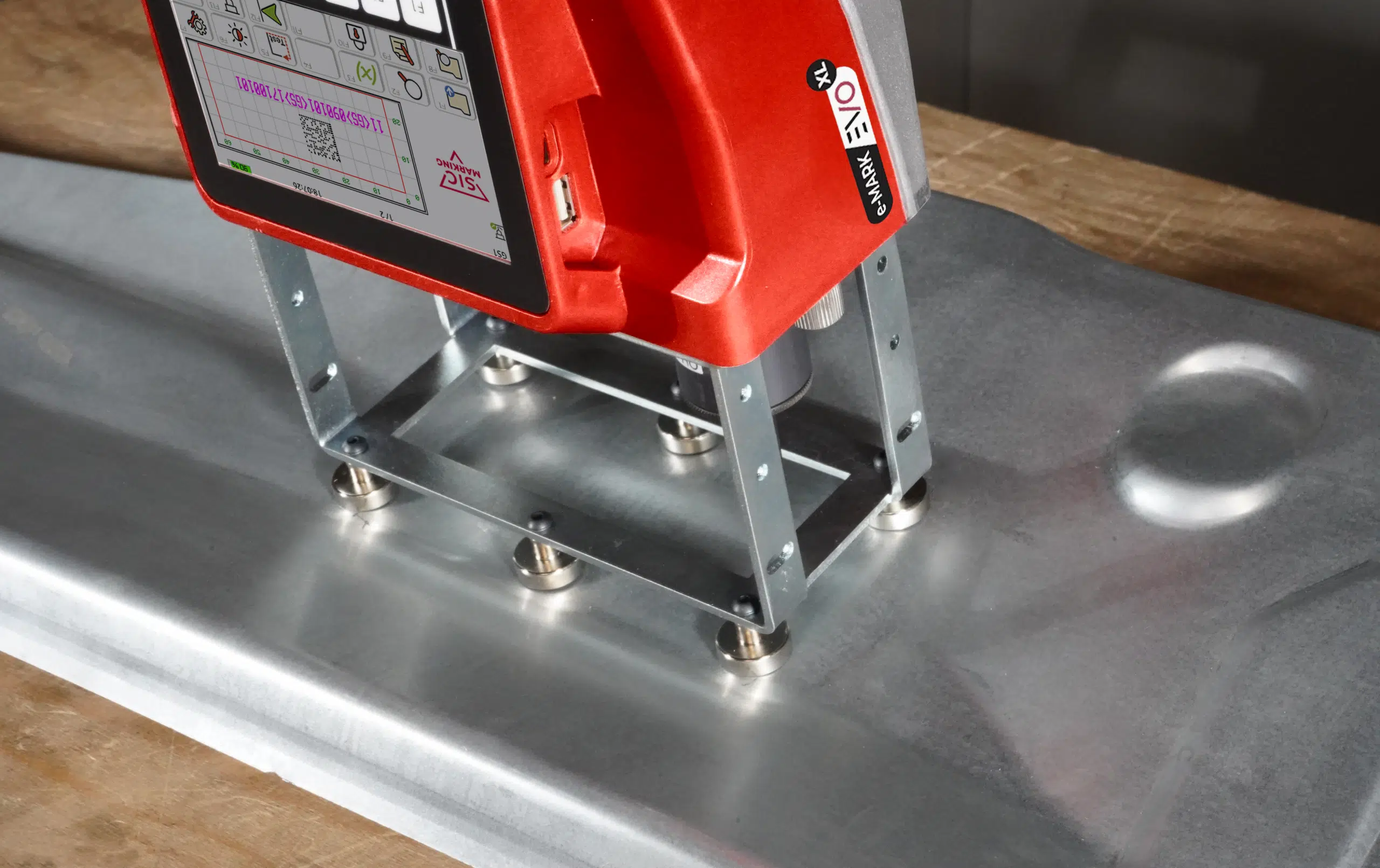

The e-Mark EVO XL has three interchangeable support surfaces available as an option : one with a non-slip surface, one that is smaller and adjustable, and one that is magnetic. They can be quickly exchanged without tools, allowing immediate adaptation to any part geometry, whether large, cylindrical, or with small surfaces.
