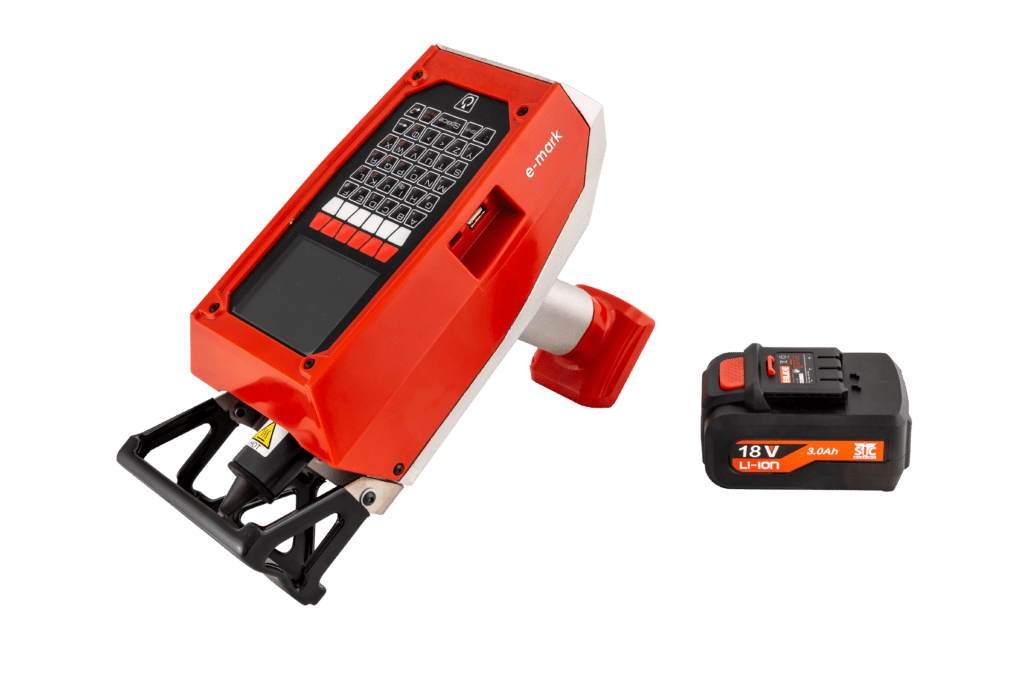

The E-MARK is a PORTABLE CORDLESS DOT PEEN marking machine that can mark all types of material, from plastic to treated steel with a hardness of up to 62 HRC.
It can operate for long periods on its INTEGRAL BATTERY.
This mobile and portable marking machine is fully autonomous due to its integral 18V Li-Ion battery, giving up to 4 HOURS OF CONTINUOUS USE.
The E-MARK comes with two batteries and a fast charger, in a convenient carrying case, which allows you to continue working with one battery while the other is being charged.
The robust E-MARK design is based on an aluminium alloy casting, which makes it particularly suitable for severe INDUSTRIAL ENVIRONMENTS.
Its high striking force makes it especially suitable for marking heavy or very large parts.

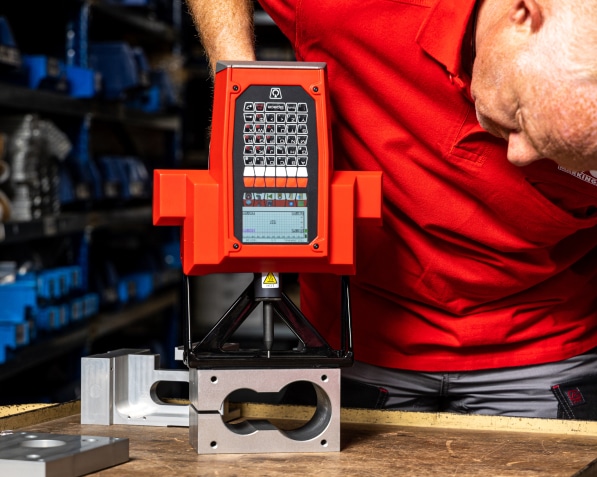

The E-MARK is also extremely ergonomic and EASY TO USE.
For example, the stylus/piece distance is very simple to adjust using the adjustment knob under the marking head.
The E-MARK is also a very light marking gun (3.2 kg), in spite of its basic metal structure.

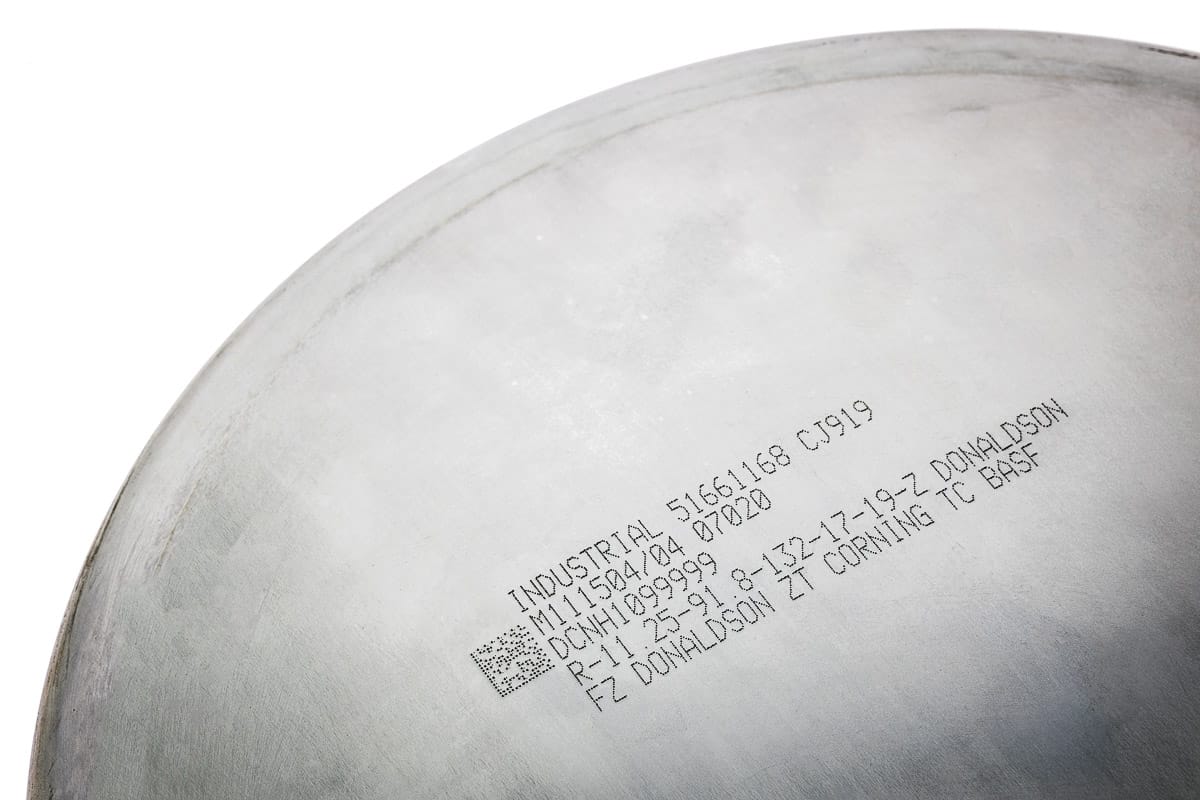

The E-MARK can mark ALPHANUMERIC TEXT, LOGOS, 2D DATAMATRIX CODES OR QR CODES.
The dot peen technology provides RELIABLE AND PERMANENT MARKING directly in the material, through a tungsten carbide stylus that strikes a series of dots at a very high rate.
288 x 271 x 135 mm
60 x 25 mm
320 x 240 pixels
49 keys, with protection membrane
Li-ion 18V (4 hours normal operation)
Alphanumeric, serial numbering or text, Datamatrix code, logo
Transfer through USB memory stick
4×6, Arial, Courier, OCR, OCR-A, OCR_BOLD, Comic and Comic_B
Access to all parameters
1 to 9
0.3 mm depending on material
1D/2D BLUETOOTH BARCODE READER
ATTACHMENT RING + BALANCER
SUPPLEMENTARY FRONT PANELS (3 TYPES TO CHOICE, DEPENDING ON APPLICATION)
