C 153 marking machine

Durability
Heavy use
Speed and precision
Marcatore a Micropercussione con Ampia Area di Marcatura
Description

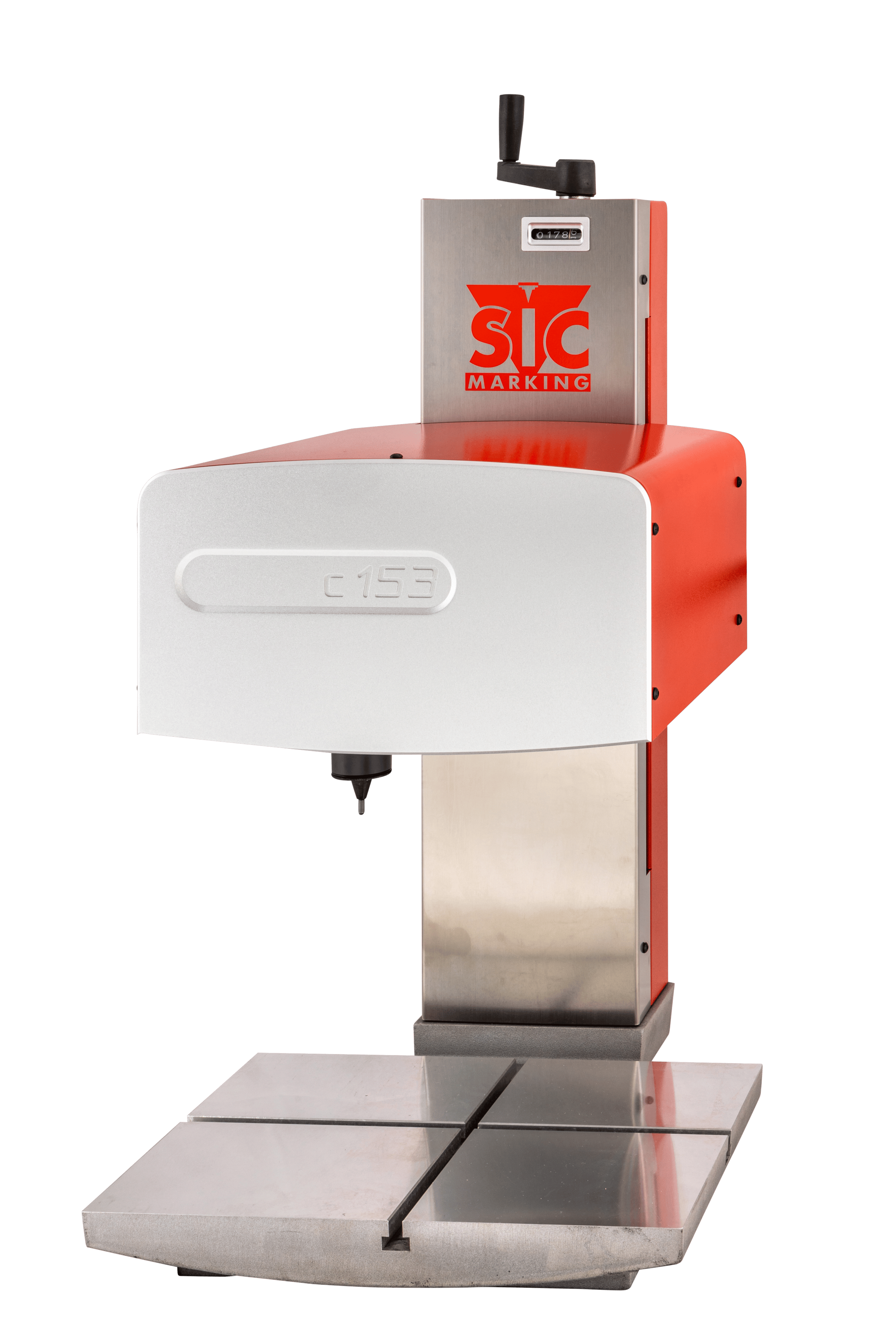

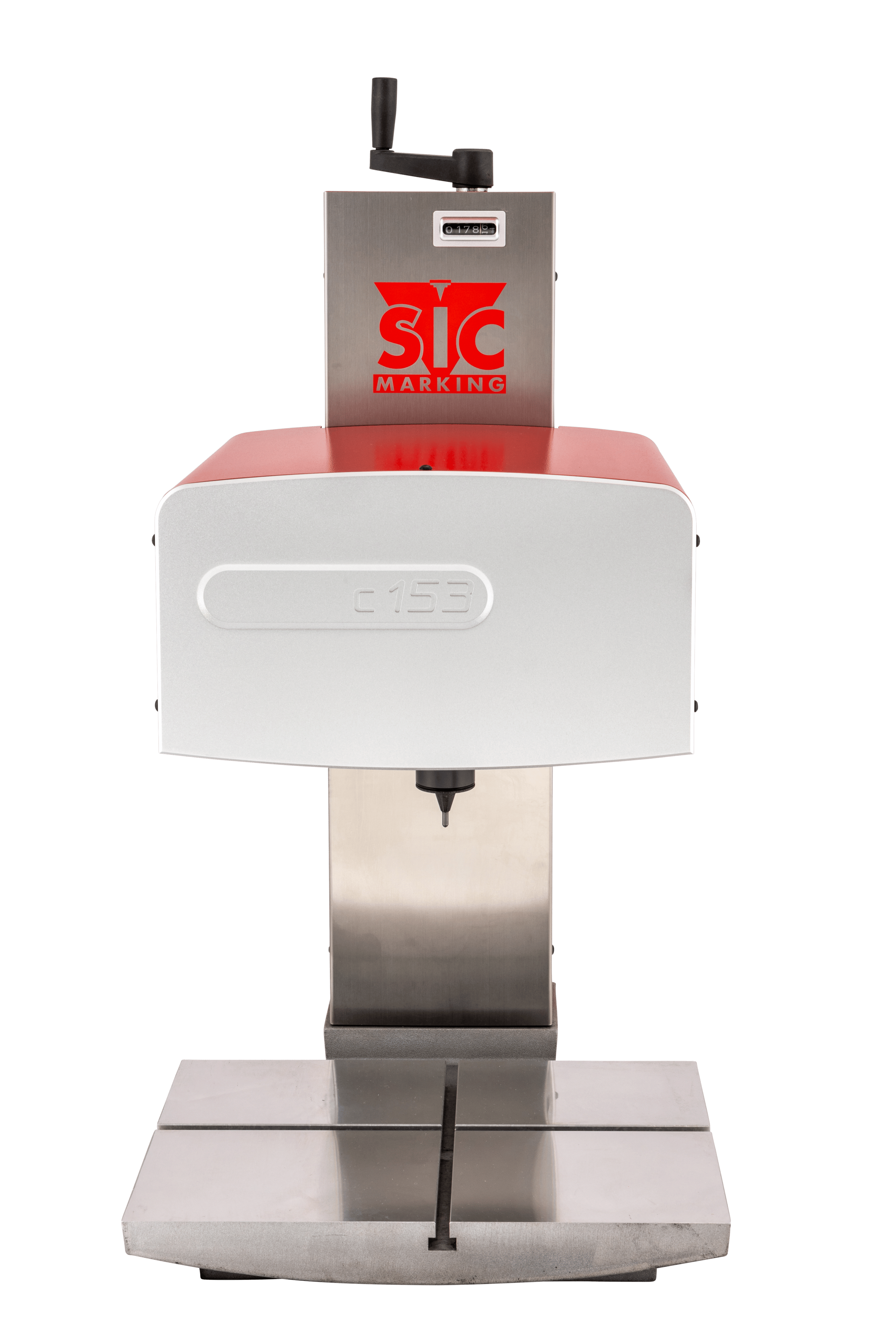

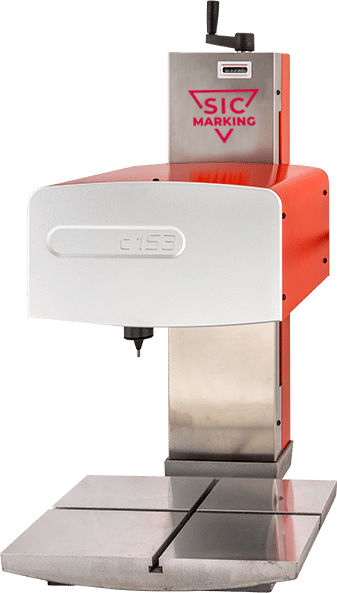

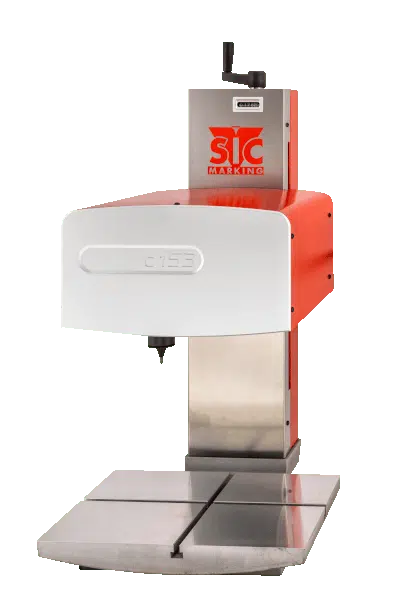

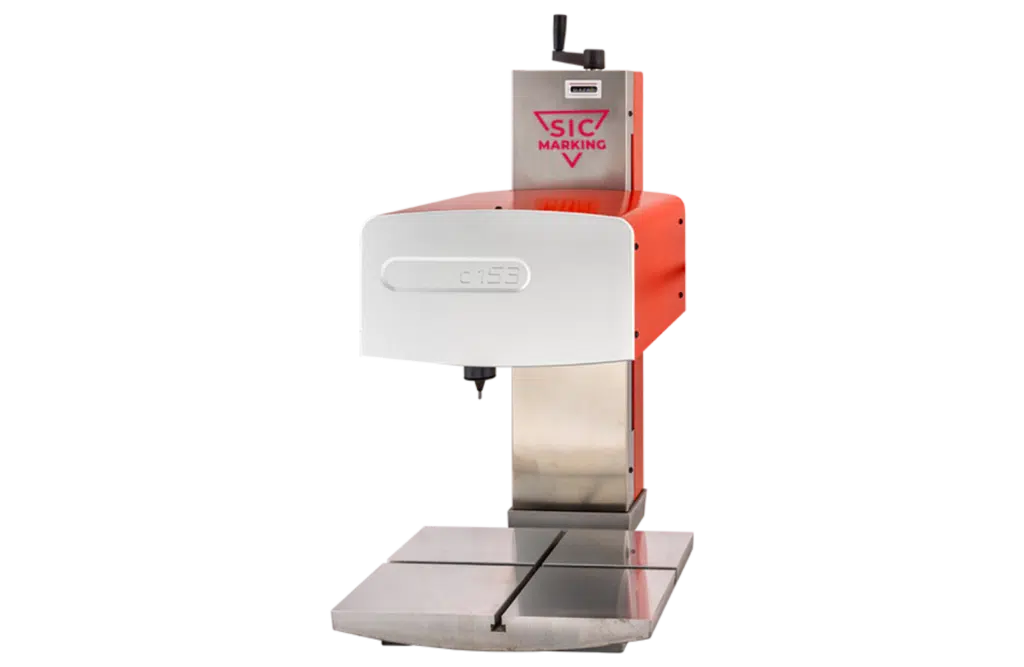

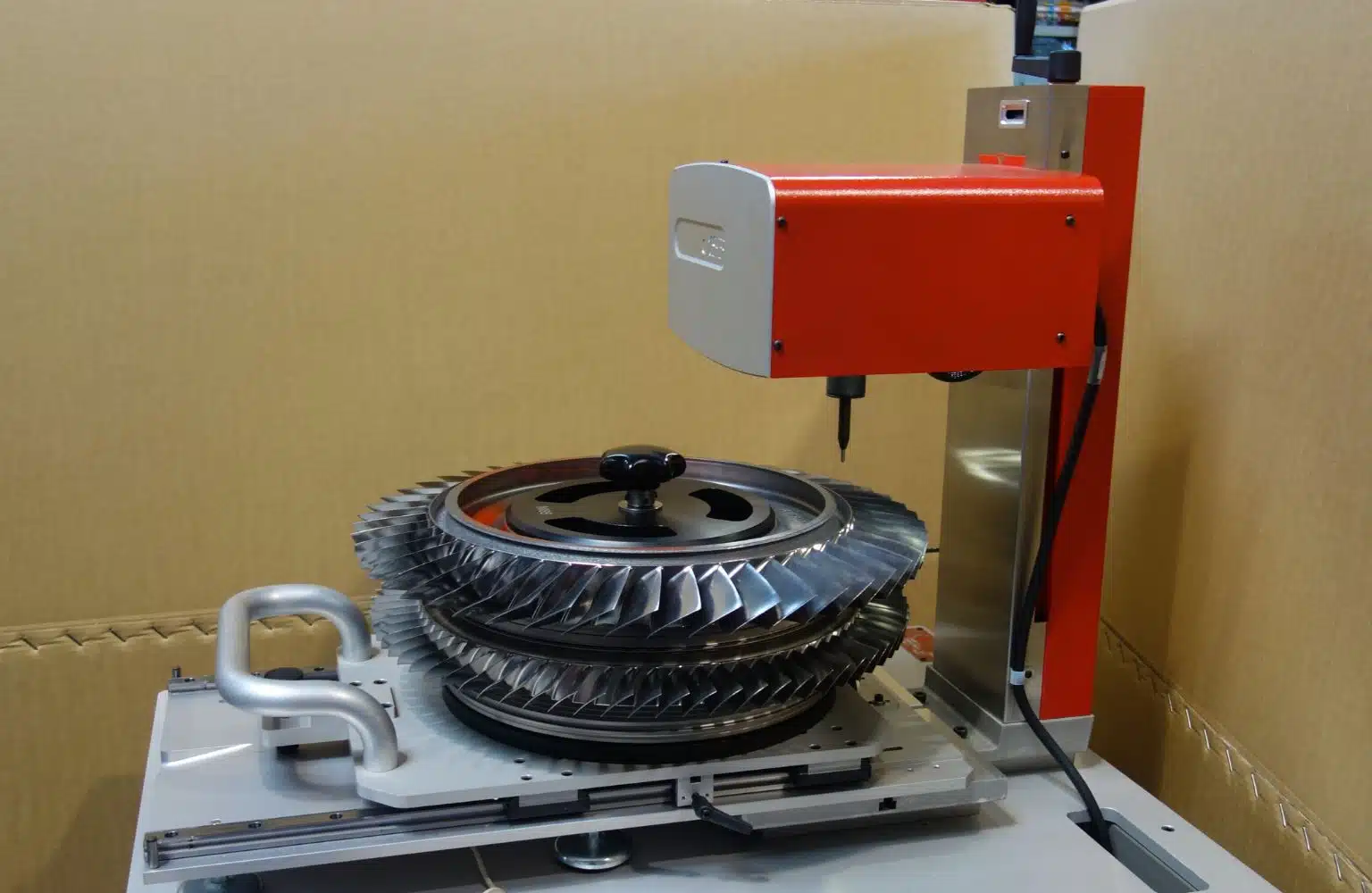

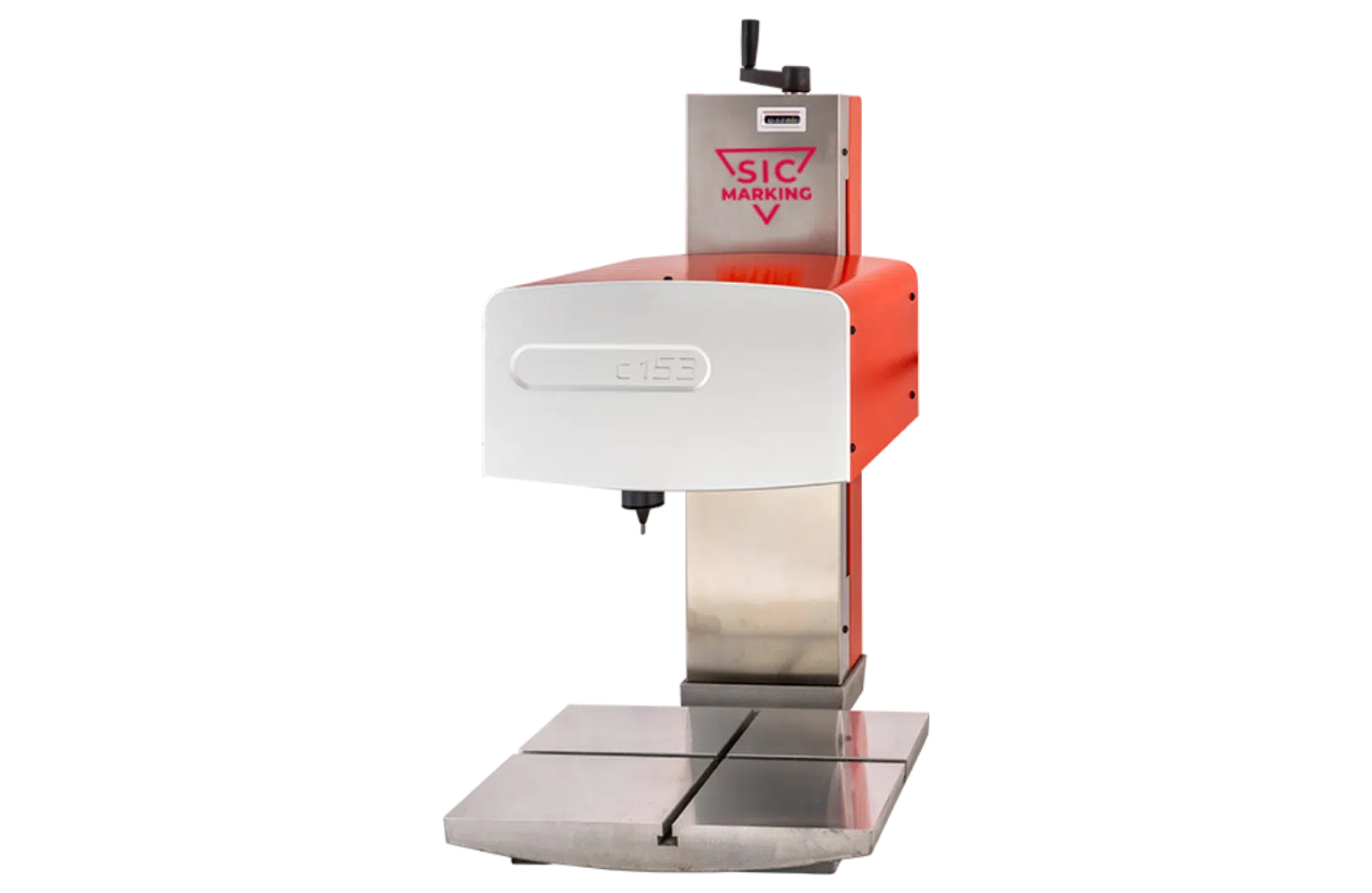

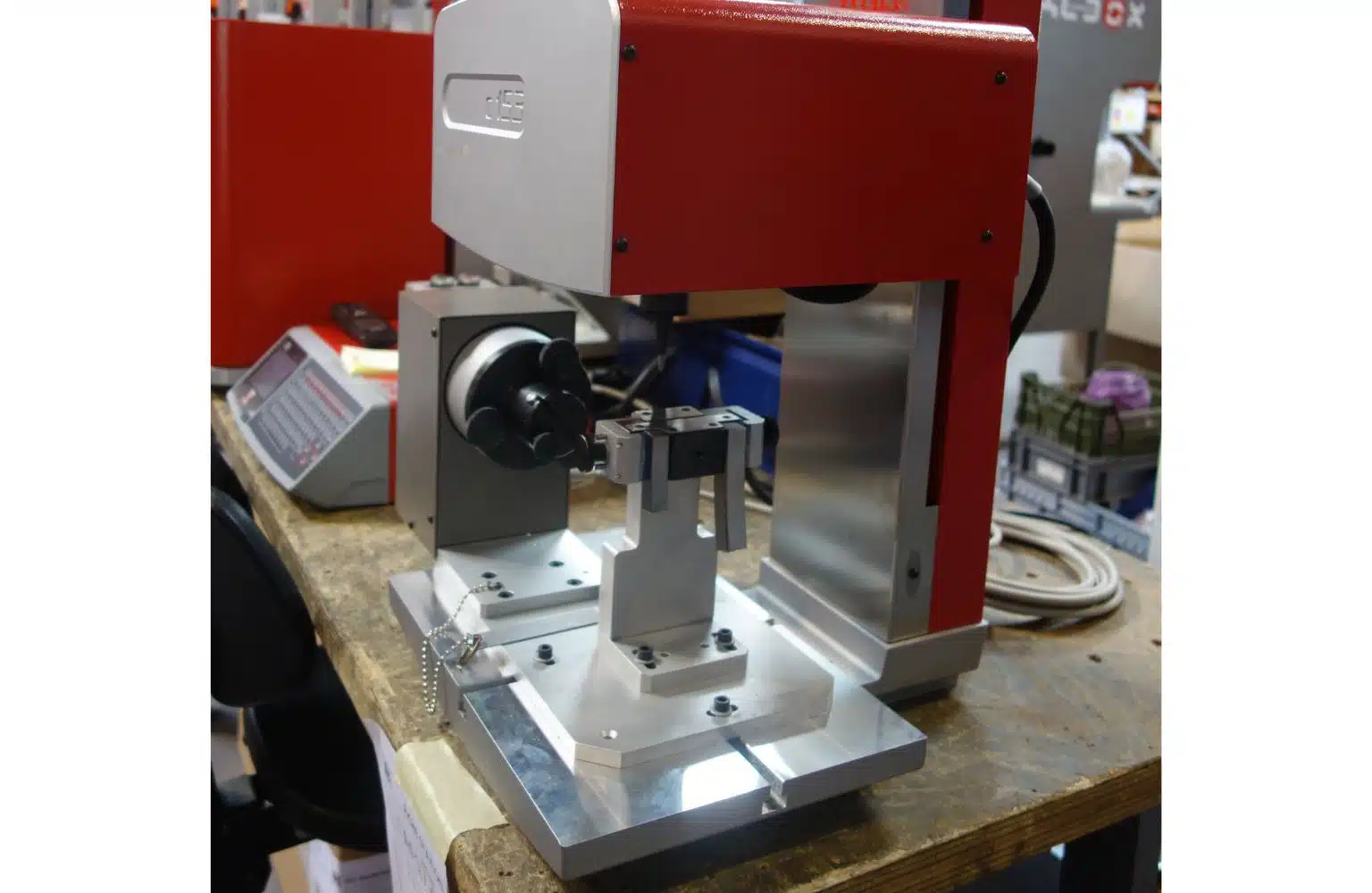

The C153 is a COLUMN-MOUNTED DOT PEEN MARKING MACHINE, i.e. a machine that slides on a vertical axis to adjust the position of the marking head.

It is particularly suitable for marking SMALL AND MEDIUM SIZE PARTS that are placed directly under the marking head.

The C153 is a FAST MACHINE DESIGNED FOR INTENSIVE USE.

THE MACHINE IS PARTICULARLY ROBUST WITH A CAST ALLOY BASE AND A STRENGTHENED COLUMN.

It has an integral meter that facilitates the setting of the marking distance when parts are changed.

The wide marking window of 160 x 100 mm, allows this machine to mark on a large surface.

The LED lighting system facilitates marking when indoor light is insufficient.

It only needs an electrical power supply.

Dot peen marking technology with electromagnetic control enables parts with various shapes and surface finishes to be marked: plane, concave, convex, circular, raw and machined surfaces.

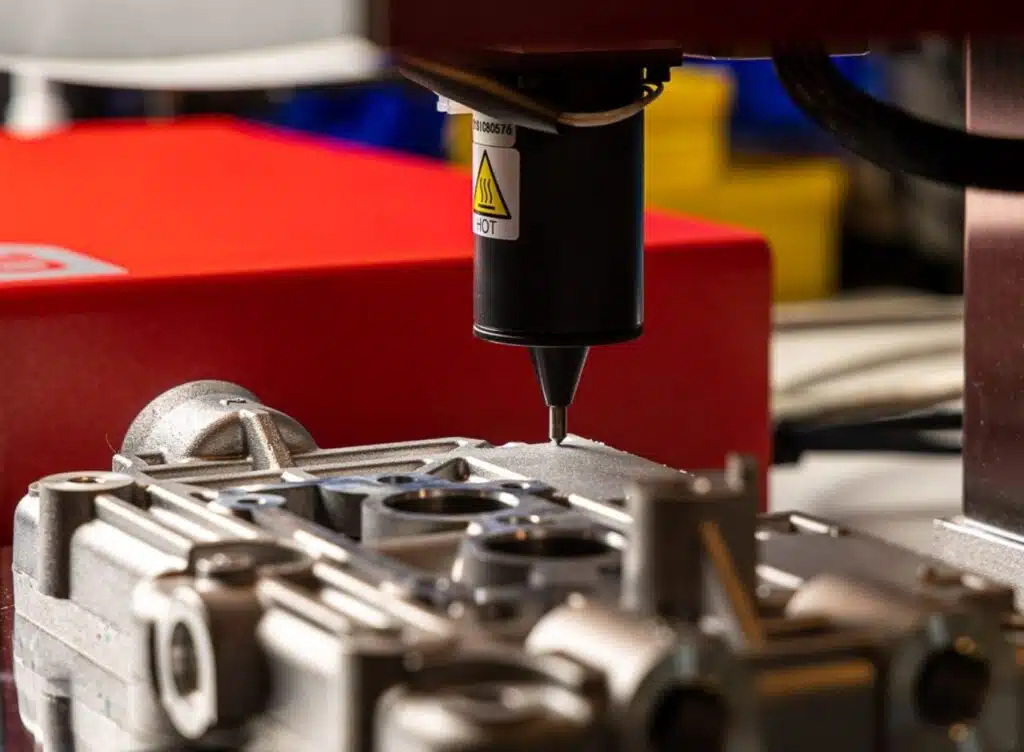

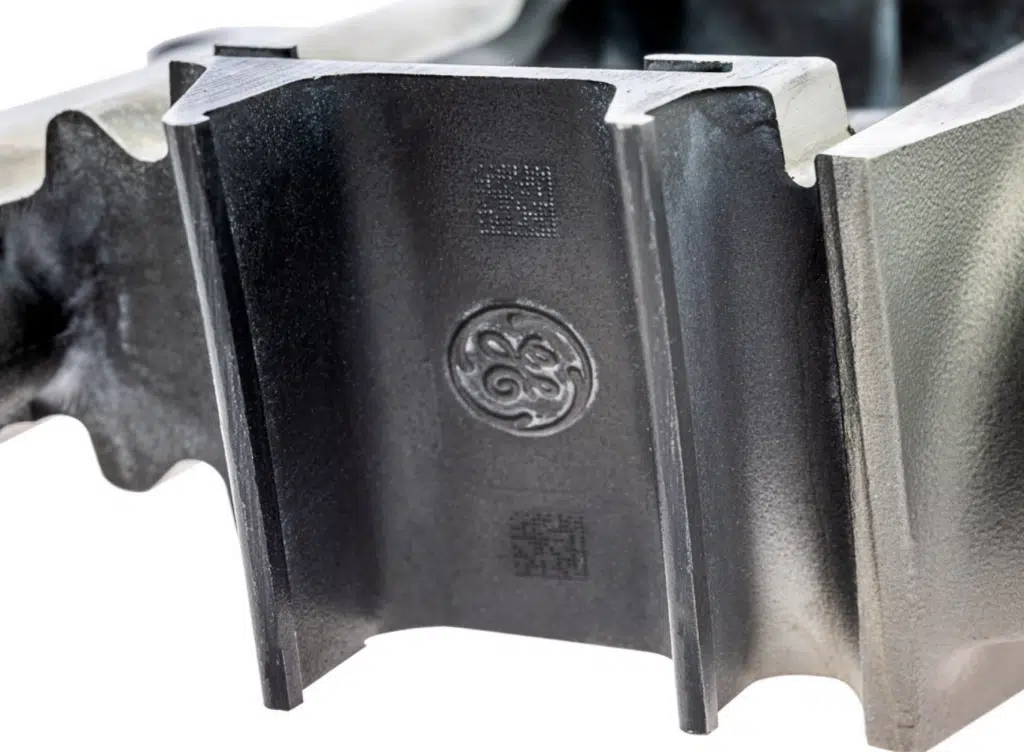

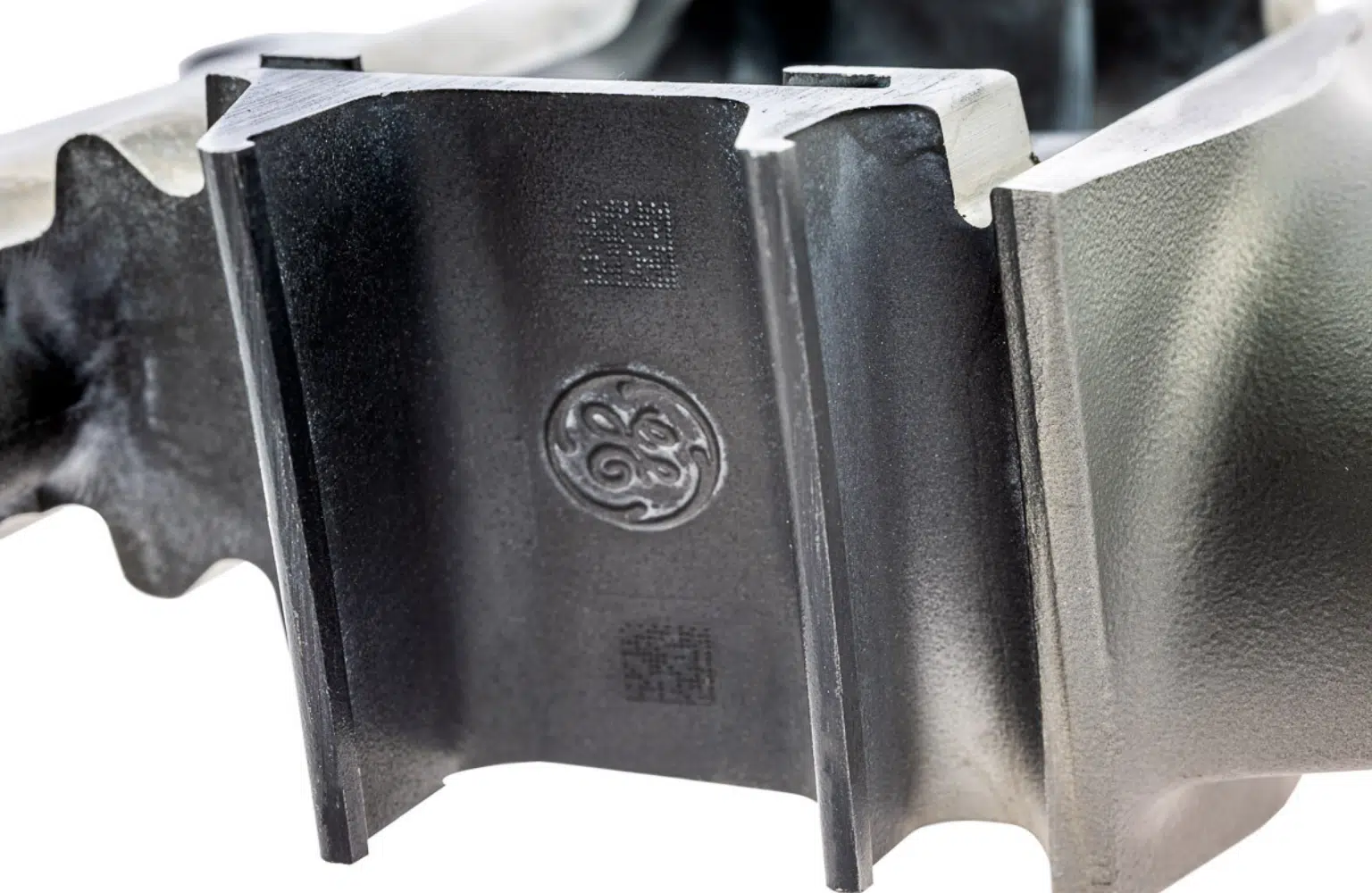

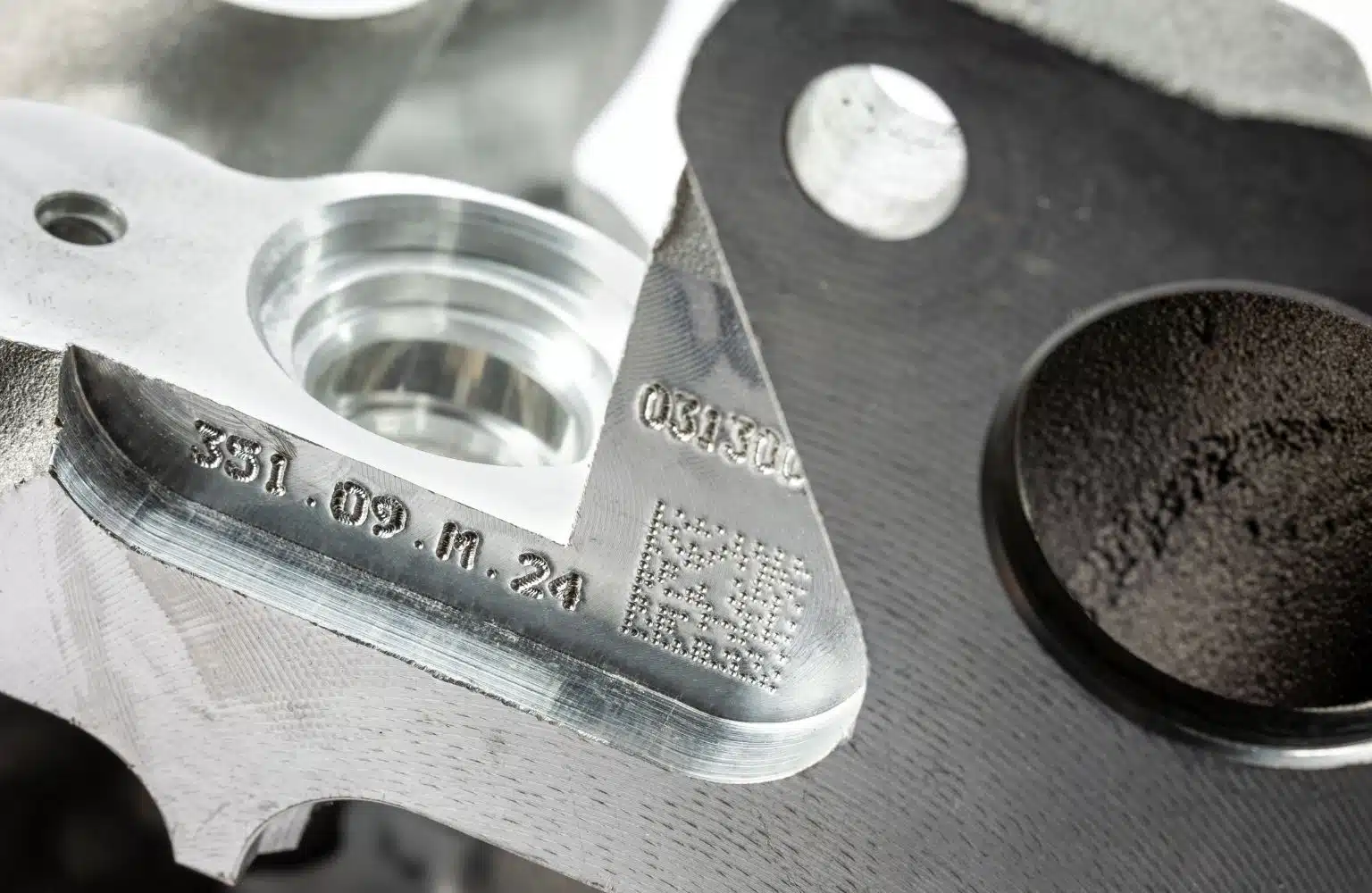

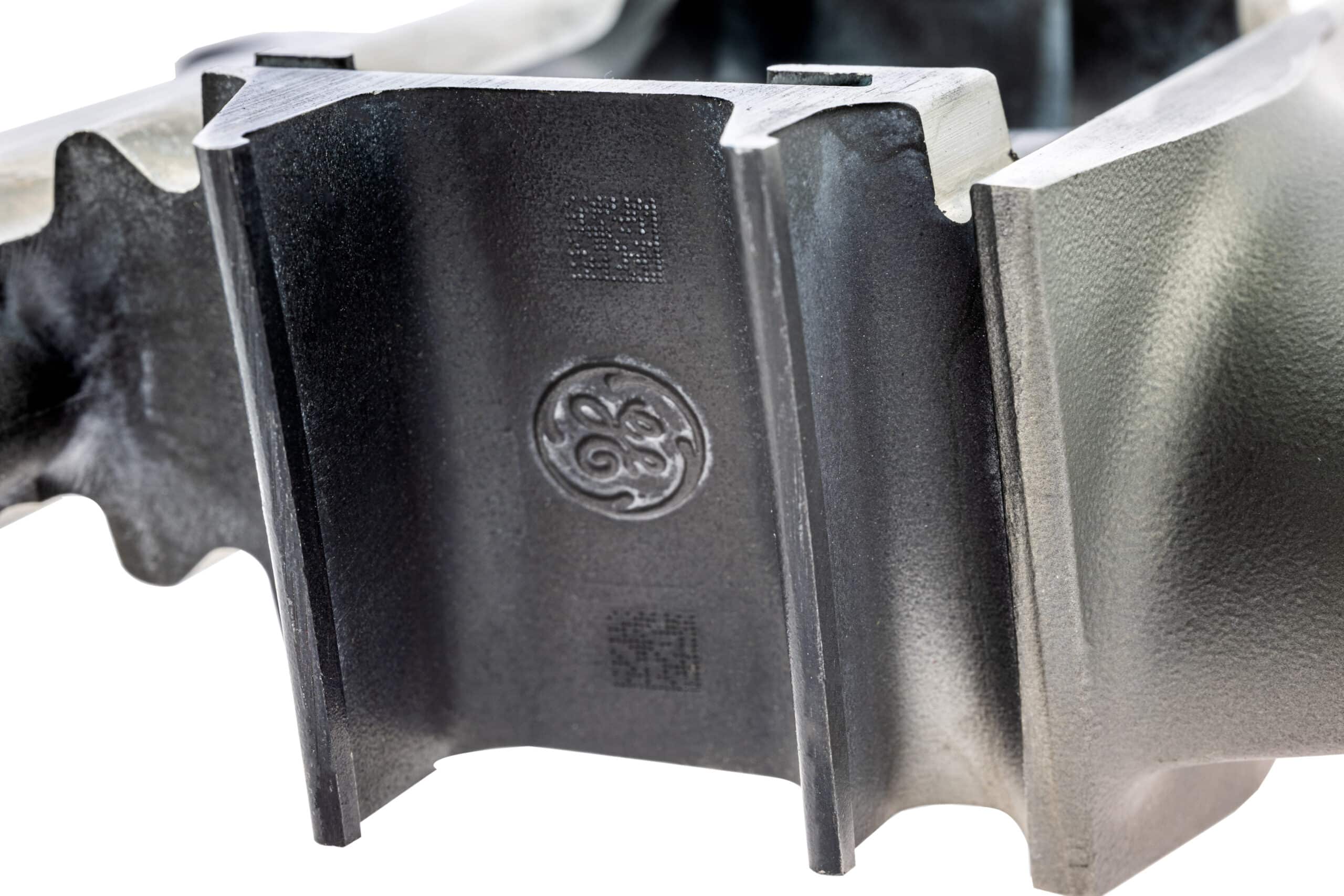

The tungsten carbide stylus deforms the material by executing a series of indents in the surface to be marked. The C153 can engrave alphanumeric text, logos, or 2D Data Matrix codes.

It only needs an electrical power supply.

Zoom
Controlle

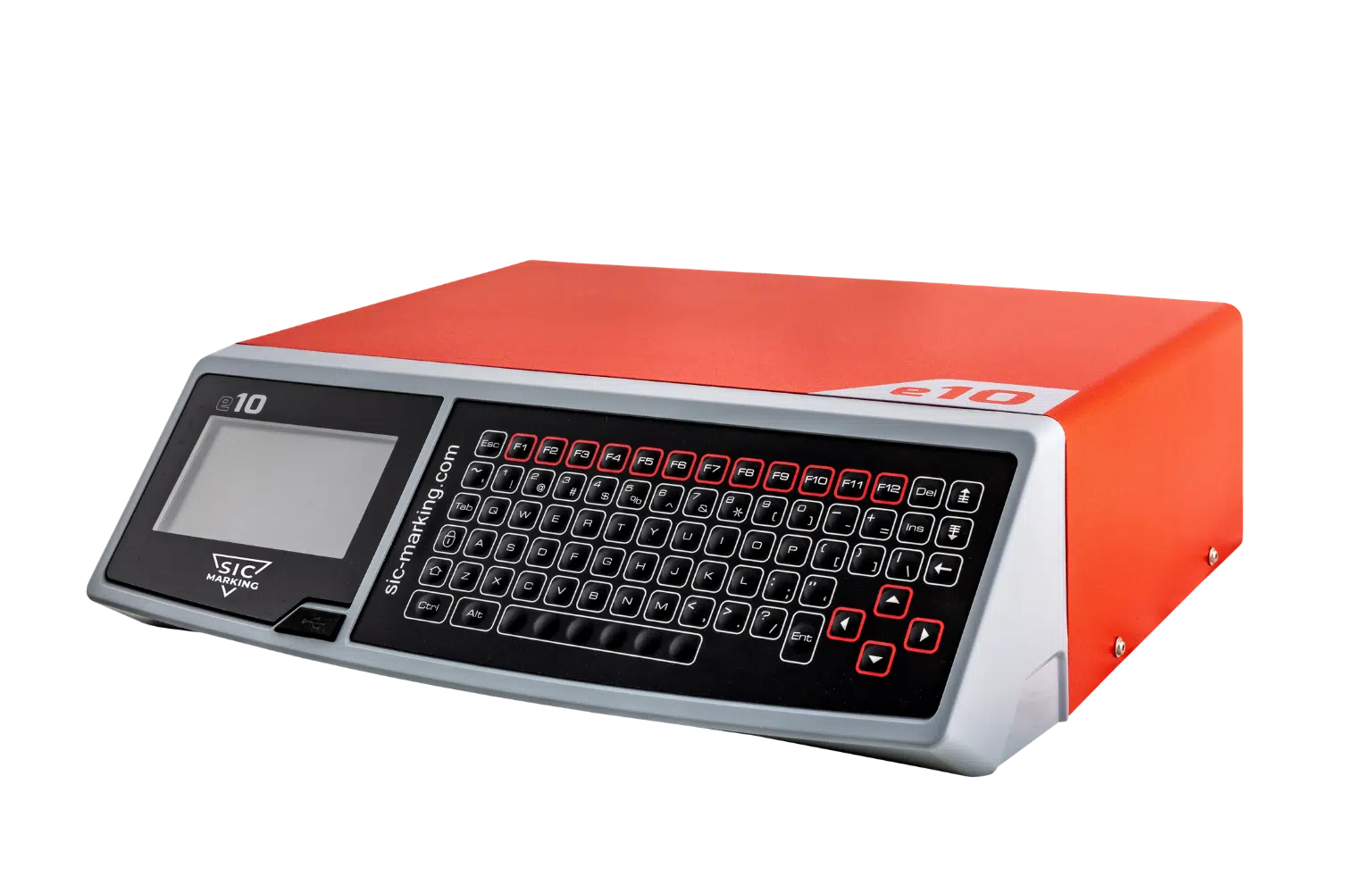

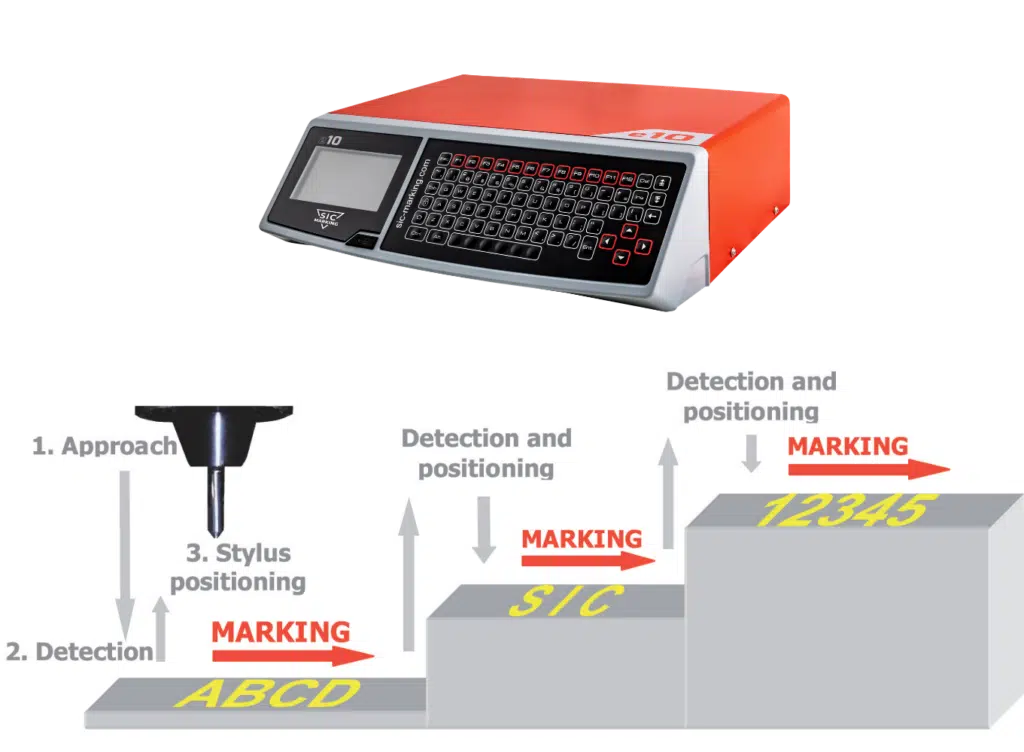

THE E10 CONTROLLER THAT CONTROLS THE C153 has a Qwerty keyboard covered by a waterproof membrane, and a backlit colour screen that provides the user with A SIMPLE AND INTUITIVE INTERFACE.

Marking files can be uploaded/downloaded to/from the controller, to/from a PC, using a USB memory stick.

Mechanical specifications

Marking window

160 x 100 mm

Weight

28 kg

Dimensions

385 x 350 x 704 mm

Stylus

Carbide 60 mm

Column travel

Max. 270 mm

Electronic specifications

Dimensions

322 x 380 x 112 mm

Weight

5 kg

LCD screen

95 x 54 mm

Keyboard

Qwerty with waterproof membrane

Power

300 W

Power supply

Single phase, 90 to 240 V AC, 50-60Hz

Number of axes controlled

2 (3rd and 4th axis on option)

Control software

Marking file capacity

More than 2000

Memory

7110 KB

Alphanumeric characters

Serial numbering, date/time tags

Logos

Creation from the PC software

Datamatrix

Up to 348 characters, 48 x 48 cells

Fonts

Arial, Courier, OCR and OCRA

Style

Angular, Radial, Inverted and Mirror

Rate

Up to 5 characters per second

Font size

From 0.1 mm to 99 mm

Impact force

9 levels

Depth

Up to 0.5 mm

Resolution between dots

0.05 mm

Maximum stylus stroke

Up to 8 mm

Personnel management

Maximum 10

Password protection

3 security levels

History function

Password protected

Maintenance aid

Self-Diagnostic component

Languages available

17

COMMUNICATION
Ports

RS232, RS422, USBx2, RS485, Profibus and Ethernet on option

Inputs/Outputs

16

Remote keyboard input

USB

External output

5V-0.5A and 24V-0.5A

Logos

Creation and transfer software

File saving on PC

PC software or USB memory stick

Database link

Option

Options

PLATE BRACKET

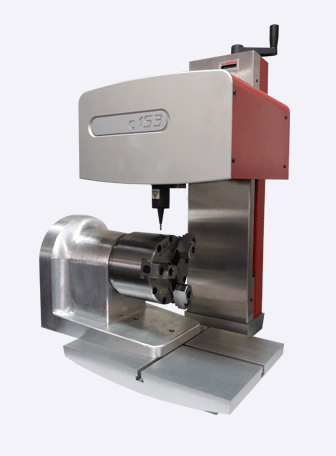

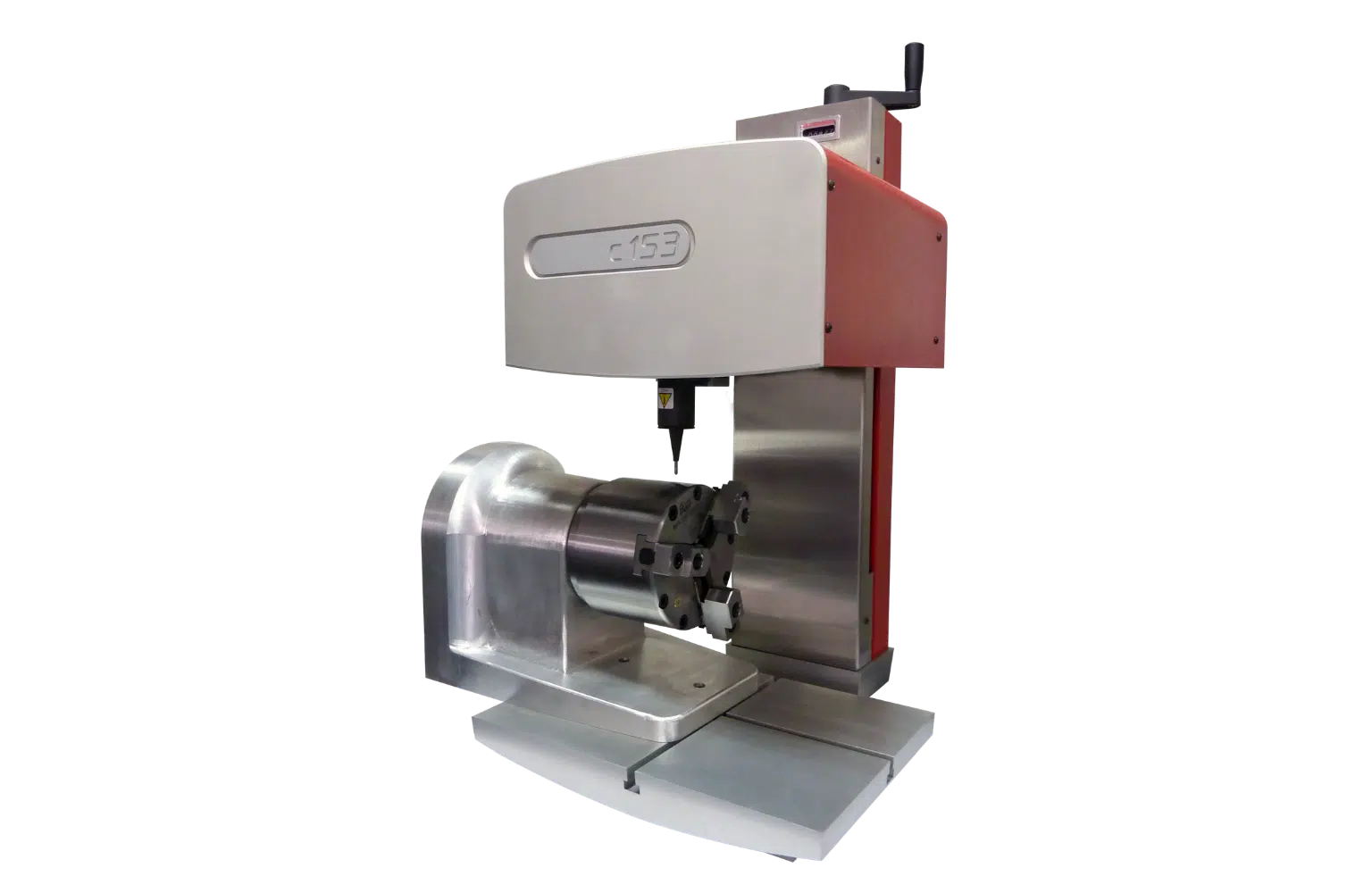

STANDARD D AXIS FOR E10 RANGE (DIAMETER 100)

CONTROL PEDAL
