EC1 marking machine

Competitive
Ergonomic
Intuitive interface
EC1 Marcatore a Micropercussione con Colonna
Description

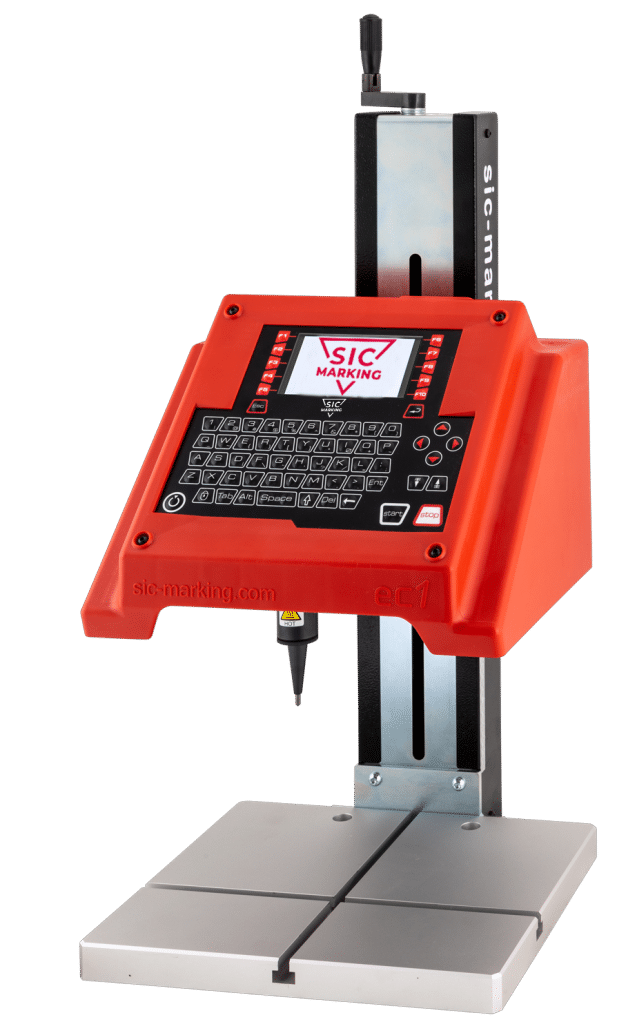

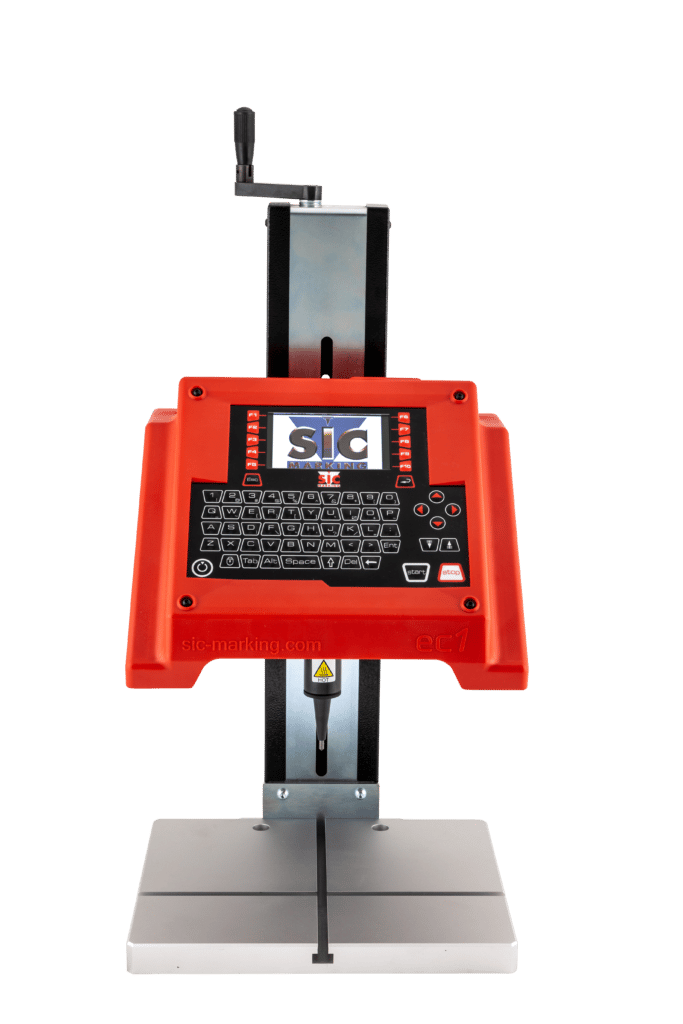

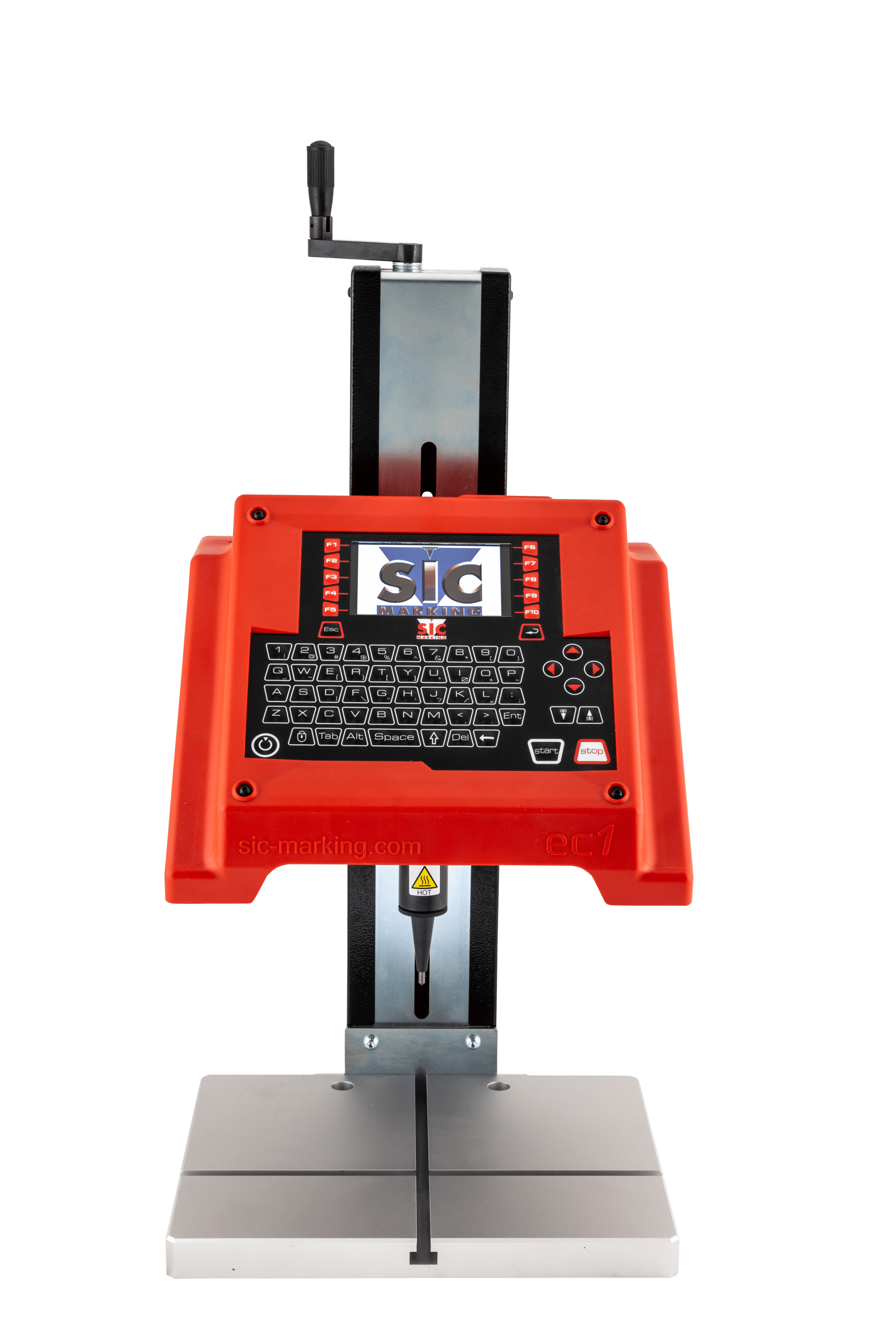

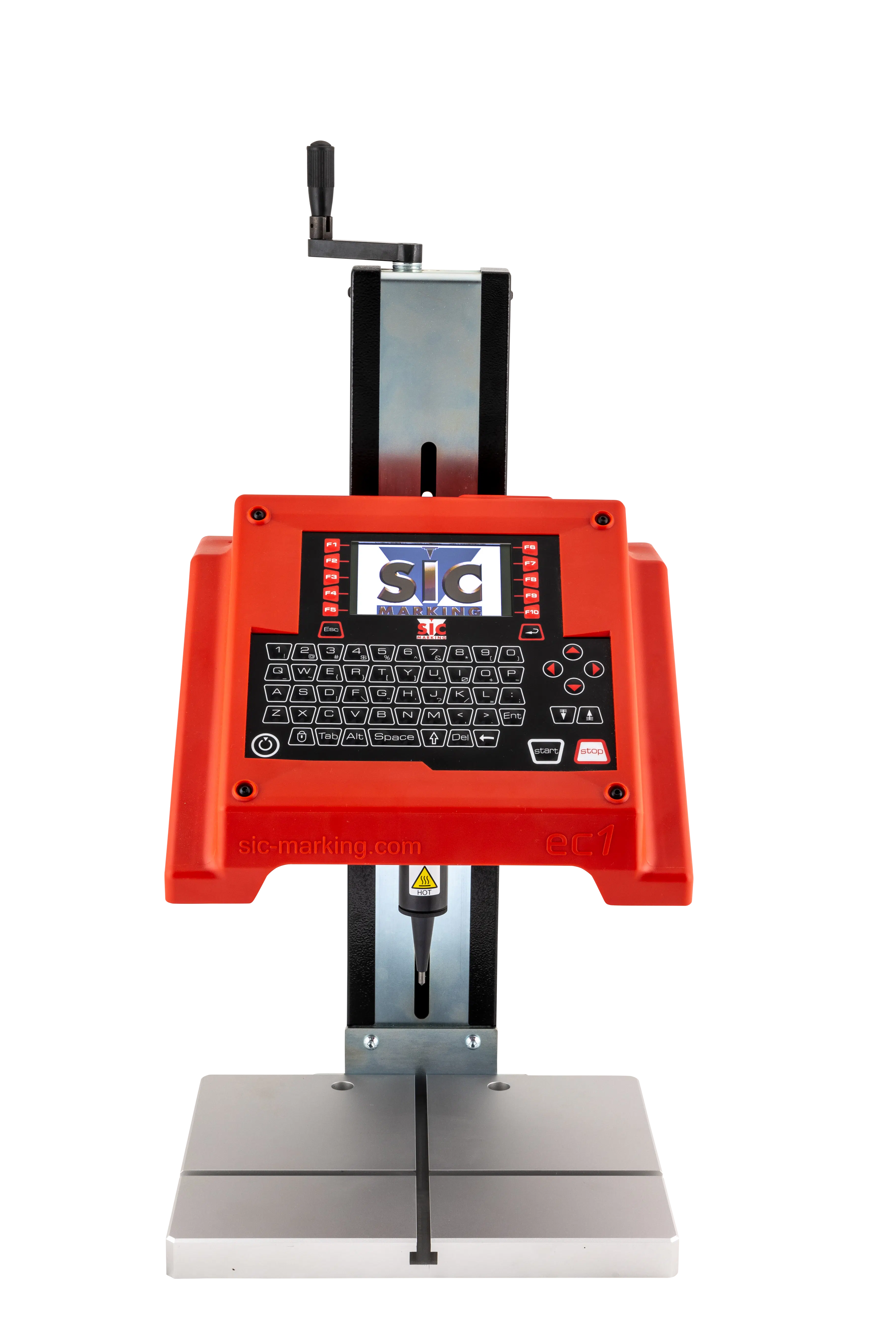

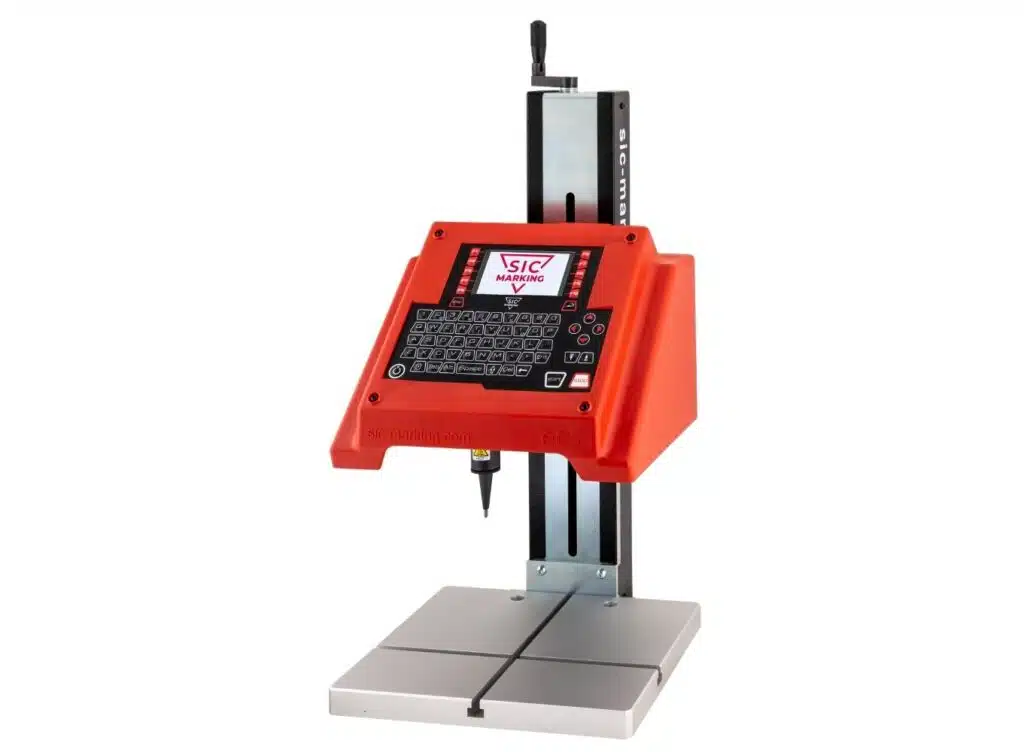

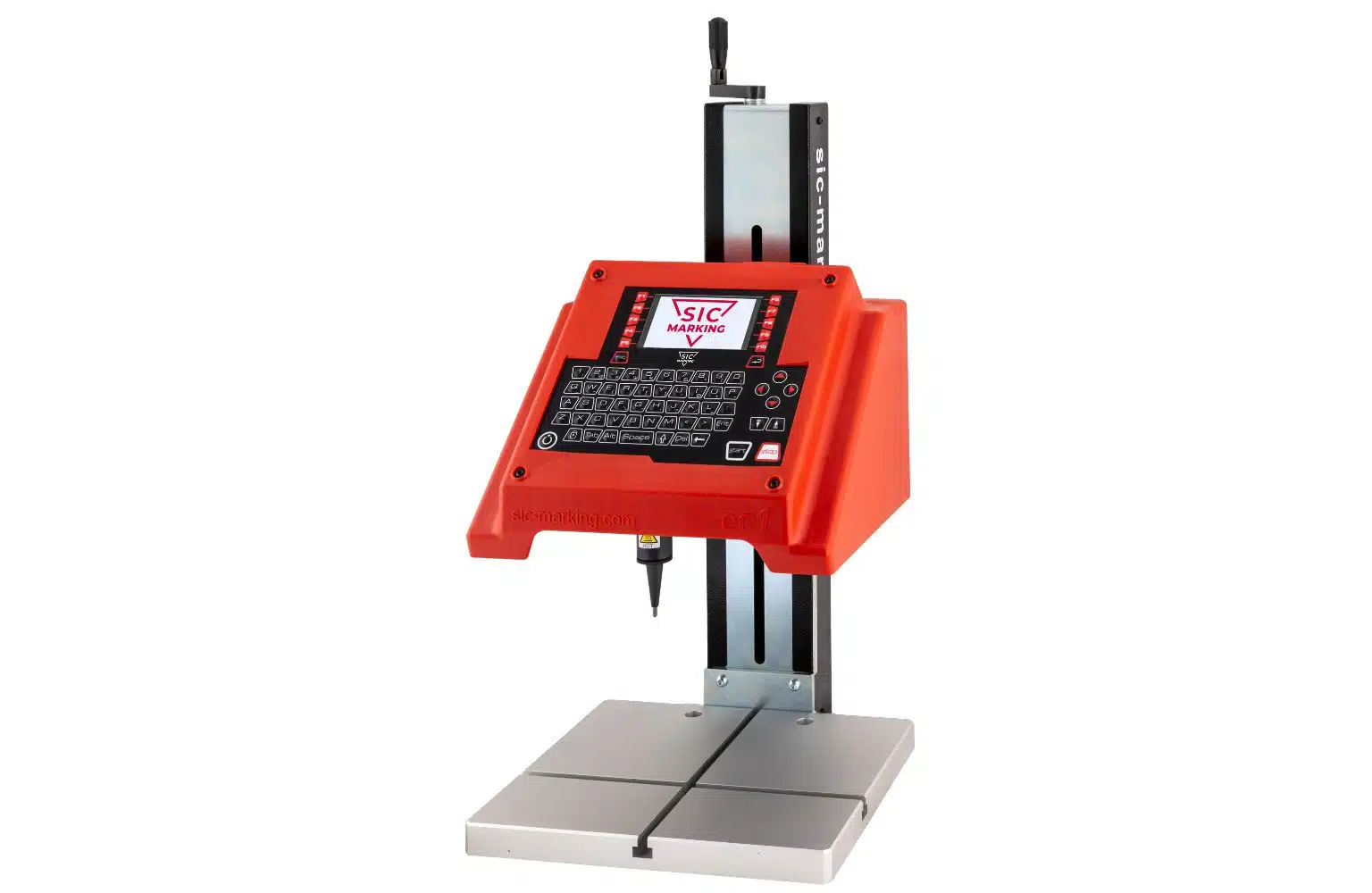

The EC1 is a COLUMN-MOUNTED DOT PEEN MARKING MACHINE – a machine that can be manually adjusted on the vertical axis to position the marking head according to the height of the part.

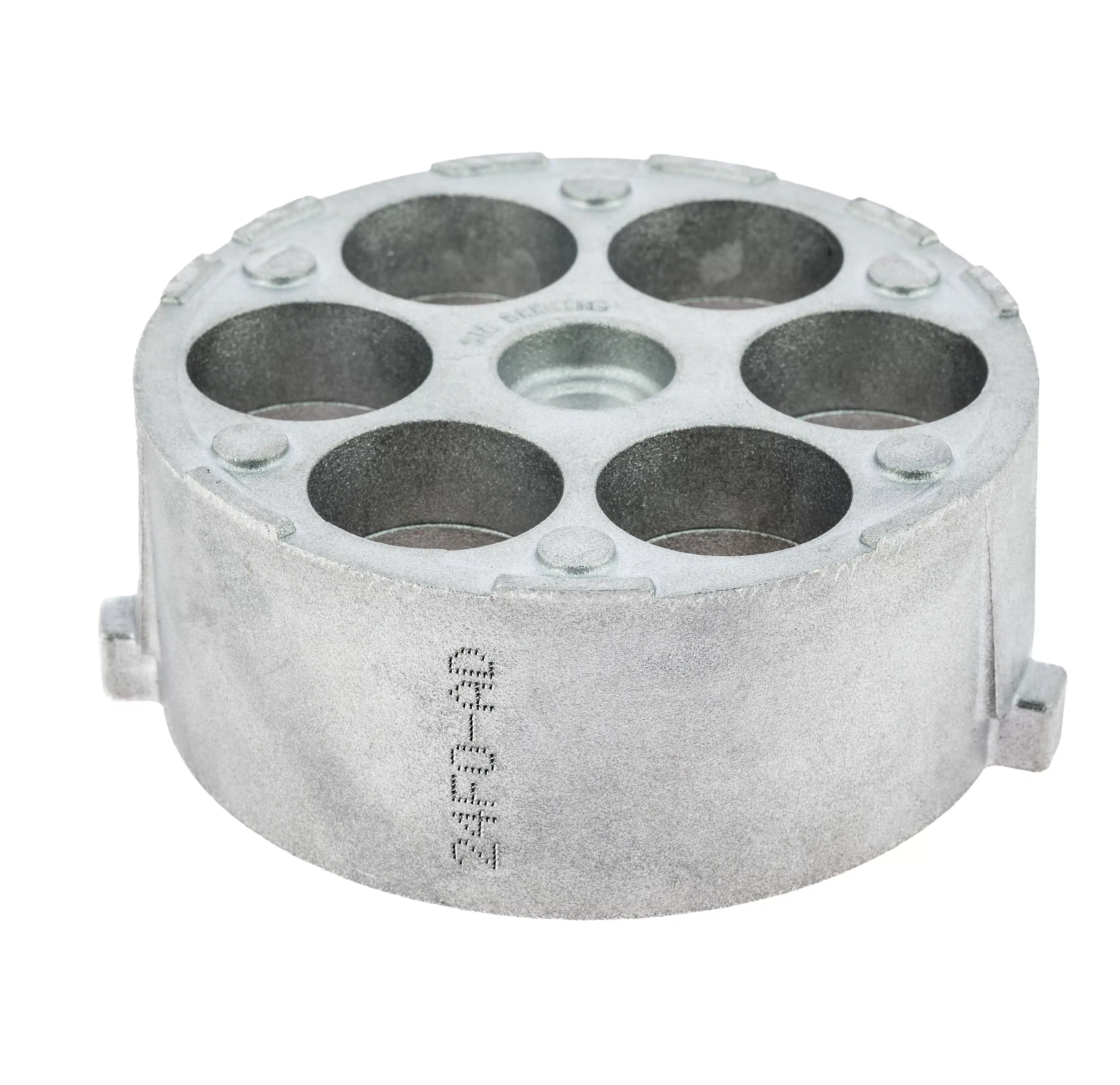

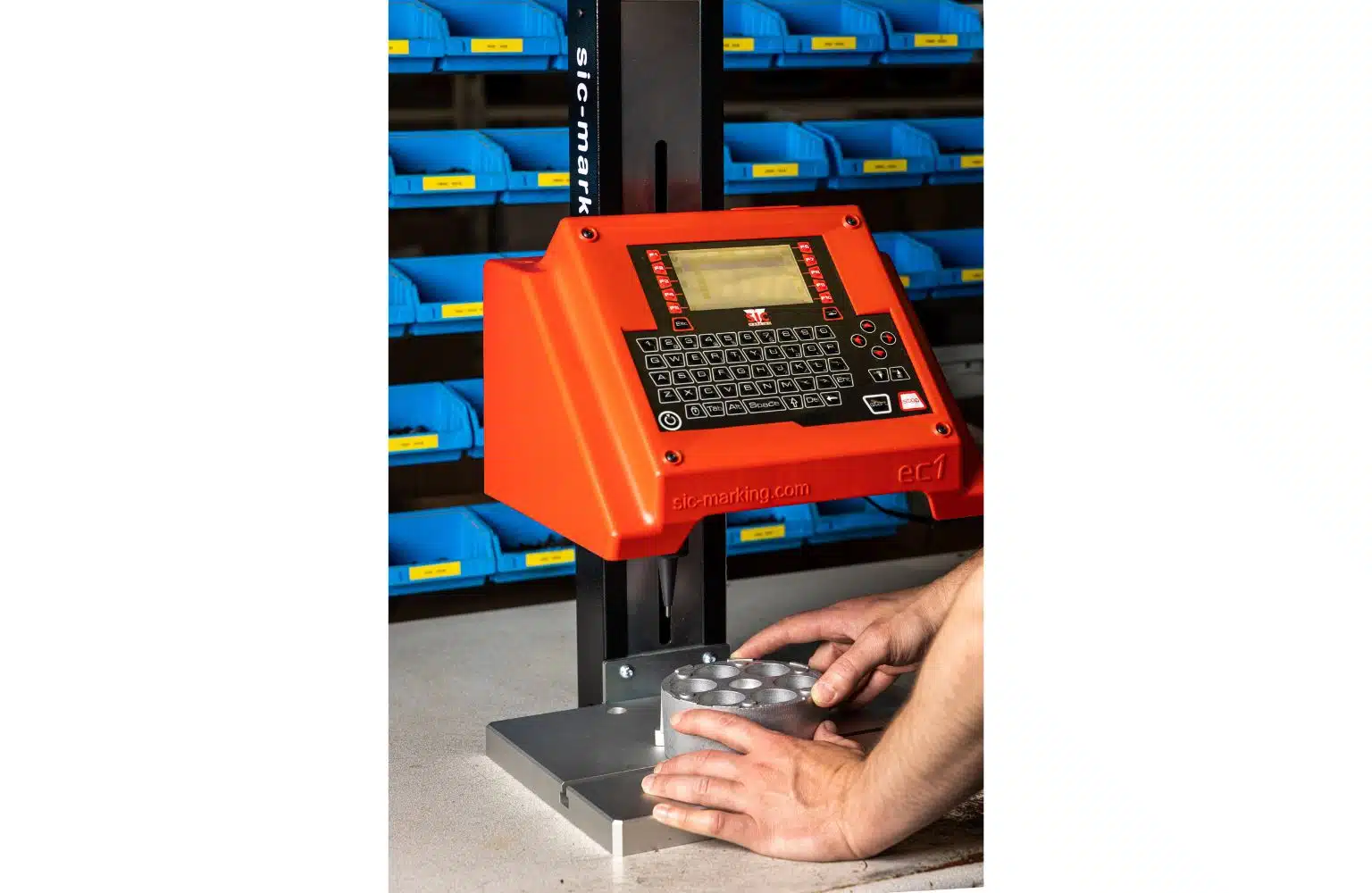

It is ideal for marking small or medium sized parts, which are placed directly beneath the marking head.

The EC1 has a WIDE MARKING WINDOW (120×100 mm) and a column stroke of up to 300 mm, which allows it to mark parts of various shapes and sizes.

This machine also has a CONTROL SYSTEM, including a graduated column for adapting the position of the stylus in relation to the marking area.

The EC1 is able to mark ALL TYPES OF MATERIALS from plastic to metal up to a hardness of 62 HRC with CONSISTENT QUALITY AND PRECISION.

It only needs connecting to a POWER SUPPLY.

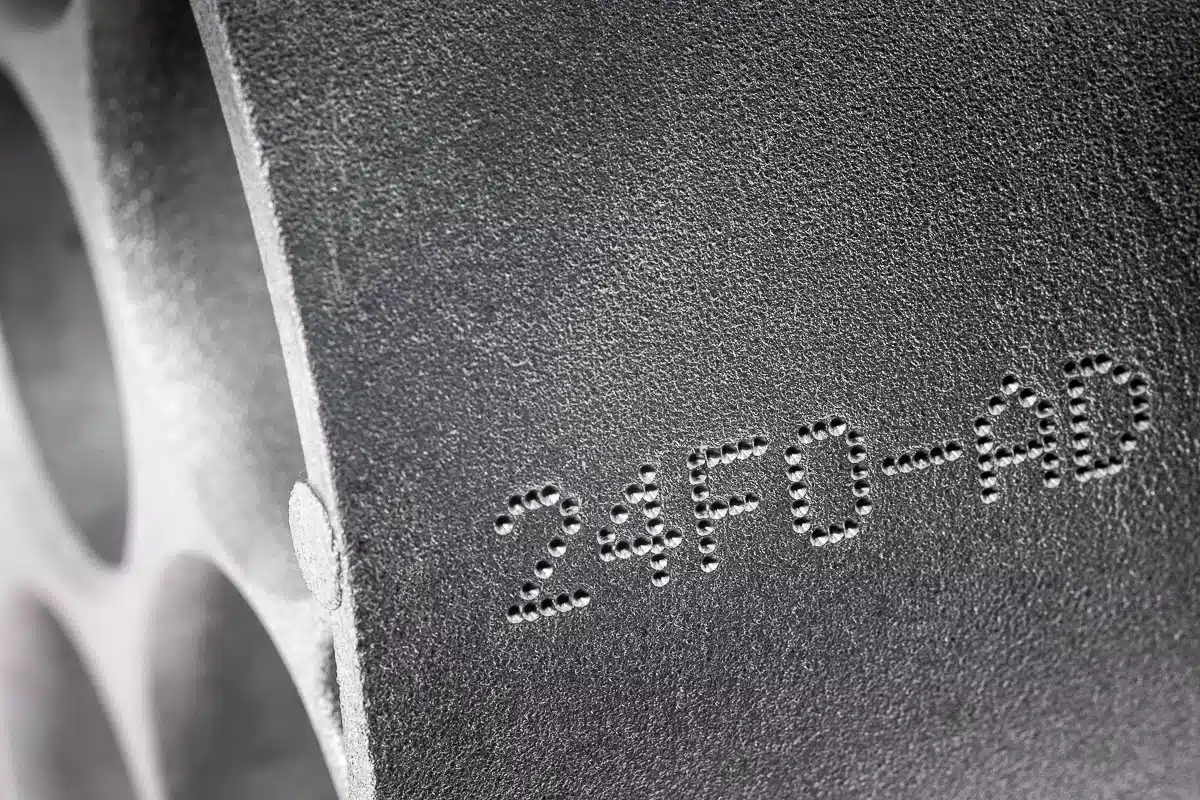

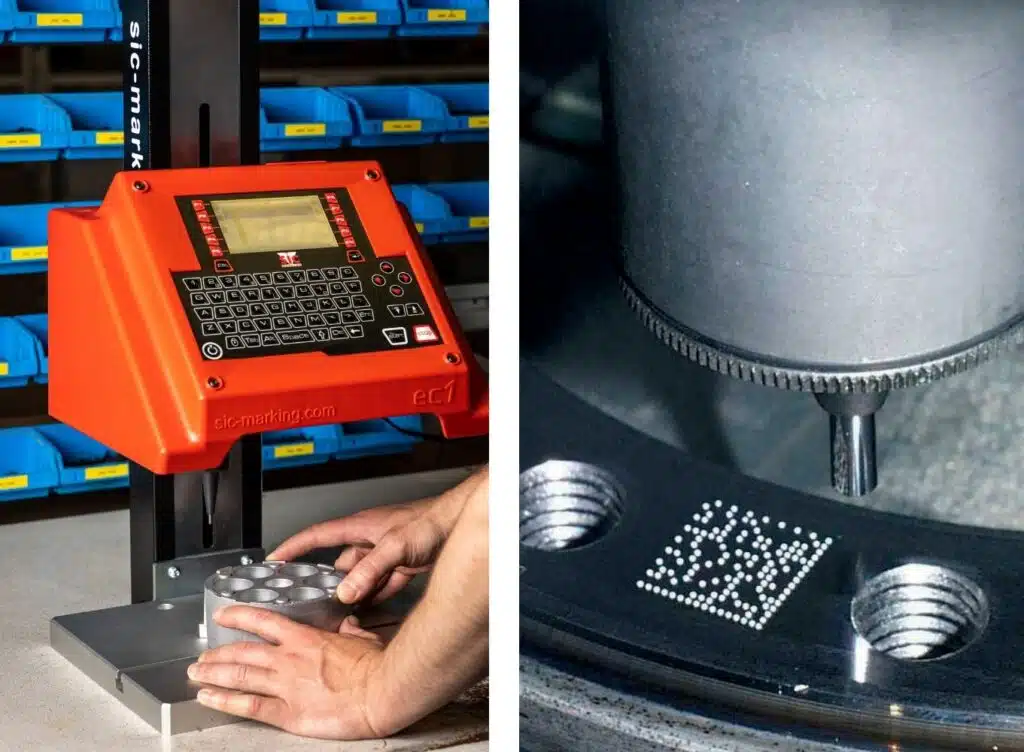

Dot peen marking technology with electromagnetic control enables parts with a variety of shapes and surface finishes to be marked: flat, concave, convex, circular, raw and machined surfaces.

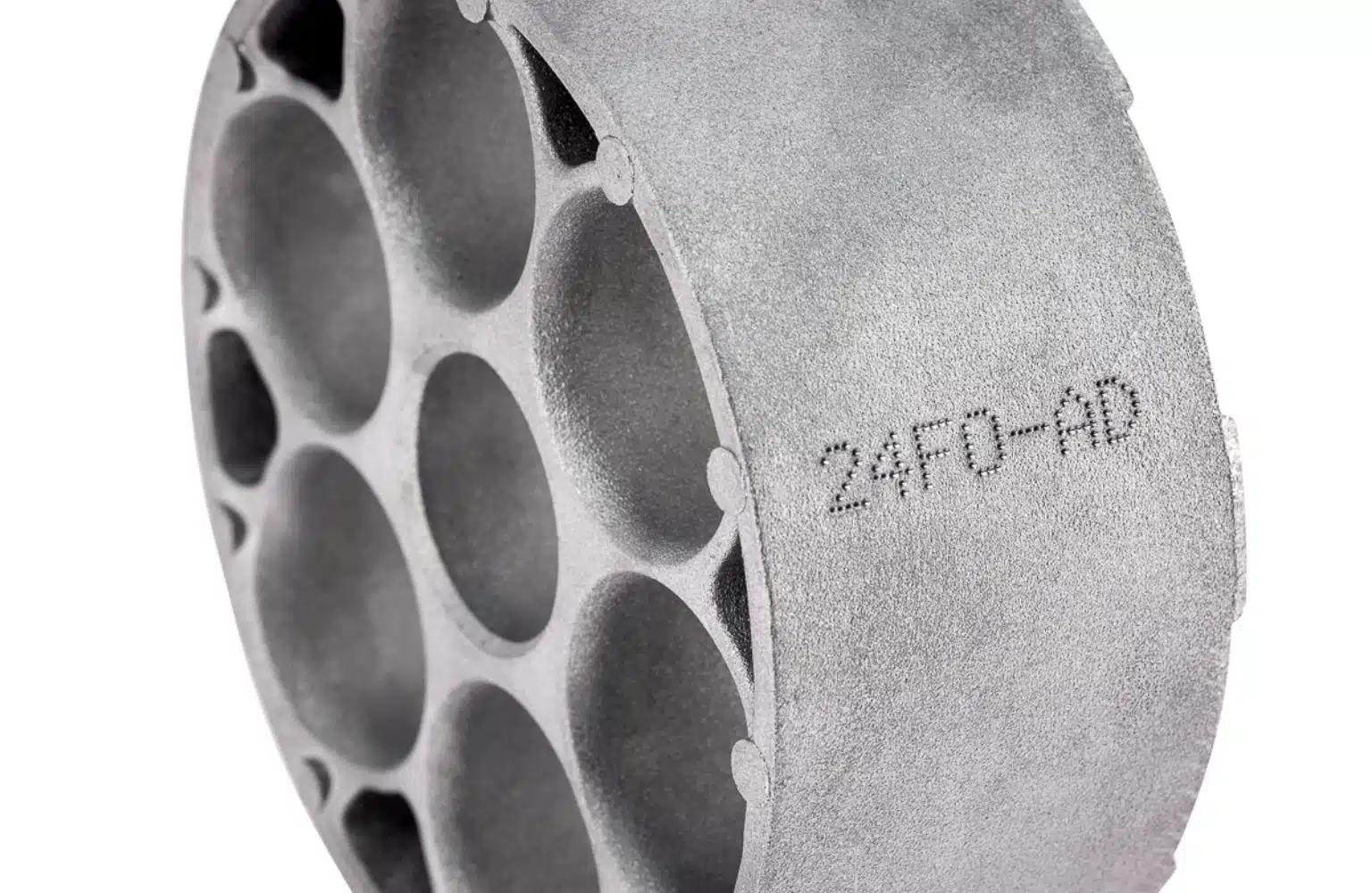

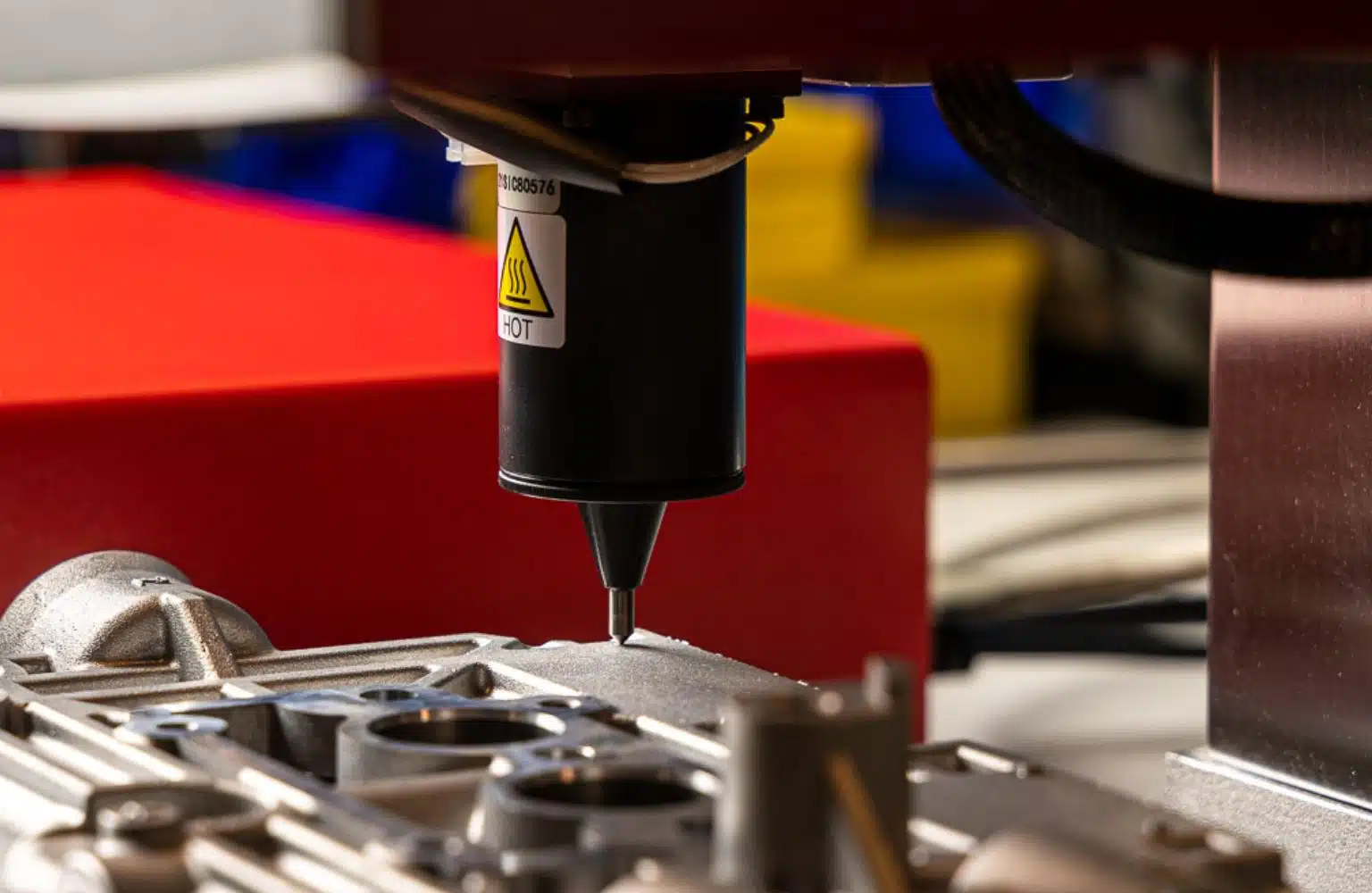

Thanks to the tungsten carbide stylus, which displaces the material by creating a series of indents in the surface to be marked, the EC1 is equally capable of engraving alphanumeric text, logos, or 2D Data Matrix codes.

Zoom
Macho

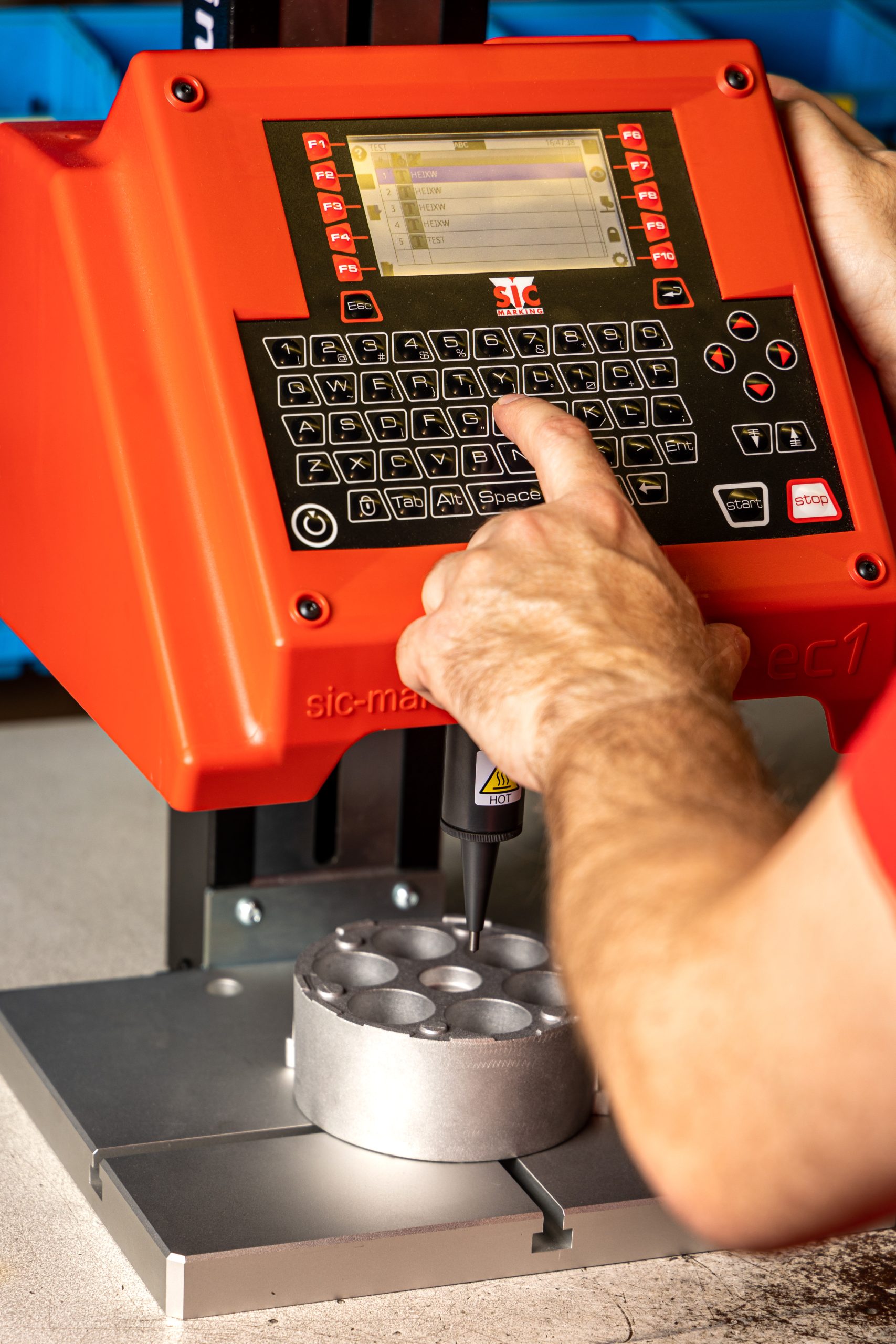

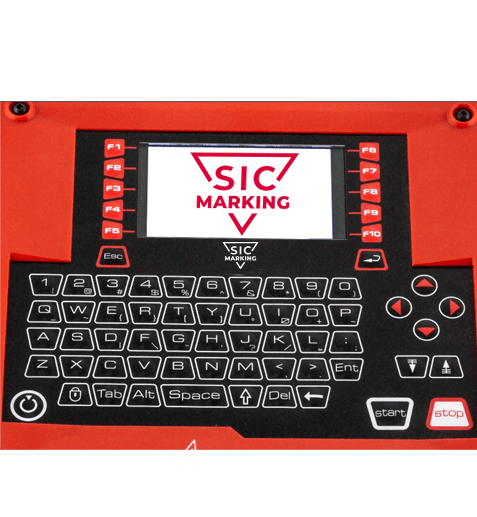

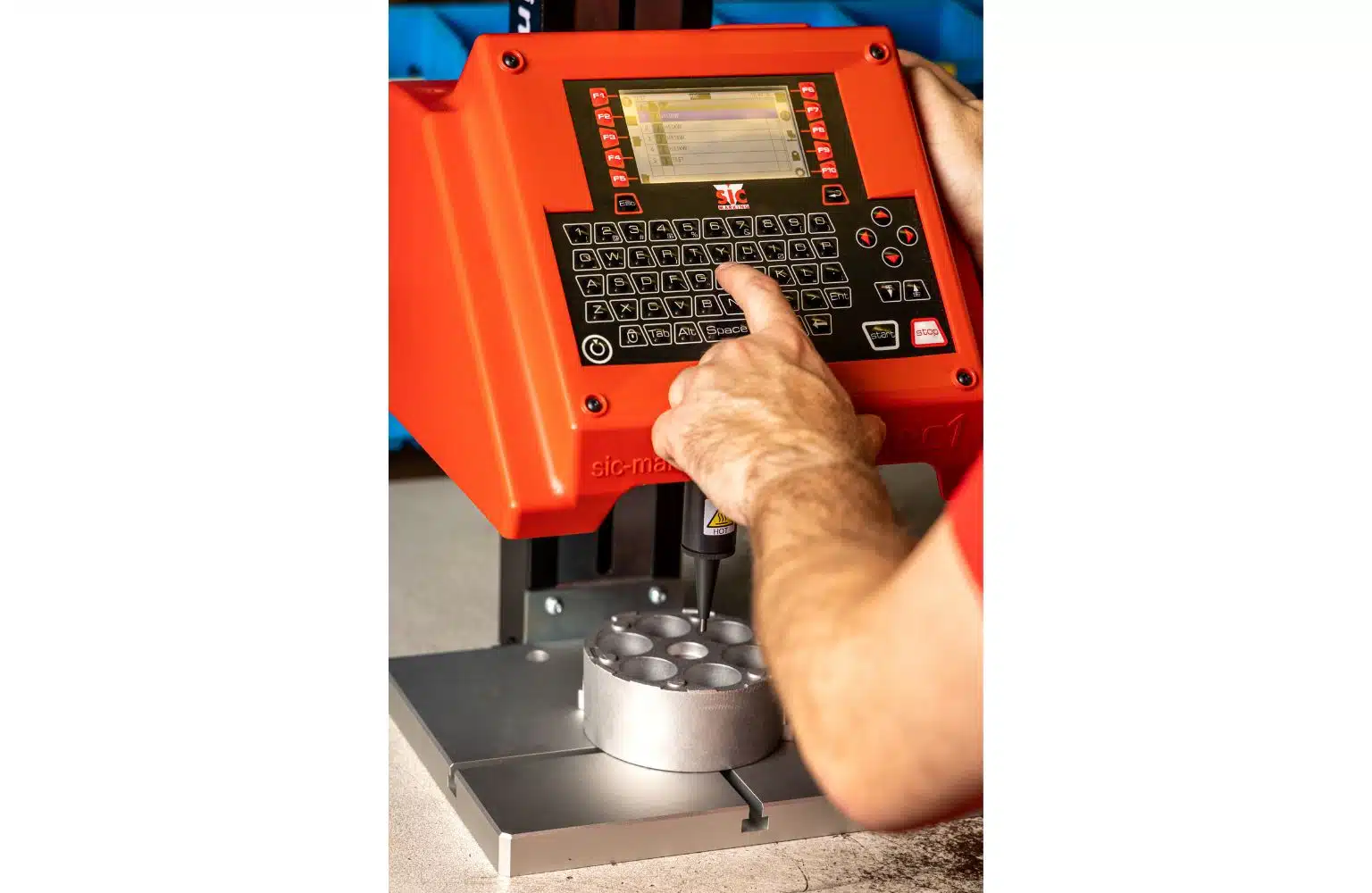

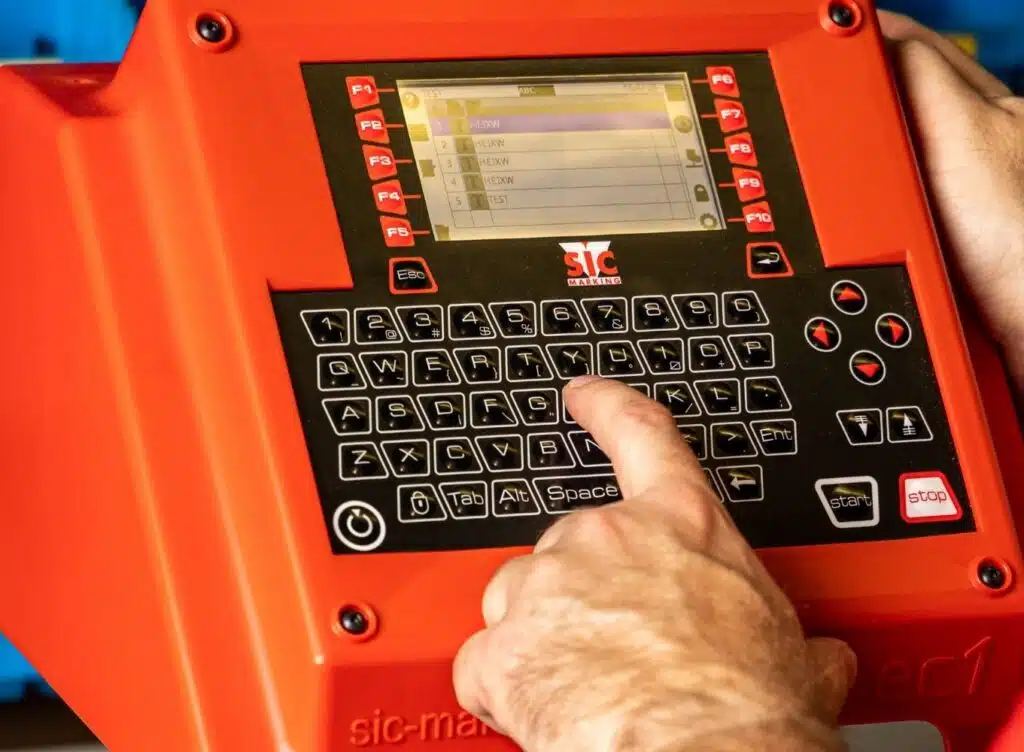

Thanks to an industrial keyboard (covered with a protective membrane), a colour display and an integrated controller, USING THE EC1 IS EASY AND INTUITIVE.

The controller is fully programmable and its USB port allows all types of marking file to be imported and exported.

Contact us

Need information?

Contact one of our experts!

Mechanical specifications

Marking window

120 x 100 mm

Weight

16 kg

Column stroke

280 mm

Stylus

Carbide

Rotary D-axis (optional)

For parts with a diameter of up to 150 mm

Electronic specifications

LCD screen

95 x 54 mm

Keyboard

Integrated QWERTY keyboard

Power

100W

Power supply

110V or 220V / 50-60Hz

Control software

Marking file capacity

> 1000 files

Memory

100 MB

Alphanumeric characters

Serial number and time/date stamping

Logos

Download from a PC or USB key

Fonts

5×7, Arial, Courier, OCR, OCR_BOLD and OCRA

Marking

Linear, radial, angular, Data Matrix, logo, mirror

Font size

From 0.1 mm to 99 mm

Depth

Up to 0.3 mm

Resolution between dots

0.22 mm

Password

2 security levels

Software

15 languages

Log

Anti-duplication

COMMUNICATION
Ports

RS232, USB

PC software

Creation and transfer of backups, logos

Options

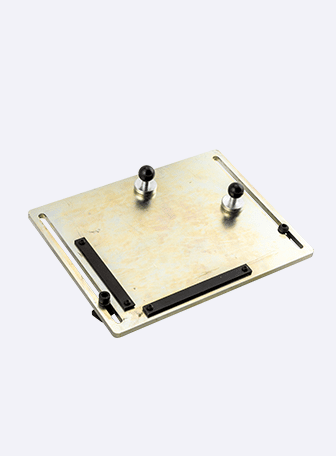

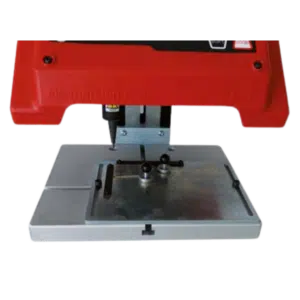

MAGNETIC PLATE HOLDER

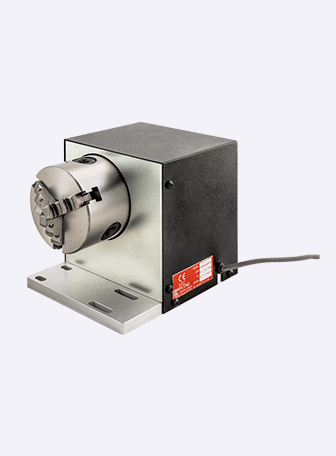

ROTARY D-AXIS

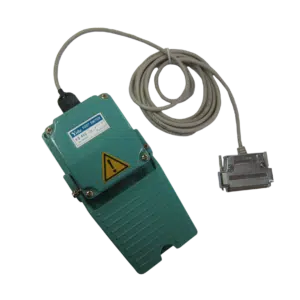

CONTROL PEDAL
