C 303 marking machine

Very large marking window
Robust and reliable
Heavy use
Marcatore a Micropercussione con Grande Area di Lavoro
Description

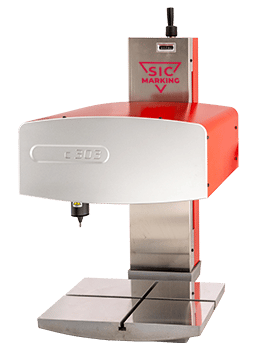

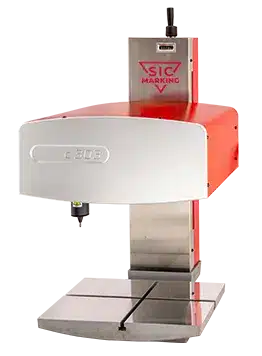

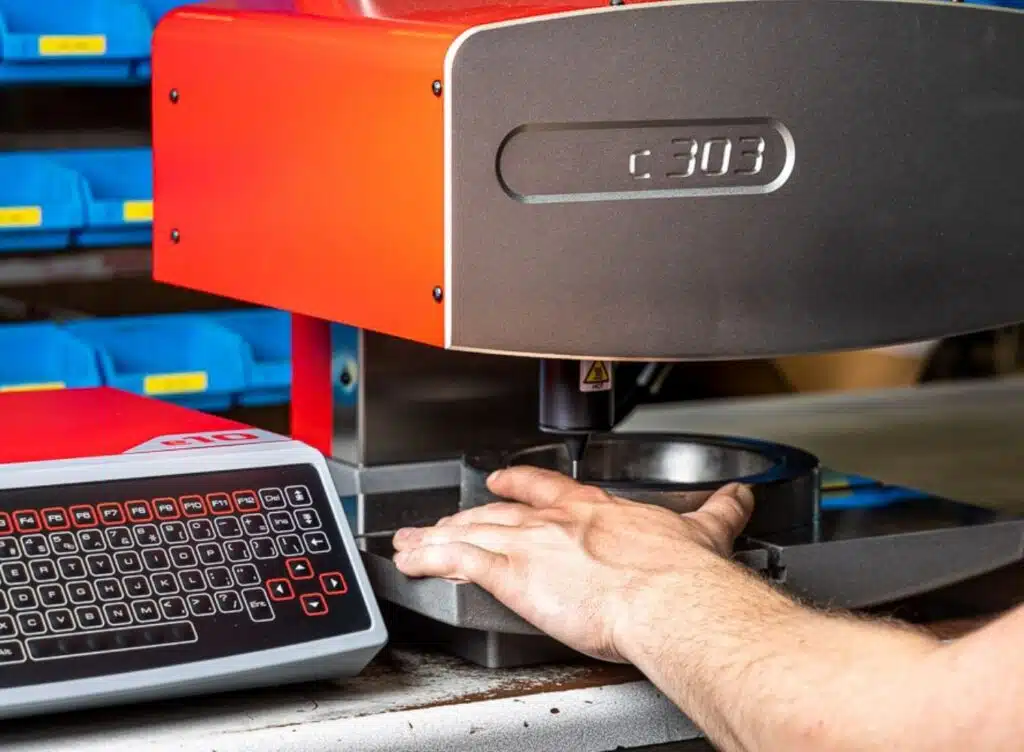

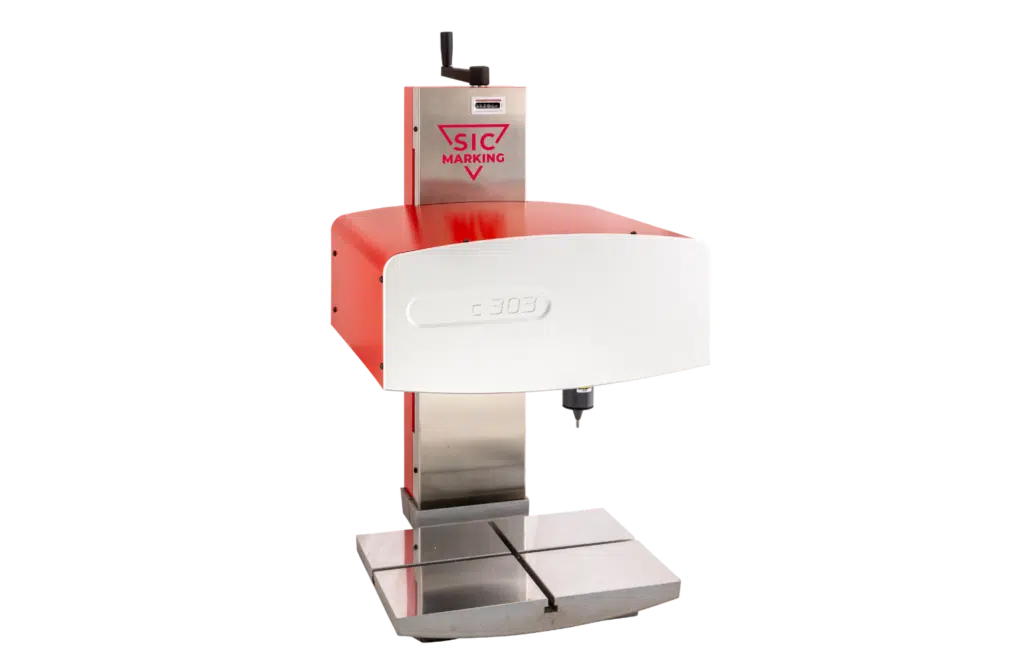

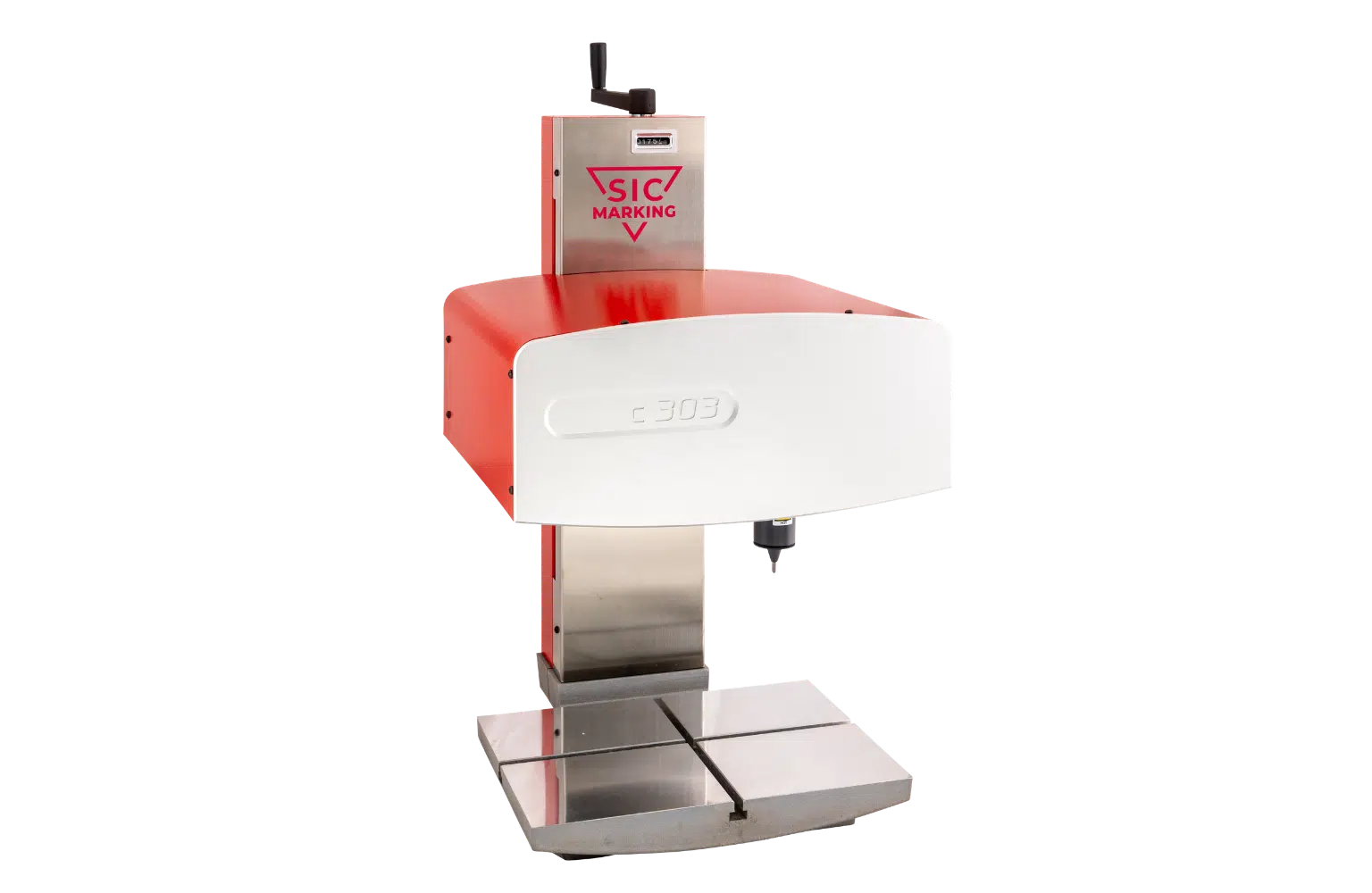

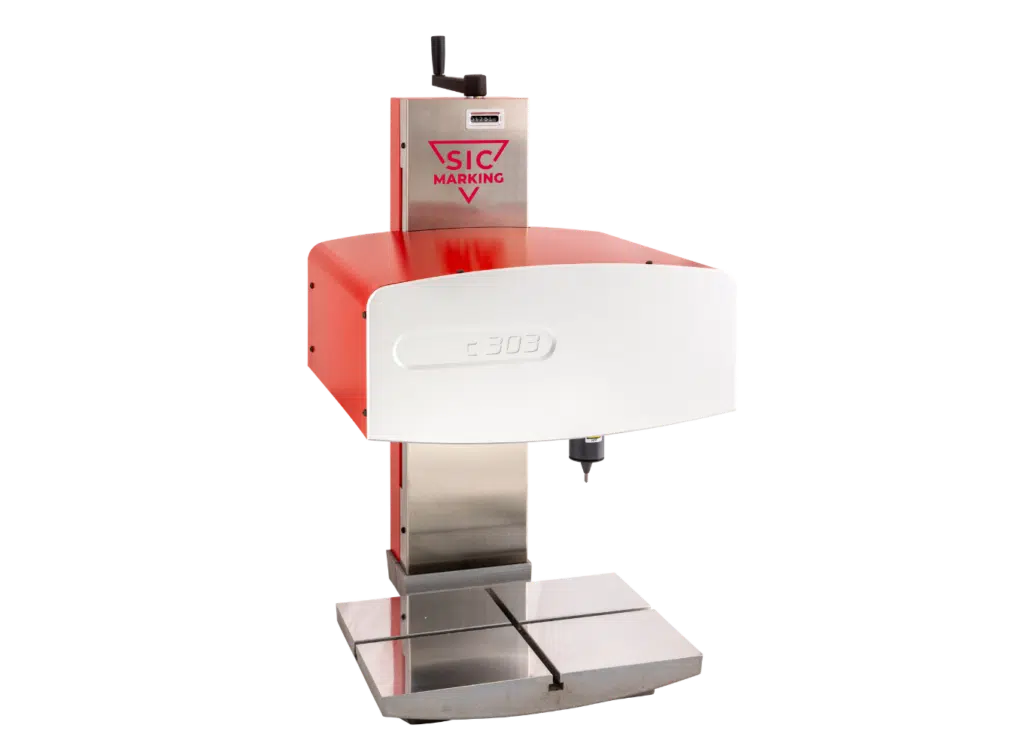

The C303 is a COLUMN-MOUNTED DOT PEEN MARKING MACHINE, i.e. a machine that slides on a vertical axis to adjust the position of the marking head.

It is ideal for marking small or medium sized parts, which are placed directly beneath the marking head.
It differs from other machines by its VERY LARGE MARKING WINDOW: 300×150 mm

The C303 is a fast machine, designed for INTENSIVE USE.
This machine is PARTICULARLY ROBUST with a cast alloy base and a strengthened column.

It has an INTEGRAL METER that records the piece heights, to facilitate the setting of the marking distance when parts are changed.

The LED LIGHTING SYSTEM facilitates marking when indoor light is insufficient.

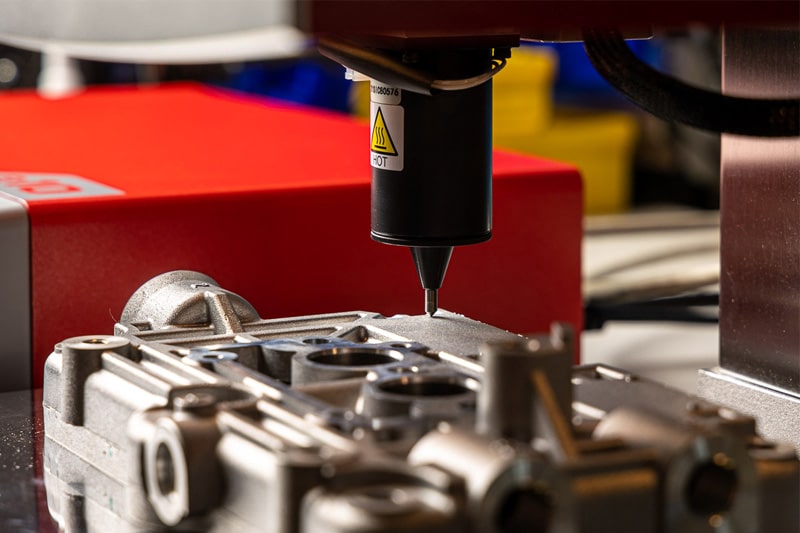

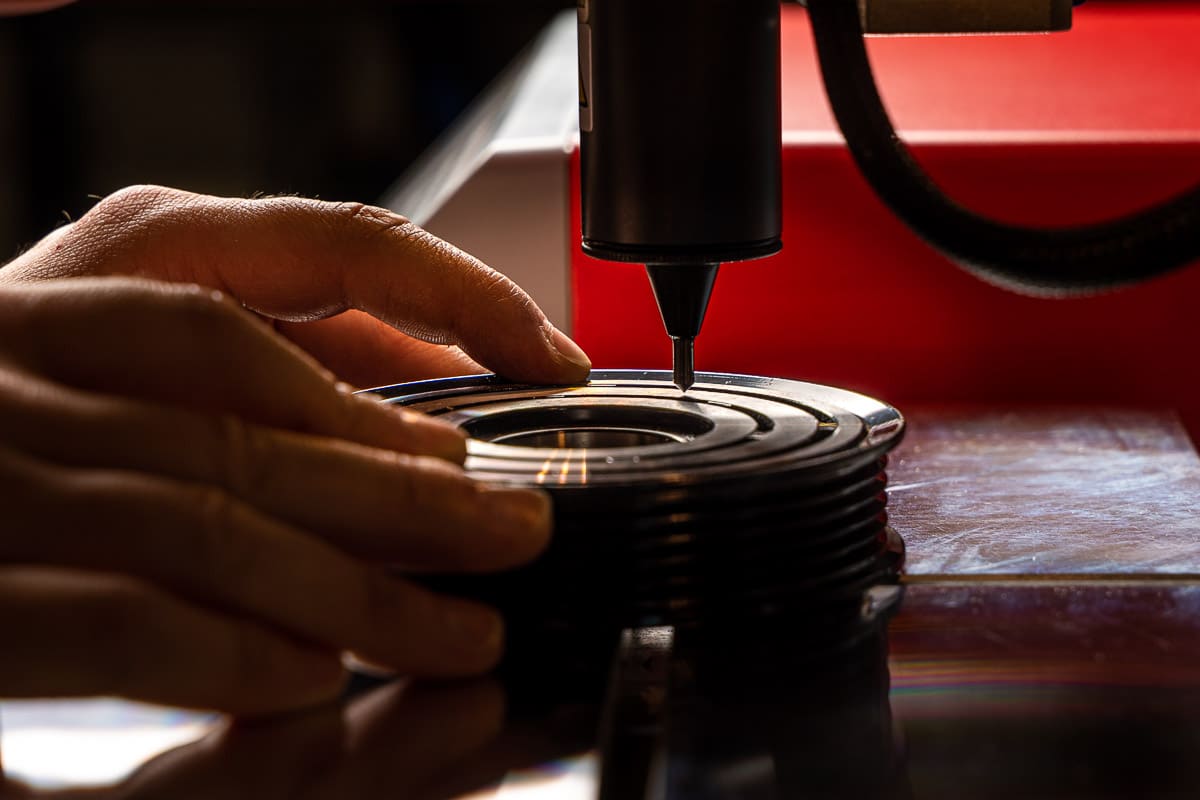

Dot peen marking technology with electromagnetic control enables parts with various shapes and surface finishes to be marked: plane, concave, convex, circular, raw and machined surfaces.

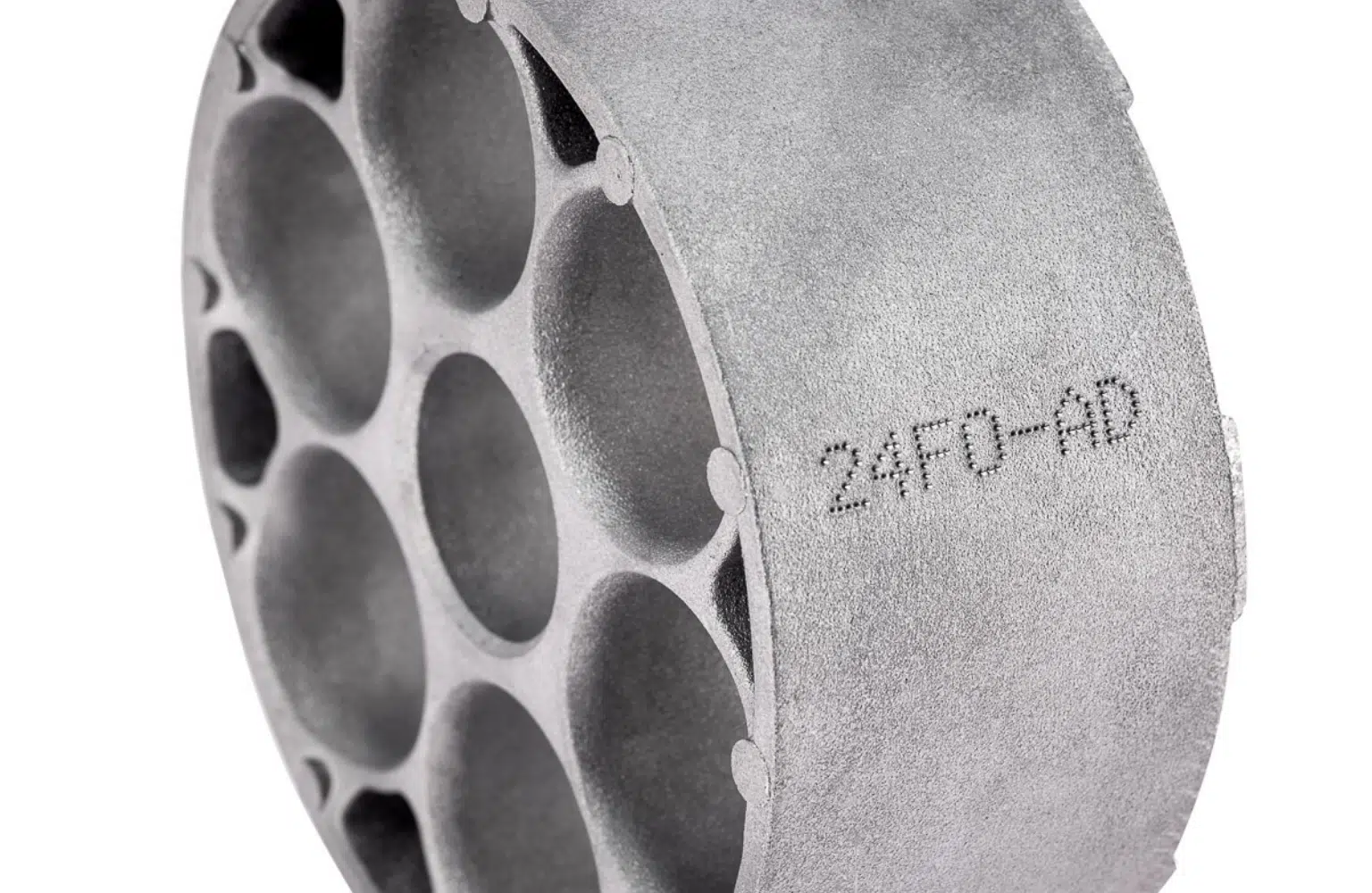

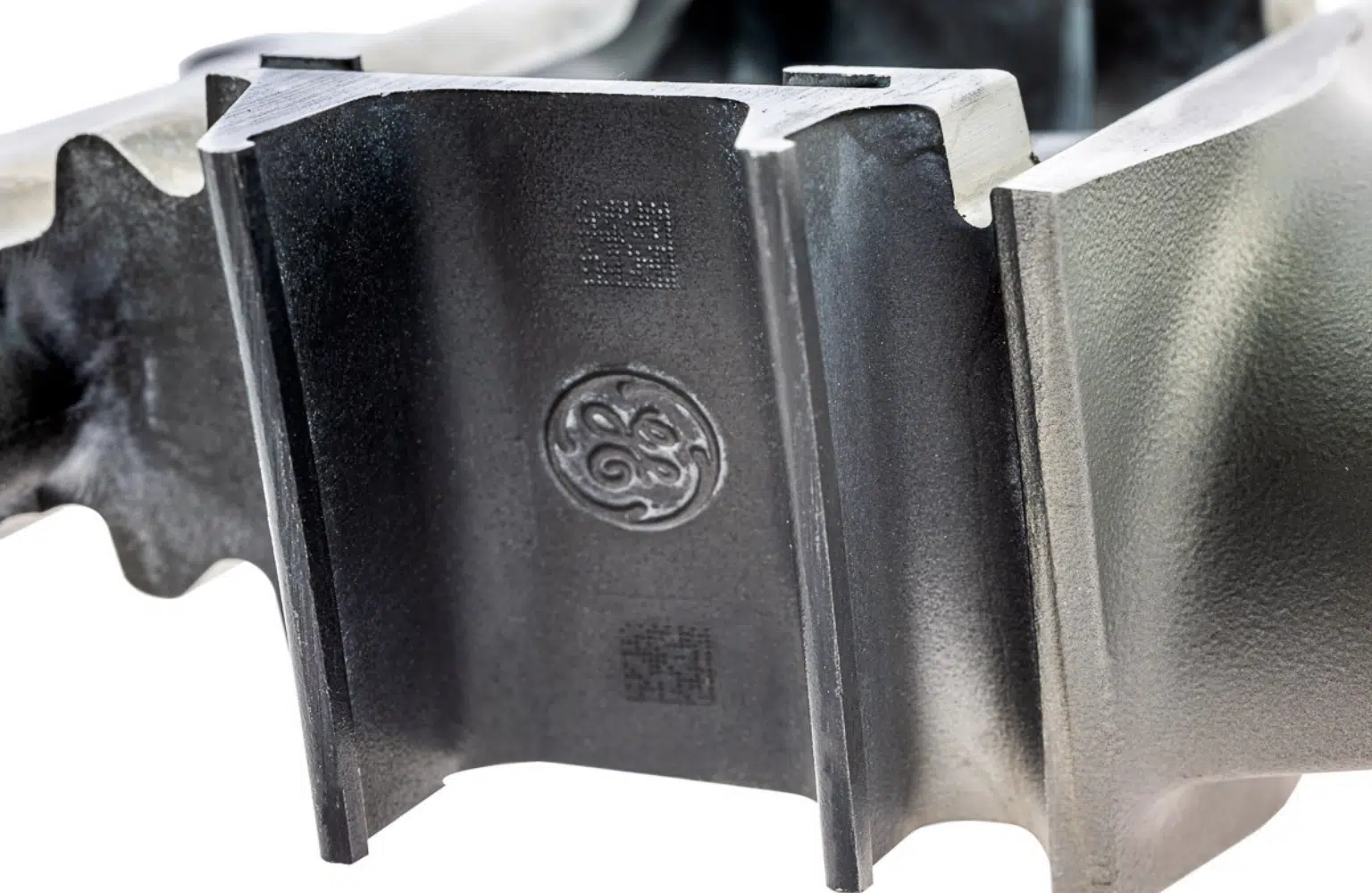

The C303 machine can engrave alphanumeric text, logos, or 2D Datamatrix codes.

It only needs an electrical power supply.

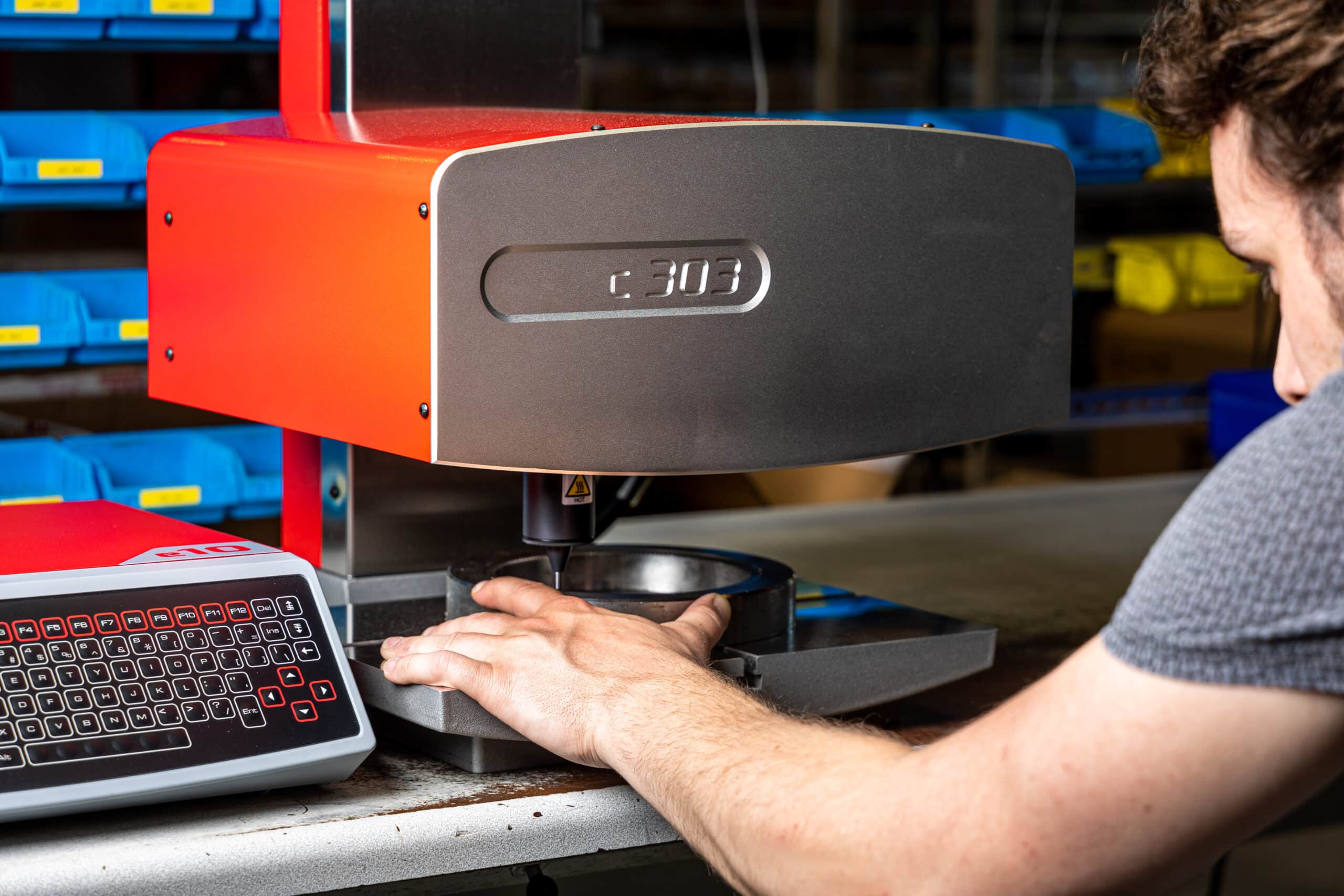

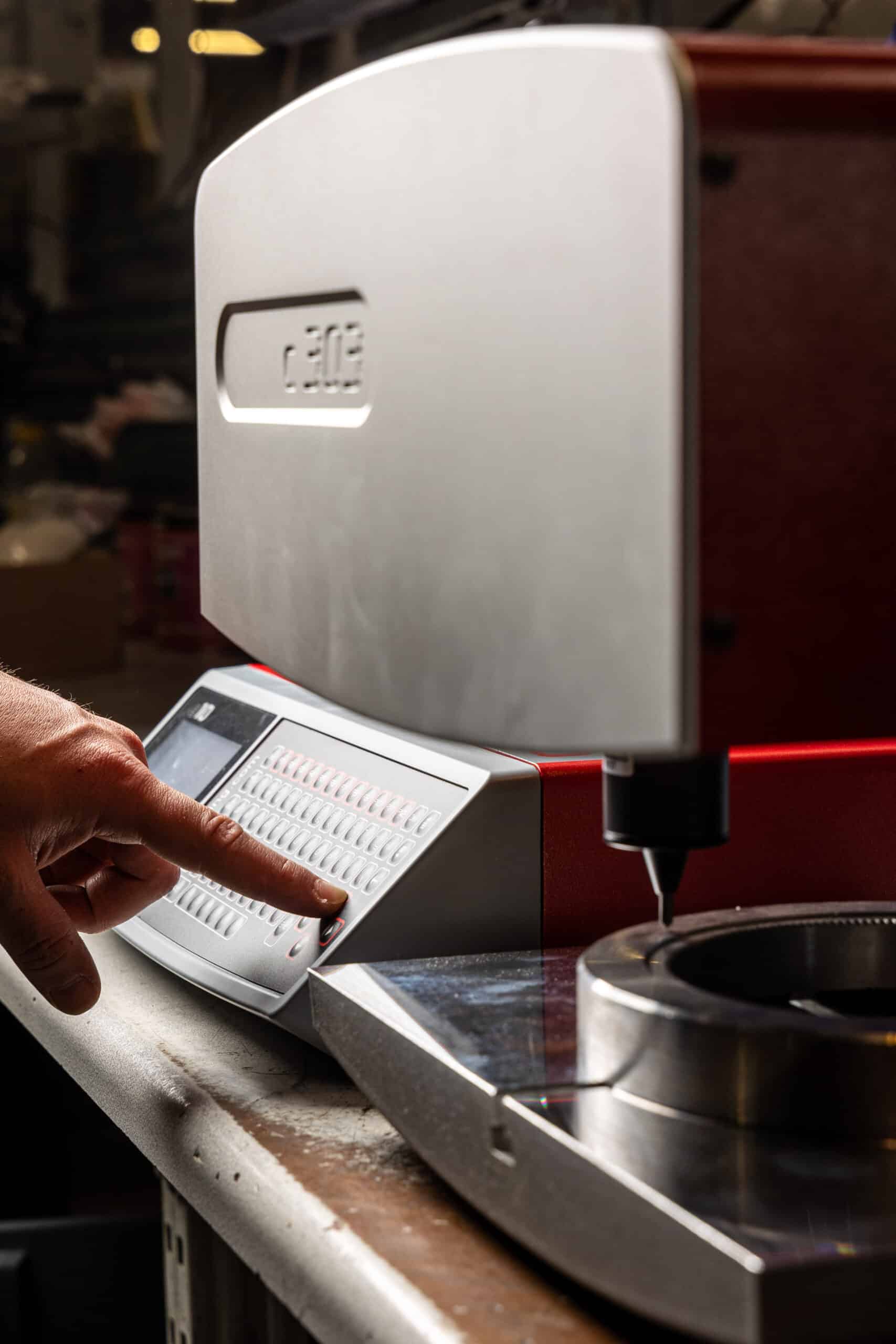

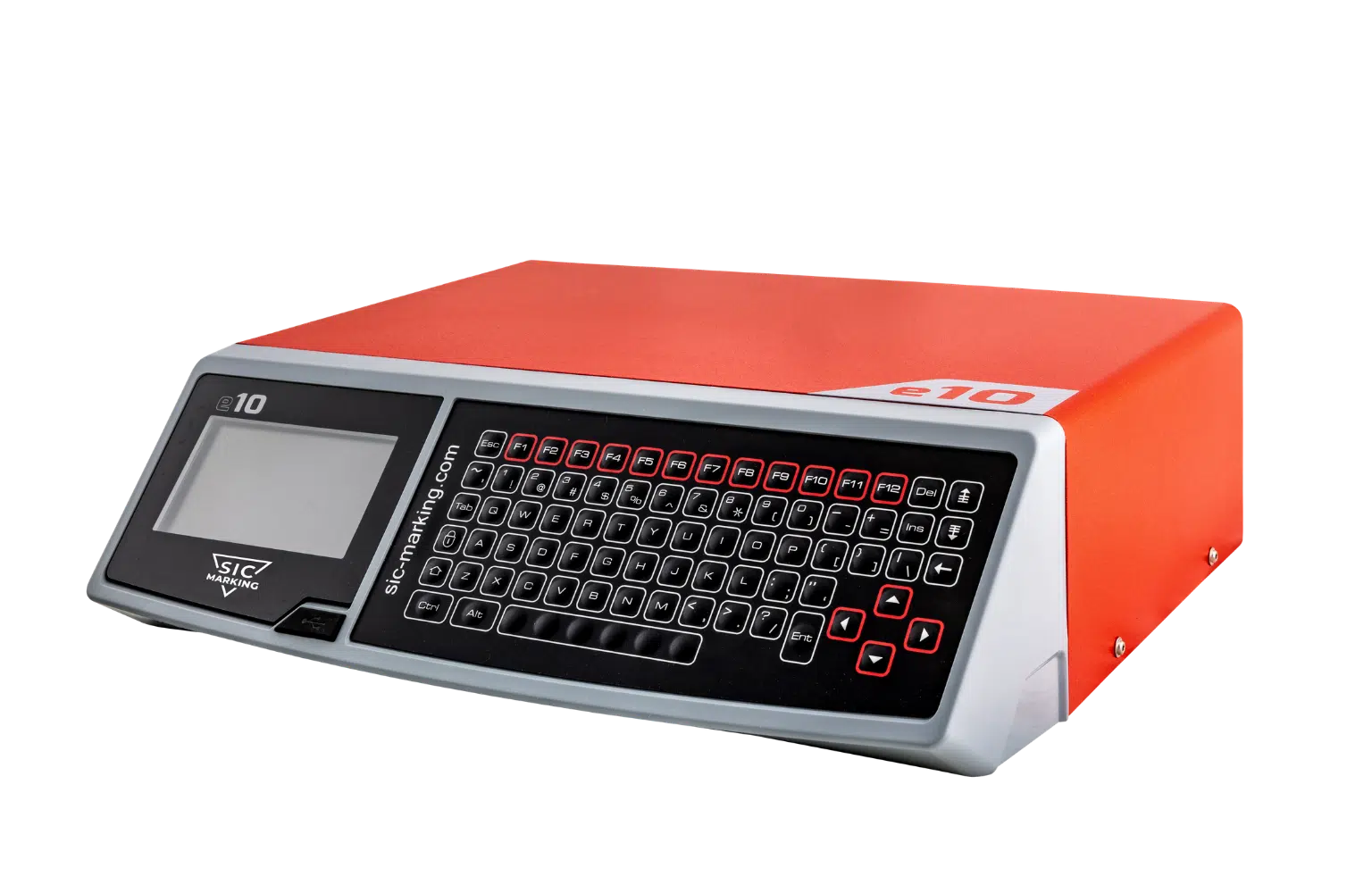

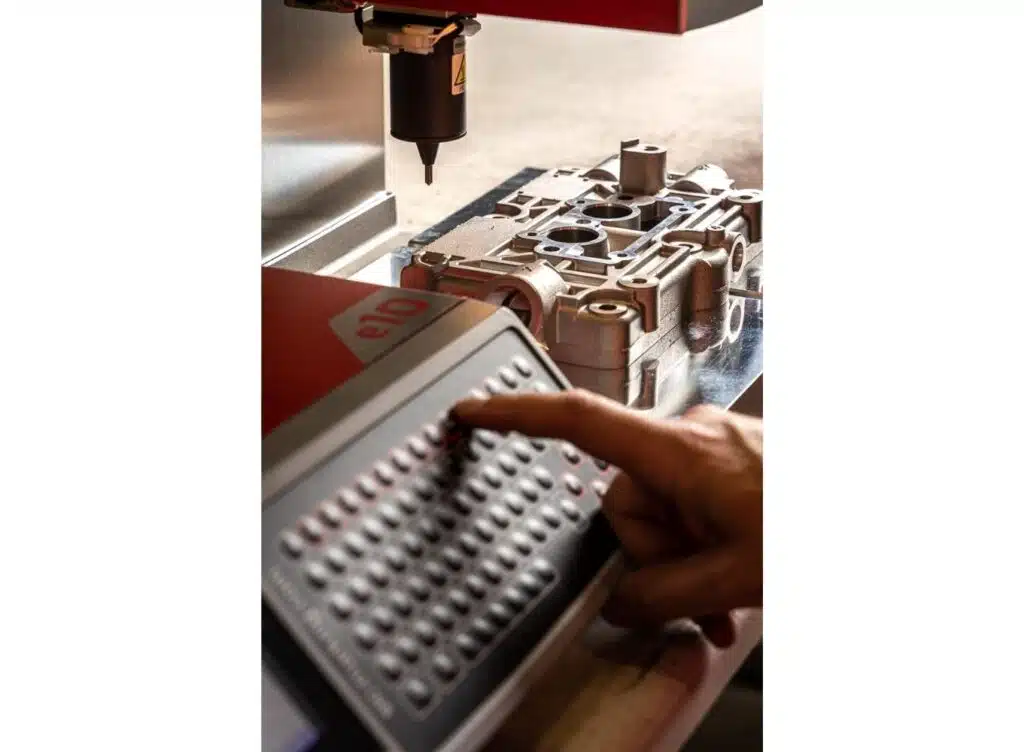

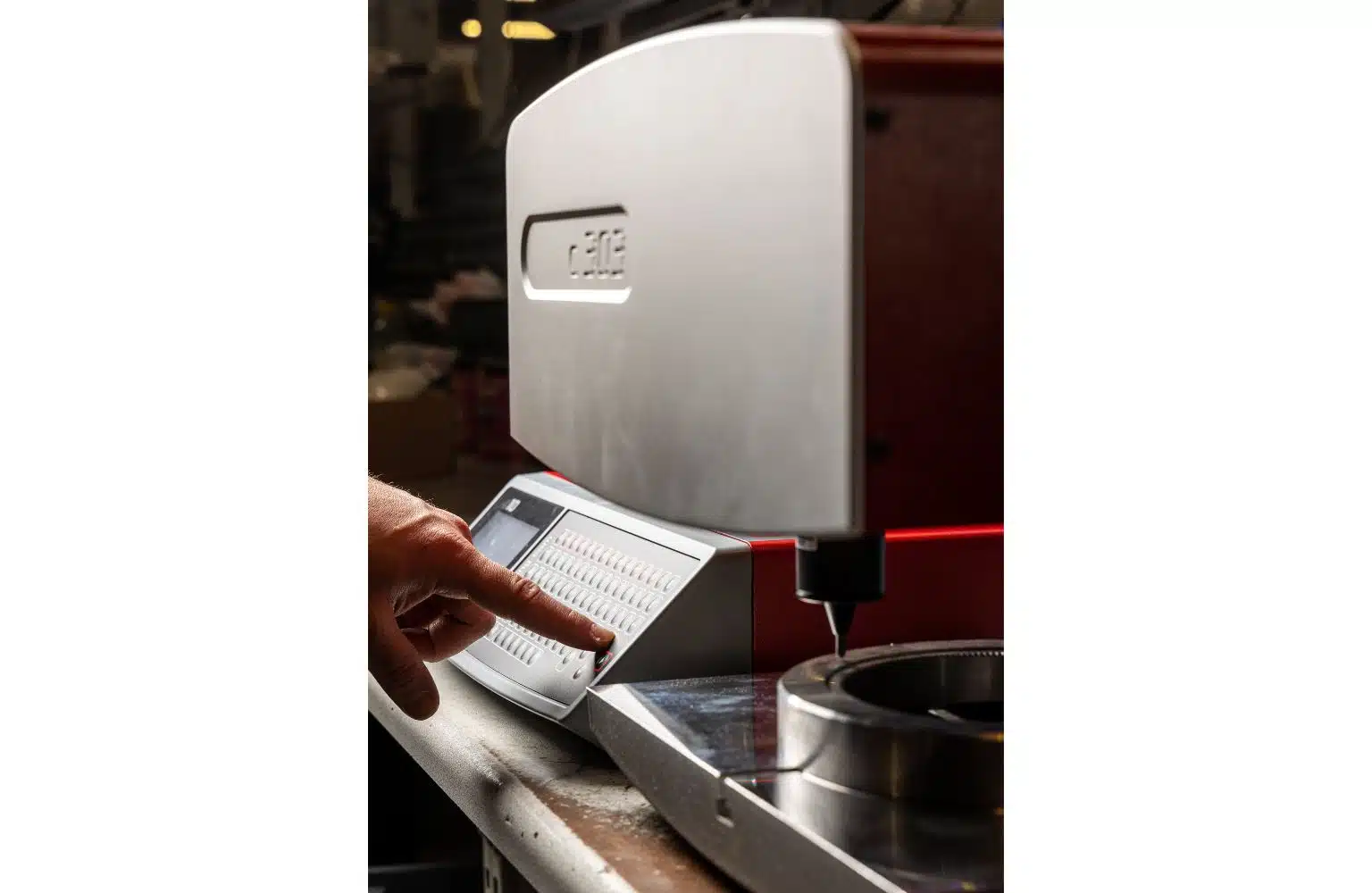

The E10 CONTROLLER that controls the C303 has a Qwerty keyboard covered by a waterproof membrane and a backlit colour screen that provides the user with a simple and intuitive interface.
Marking files can be uploaded/downloaded to/from the controller, to/from a PC, using a USB memory stick.

Zoom
marquage micro percussion

The C303
machine features a wide marking window: 300×150 mm.
This wide marking field allows the C303 to mark parts of various shapes and surface conditions.

Mechanical specifications

Marking window

300 x 150 mm

Weight

30 kg

Dimensions

385 x 350 x 704 mm

Stylus

Carbide 60 mm

Electronic specifications

Dimensions

322 x 380 x 112 mm

Weight

5 kg

LCD screen

95 x 54 mm

Keyboard

Qwerty with waterproof membrane

Power

300 W

Power supply

Single phase, 90 to 240 V AC, 50-60Hz

Number of axes controlled

2 (3rd and 4th axis on option)

Control software

Marking file capacity

More than 2000

Memory

7110 KB

Alphanumeric characters

Serial numbering, date/time tags

Logos

Creation from the PC software

Datamatrix

Up to 348 characters, 48 x 48 cells

Fonts

Arial, Courier, OCR and OCRA

Style

Angular, Radial, Inverted and Mirror

Rate

Up to 5 characters per second

Font size

From 0.1 mm to 99 mm

Impact force

9 levels

Depth

Up to 0.5 mm

Resolution between dots

0.05 mm

Maximum stylus stroke

Up to 8 mm

Personnel management

Maximum 10

Password protection

3 security levels

History function

Password protected

Maintenance aid

Self-Diagnostic component

Languages available

17

COMMUNICATION
Ports

RS232, RS422, USBx2, RS485, Profibus and Ethernet on option

Inputs/Outputs

16

Remote keyboard input

USB

External output

5V-0.5A and 24V-0.5A

Logos

Creation and transfer software

File saving on PC

PC software or USB memory stick

Database link

Option

Options

PLATE BRACKET

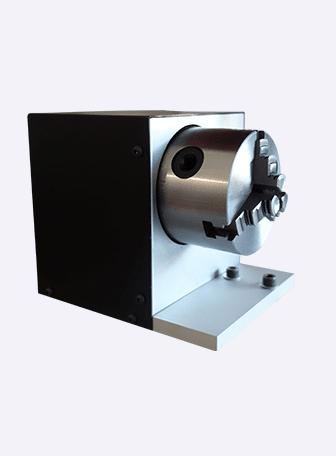

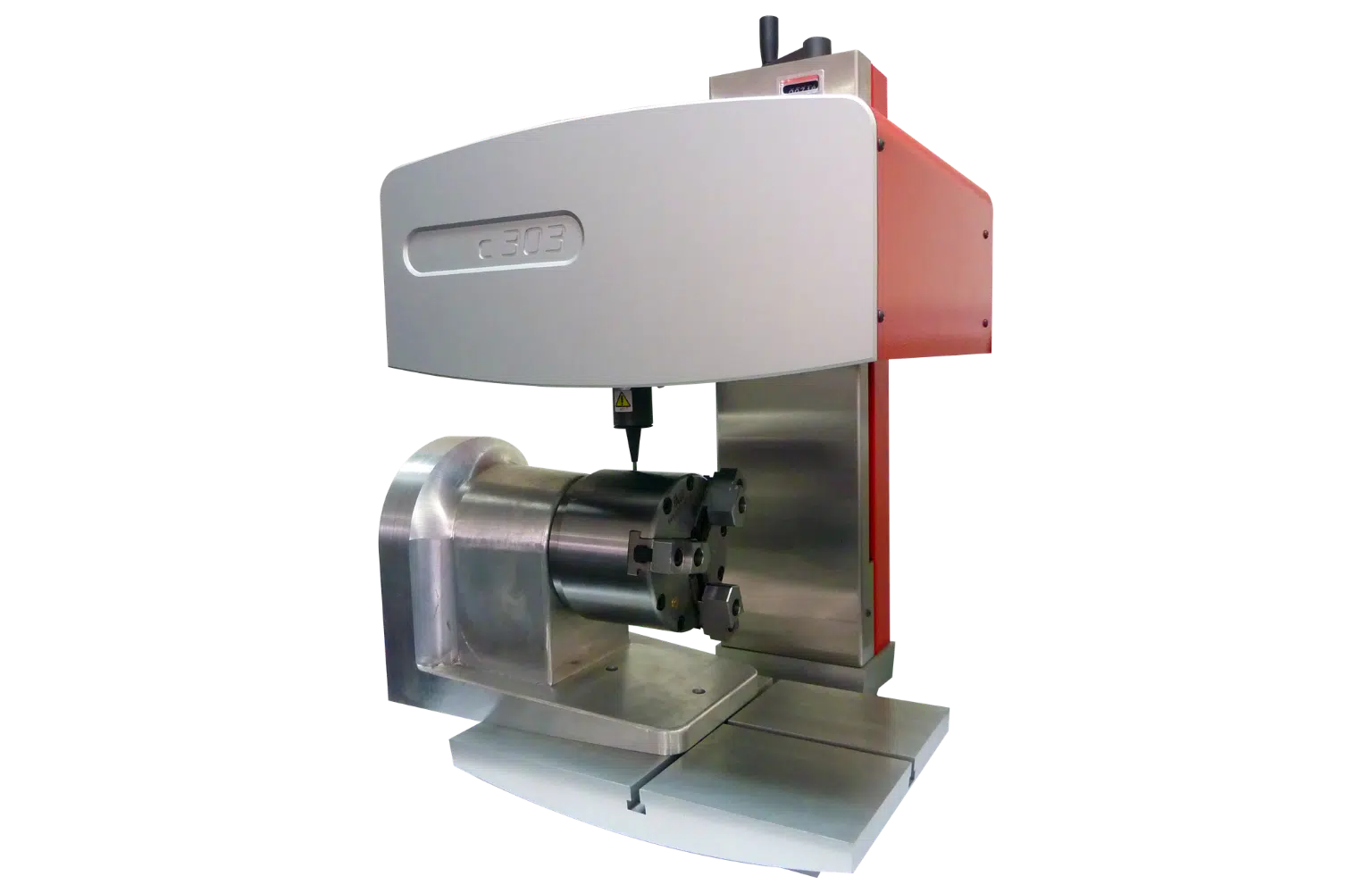

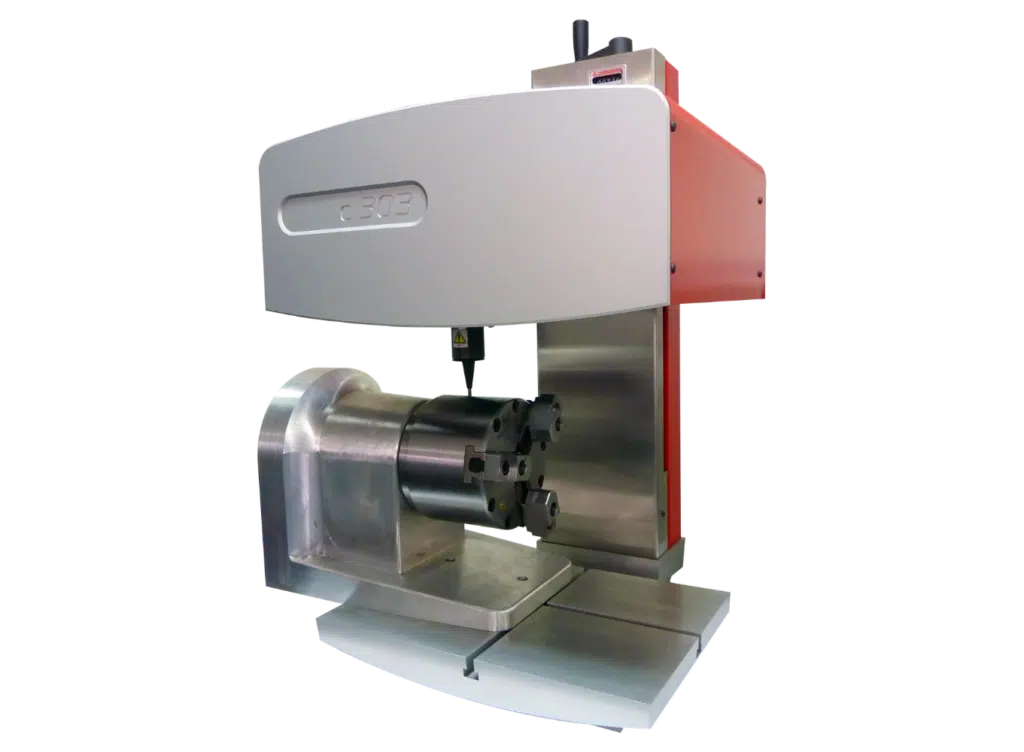

STANDARD D AXIS FOR E10 RANGE (DIAMETER 100)

CONTROL PEDAL
