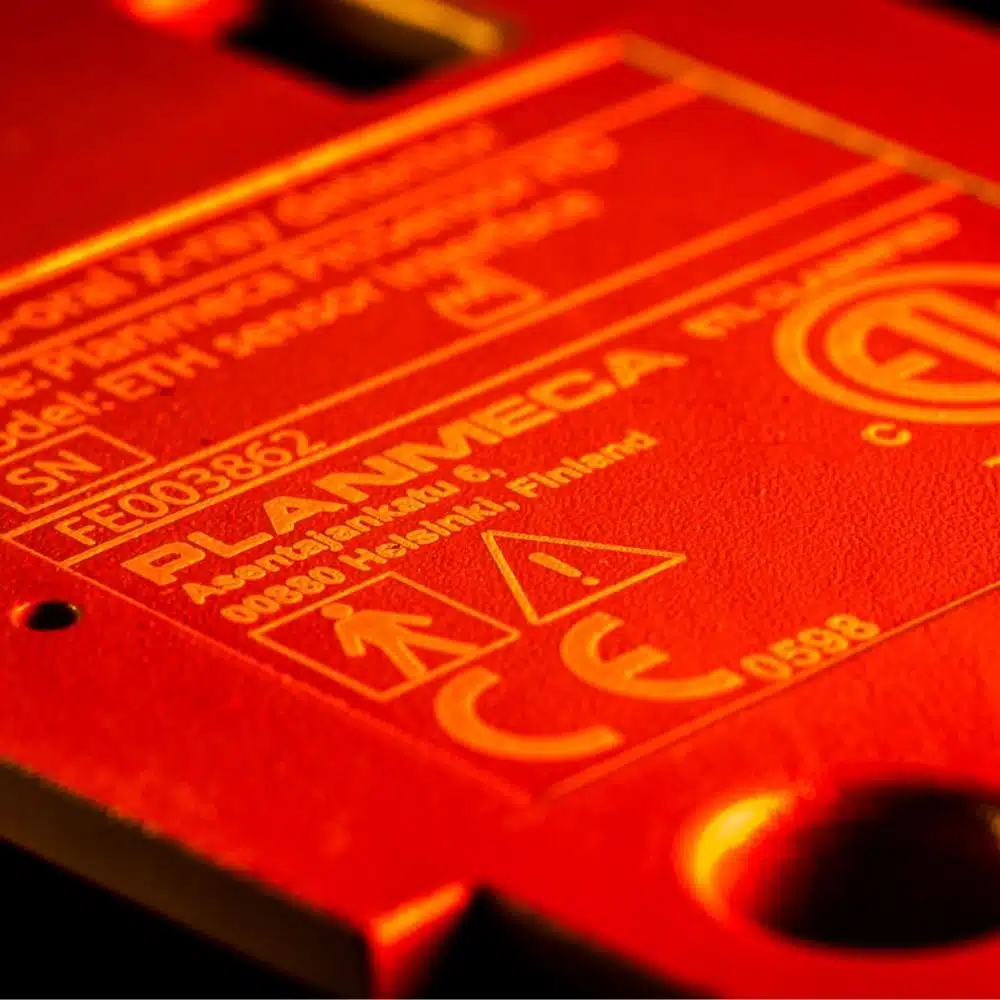

The LASERTAGMARK is a FULLY AUTOMATED LASER MARKING STATION that will allow you to simultaneously manage the marking of your plates, on a SINGLE, SAFE AND SYNCHRONISED WORK STATION with your own data.
PLATES ARE MARKED IN SERIES, AUTOMATICALLY. Operator presence is not necessary.
The TAGMARK LASER can be equipped with lasers of VARIOUS POWER RATINGS, for deeper marking or marking at higher rates.
The ytterbium-enhanced SIC Marking fibre laser is a latest generation technology that enables high quality marking without affecting the piece, and with a shorter cycle time.
After marking, the plates are removed into a recovery tray or, on option, by a plate gravity stacking system.
Marking is also possible on individual parts if desired.
Direct loading into the marking zone also allows plates of formats other than those programmed in the loading zone to be marked.
The new SFA (SIC FACTORY AUTOMATION) control software is compatible with your data management system. Data entry will thus be automatic and you will have an optimised, configurable and user-friendly HMI.

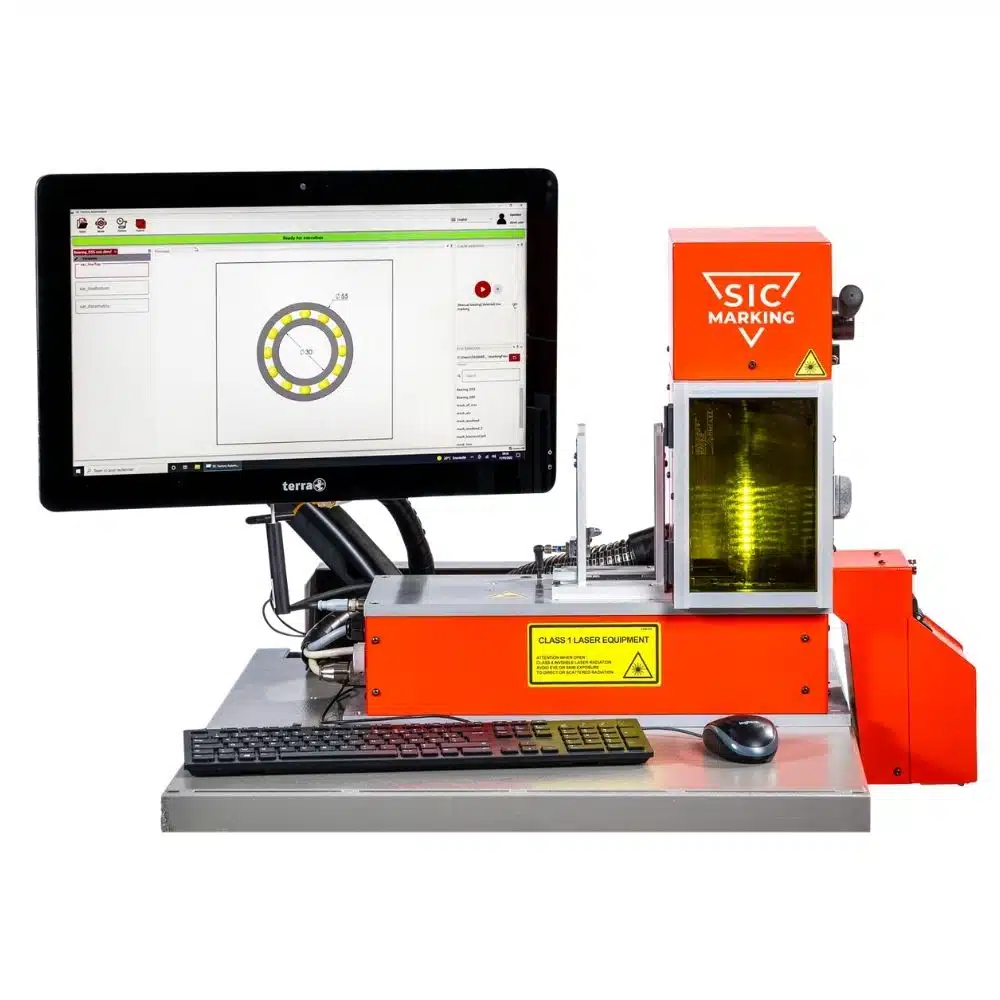

The SIC FACTORY AUTOMATION software interface is designed to simplify the setting up and utilisation of the TAGMARK LASER.
The SFA software manages your marking needs, in your own selected language based on your user profile: operator, advanced user, supervisor.
It can be used in Manual mode or in Database mode, compatible with your production management systems.
It can also be customised beyond predefined cycles and conserves your data history.
100 x 100 mm – 170 x 170 mm
200 mm – 330 mm
Laser class 1 or 4, depending on integration
With SFA and PC
SIC Marking ytterbium-enhanced fibre laser
Pulsed (variable frequency)
1064 nm
3 m
20W, available in 30W
7 kW
Integral laser pointer
Air cooled only
Yes
SFA (SIC FACTORY AUTOMATION)
For cycle management
INTEGRATED READ FUNCTION
The integrated reading function allows the automatic reading of 2D and 3D codes.
When the cycle is started, the codes are immediately read in the same programme sequence, with no additional movement.
The reader outputs the result of the reading, with any necessary code quality grading.
This data is sent through a network or through inputs/outputs to the cell automatic system or to an external controller.
The proposed system allows the code to be read irrespective of its position in the marking window.
This function has a high resolution camera integral with the laser head.
This allows standard 2D codes (QR-Code, Datamatrix) to be read on all types of material and on difficult surface conditions.
It is compatible with HD lasers, Easy and the 3D function,
and is also compatible with the BOX stations.
The benefits:
FUME EVACUATION SYSTEM
The evacuation system is a fume extractor that is directly connected to the laser station through a suction pipe.
This is necessary to treat the toxic fumes generated by the laser.
It is equipped with a pre-filter, a high-efficiency very fine air filter (less than 1 µm) and an activated carbon filter.
There are two types of fume evacuation system:
The vacuum system measures 310 x 320 x 460 mm.
The vacuum system measures 365 x 501 x 740 mm.
Fumes and particles collection is mandatory.
This protects both personnel and also the equipment required.
The benefits:

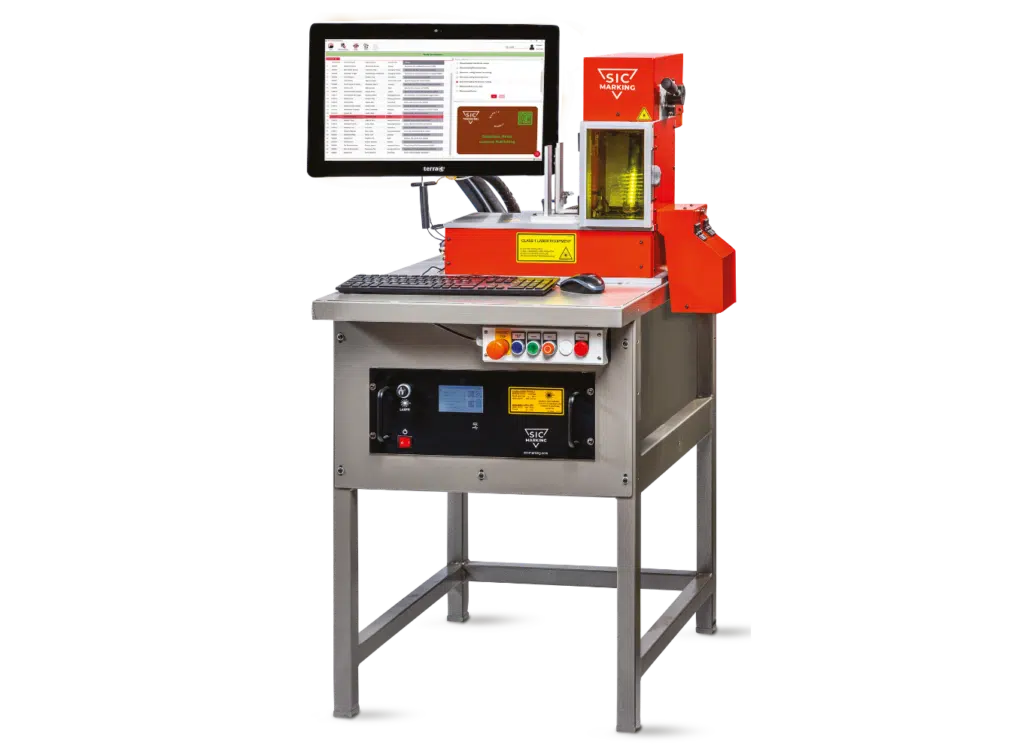

COWLED CHASSIS
The chassis provides a complete station, standing on the floor, with everything necessary for its utilisation.
The benefit:
Complete station standing on the floor and cowled for industrial utilisation.
