Marking machine

E-SMART

All-in-one
Robust structure
Battery option
E SMART
Description

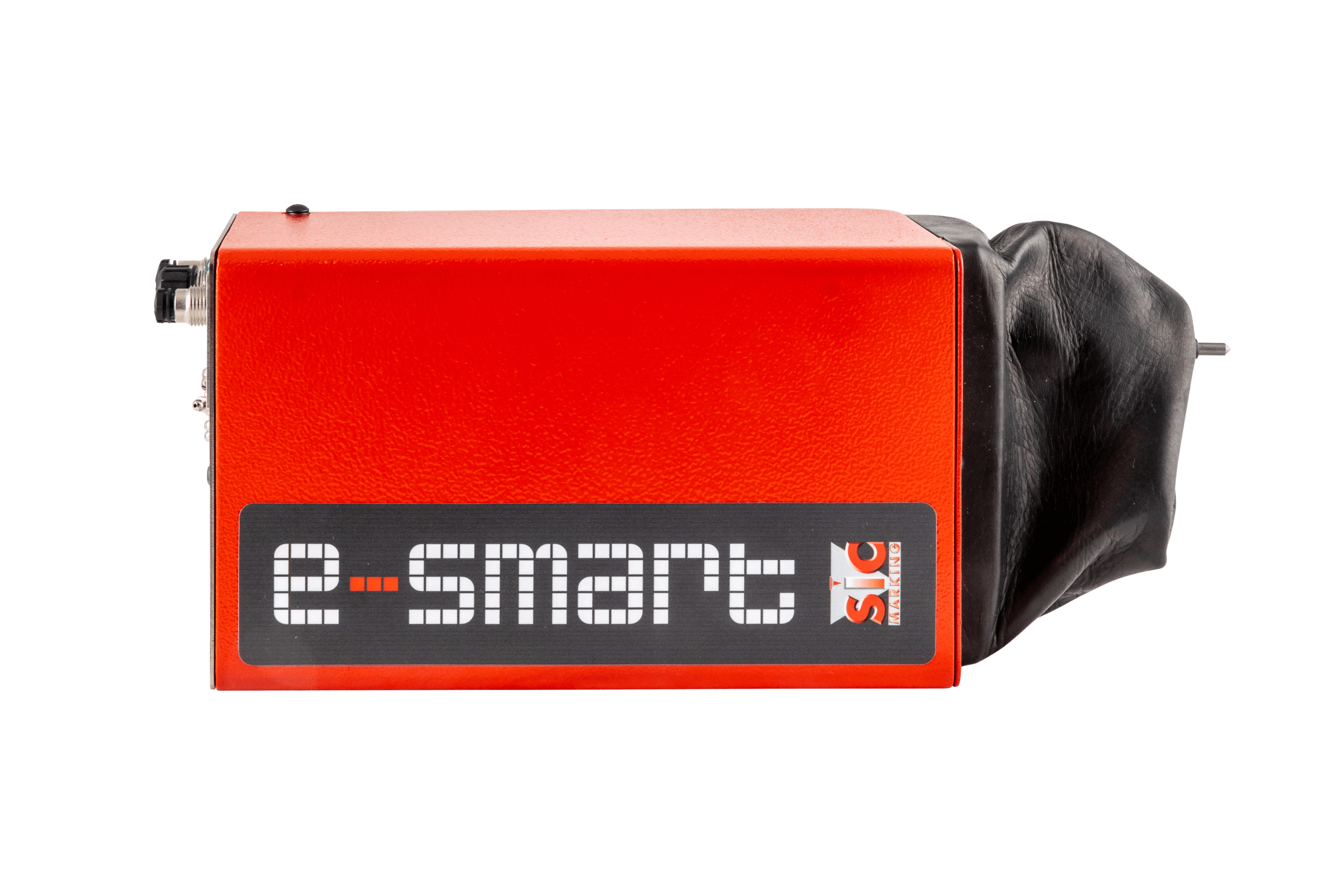

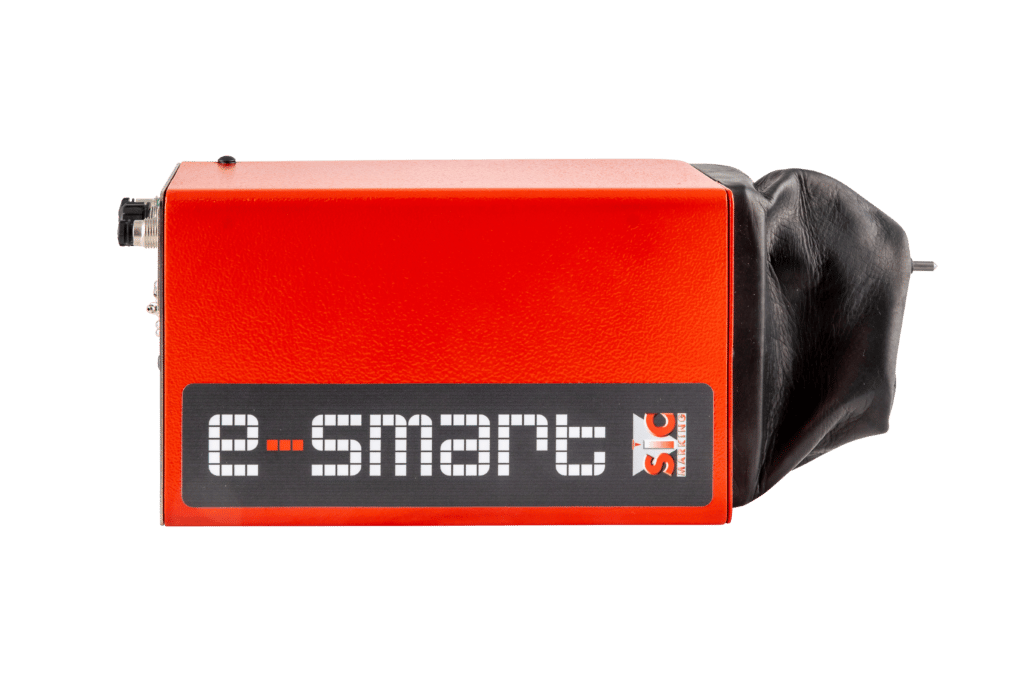

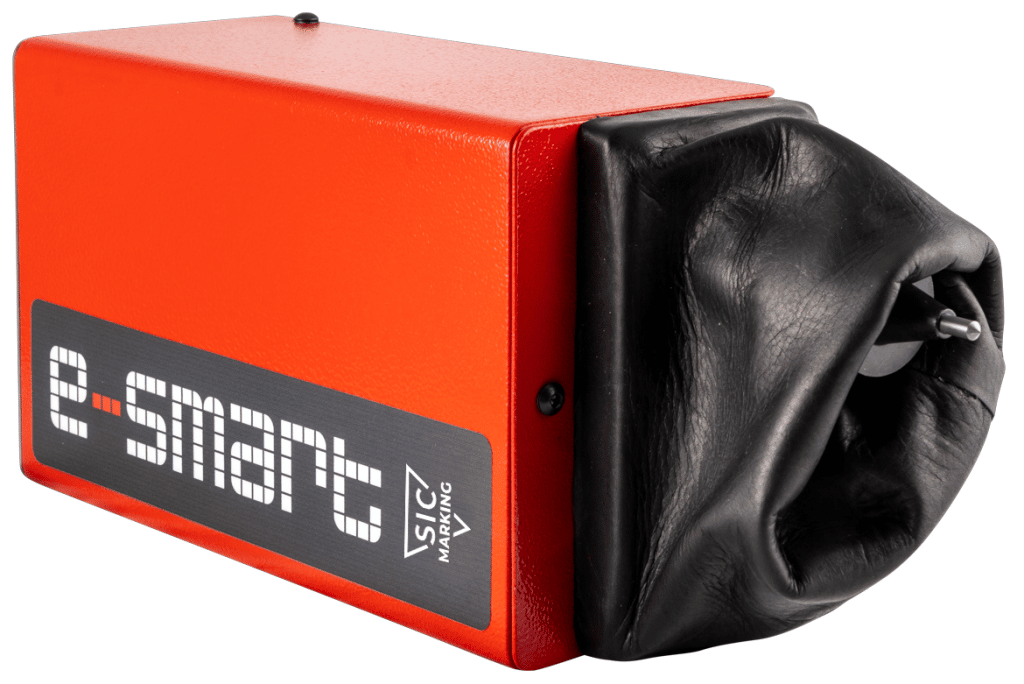

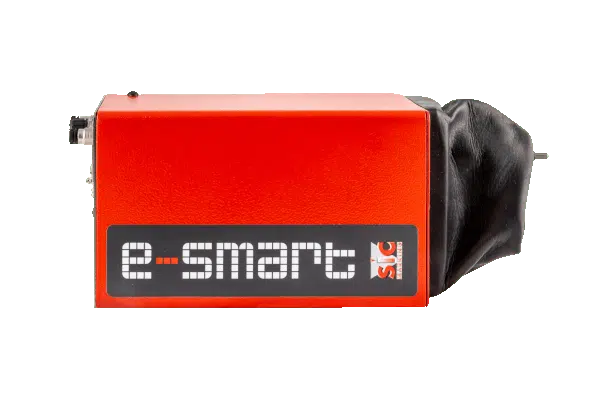

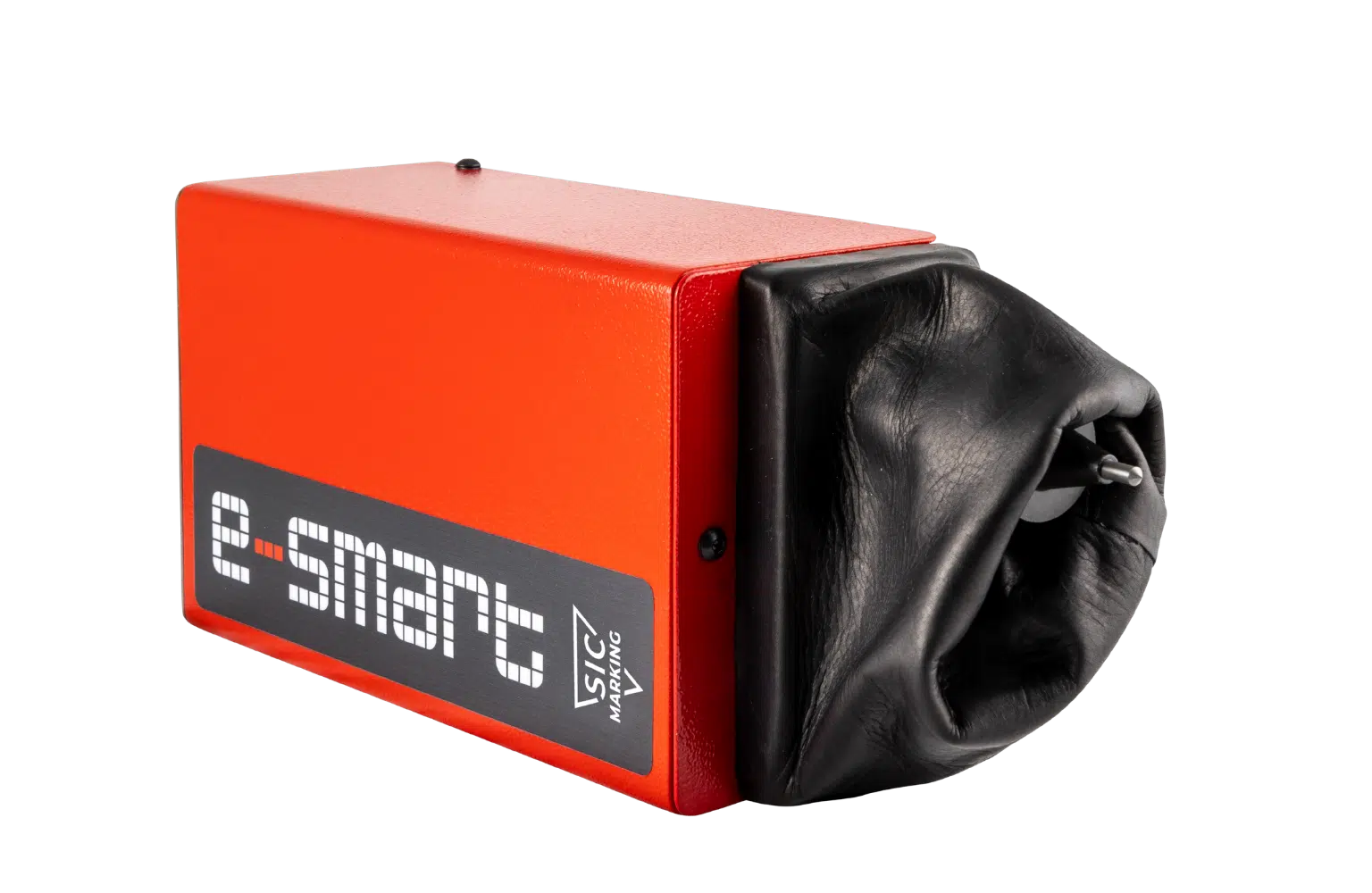

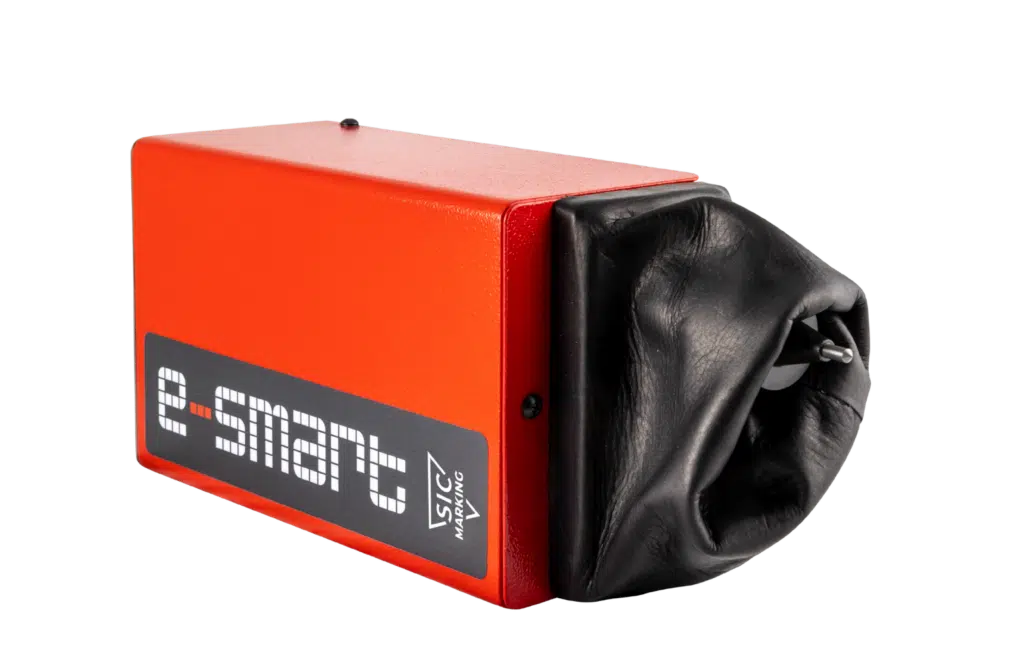

The E-SMART is an electro-magnetic dot peen marking machine that can be integrated into a production line.

The E-SMART marking machine is ALL-IN-ONE.
It is designed to be easily integrated in an industrial environment, with its electronic controller integrated to the marking head.
It can be installed in A PRODUCTION LINE, in A ROBOTISED CELL OR CNC MACHINE.

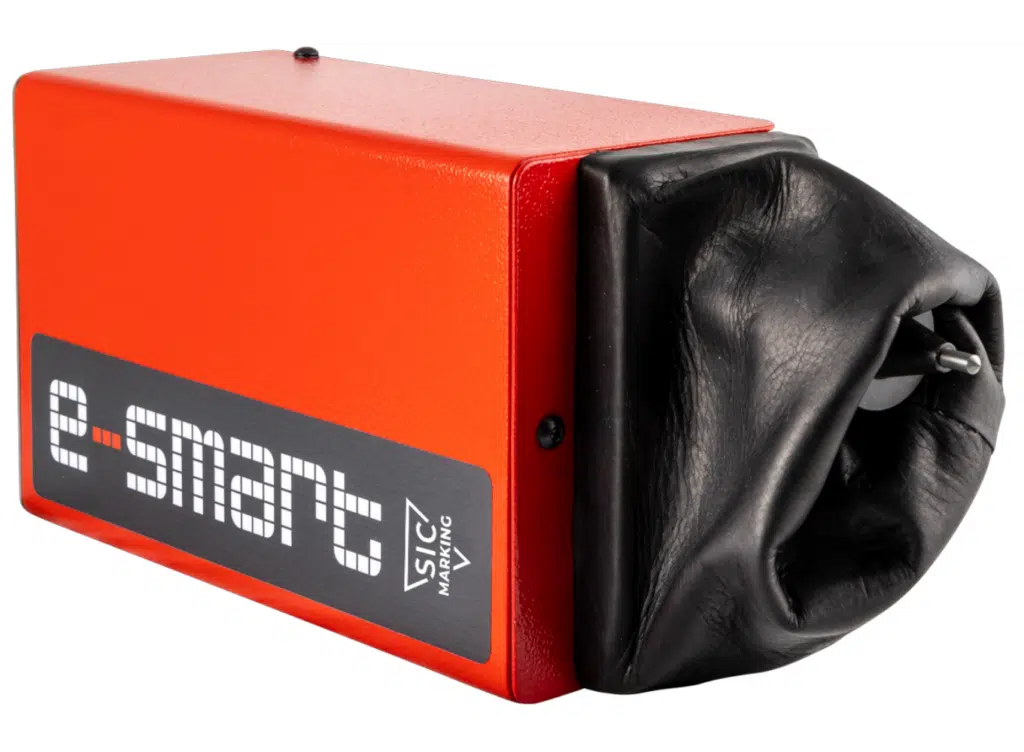

Its cast alloy ROBUST STRUCTURE is protected by leather bellows, designed to resist projections and metal particles, etc.

It provides VERY FAST PERMANENT MARKING ON ALL TYPES OF MATERIAL, from plastic to hardened steel up to 62 HRC.
It is easy to use and can mark parts of various shapes and different surface conditions.

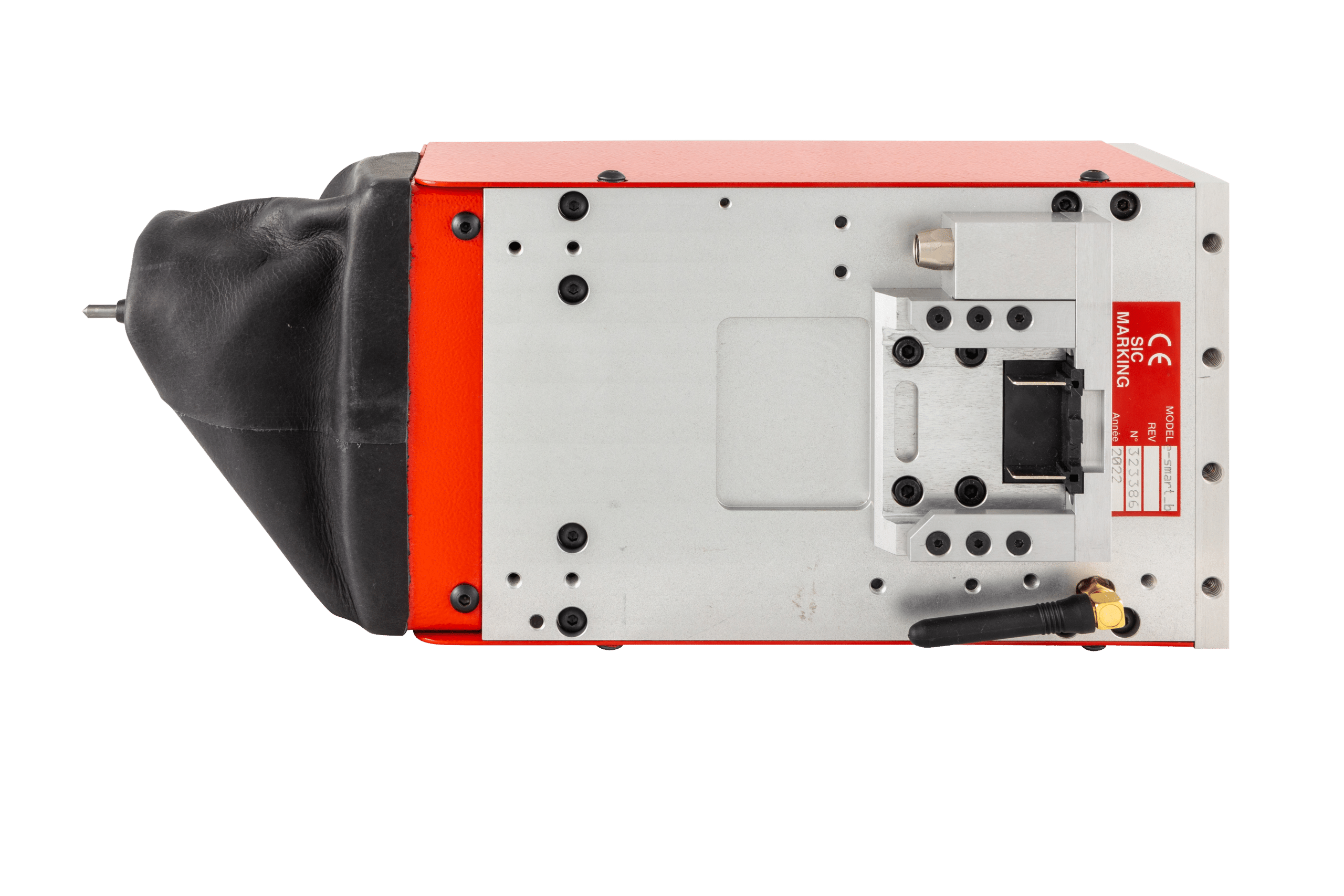

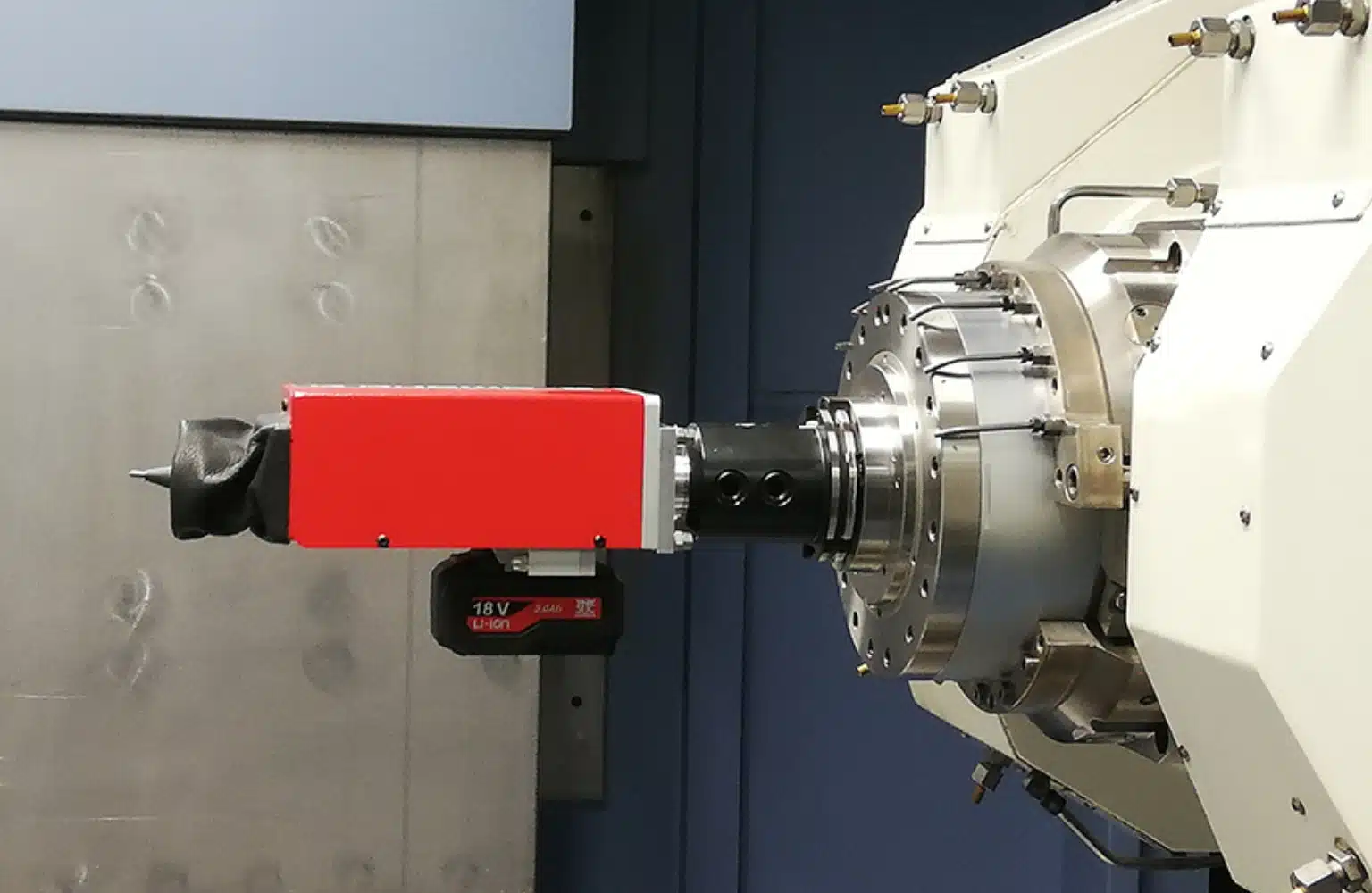

The E-SMART has a BATTERY OPTION that makes it fully standalone.

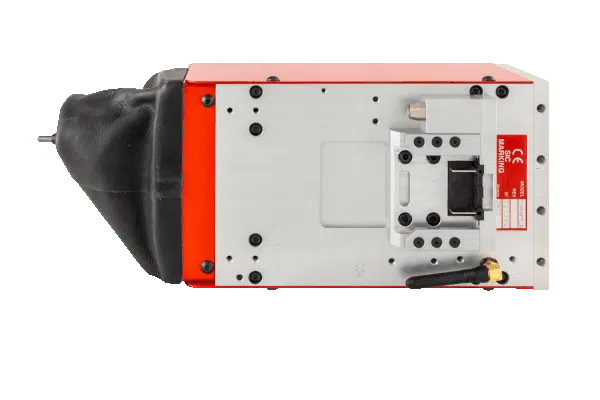

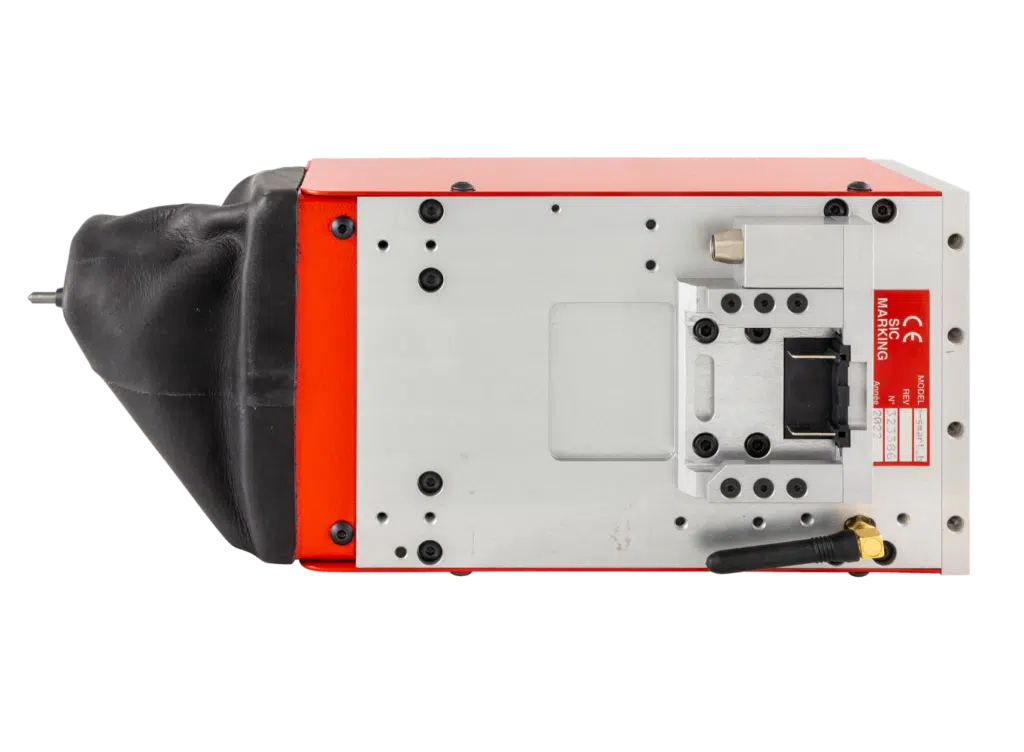

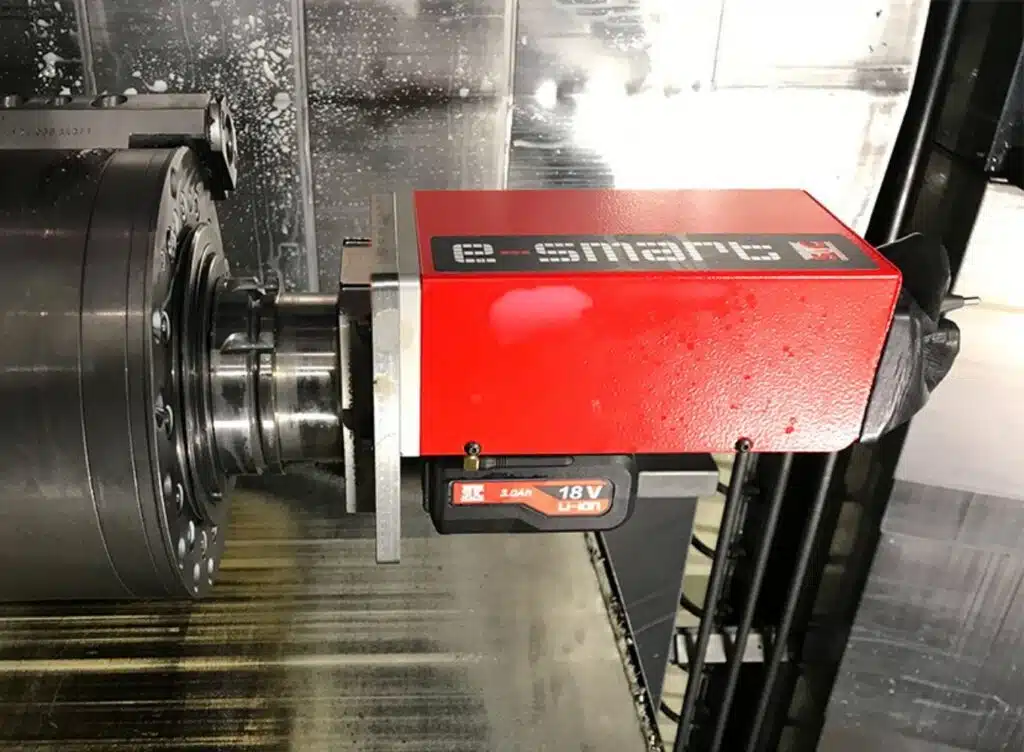

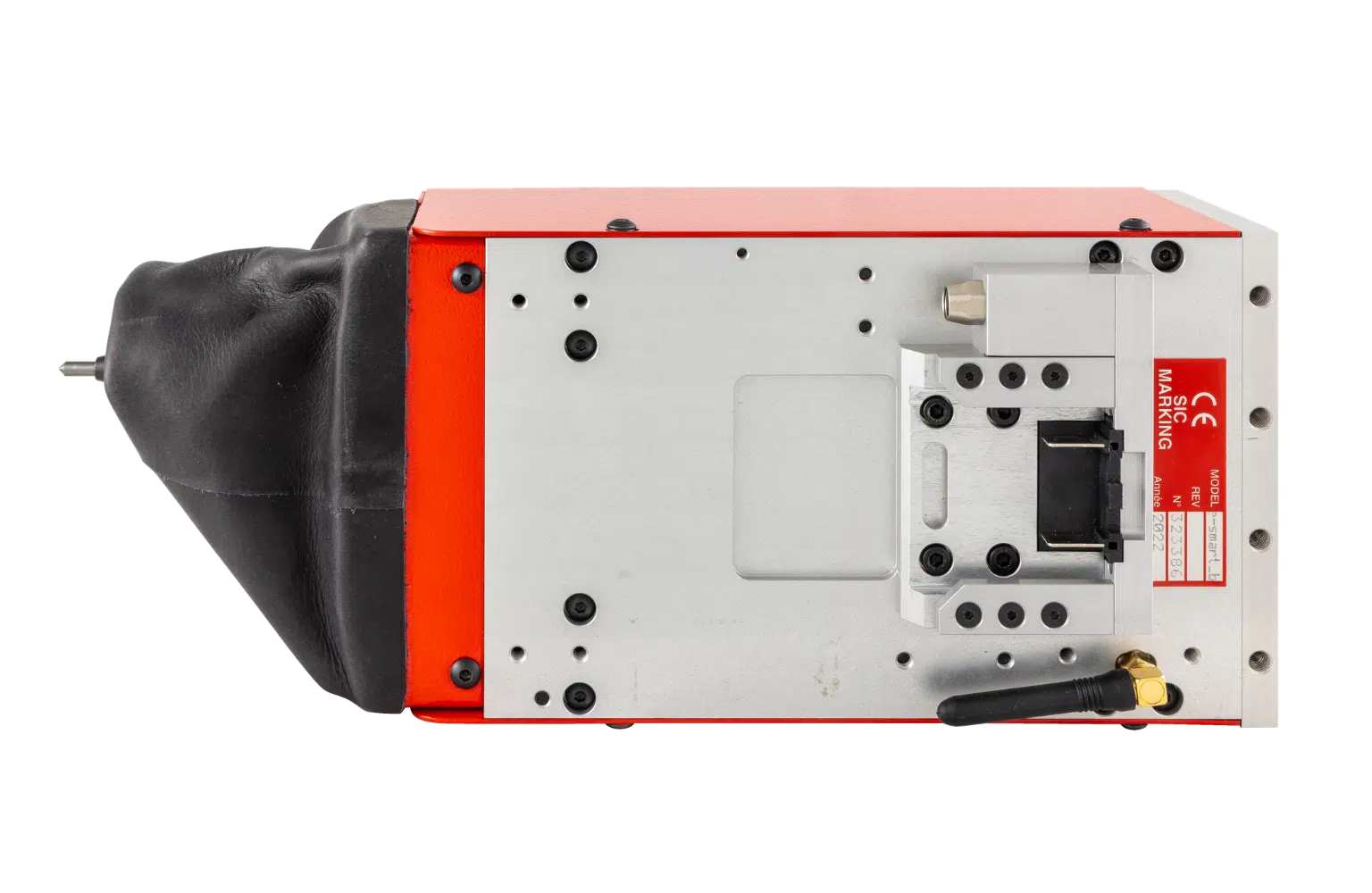

An ADAPTER PLATE then allows any type of tool holder to be installed, for availability in the tool store of a numerical control machining centre.

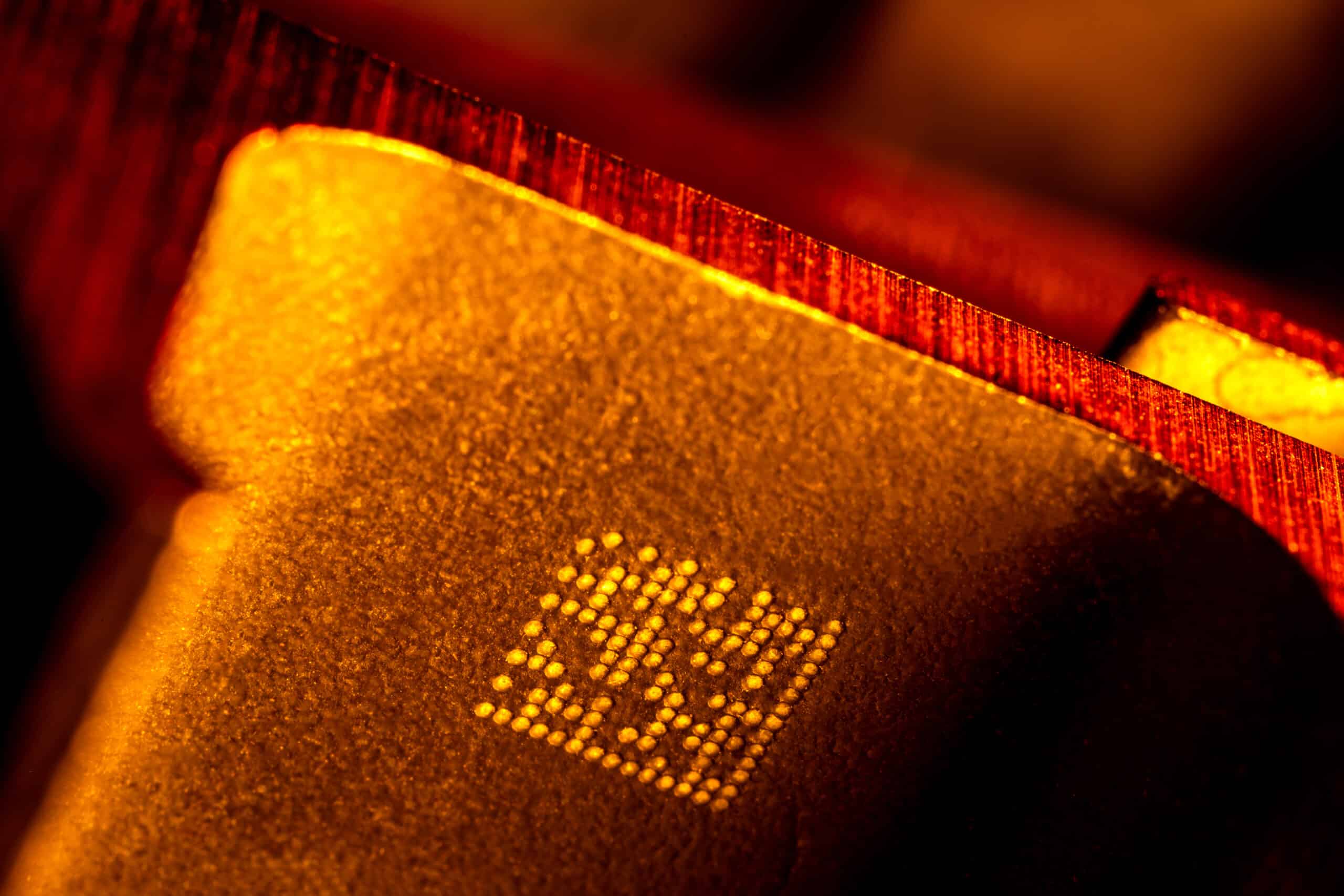

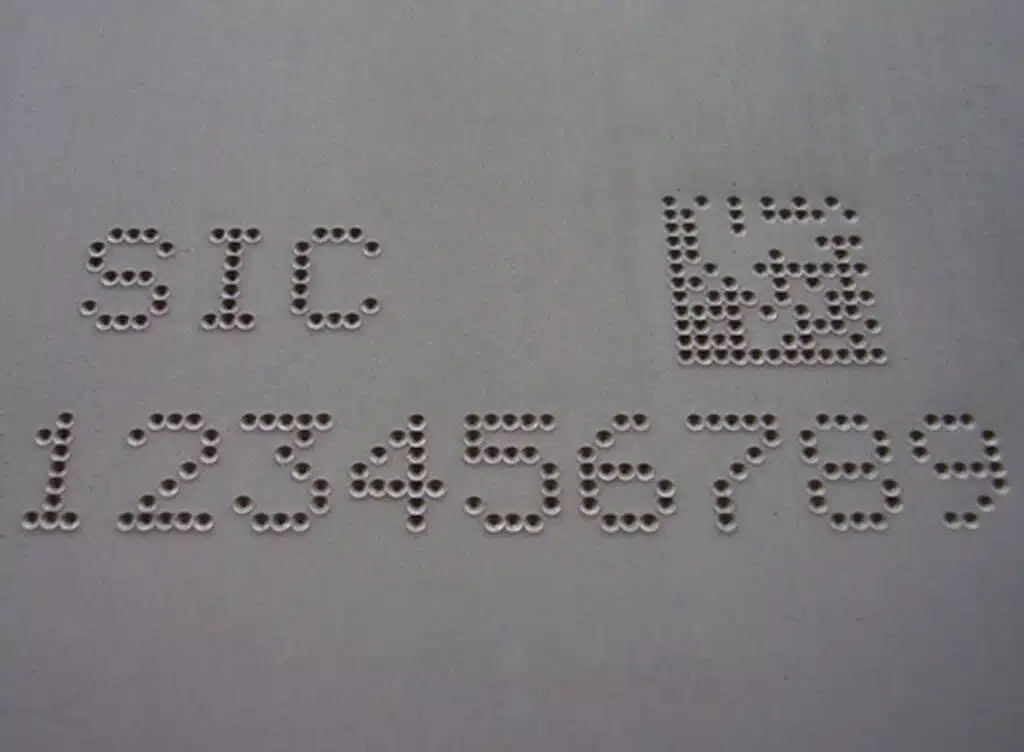

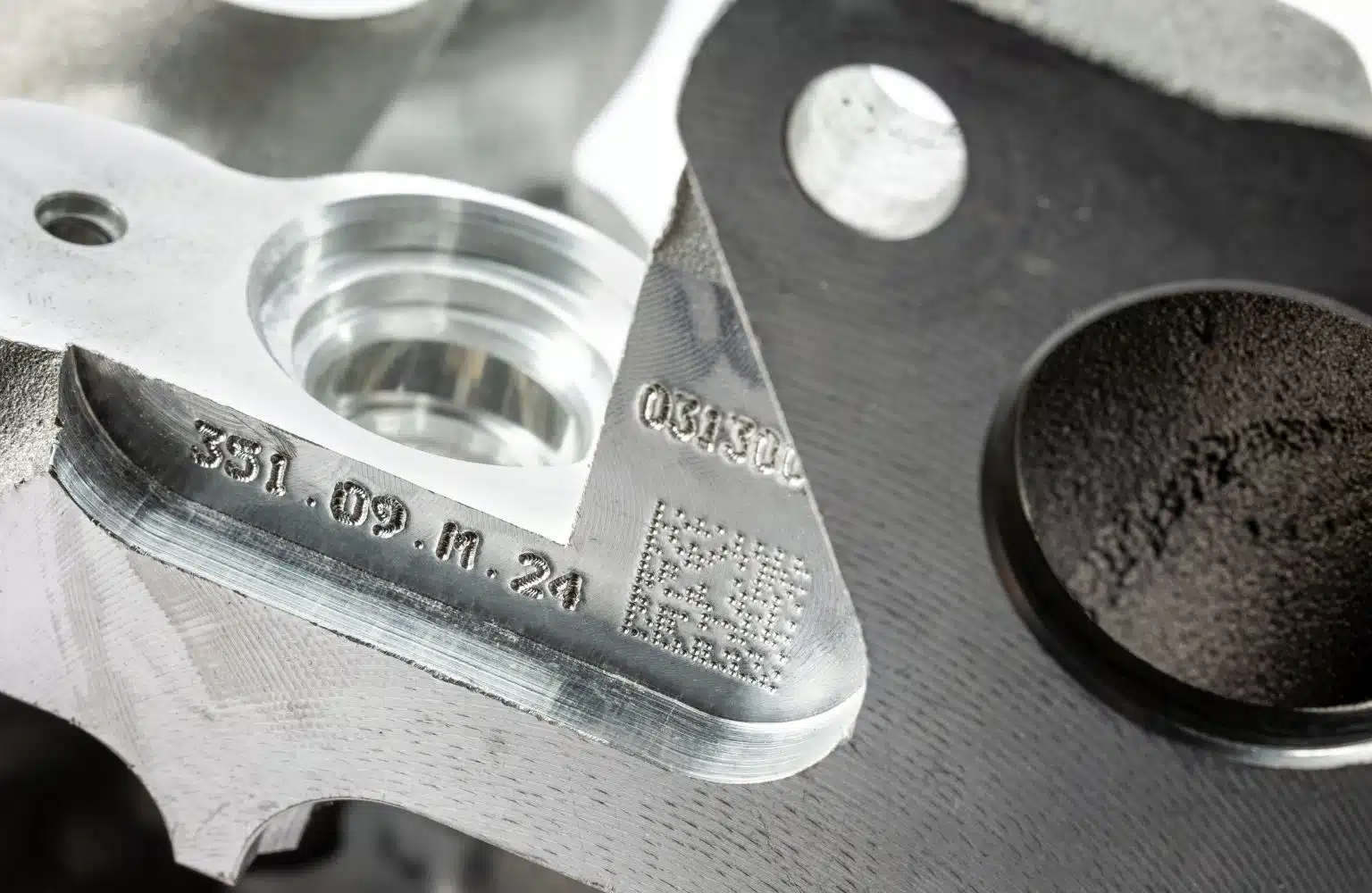

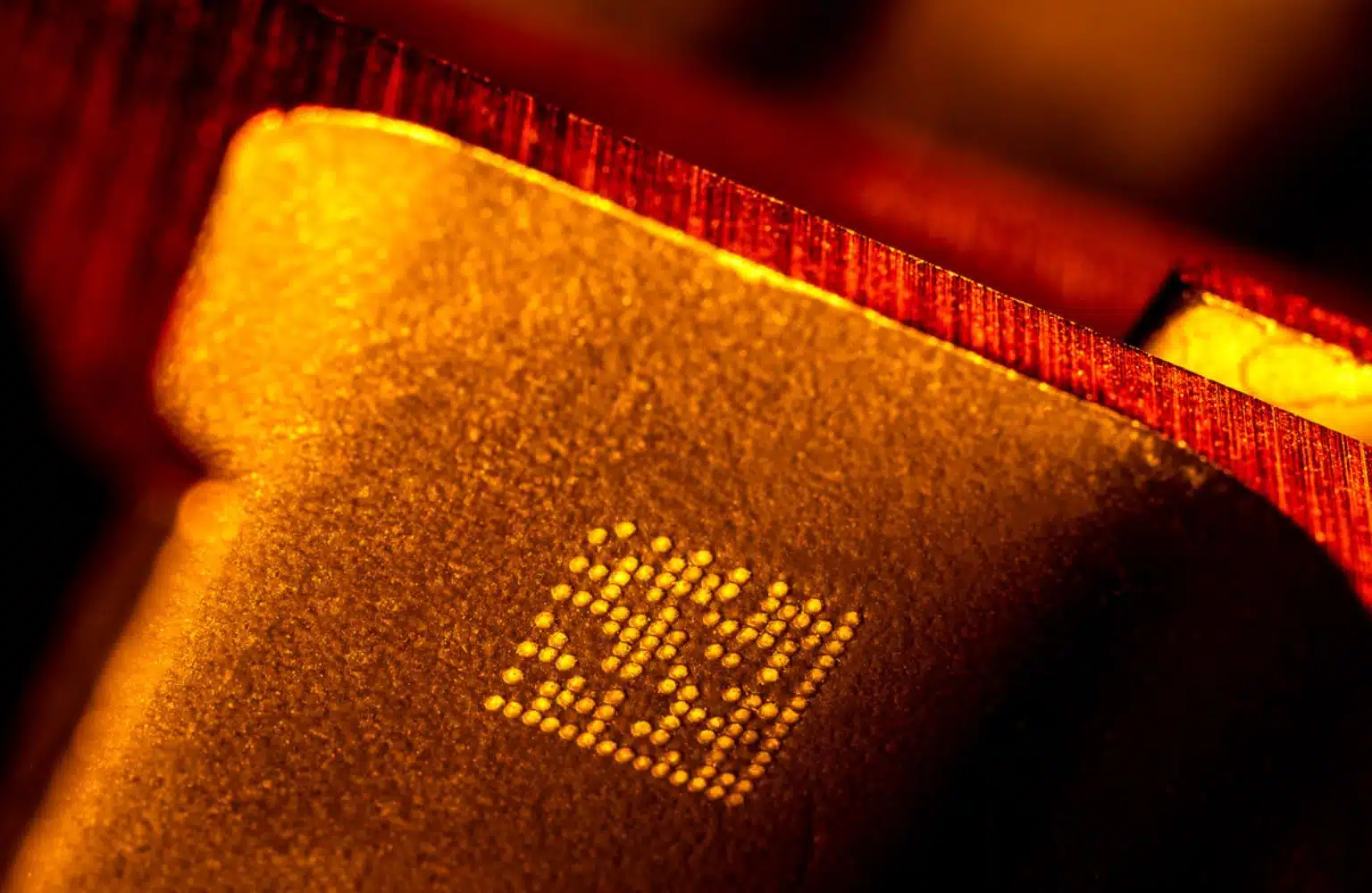

E-SMART marking may be alphanumeric text, a logo, or a 2D Datamatrix code.

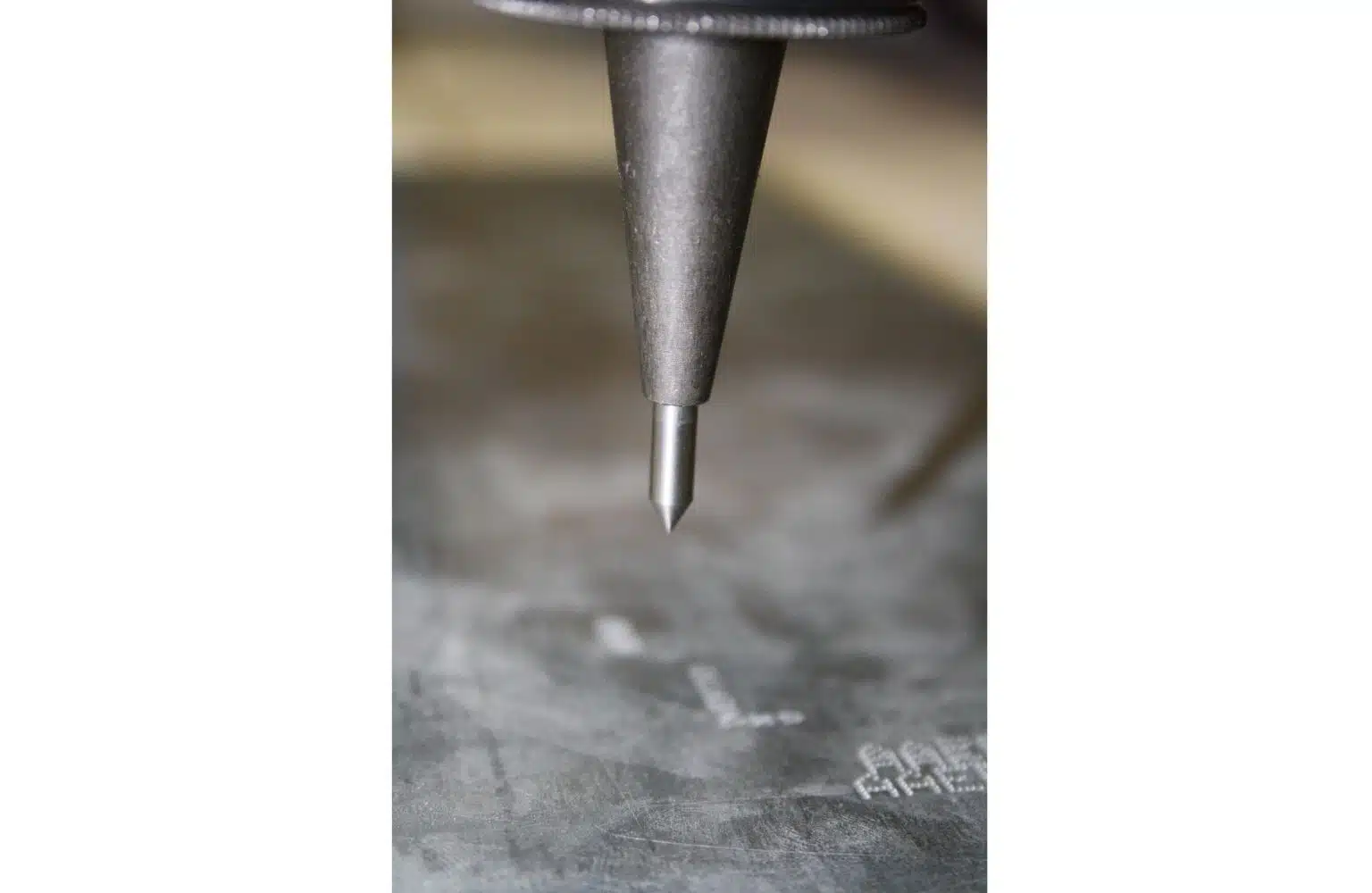

Dot peen technology provides reliable and permanent marking directly in the material, through a tungsten carbide stylus that strikes a series of dots at a very high rate.

Mechanical specifications

Marking window

50 x 20 mm

Dimensions

312 x 122 x 88 mm

Weight

3.5 kg

Connection cable

5 m, 10 m on option

Stylus

Carbide 60 mm

Protection bellows

Leather

Electronic specifications

Control software

Marking file capacity

> 1000 files

Memory

> 100 MB

Alphanumeric characters

Serial number and time/date stamping

Logos

Download from a PC or USB key

Fonts

5×7, Arial, Courier, OCR, OCR_BOLD and OCRA

Marking

Linear, radial, angular, Data Matrix, logo, mirror

Font size

From 0.1 mm to 20 mm

Depth

Up to 0.3 mm (depending on material)

Resolution between dots

0.05 mm

Password

1 security level

Software

15 languages

Log

Anti-duplication

COMMUNICATION
Ports

RS232, USB

PC software

Creation and transfer of backups, logos

Options

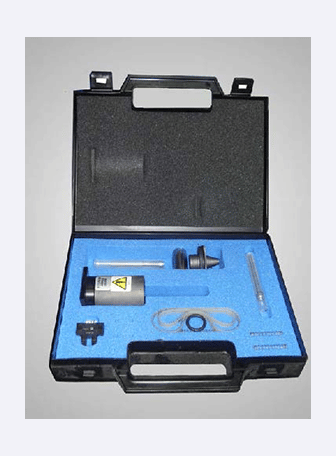

E-SMART MAINTENANCE KIT

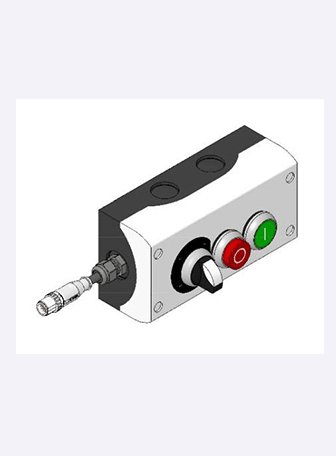

BUTTON BOX WITH FILE SELECTOR

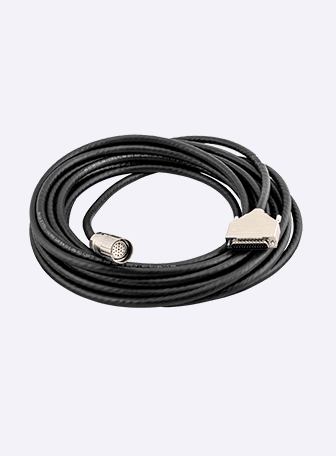

CONNECTION CABLE 10 m
