Pneumatic dot peen marking machine i-speed, High rate marking engraver

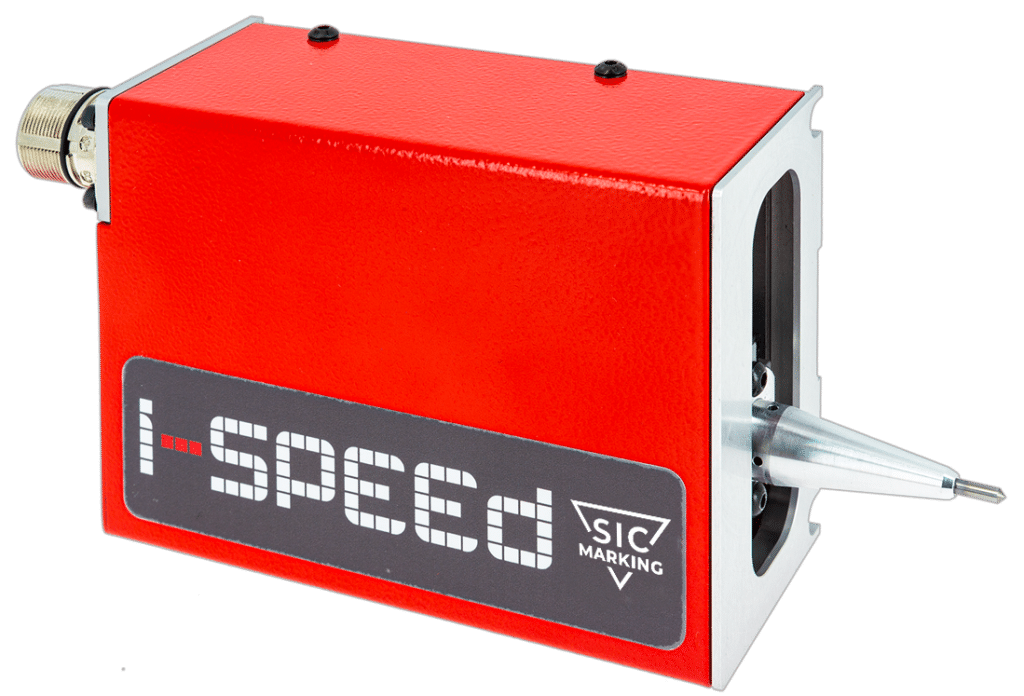

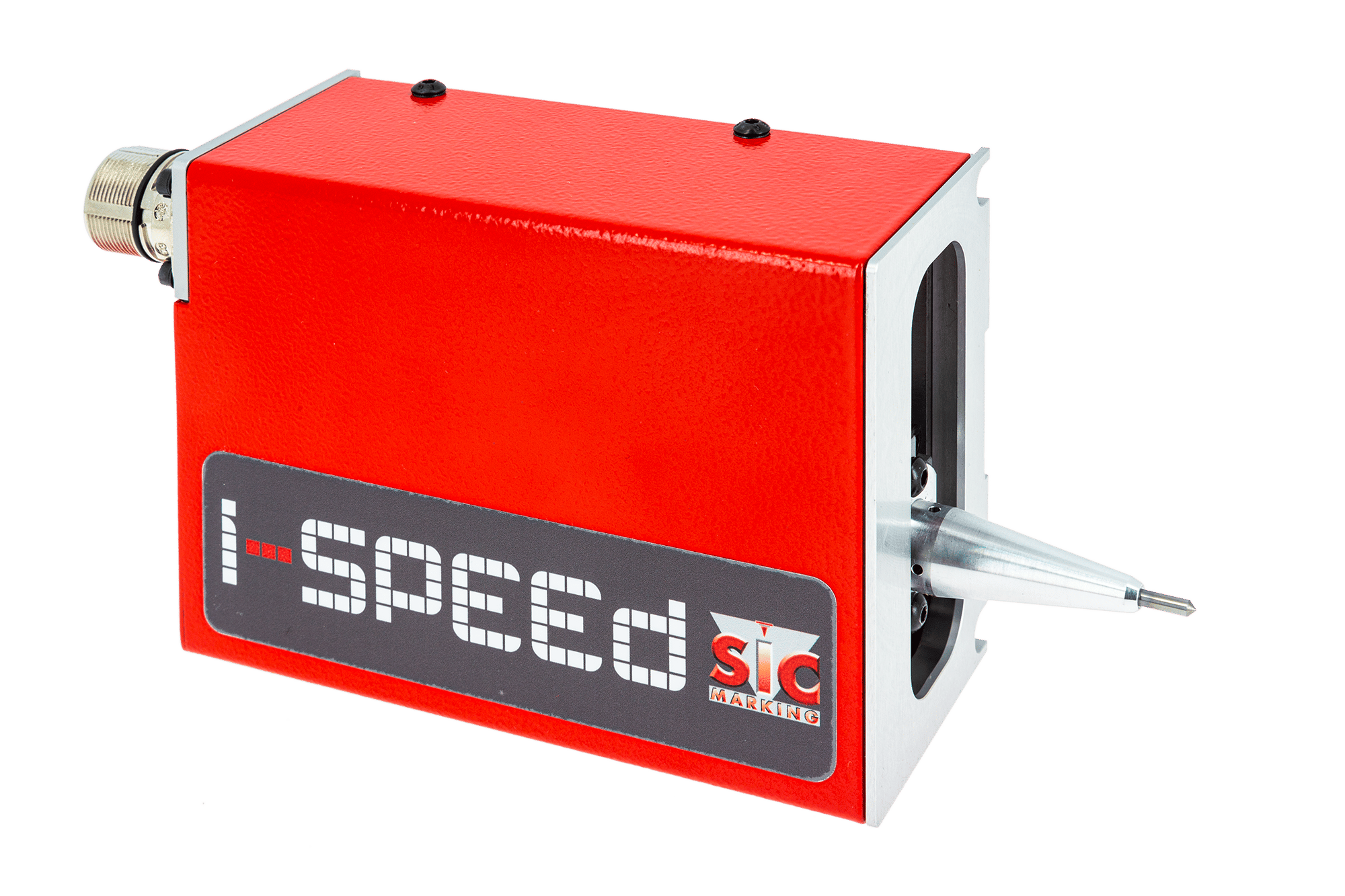

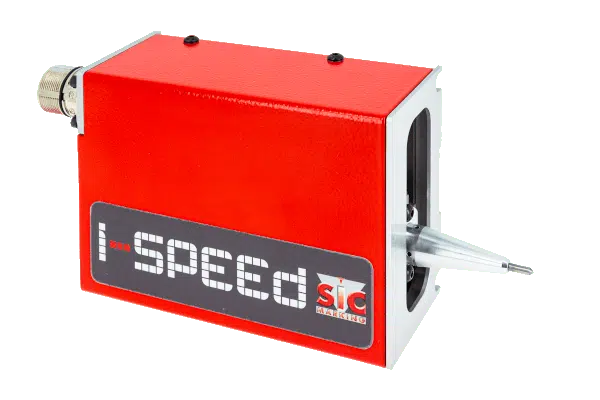

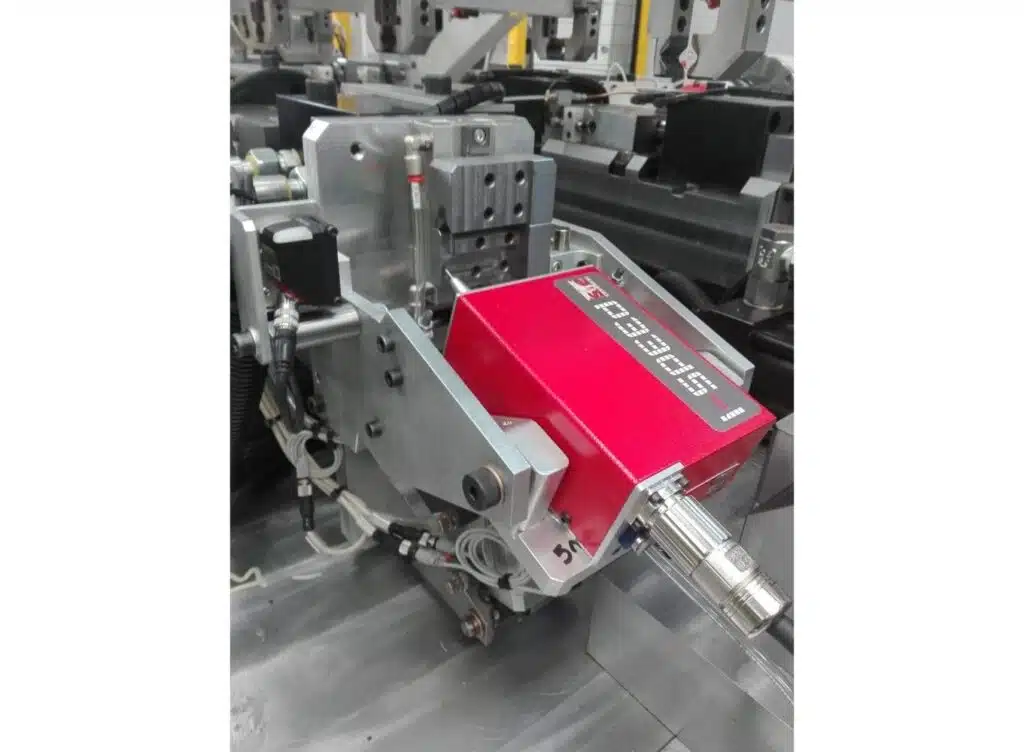

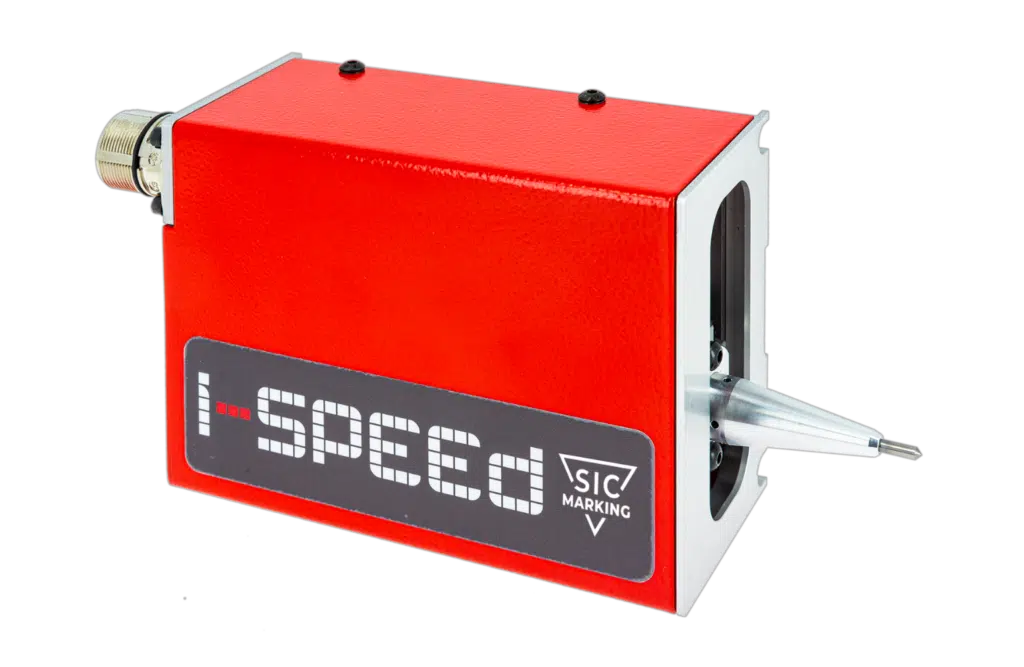

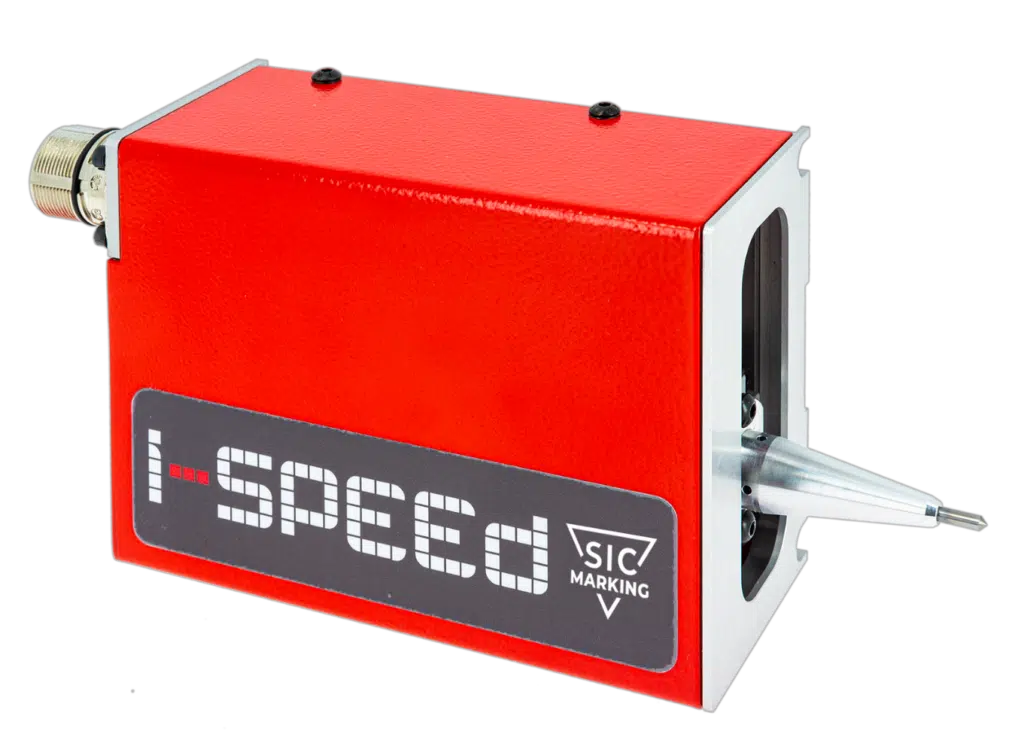

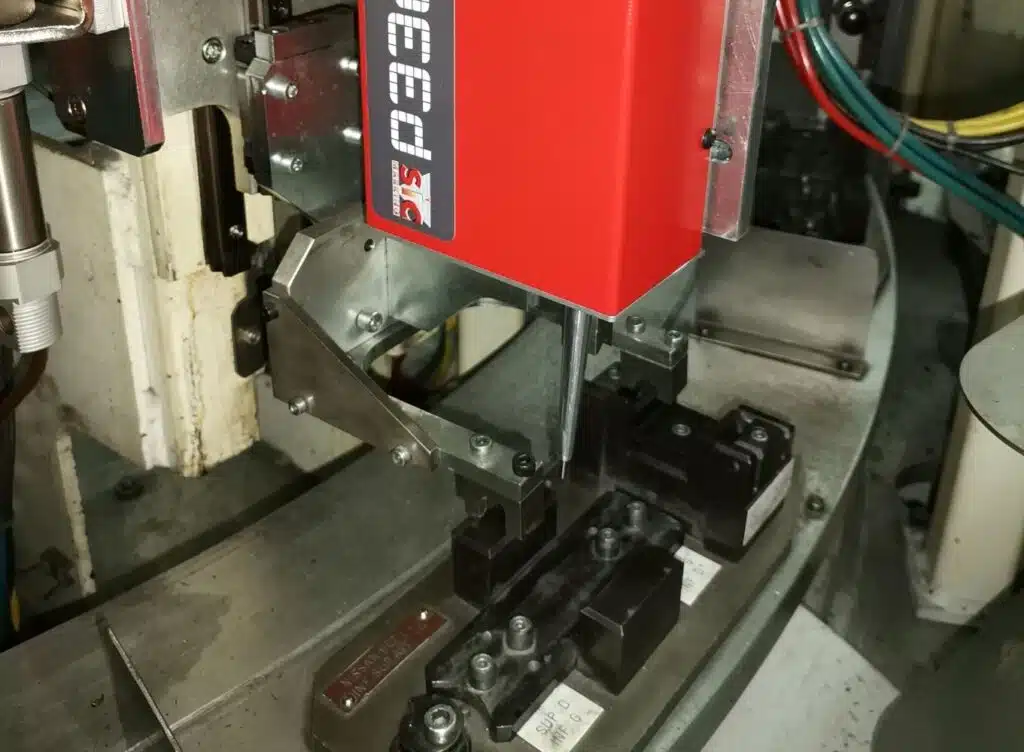

The I-SPEED is a pneumatic dot peen marking machine designed for integration into a production line.

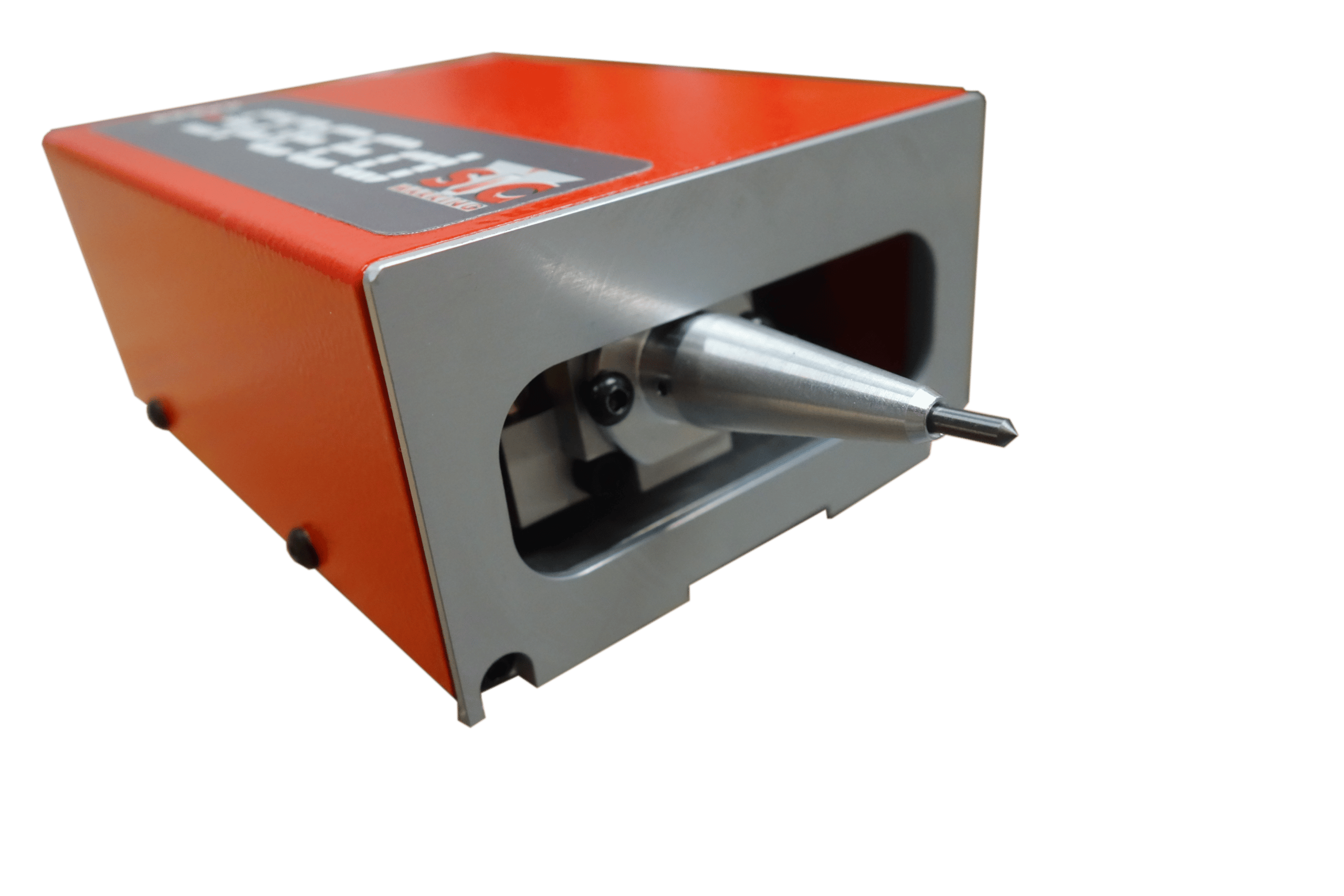

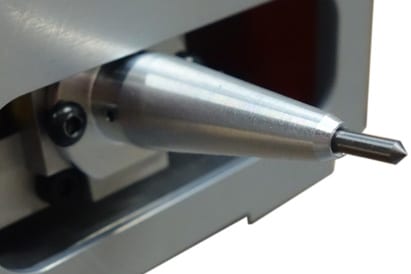

It uses continuous vibration technology, a variation of dot peen marking in which a pneumatic punch vibrates as it moves to produce extremely fast, continuous marking. The pneumatic striker is ideal for simple marking applications at high production rates.

Perfectly suited to high-speed production lines, the I-SPEED can mark up to 10 characters per second.

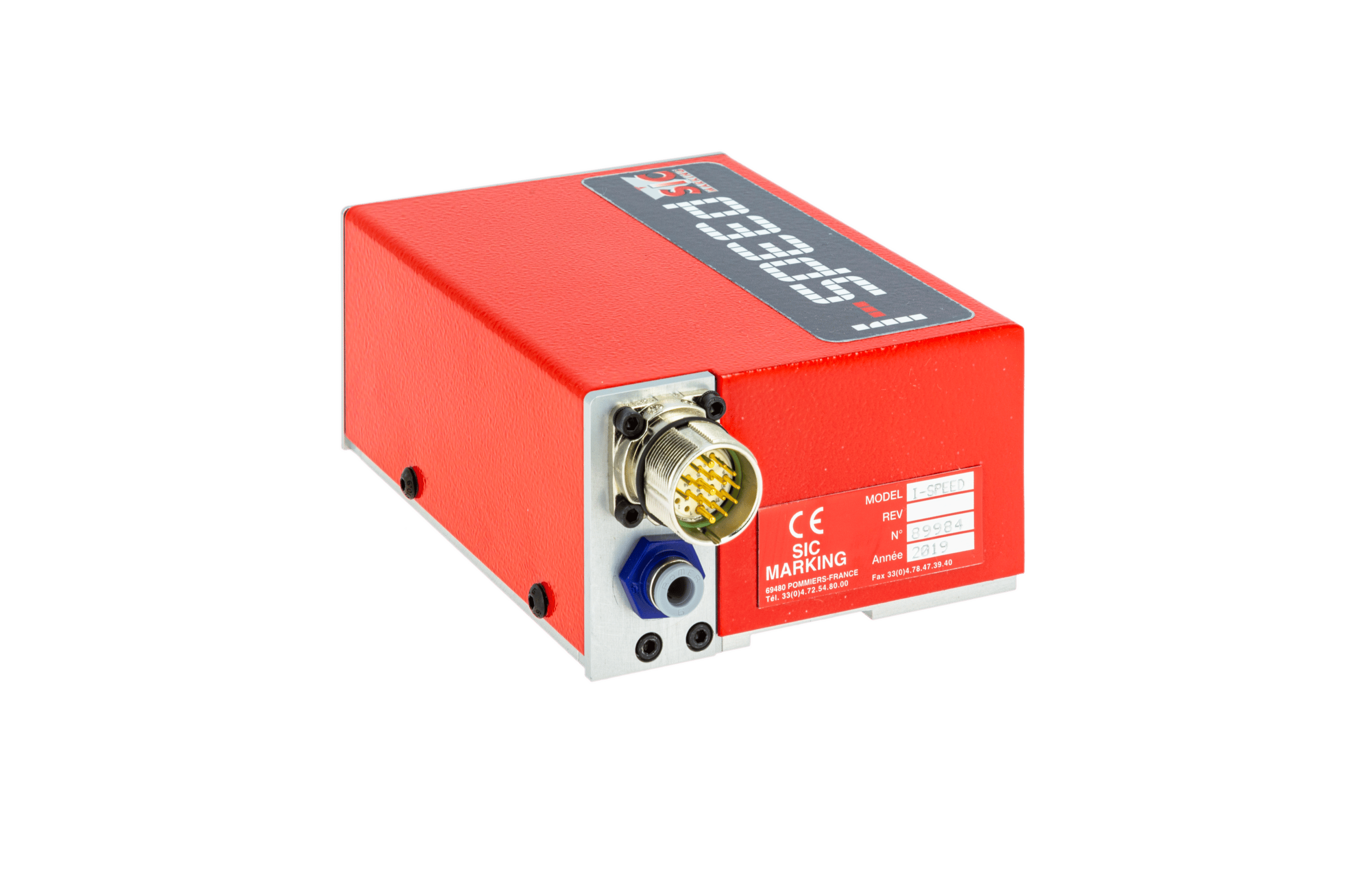

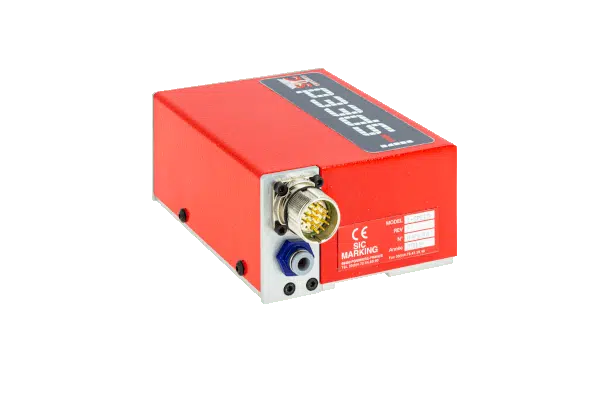

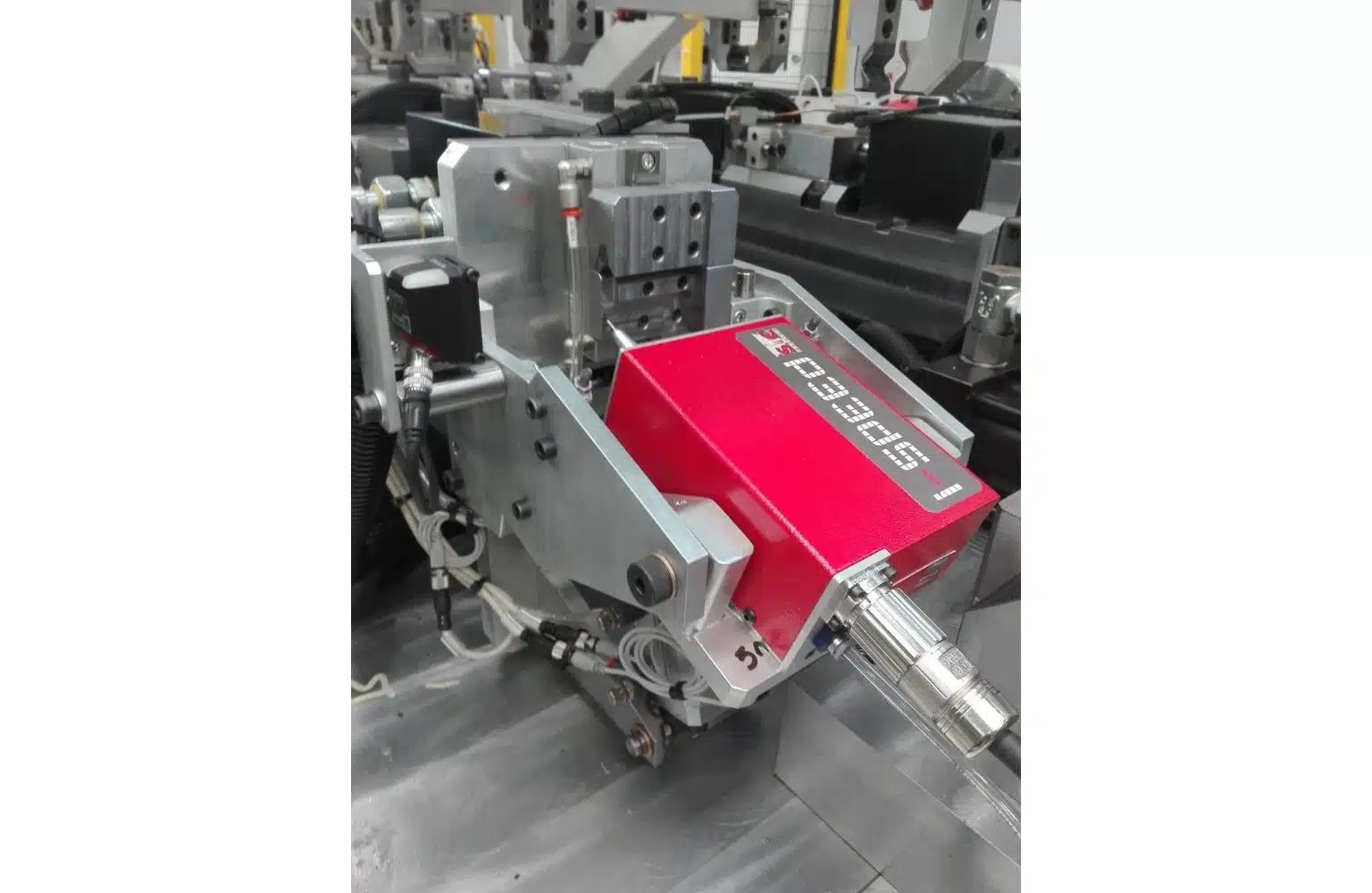

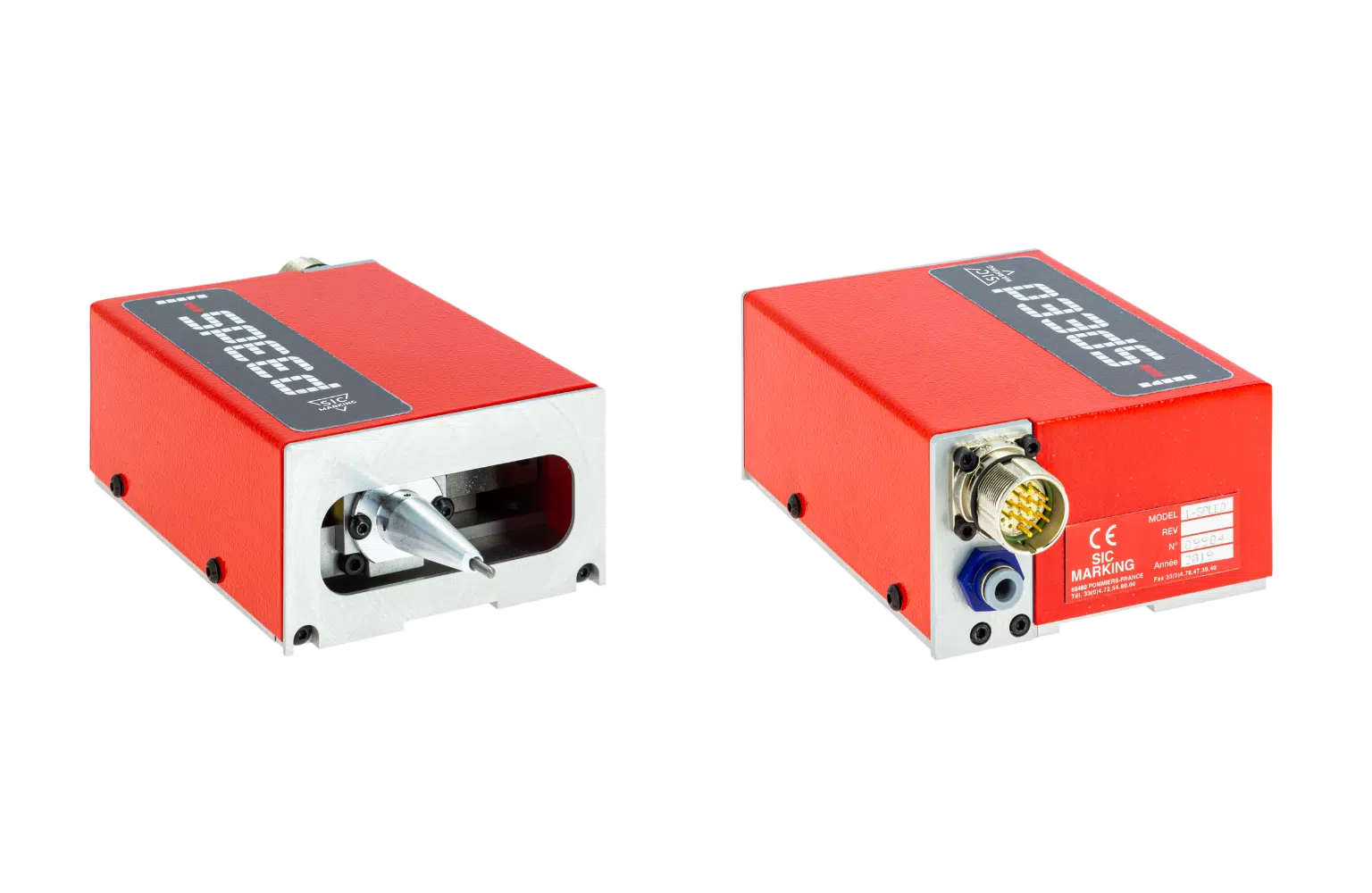

Its compact dimensions (218 x 107 x 62 mm) make it easy to integrate into a production line. These features make the I-SPEED one of the fastest and most compact integrable marking machines on the market.

The compact E10 R controller is ideal for integrable marking systems. It features a QWERTY keyboard covered by a waterproof membrane and a backlit LCD screen that provides a simple, intuitive user interface. Marking files can be transferred between a PC and the controller using a USB flash drive.

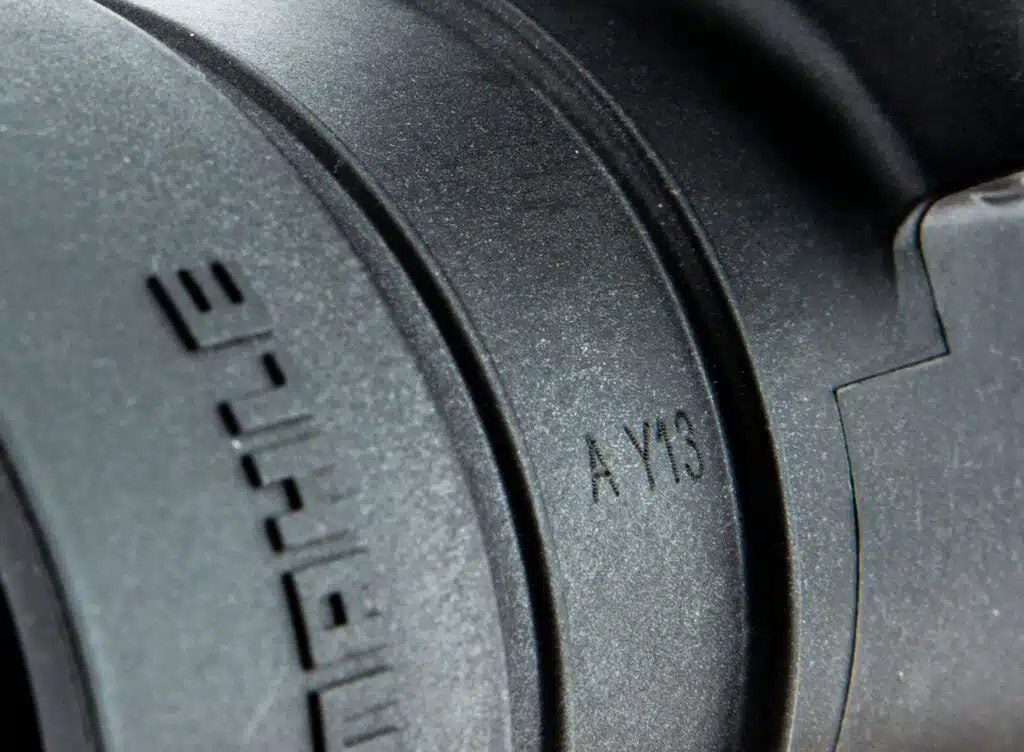

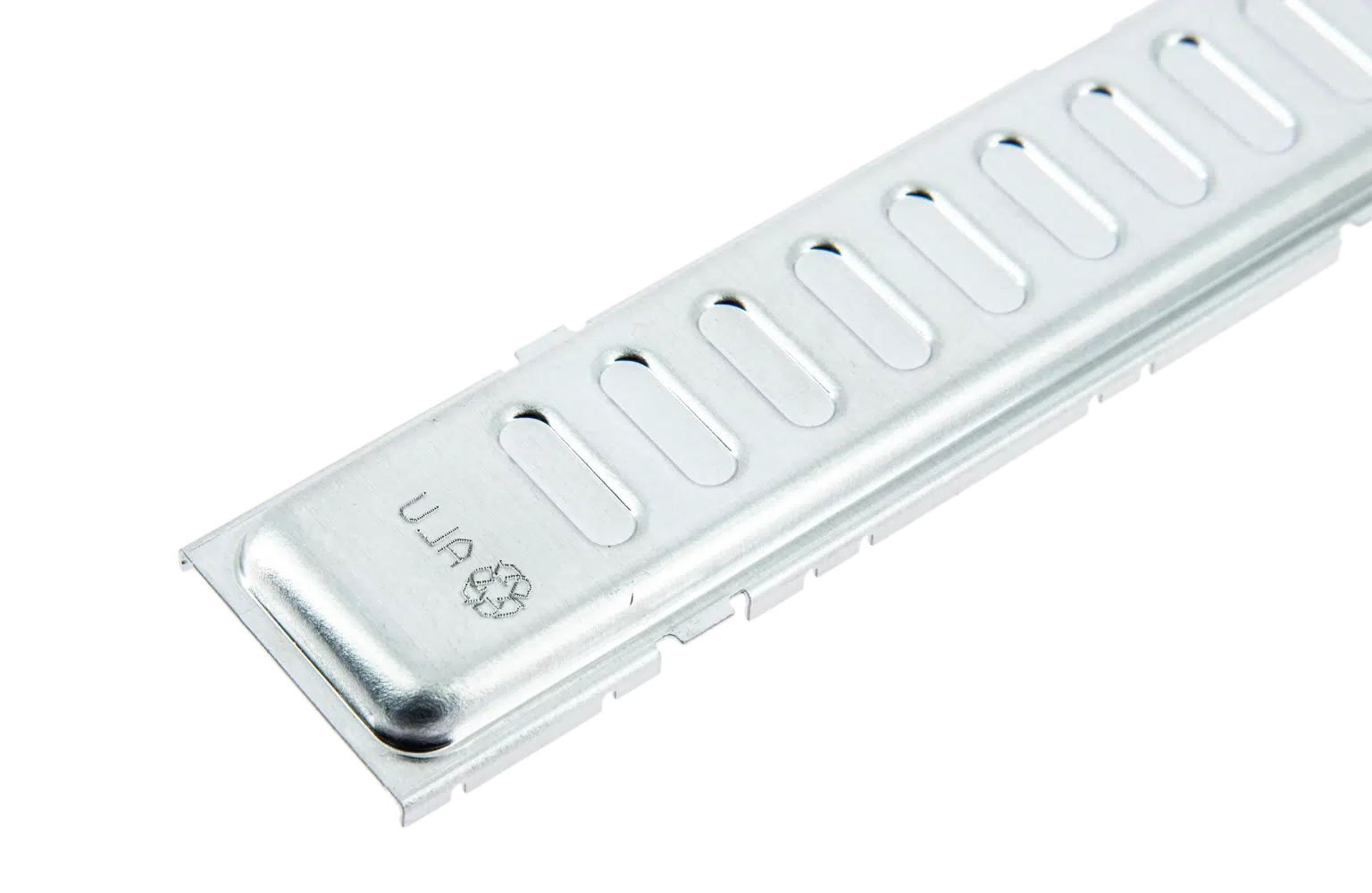

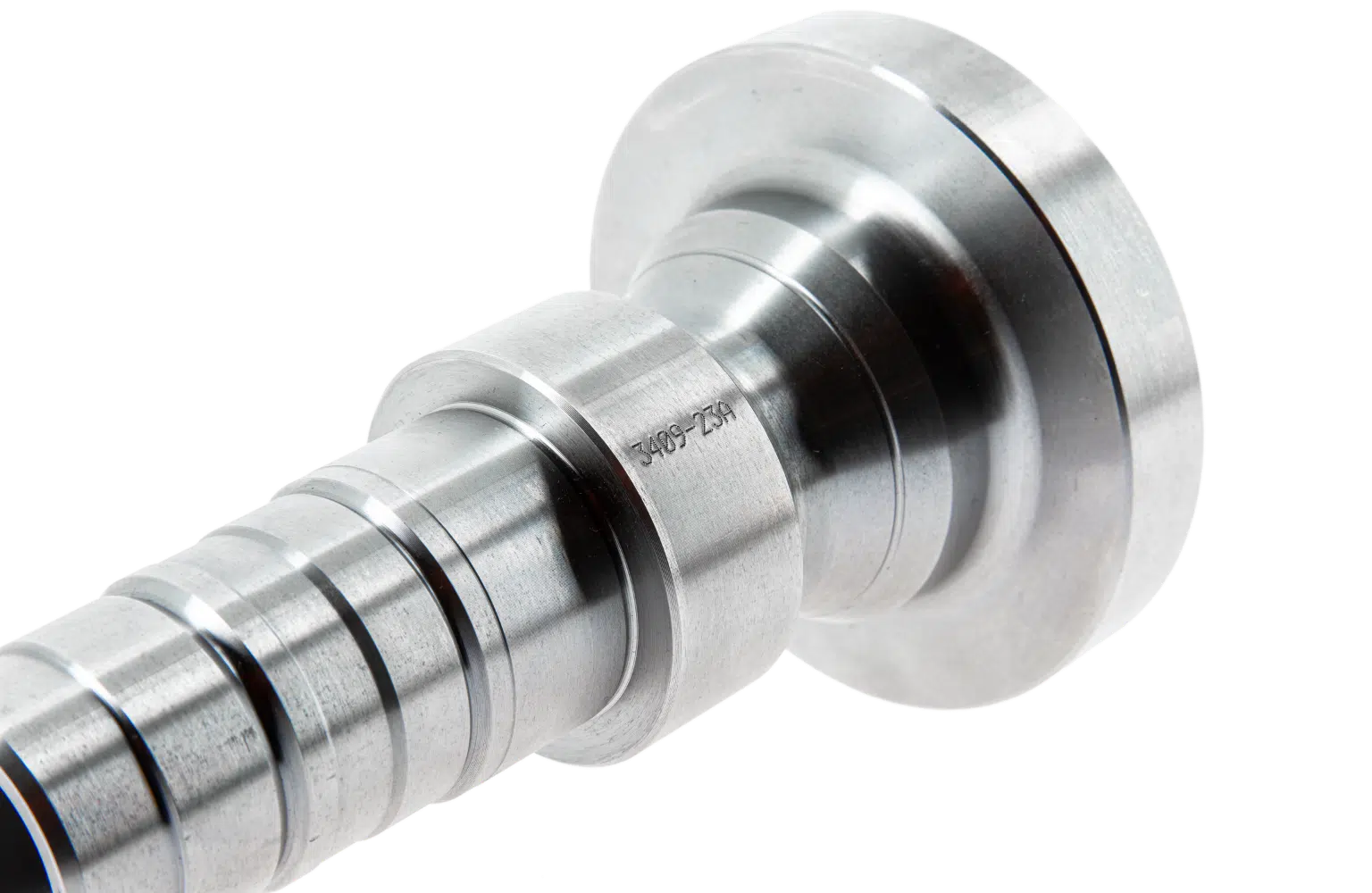

The I-SPEED delivers fast, permanent marking on all types of materials, from plastic to hardened steel with a hardness of up to 62 HRC. Easy to use, it can mark parts with various shapes and surface finishes.

Marking window	50 x 20 mm
Dimensions	218 x 107 x 62 mm
Weight	1.7 kg
Connection cable	5 ou 10 m
Stylus	Carbide 60 mm

The barcode reader allows automatic and fast selection of the file and content to be marked, eliminating the possibility of input errors. It can read 1D and 2D codes, including QR and Datamatrix codes. It features a Bluetooth connection, ensuring wireless communication with the machine.

The e10 R controller allows ultra-fast startup and navigation thanks to a latest generation microcontroller. The e10 R has the same features as the e10, but it also allows direct integration on a chassis or in a vertical position. Thanks to an option, it can be integrated directly into a control cabinet (DIN rail mounting kit).

The maintenance kit is an essential accessory to ensure the durability and proper functioning of the machine. It includes all the consumables and parts needed to perform maintenance operations in complete autonomy, without having to call a technician.

The digital Z-axis allows the marking head to access hard-to-reach areas or mark a part on several levels in the same cycle. This option is available in different approach strokes: 50, 100 and 250 mm.
