Marking machine

I 83

2D codes very high marking quality
Heavy use
Integra viewing and auto-sensing option
machine de marquage micro percussion i83
Description

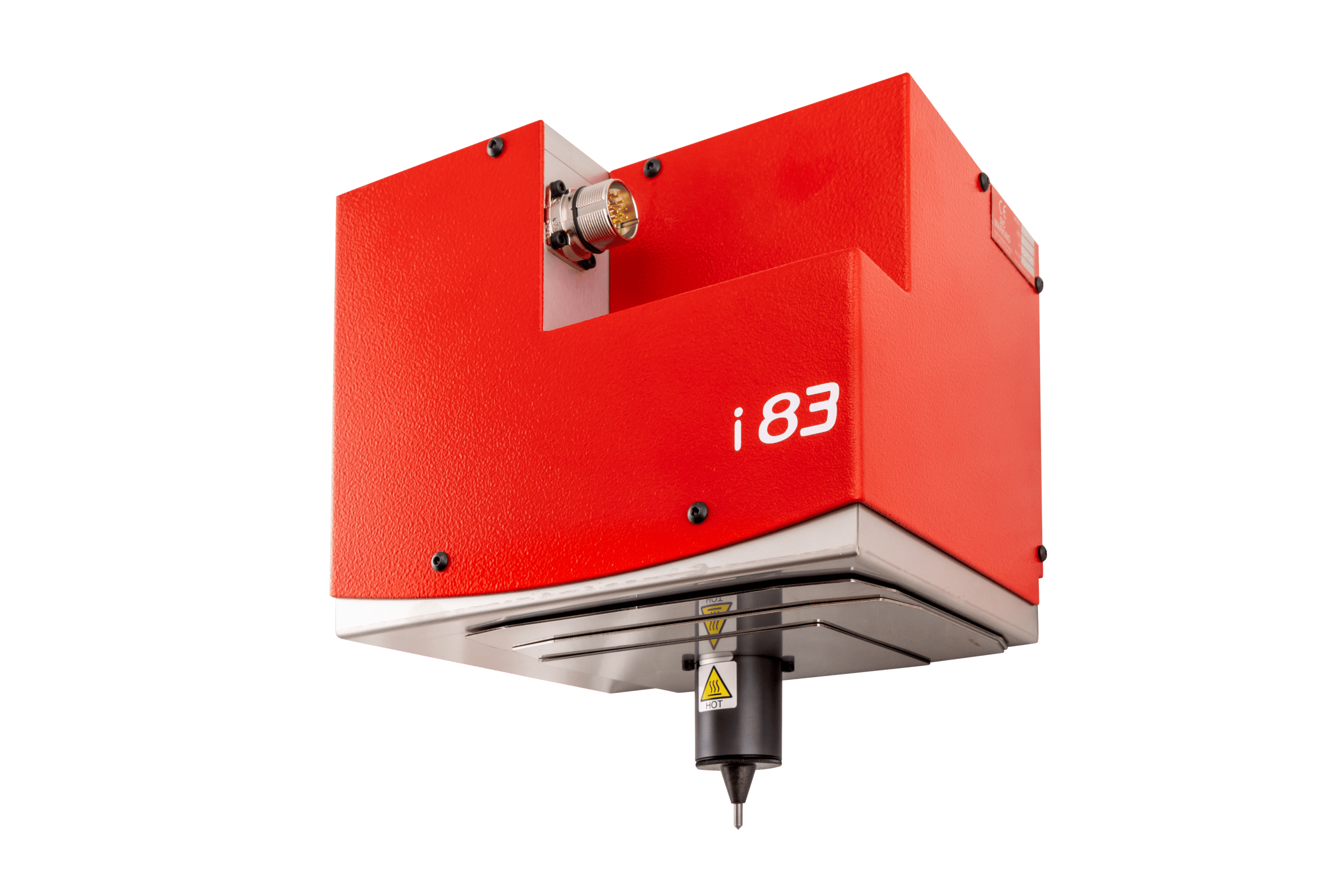

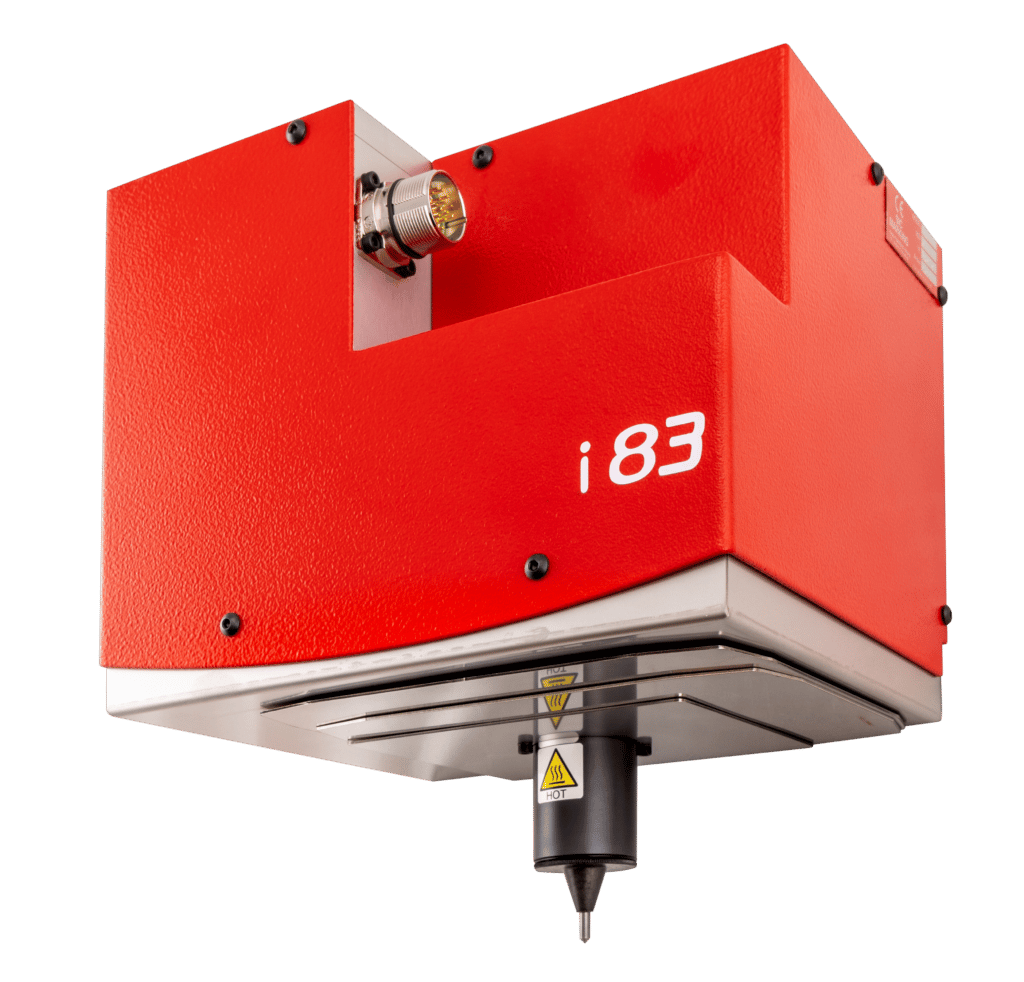

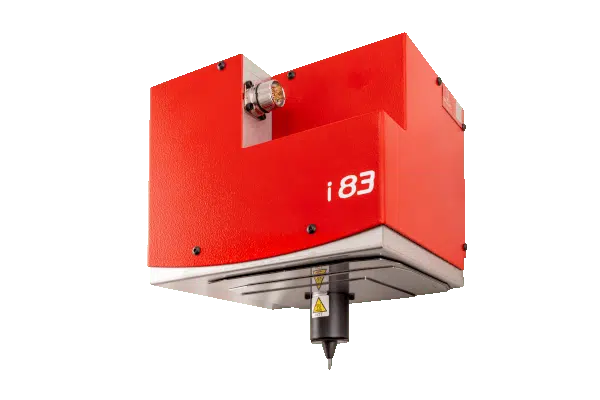

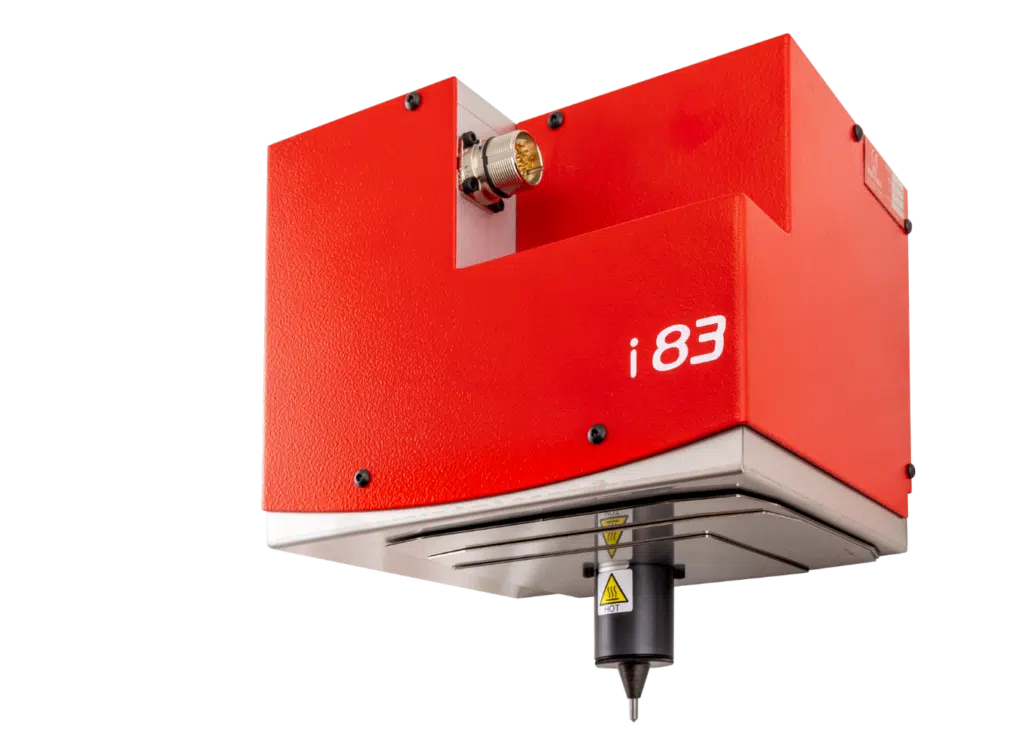

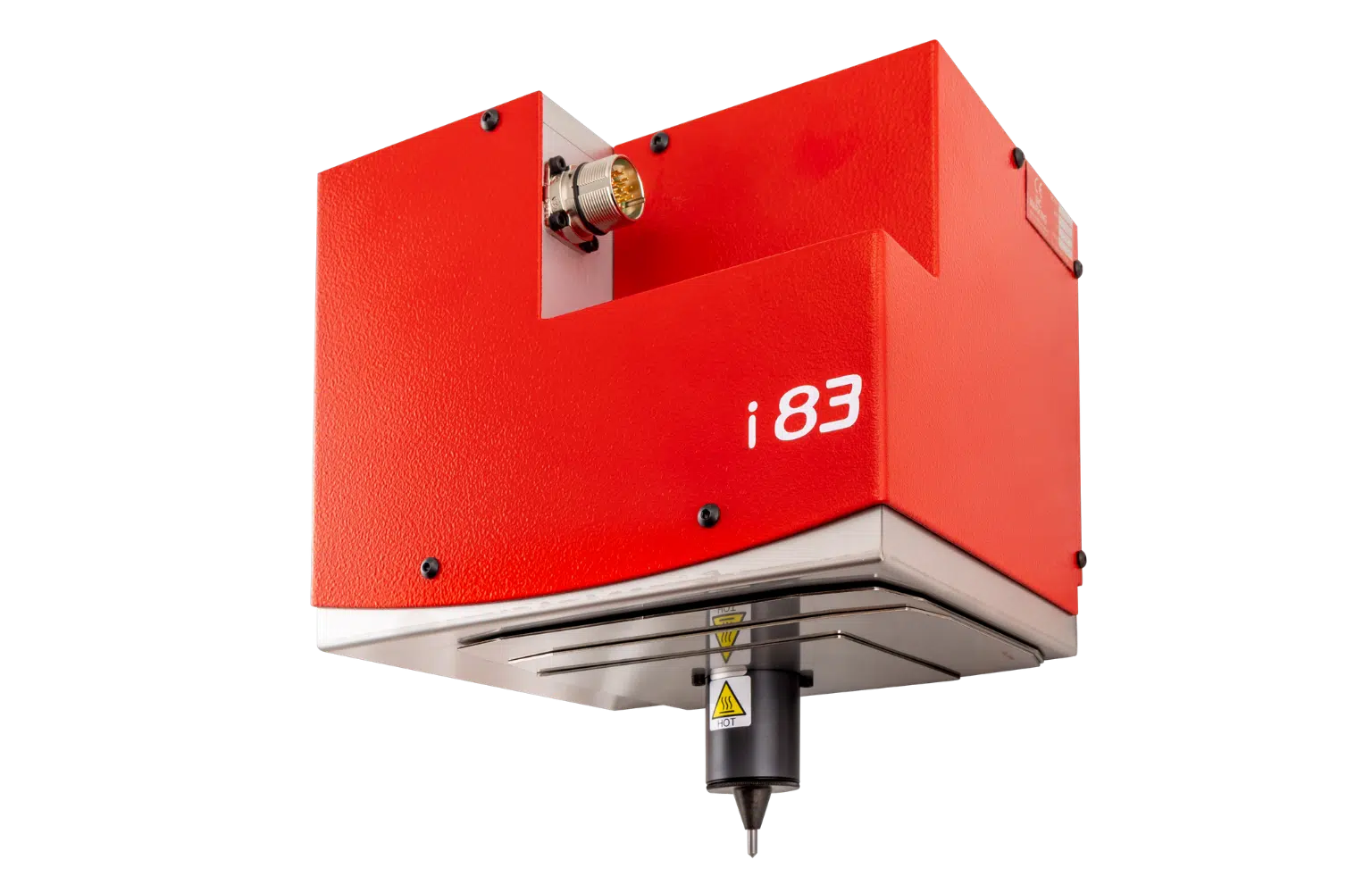

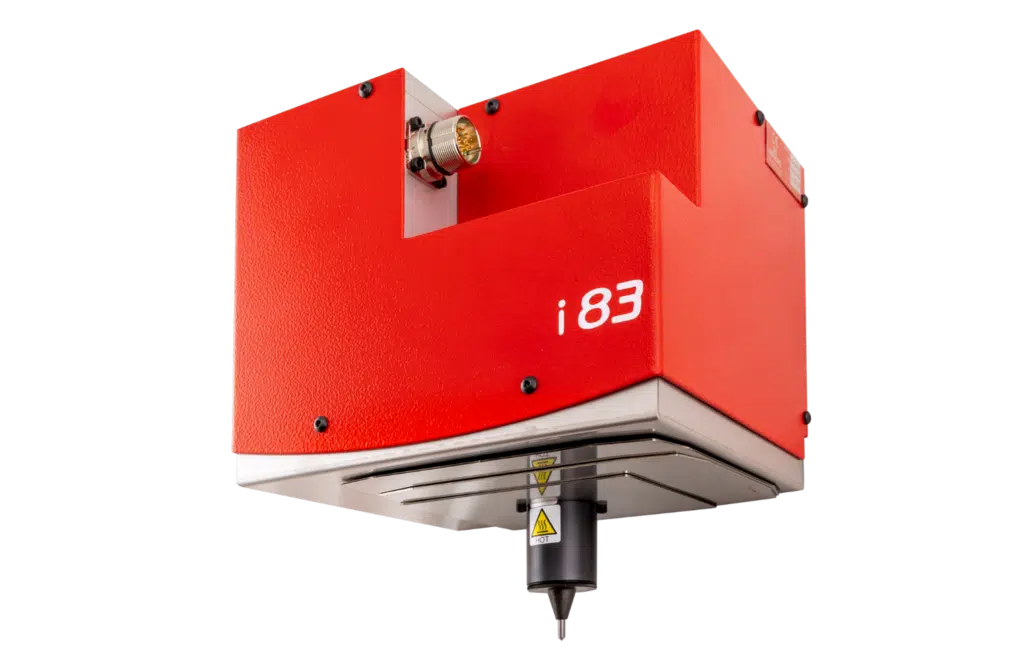

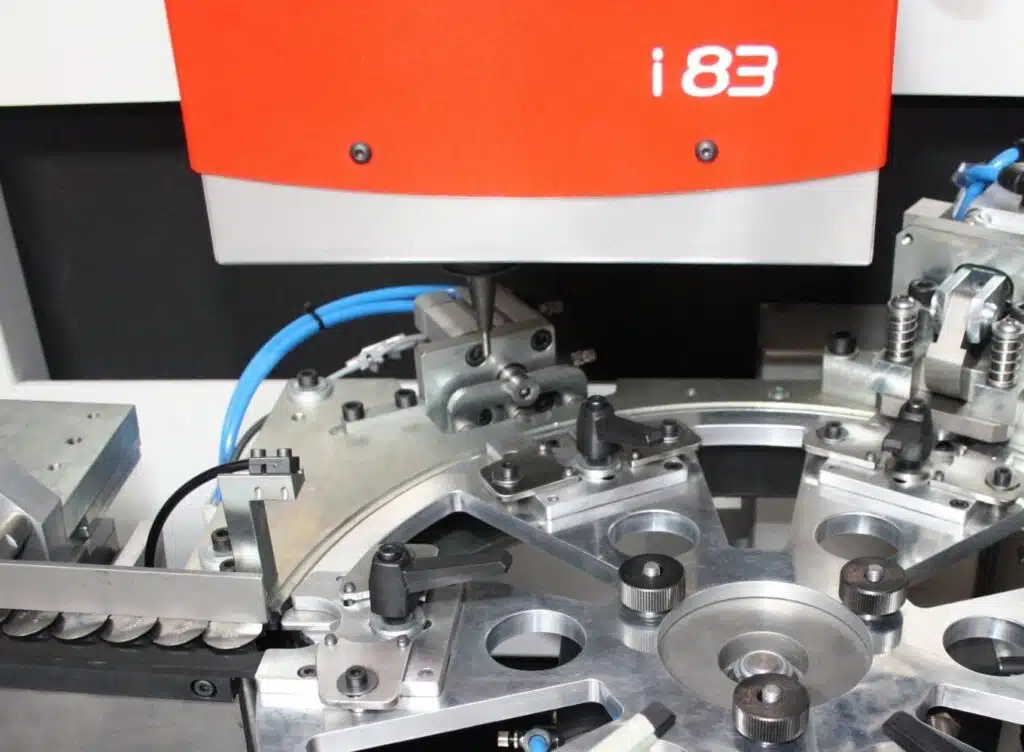

The I 83 is a DOT PEEN MARKING MACHINE designed for easy integration on automated lines in an industrial environment.
The precision of its electro-magnetic control and its crossed table make it THE BEST FOR MARKING VERY HIGH QUALITY 2D CODES (Datamatrix, etc.)

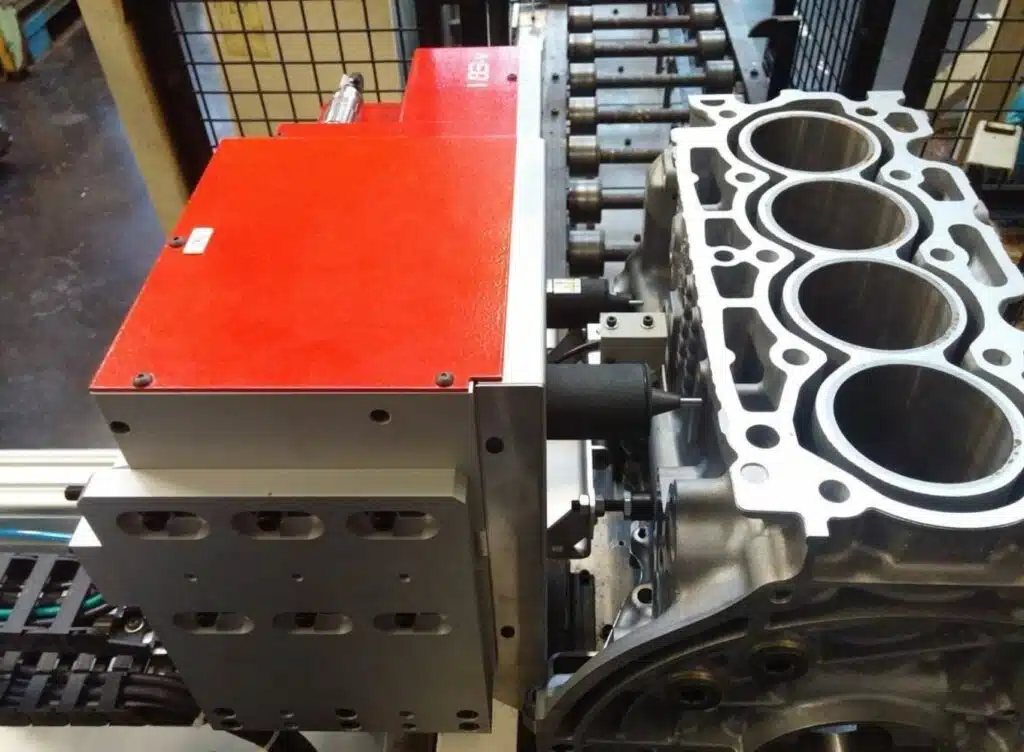

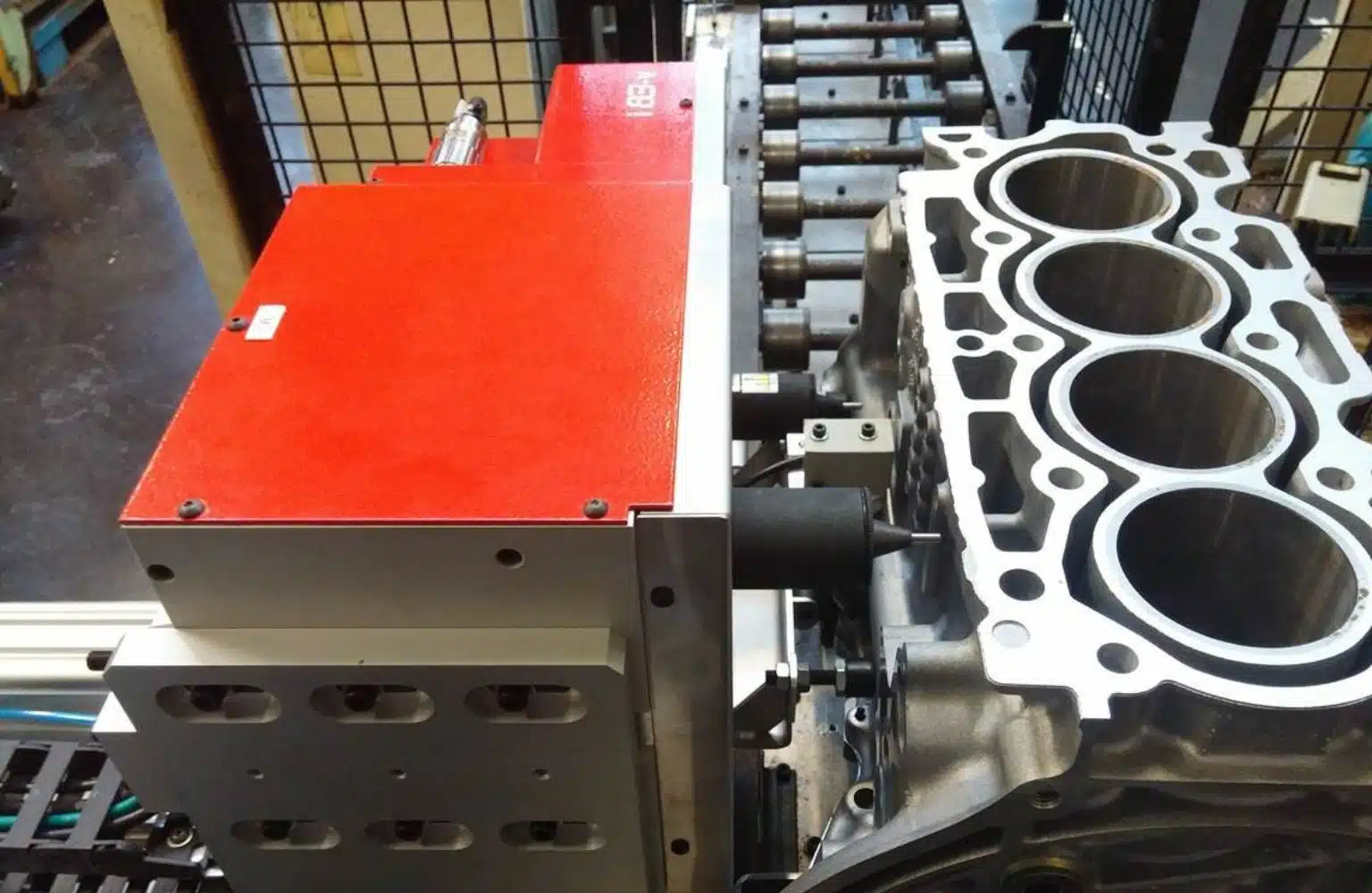

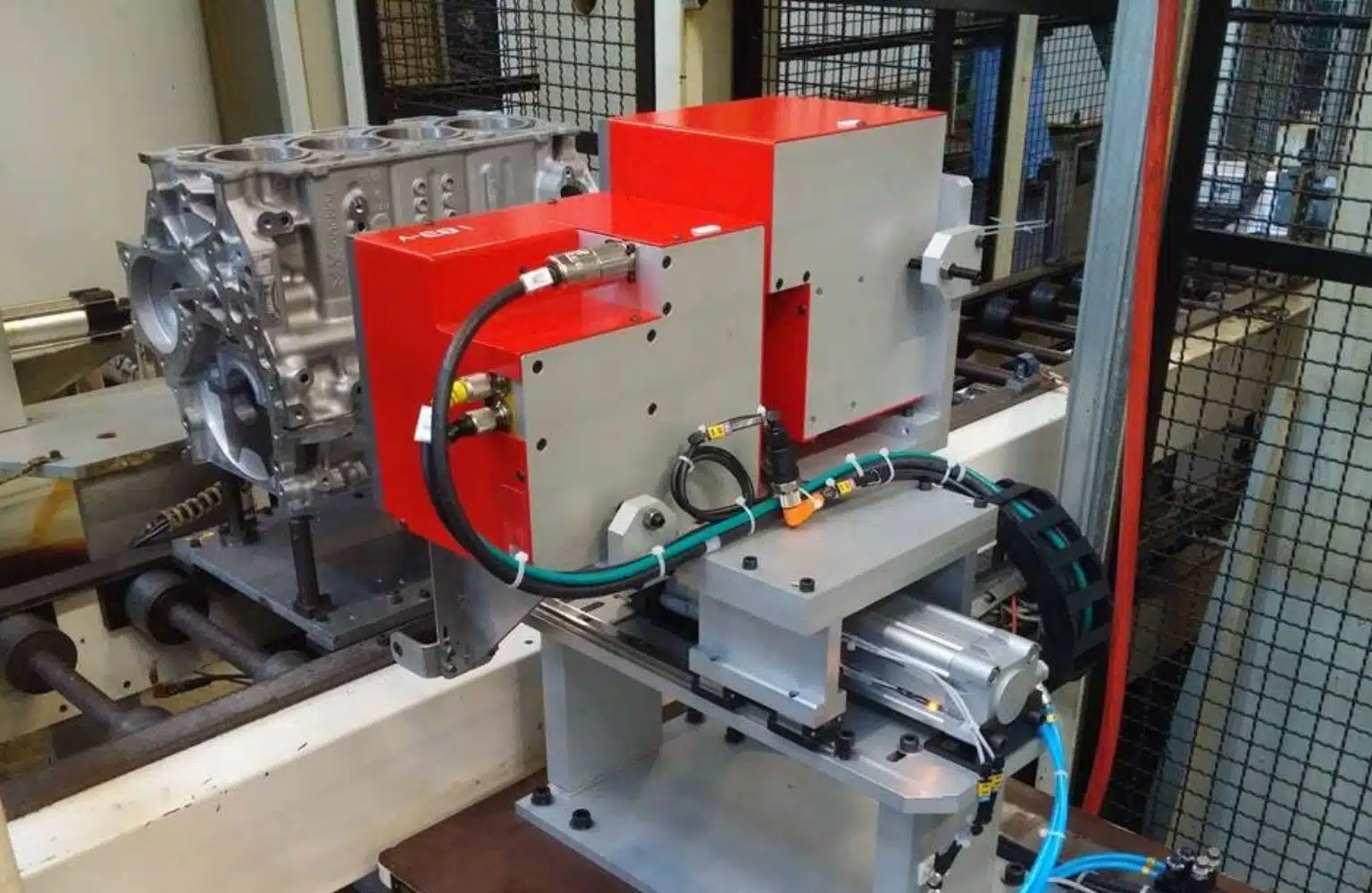

This integrable machine can be used in a production line IRRESPECTIVE OF THE DESIRED POSITION. The I 83 connector can also be positioned on the side face, if necessary for production line considerations.

Its robust structure is protected from oil or dust projections by bellows, which also give simpler utilisation in an industrial environment.

The i83 has two specific options.

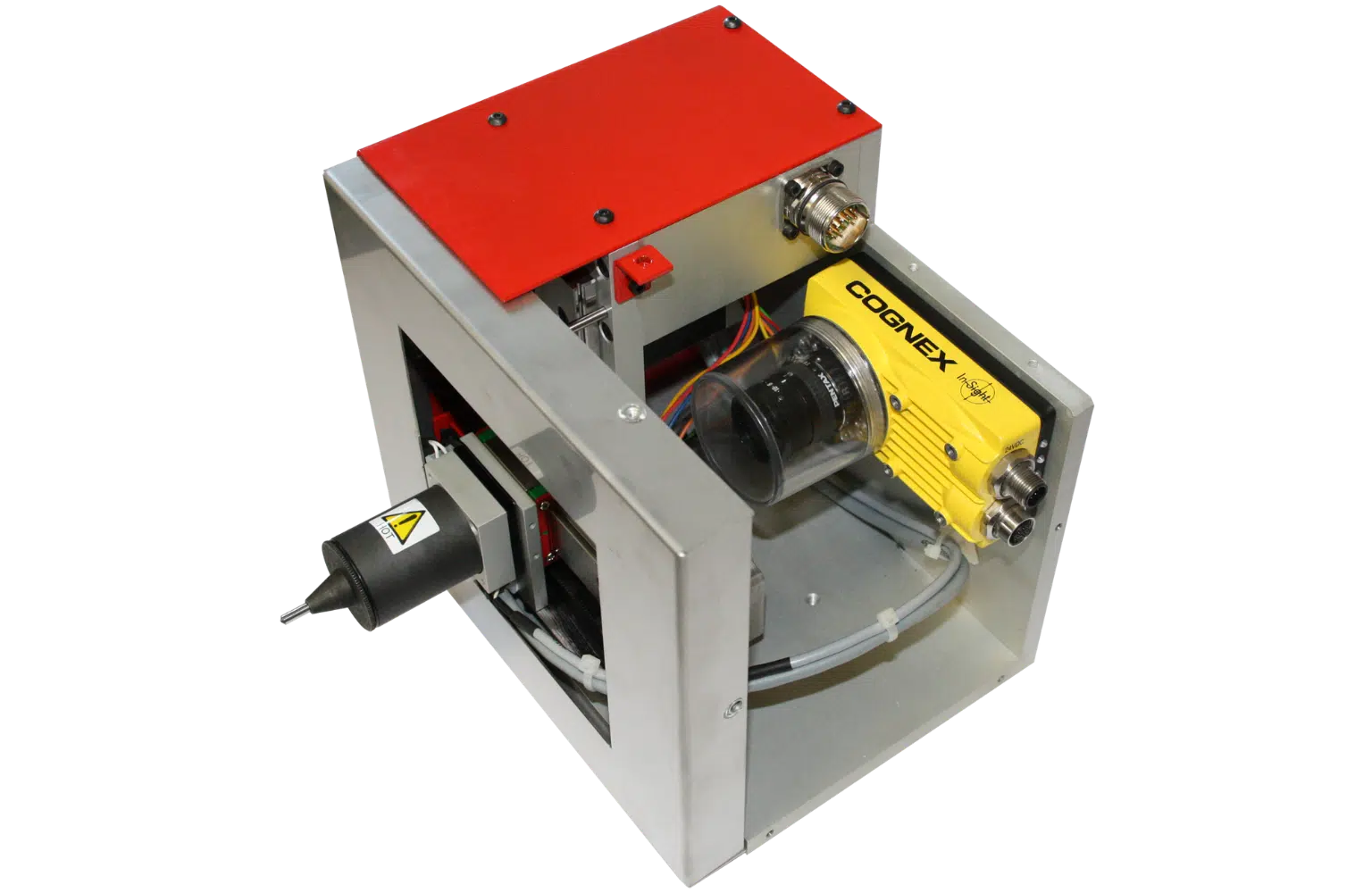

The first one is the I 83V, an INTEGRAL VIEWING SYSTEM that allows the codes marked to be read at the end of each marking cycle.

The second one is the I 83A, with an AUTO-SENSING SYSTEM that automatically positions the machine at the correct distance from the piece being marked, through an integral sensor.

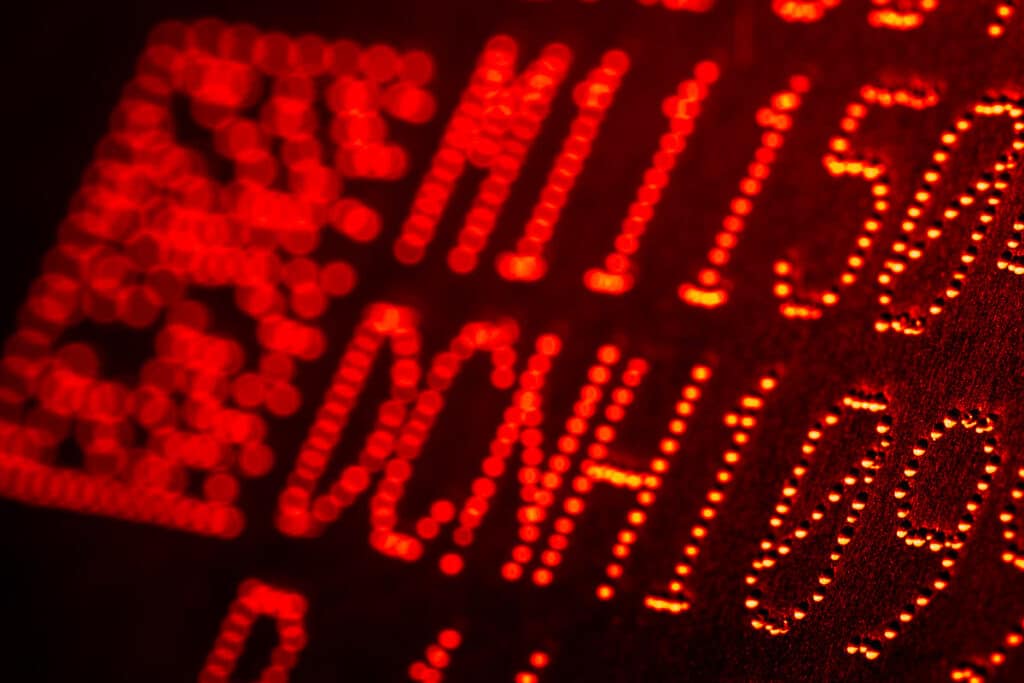

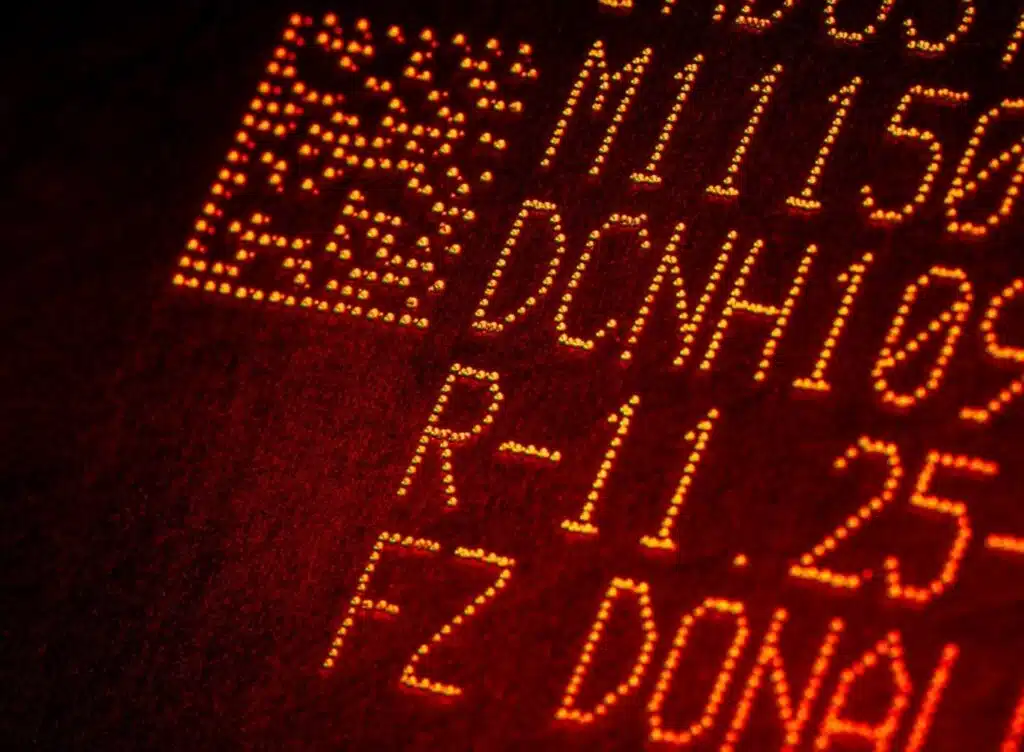

I 83 marking may be alphanumeric text, a logo, or a 2D Datamatrix code.
Dot peen technology provides reliable and permanent marking directly in the material, through a tungsten carbide stylus that strikes a series of dots at a very high rate.

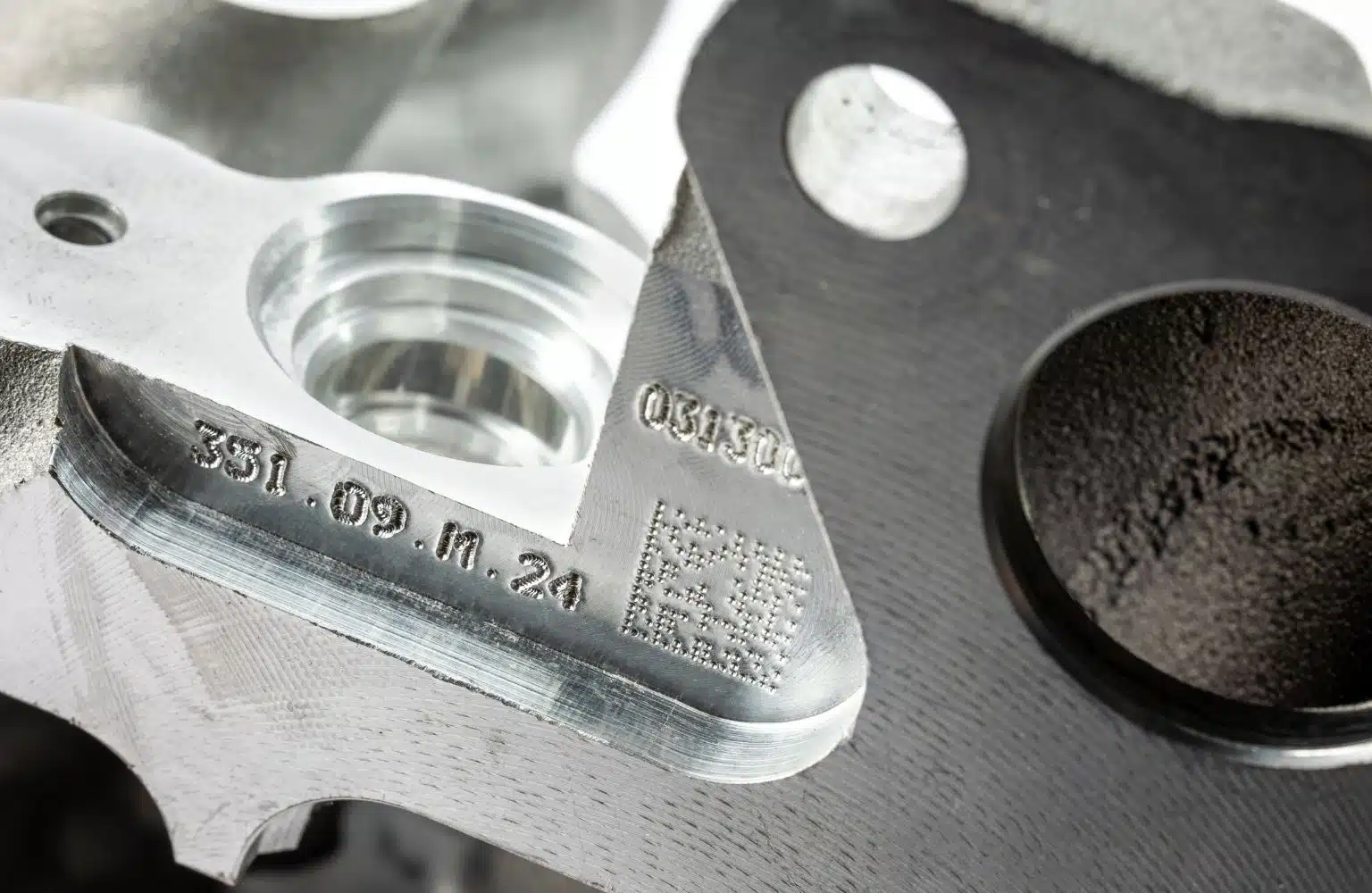

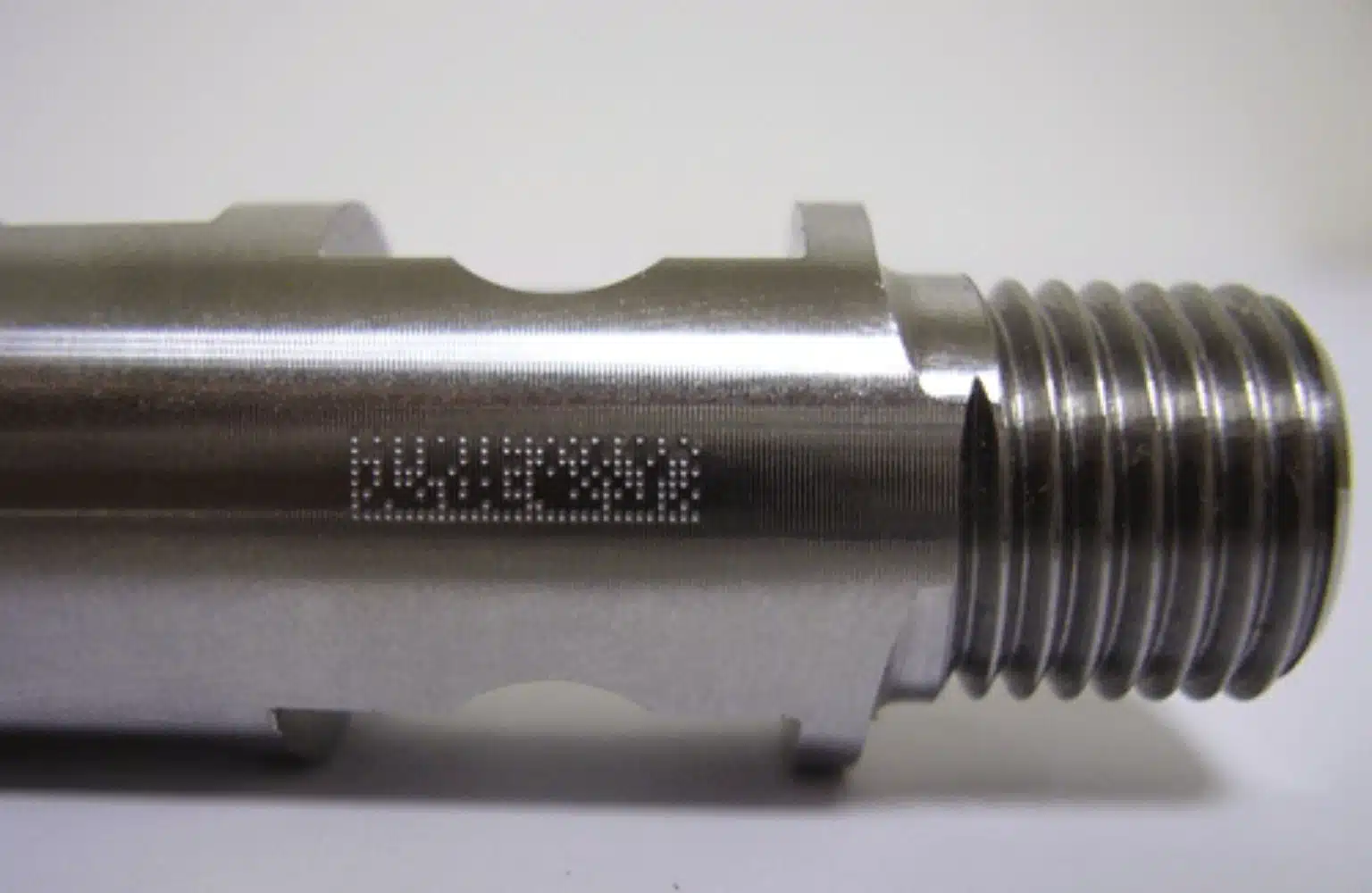

Dot peen marking technology with electromagnetic control enables parts with various shapes and surface finishes to be marked: plane, concave, convex, circular, raw and machined surfaces.
It only needs an electrical power supply.

Zoom
Controlle

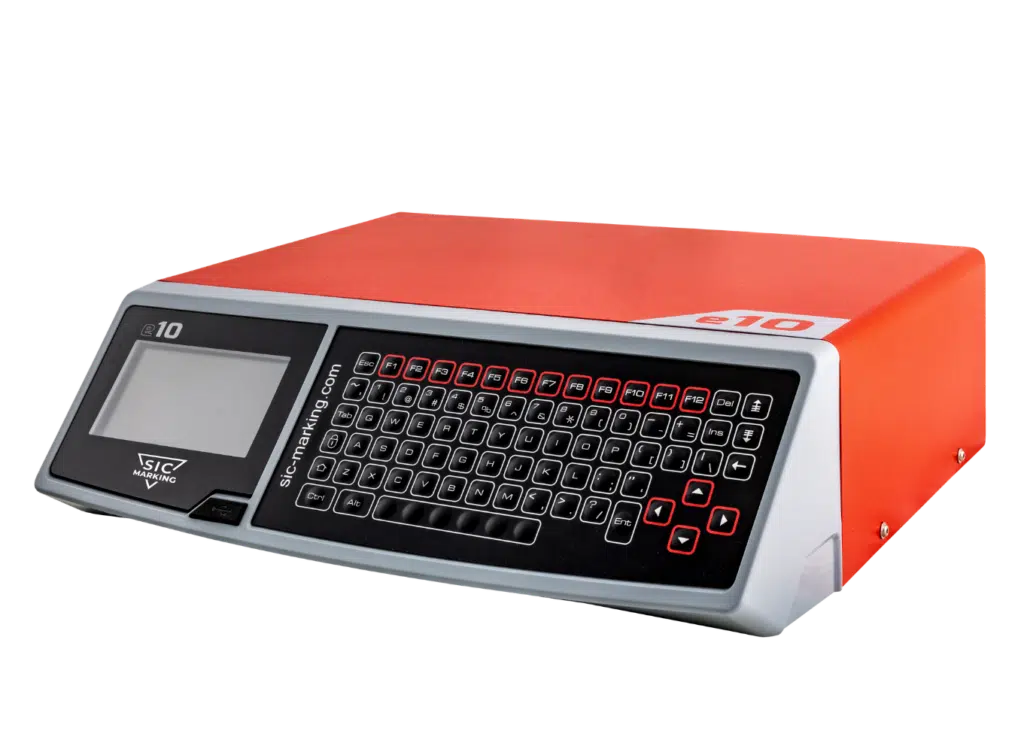

The E 10 is complete and powerful, and can be enhanced with optional supplementary boards, such as Profinet, Profibus or Ethernet IP communication boards

or axis control boards (translation or rotation)

The E 10 R variant is ideal for the integrable range, due to its small size and vertical mounting, which allow it to be installed in a standard electrical cabinet.

Mechanical specifications

Marking window

80 x 70 mm

Dimensions

225 x 202 x 256 mm

Weight

9.6 kg

Connection cable

5 m to 15 m on option

Stylus

Carbide 60 mm

Protection bellows

Stainless steel

Automatic Z axis

Auto-sensing function on option

Electronic specifications

Dimensions

112 x 380 x 222 mm or 140 x 380 x 222 mm with DIN rail kit (option)

Weight

5 kg

LCD screen

95 x 54 mm

Keyboard

Qwerty with waterproof membrane

Power

300 W

Power supply

Single phase, 85 to 260 V AC, 50-60Hz

Number of axes controlled

2 (3rd and 4th on option)

Control software

Marking file capacity

More than 2000

Memory

7110 KB

Alphanumeric characters

Serial numbering, date/time tags

Logos

Creation from the PC software

Datamatrix

Up to 348 characters, 48 x 48 cells

Fonts

Arial, Courier, OCR and OCRA

Style

Angular, Radial, Inverted and Mirror

Rate

Up to 5 characters per second

Font size

From 0.1 mm to 99 mm

Impact force

9 levels

Depth

Up to 0.5 mm

Resolution between dots

0.05 mm

Maximum stylus stroke

Up to 8 mm

Personnel management

Maximum 10

Password protection

3 security levels

History function

Password protected

Maintenance aid

Self-Diagnostic component

Languages available

17

COMMUNICATION
Ports

RS232, RS422, USBx2, RS485, Profibus and Ethernet on option

Inputs/Outputs

16

Remote keyboard input

USB

External output

5V-0.5A and 24V-0.5A

Logos

Creation and transfer software

File saving on PC

PC software or USB memory stick

Database link

Option

Options

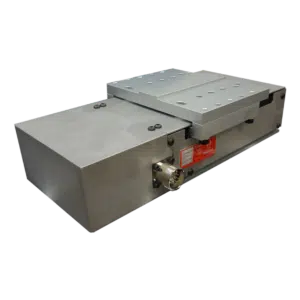

NUMERICAL Z AXIS 50-250 mm

AUTO-SENSING

E10 R CONTROLLER
