Marking machine

I 124D

Deep marking
Powerful motors
Easy to integrate
Macchina di Marcatura a Micropercussione Integrabile i124d per Marcare in Profondità
Description

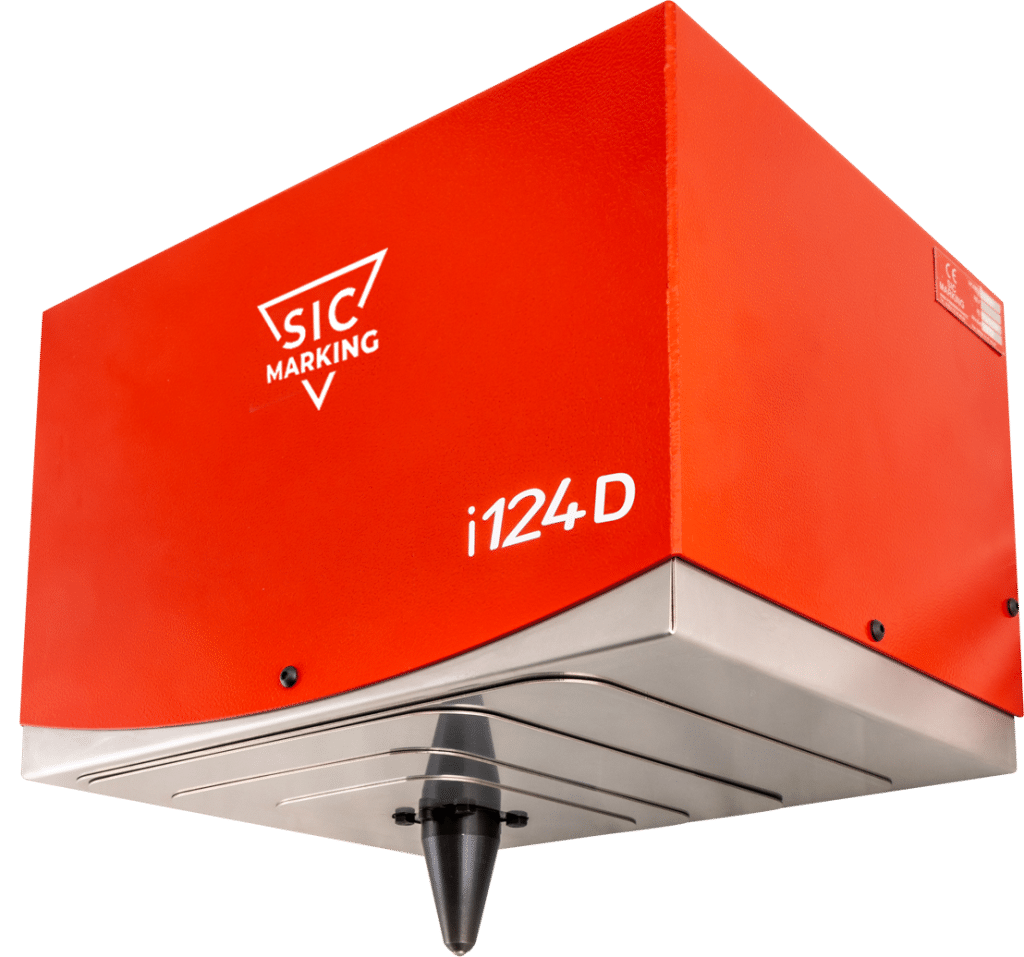

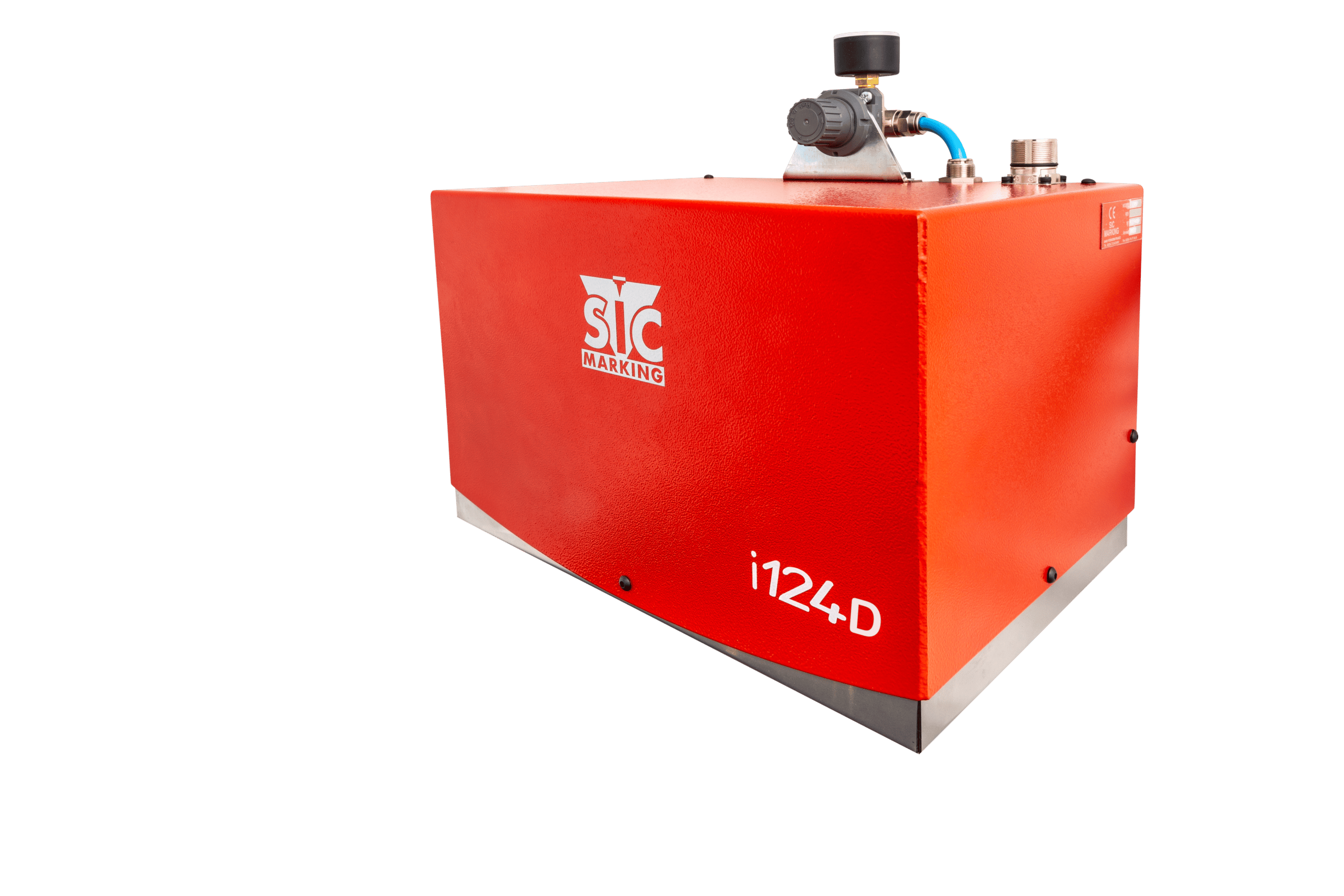

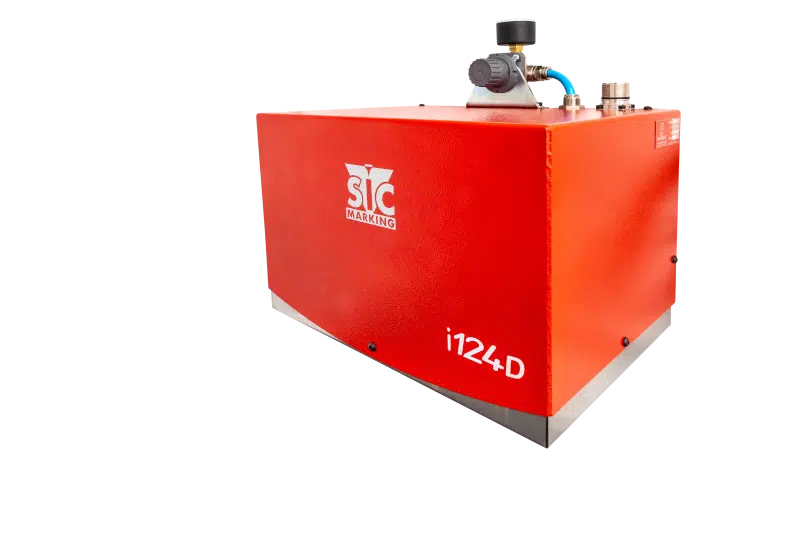

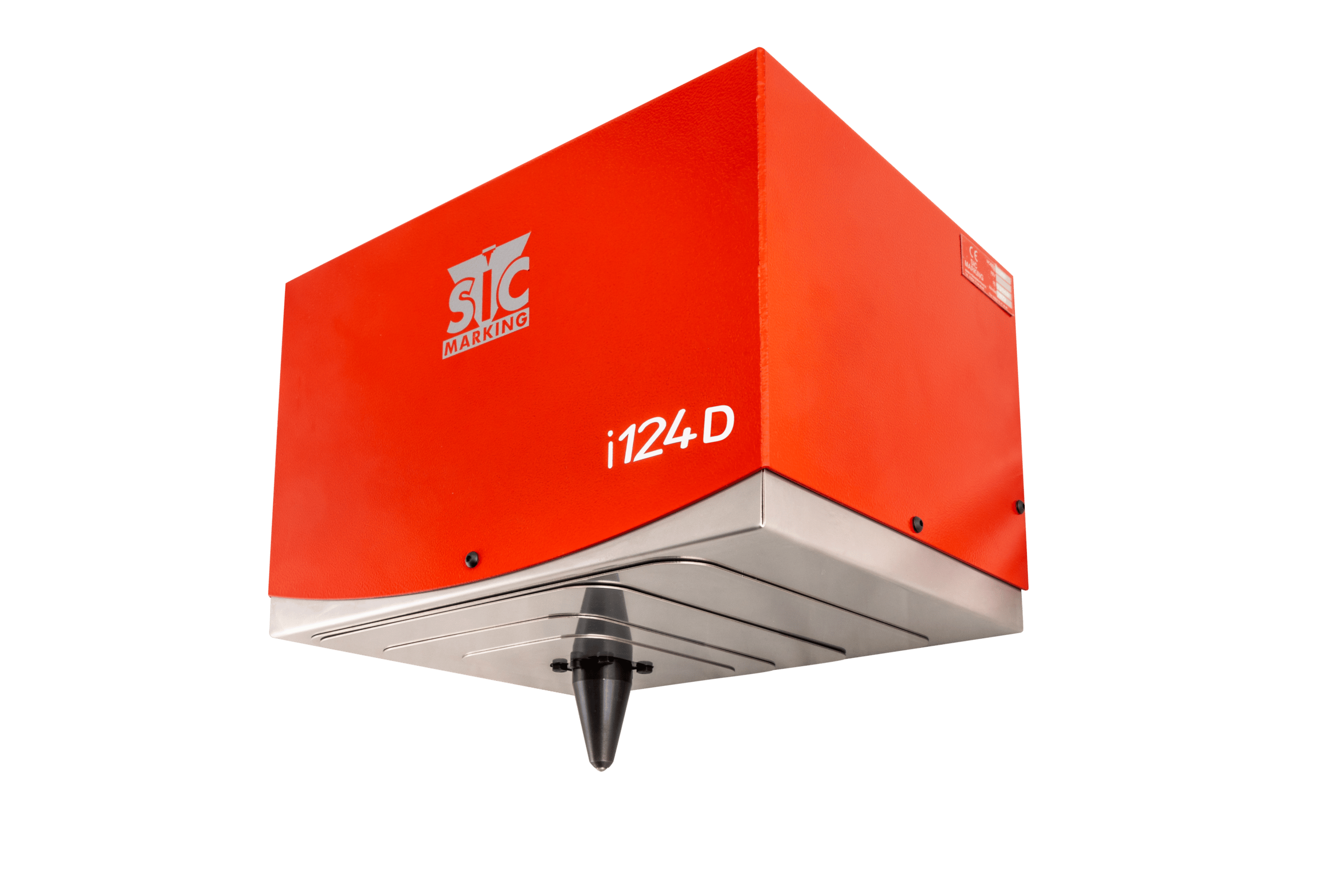

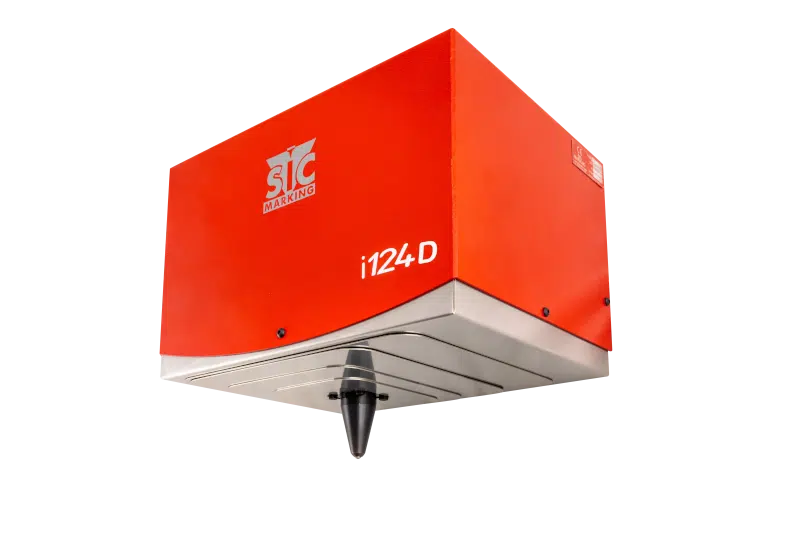

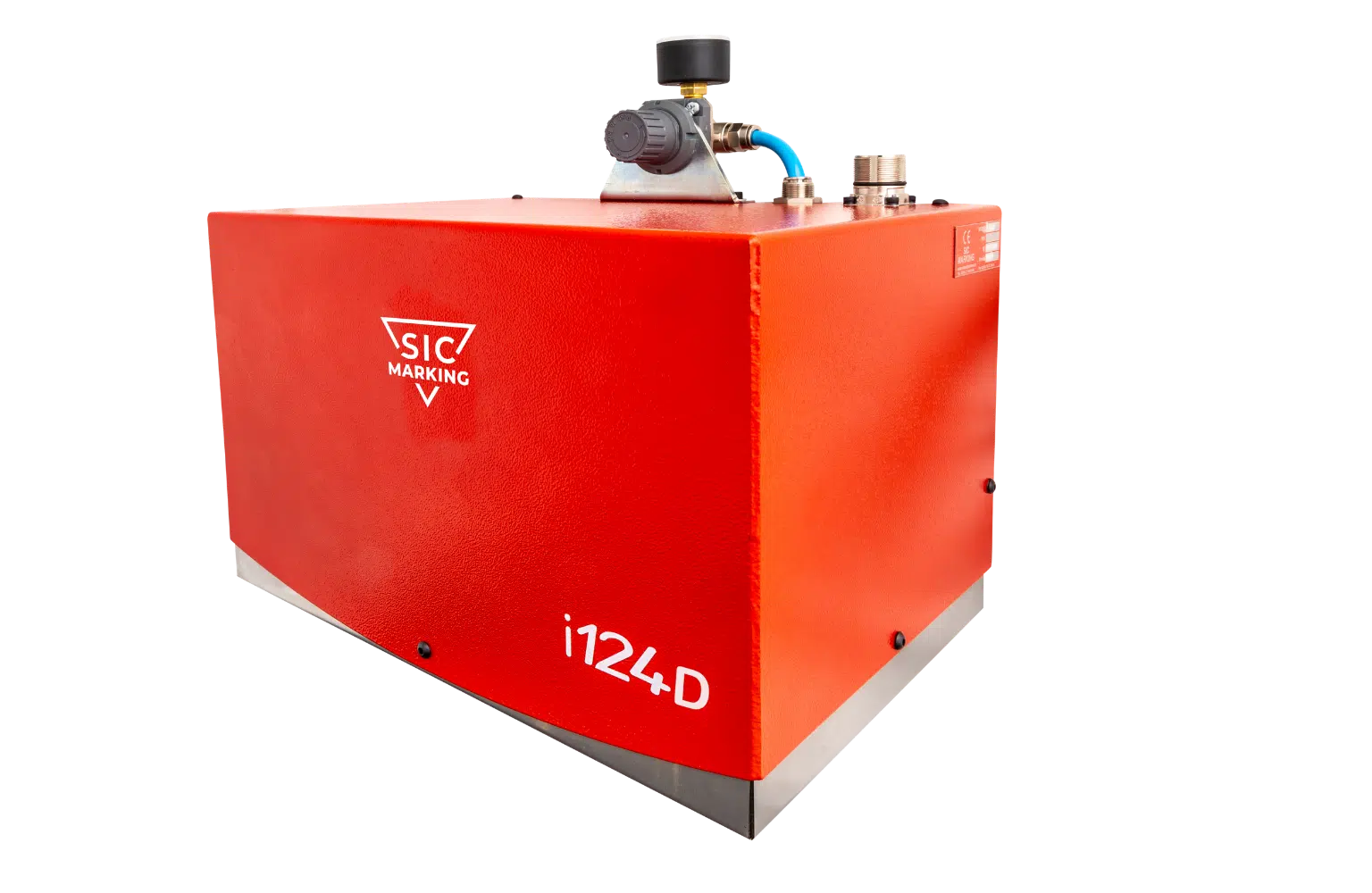

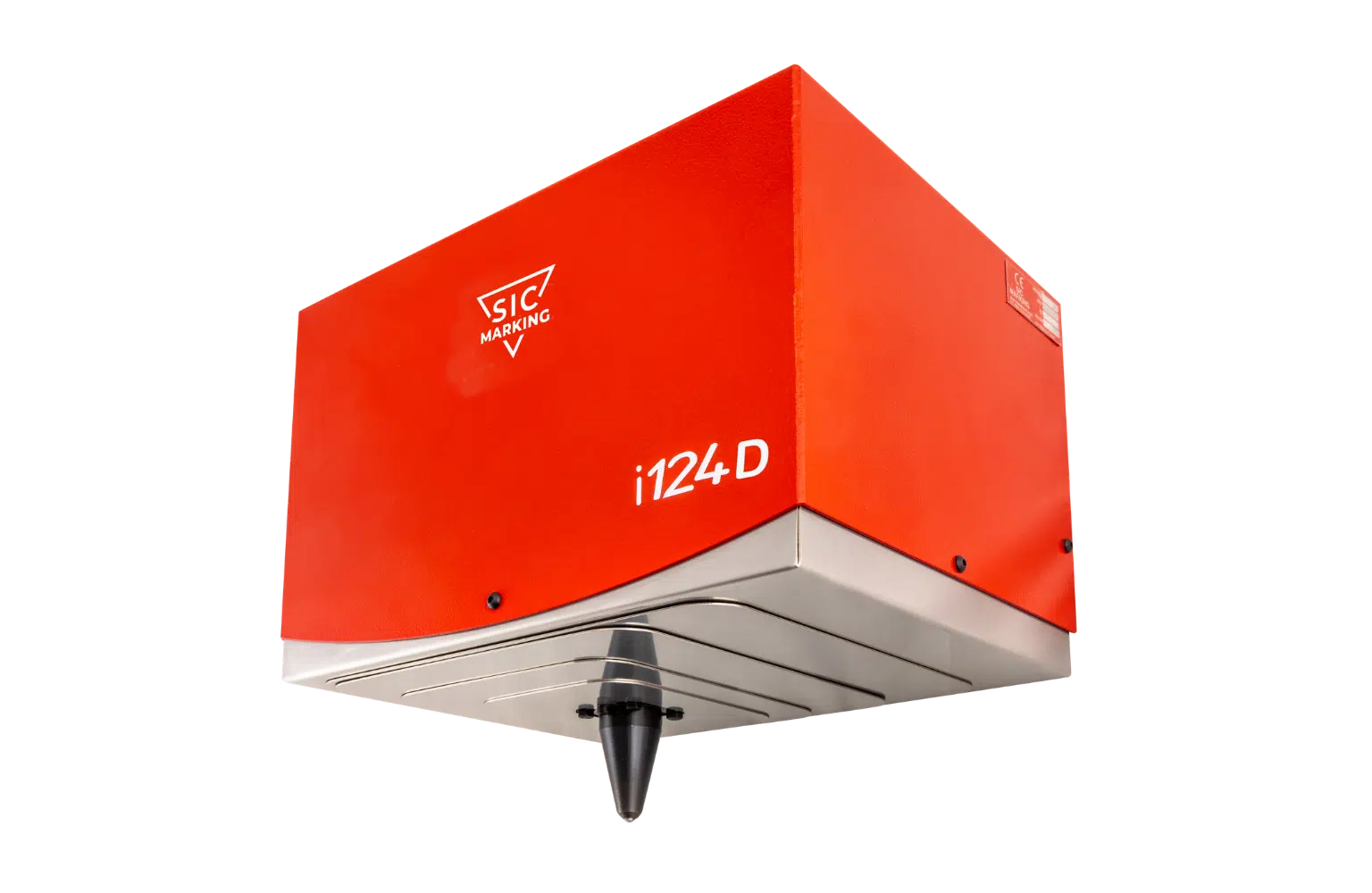

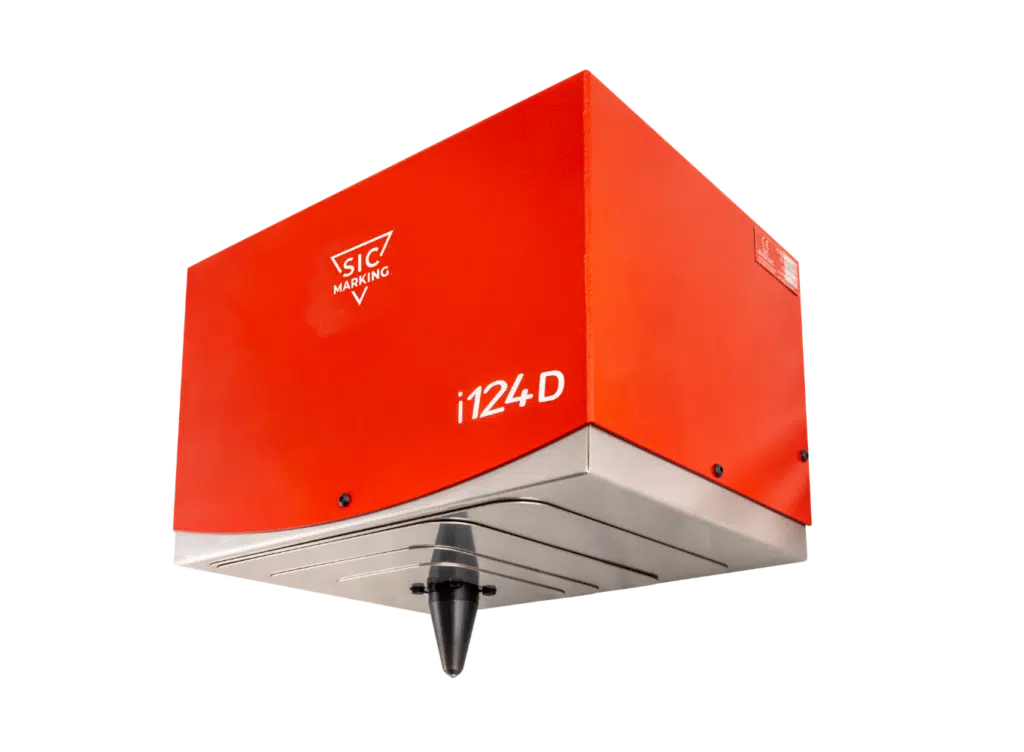

The I 124D is a DOT PEEN MARKING MACHINE designed for EASY INTEGRATION ON AUTOMATED LINES in an industrial environment.

The I 124D is probably the deepest dot peen marking machine on the market. It differs from other dot peening marking machines by its
SPECIFIC STYLUS AND PNEUMATIC STRIKER
, designed for

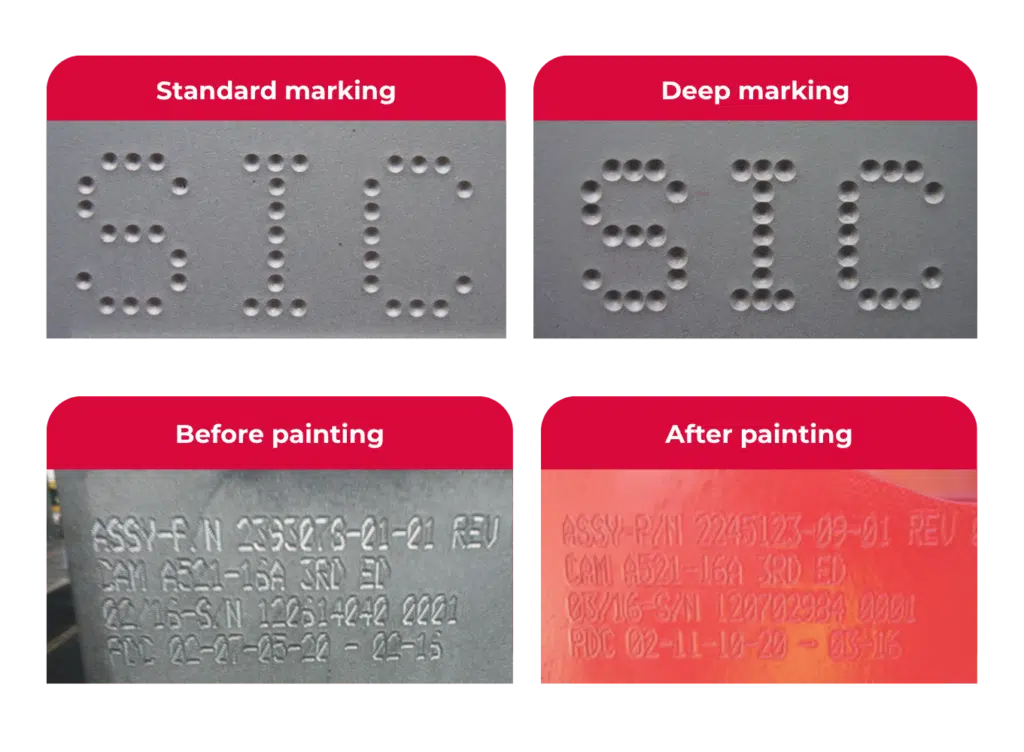

DEEP MARKING, UP TO 0.8 mm
on standard steel.

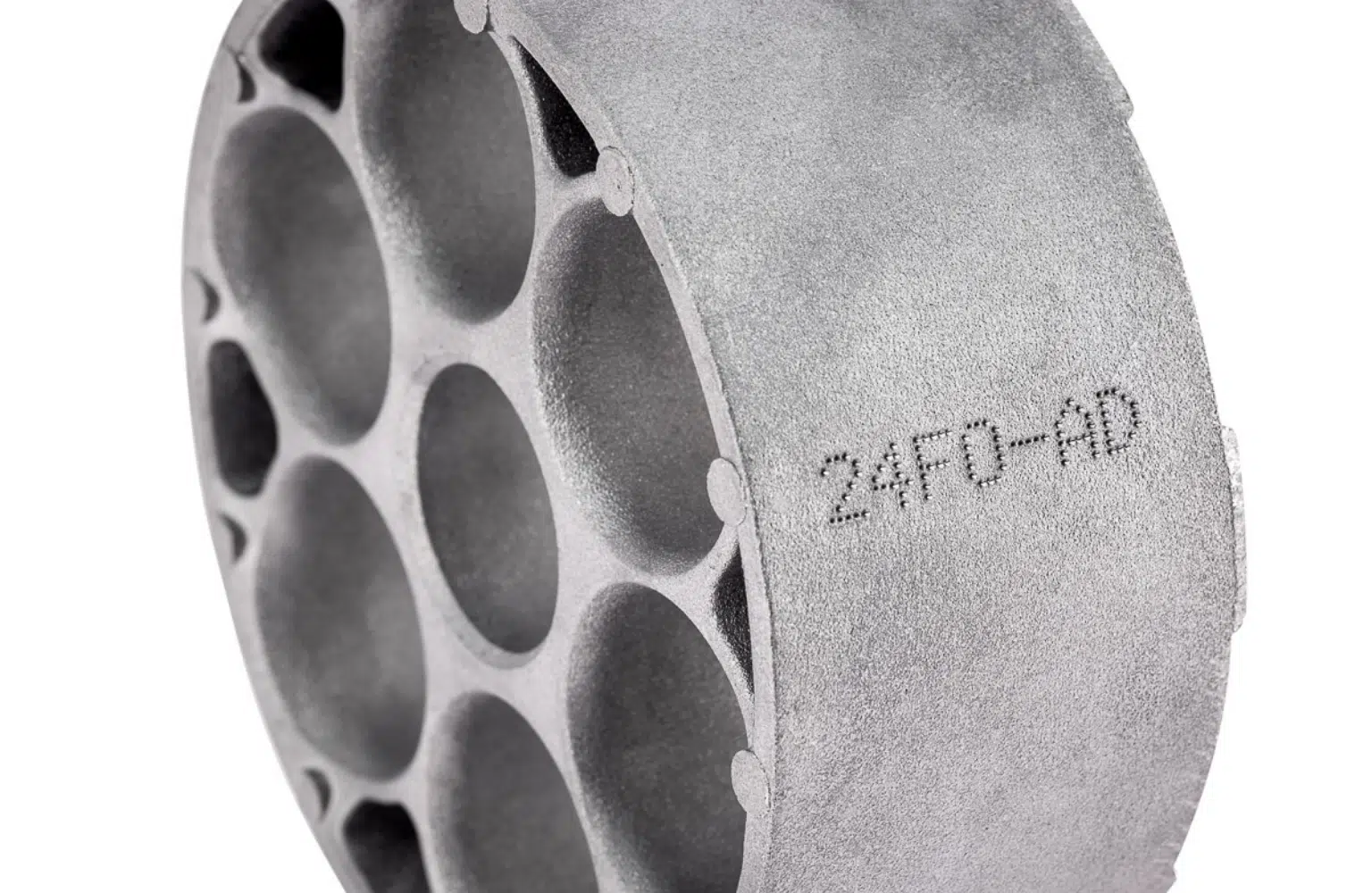

With powerful motors and a HEAVY DUTY STRUCTURE, the I 124D can mark ALL TYPES OF MATERIAL very fast.

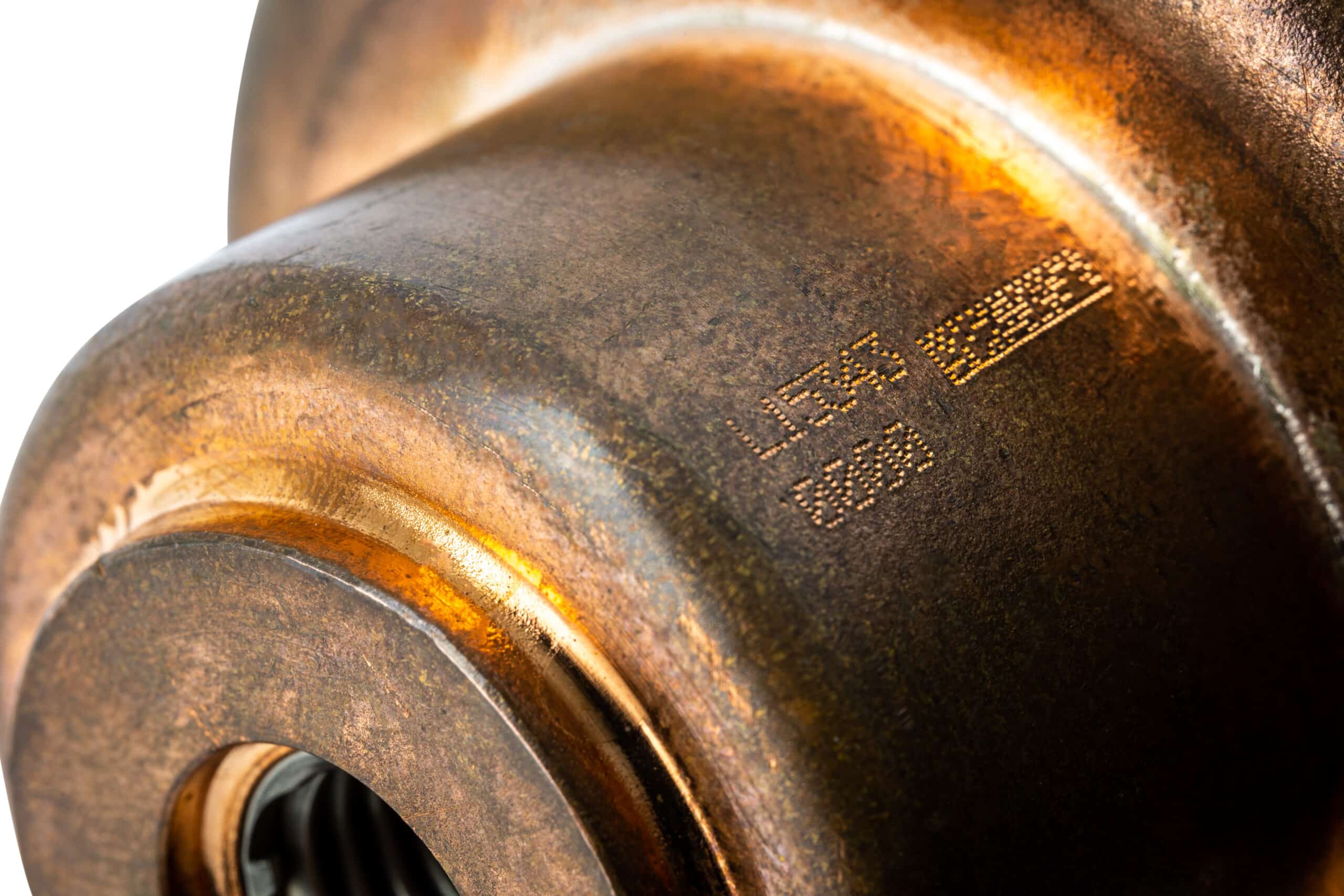

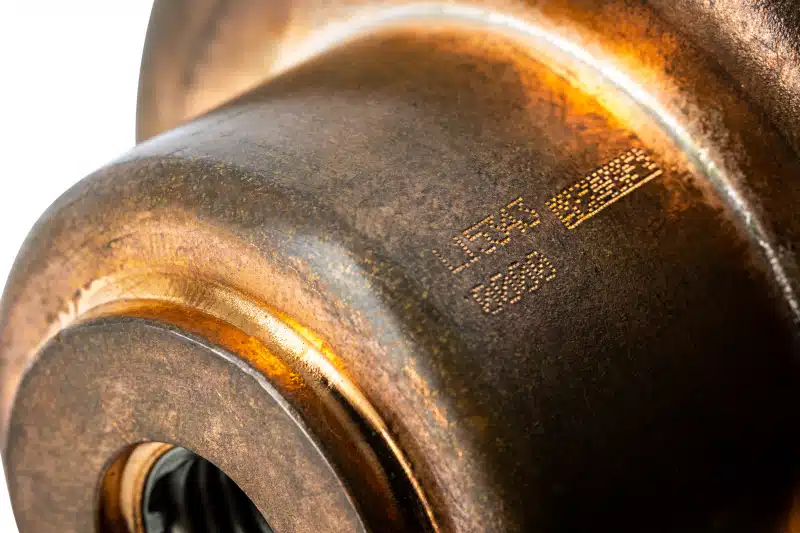

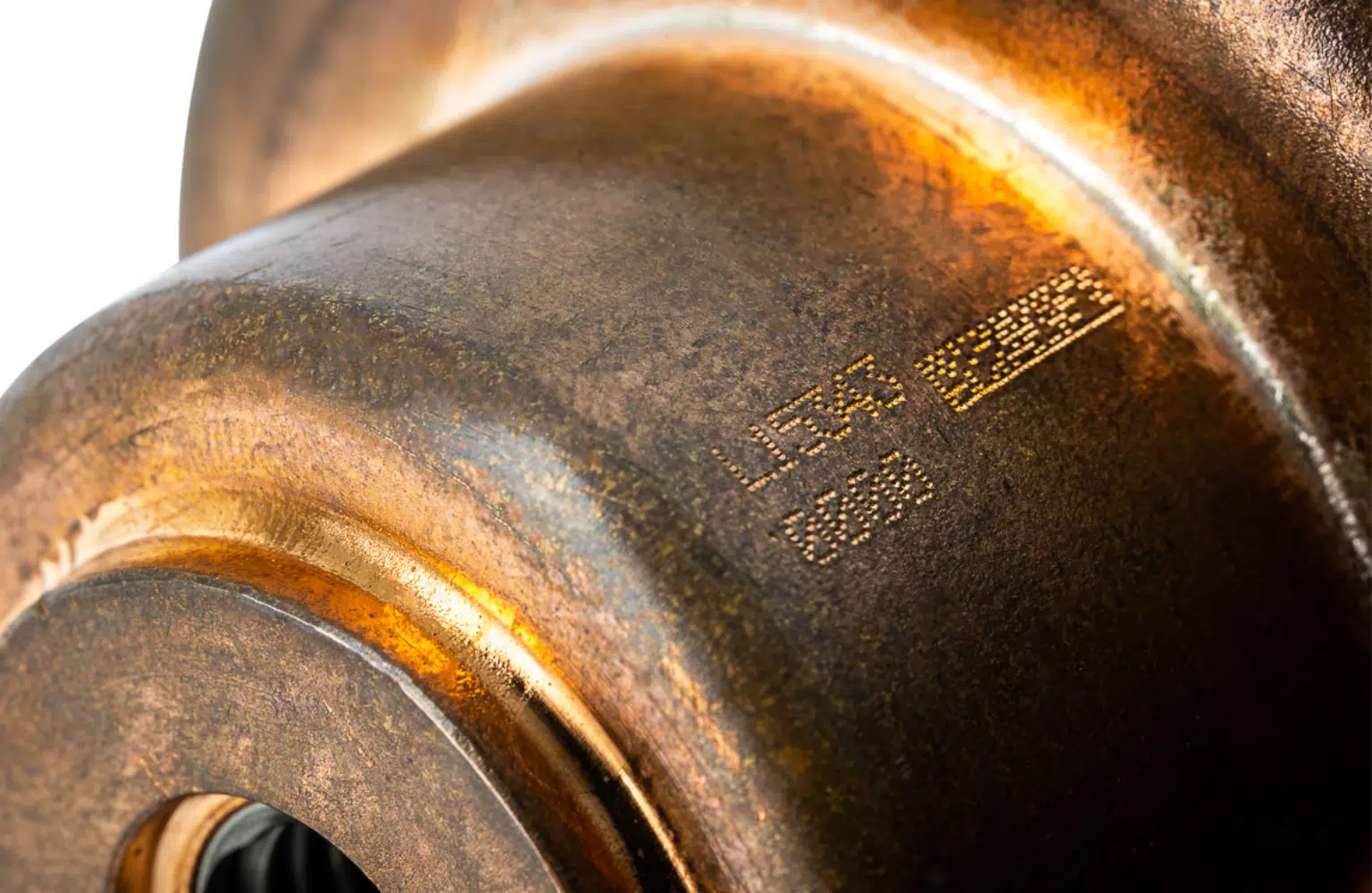

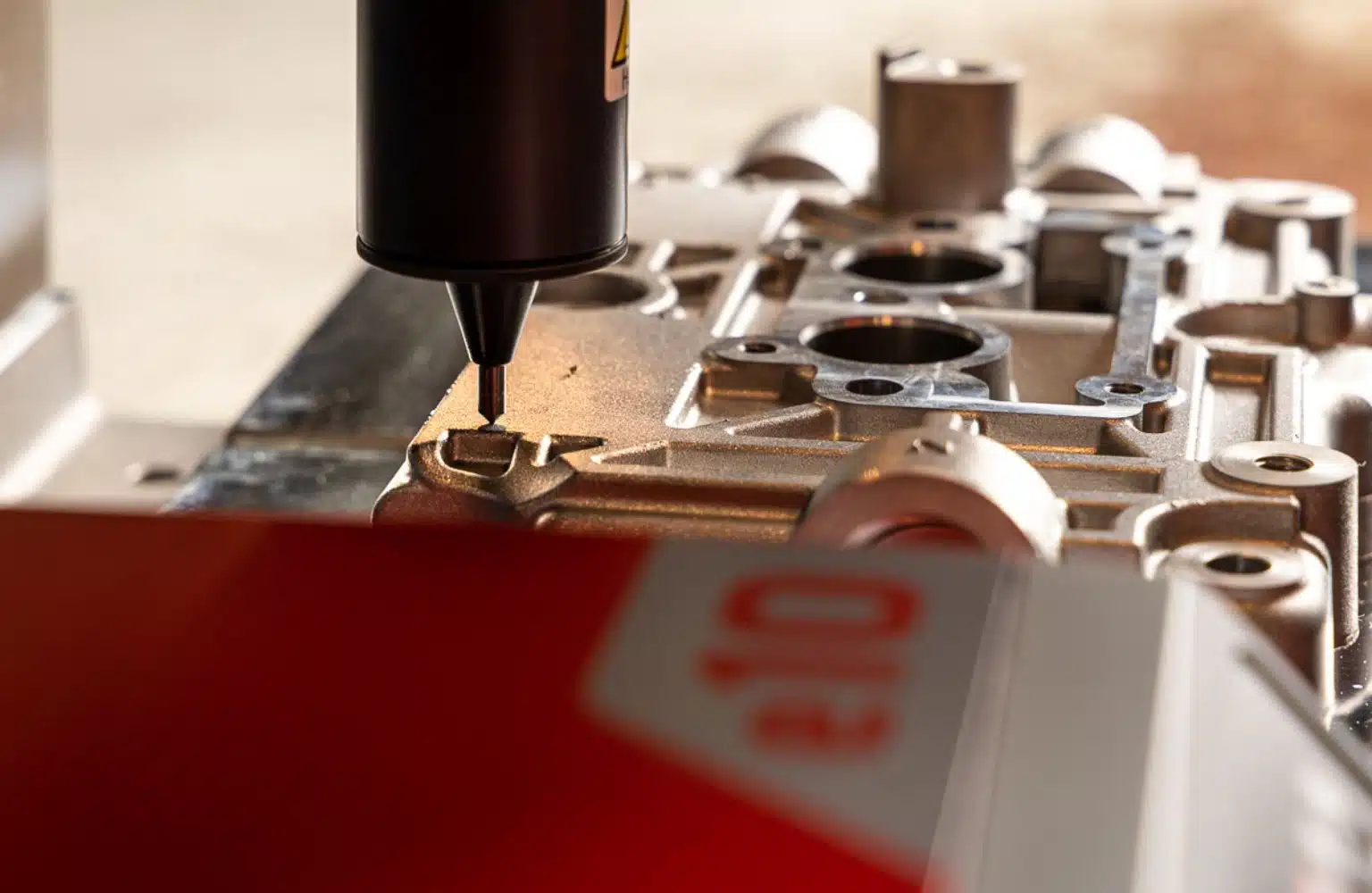

The tungsten carbide stylus deforms the material by creating a series of indents in the surface to be marked and can engrave alphanumeric text, logos, or 2D Data Matrix codes.

Mechanical specifications

Marking window

110 x 60 mm

Weight

17.5 kg

Connection cable

5 m up to 10/15 m on option

Stylus

Tungsten carbide, diameter 6, dedicated to deep marking

Compressed air supply

6 bar

Electronic specifications

Dimensions

112 x 380 x 222 mm or 140 x 380 x 222 mm with DIN rail kit (option)

Weight

5 kg

LCD screen

95 x 54 mm

Keyboard

Qwerty with waterproof membrane

Power

300 W

Power supply

Single phase, 85 to 260 V AC, 50-60Hz

Number of axes controlled

2 (3rd and 4th axis on option)

Control software

Marking file capacity

More than 2000

Memory

7110 KB

Alphanumeric characters

Serial numbering, date/time tags

Logos

Creation from the PC software

Datamatrix

Up to 348 characters, 48 x 48 cells

Fonts

Arial, Courier, OCR and OCRA

Style

Angular, Radial, Inverted and Mirror

Rate

Up to 5 characters per second

Font size

From 0.1 mm to 99 mm

Impact force

9 levels

Depth

Up to 0.5 mm

Resolution between dots

0.05 mm

Maximum stylus stroke

Up to 8 mm

Personnel management

Maximum 10

Password protection

3 security levels

History function

Password protected

Maintenance aid

Self-Diagnostic component

Languages available

17

COMMUNICATION
Ports

RS232, RS422, USBx2, RS485, Profibus and Ethernet on option

Inputs/Outputs

16

Remote keyboard input

USB

External output

5V-0.5A and 24V-0.5A

Logos

Creation and transfer software

File saving on PC

PC software or USB memory stick

Database link

Option

Options

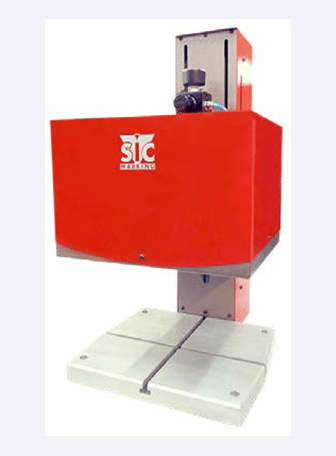

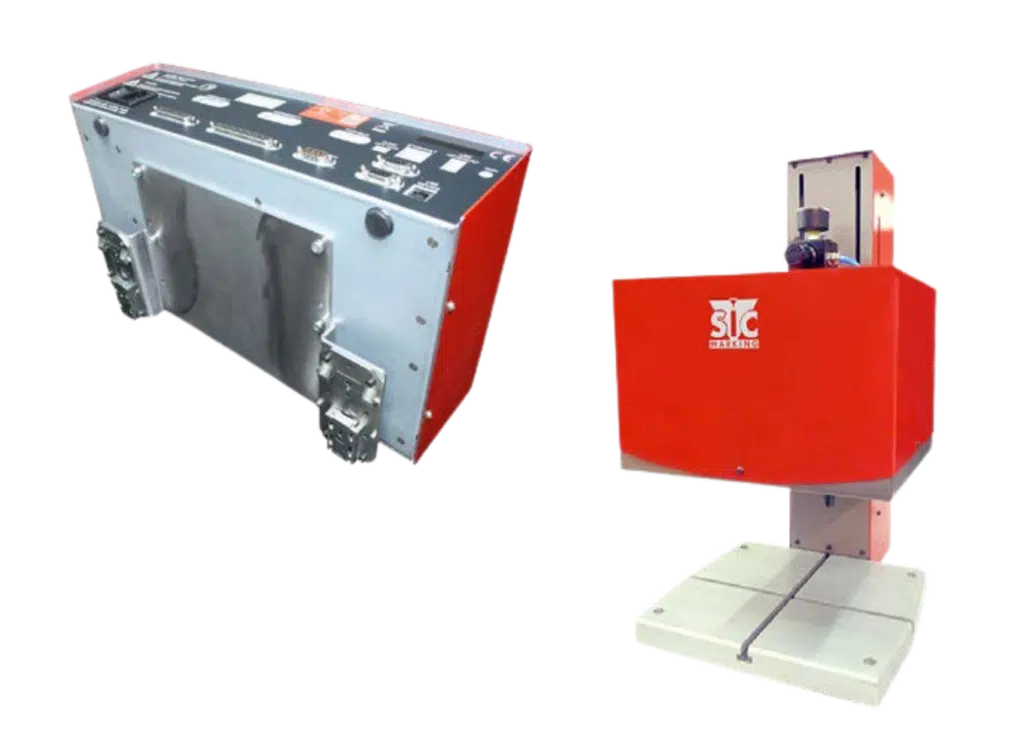

STRENGTHENED COLUMN BASE FOR SCRIBING AND DEEP DOT PEENING MACHINE

COMMUNICATION BOARDS

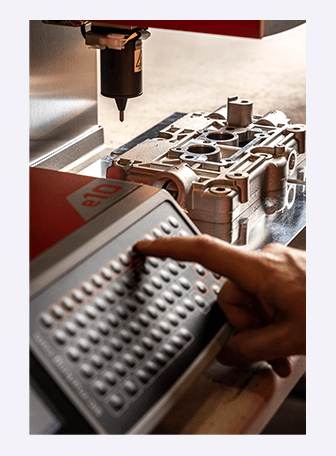

E10 R CONTROLLER
