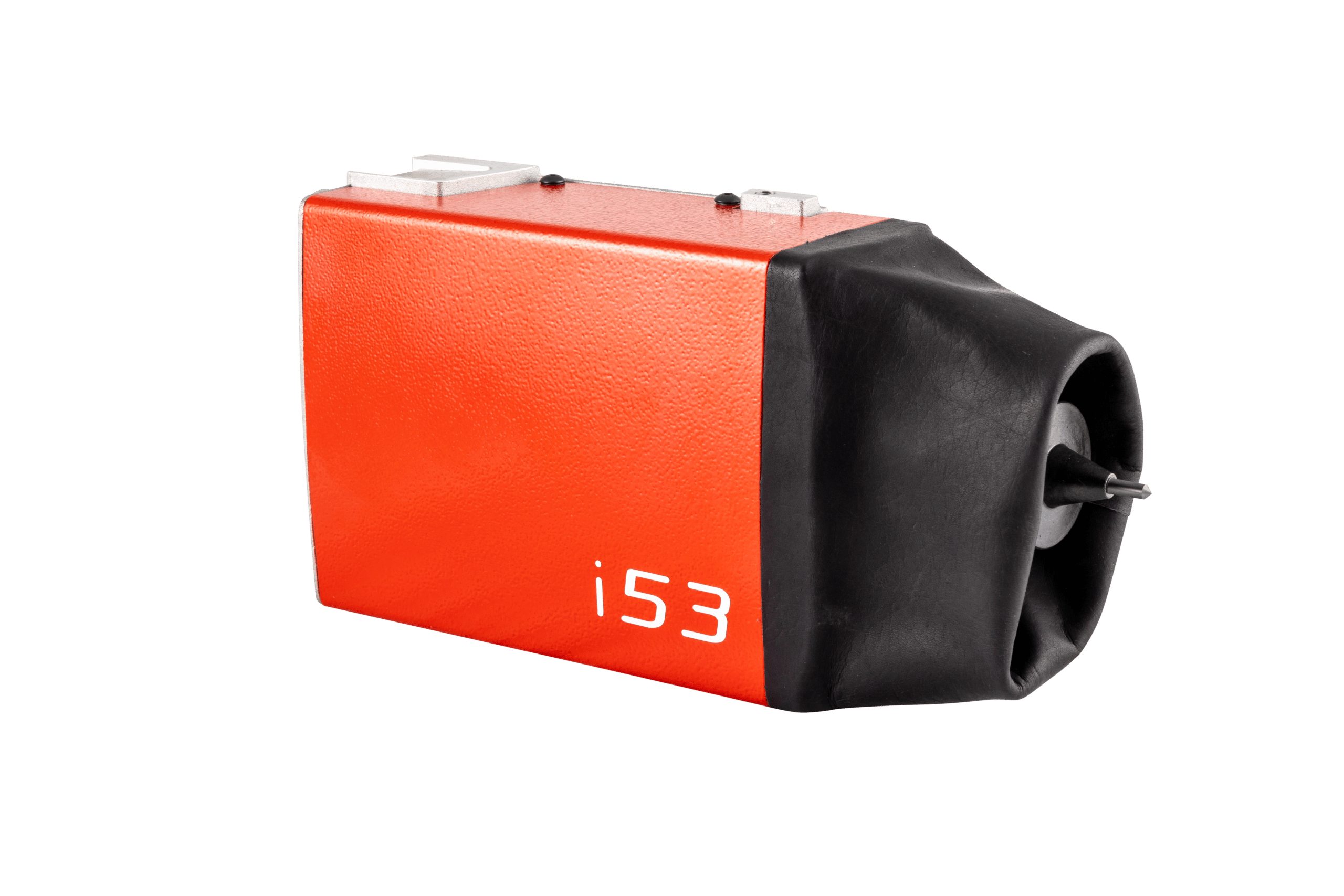

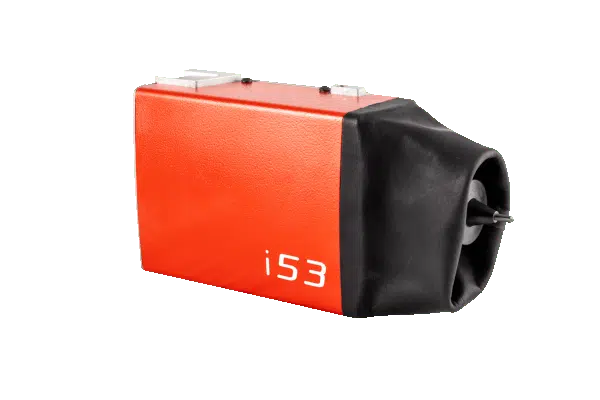

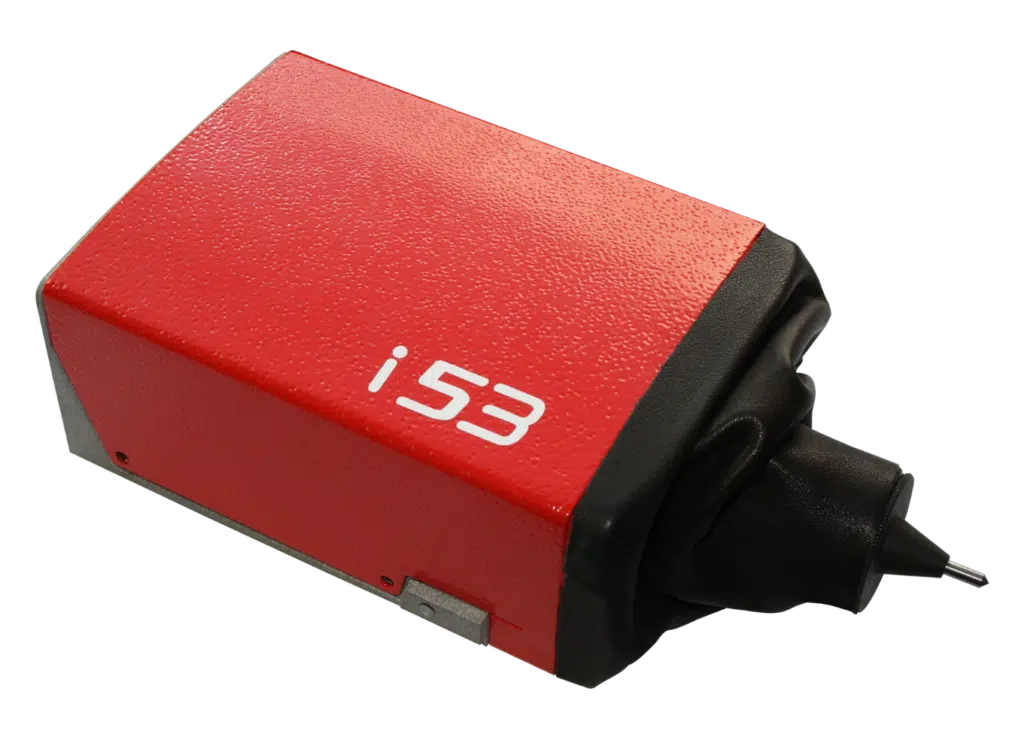

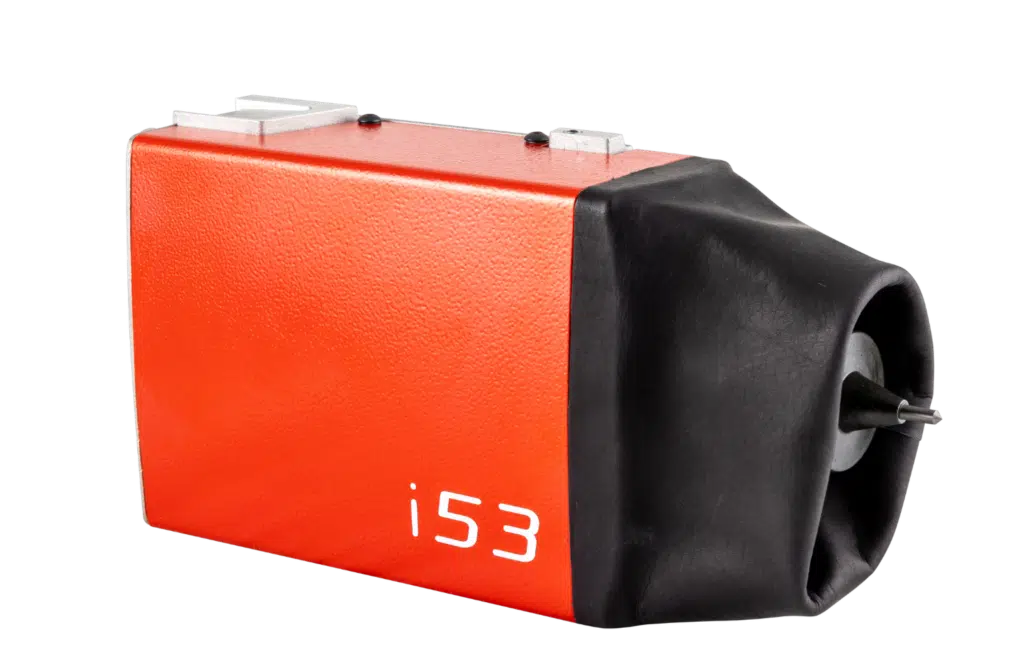

The I 53 is a DOT PEEN MARKING MACHINE designed for EASY INTEGRATION ON AUTOMATIC LINES in an industrial environment, due to its compact size and 4 mounting faces.
It is suitable for a great majority of applications.

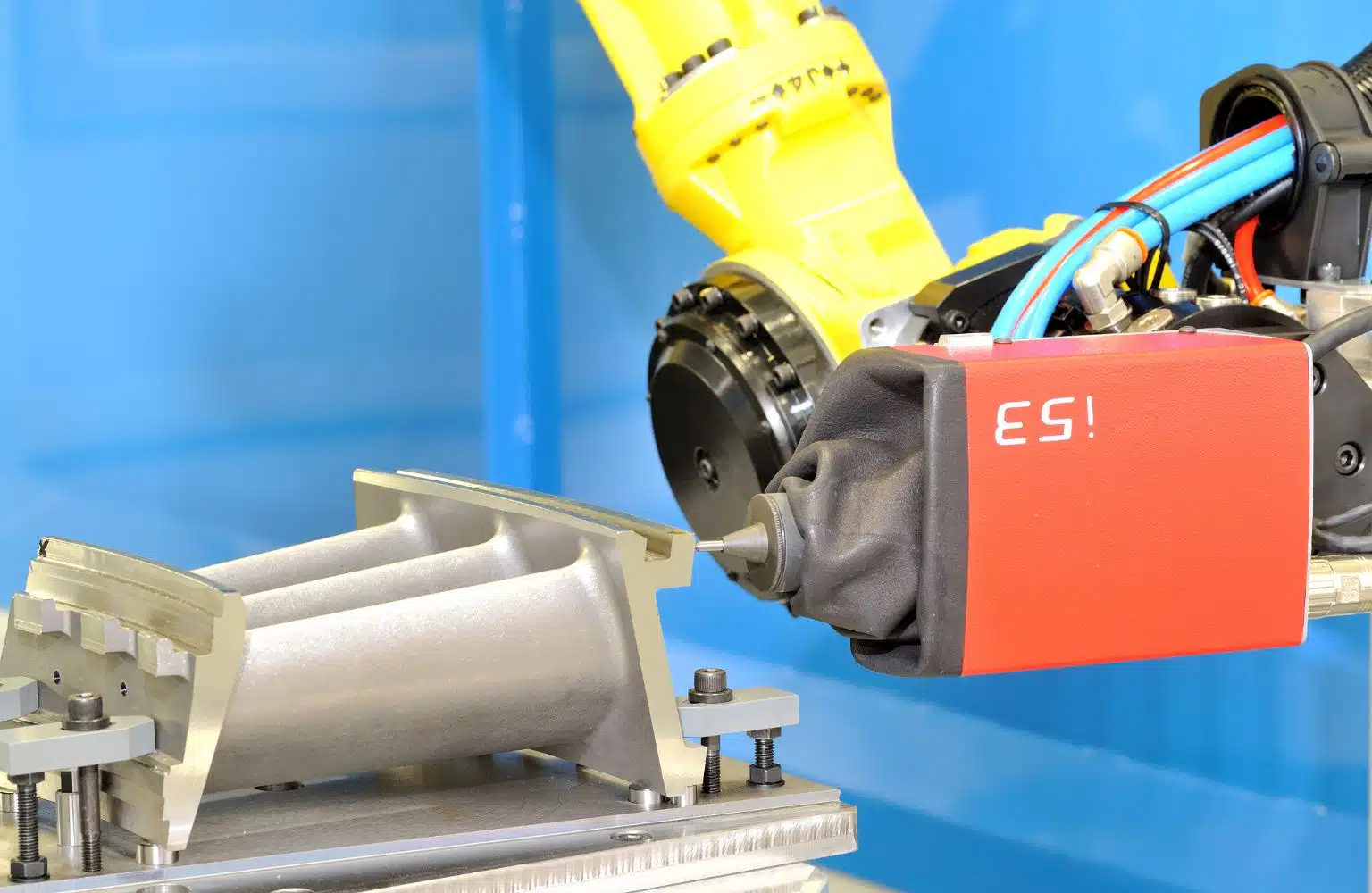

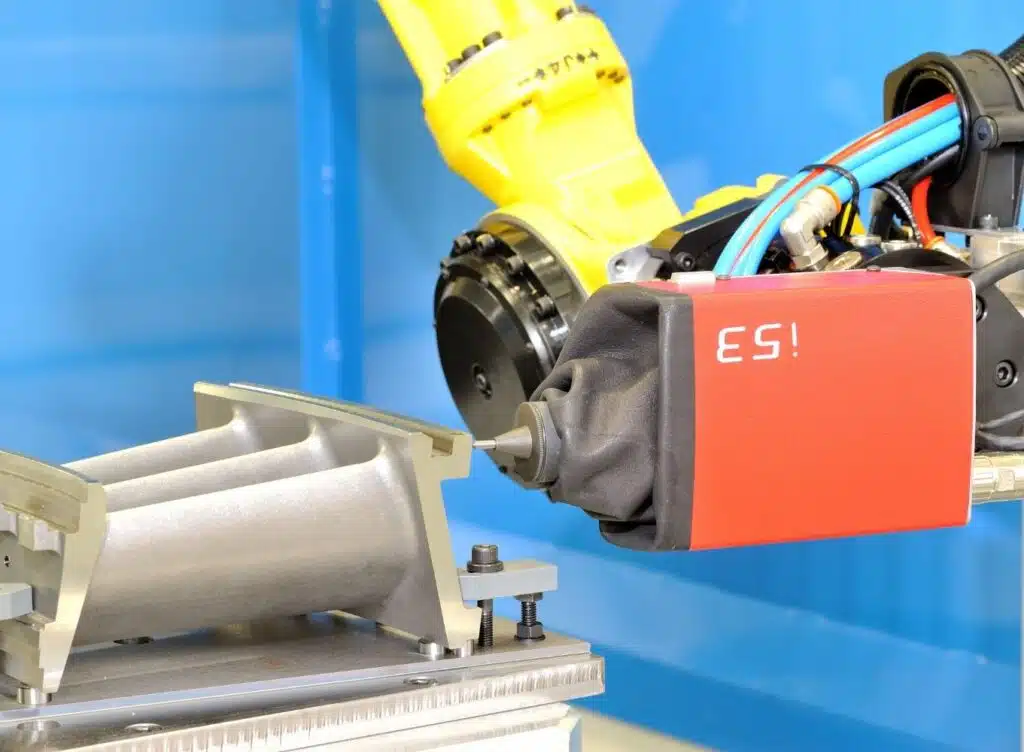

This integrable machine can be used in a production line
IRRESPECTIVE OF THE DESIRED POSITION.

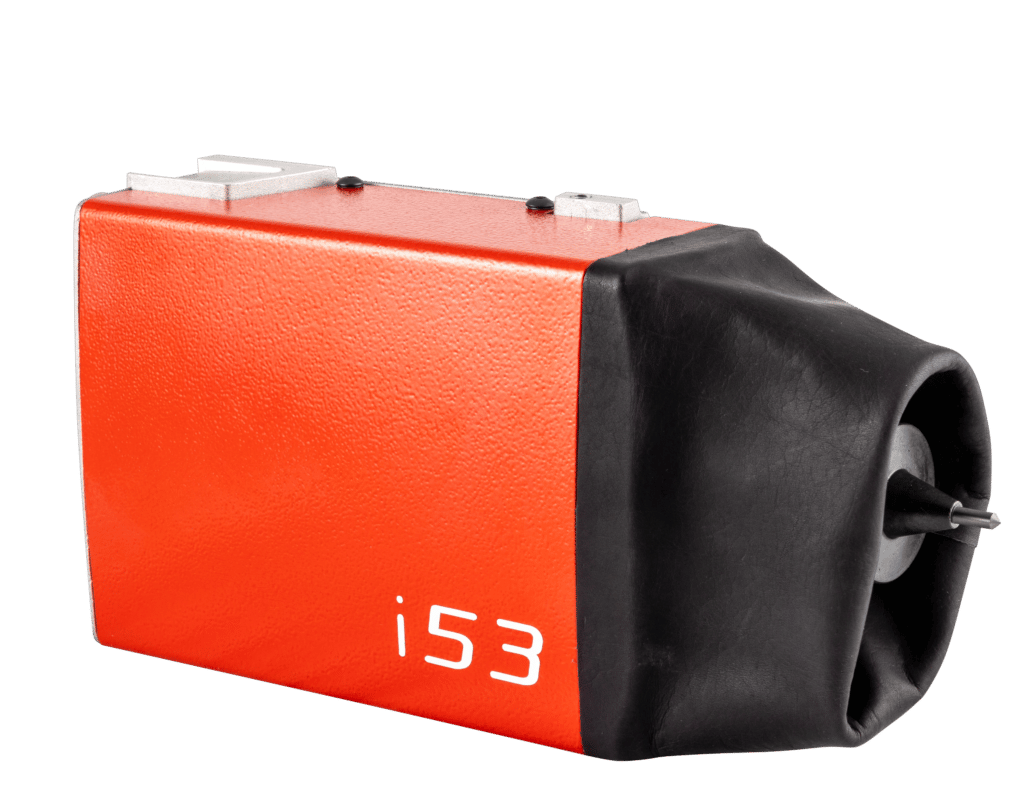

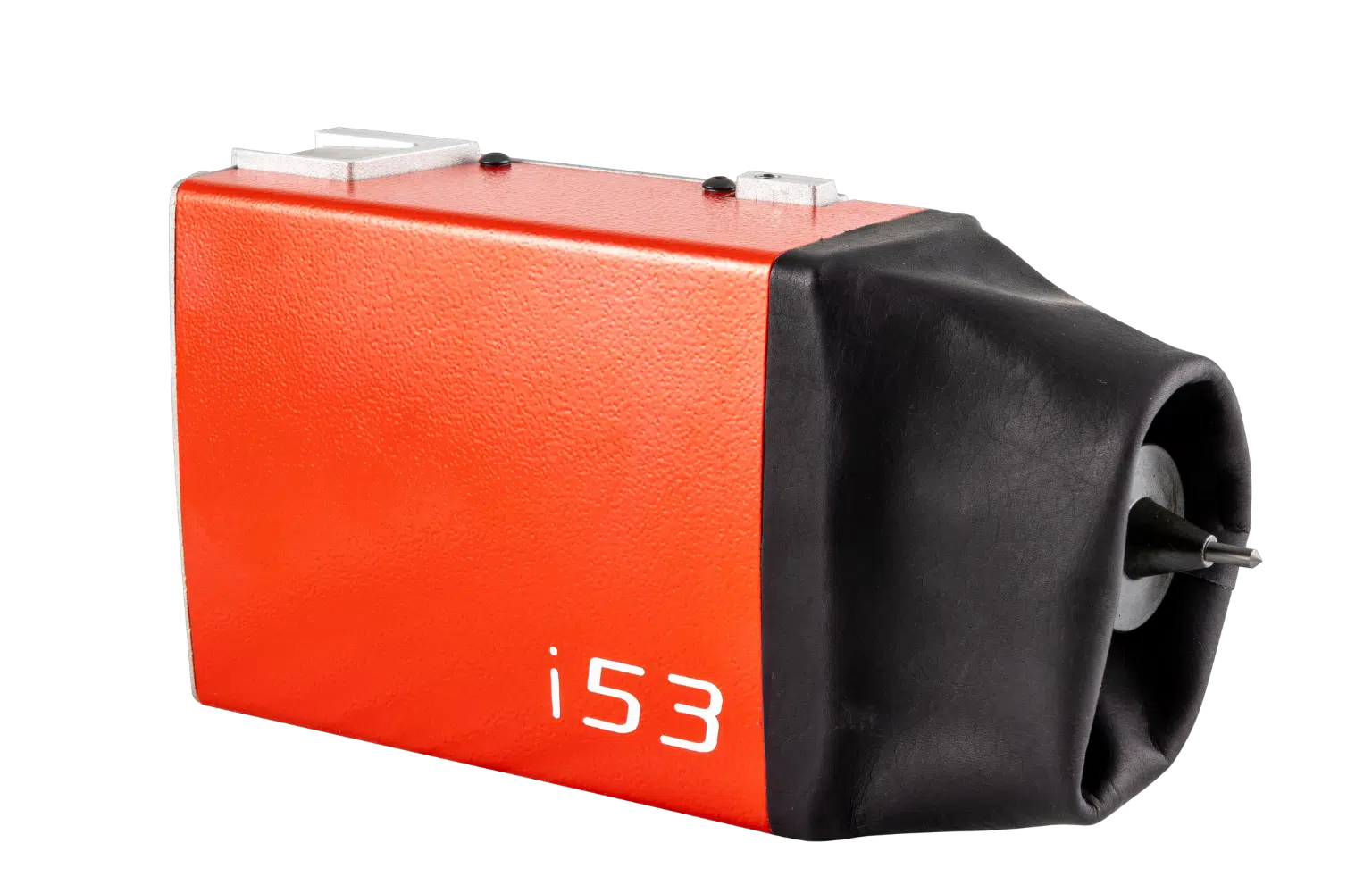

The ROBUST CAST ALLOY STRUCTURE
is protected by LEATHER BELLOWS, designed to resist projections and fine particles.

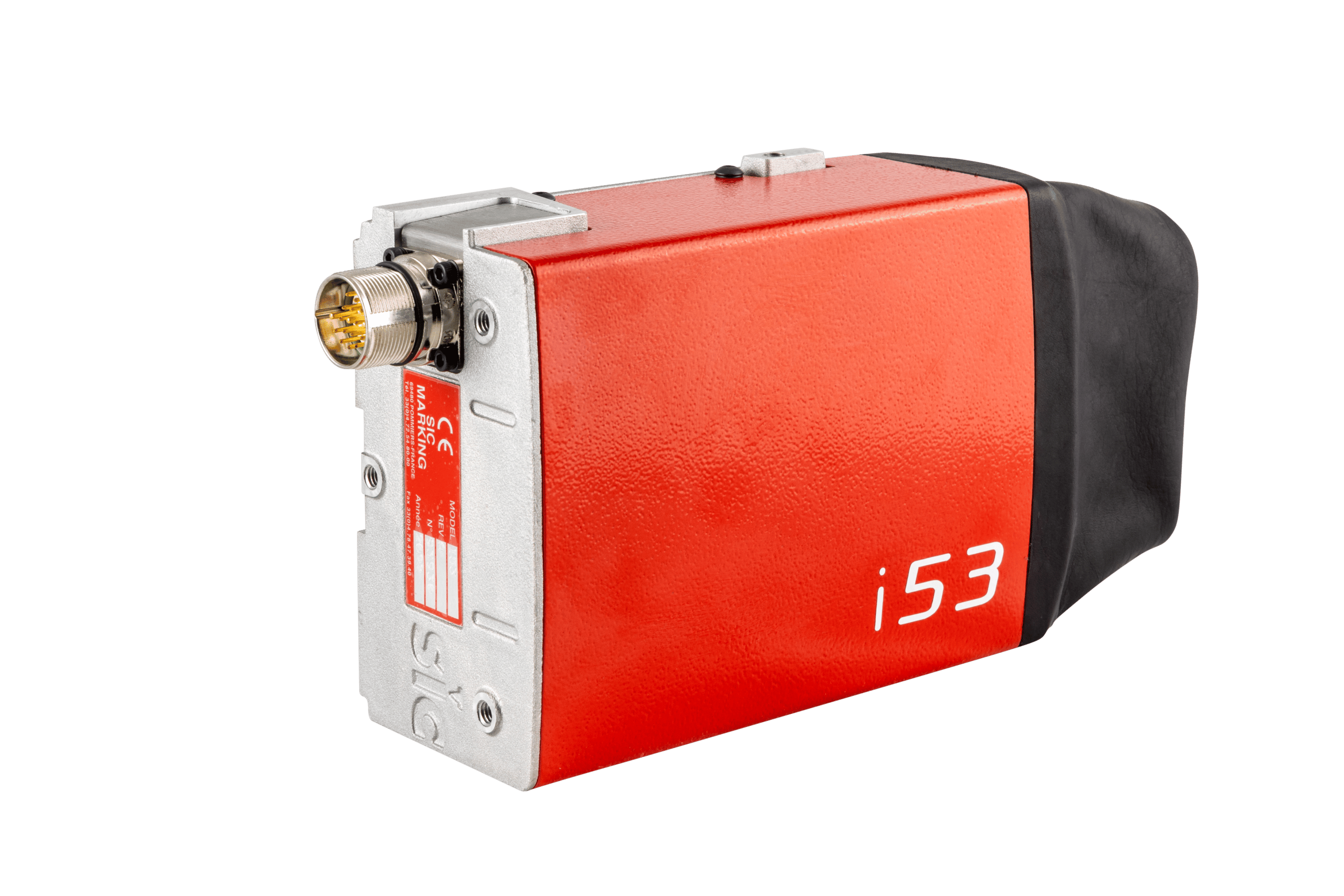

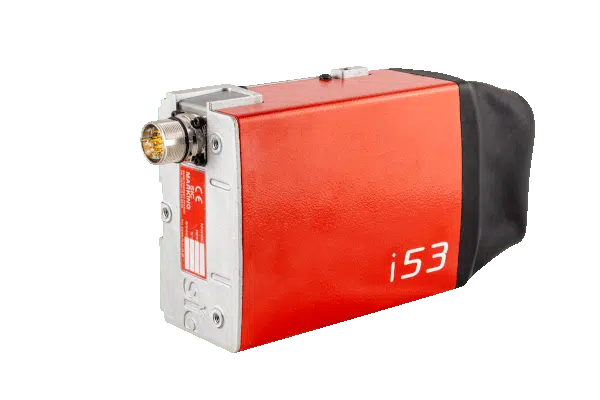

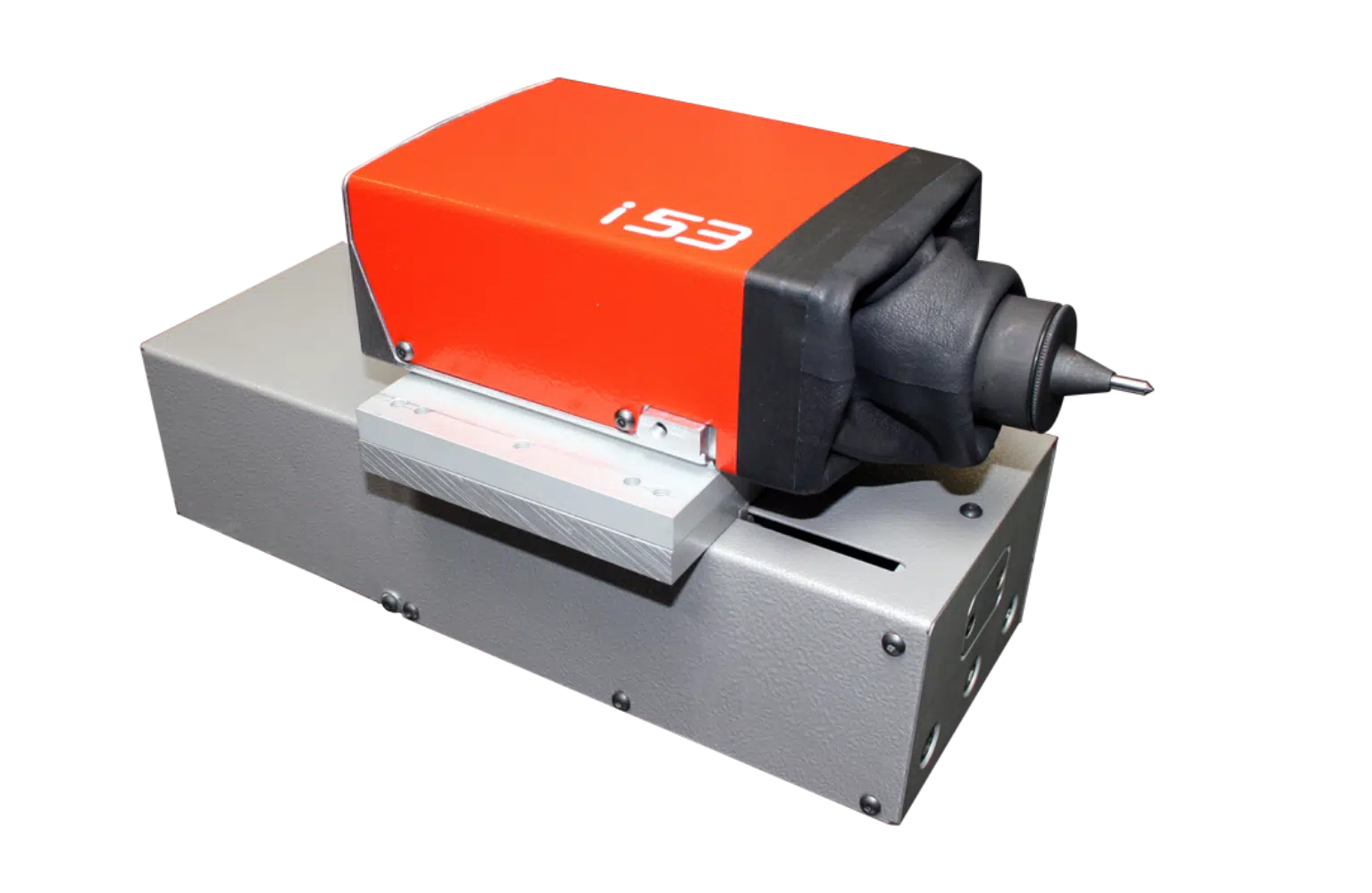

In addition, the I 53 connector can be moved onto the side face if needed for integration into a production line.

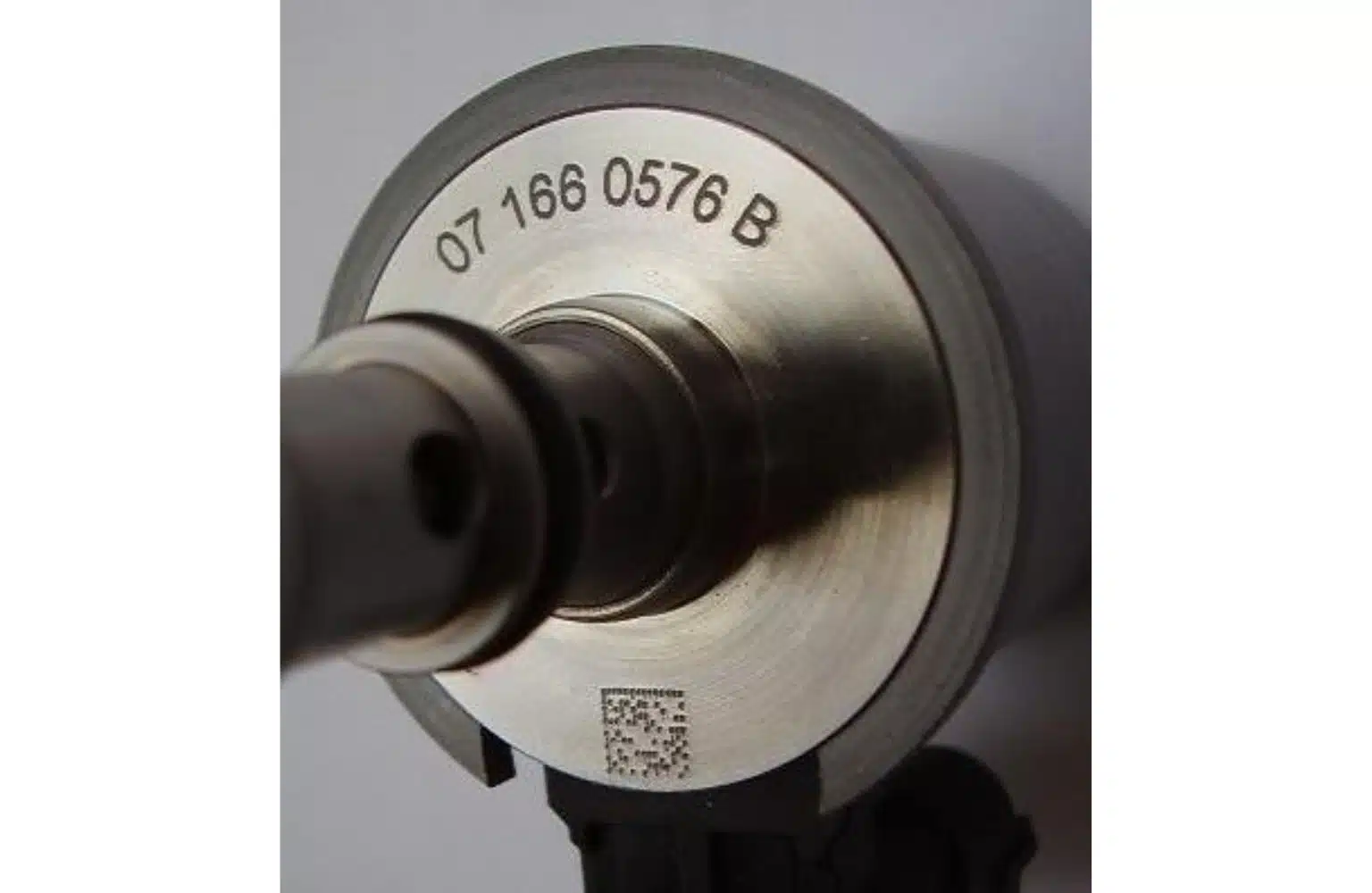

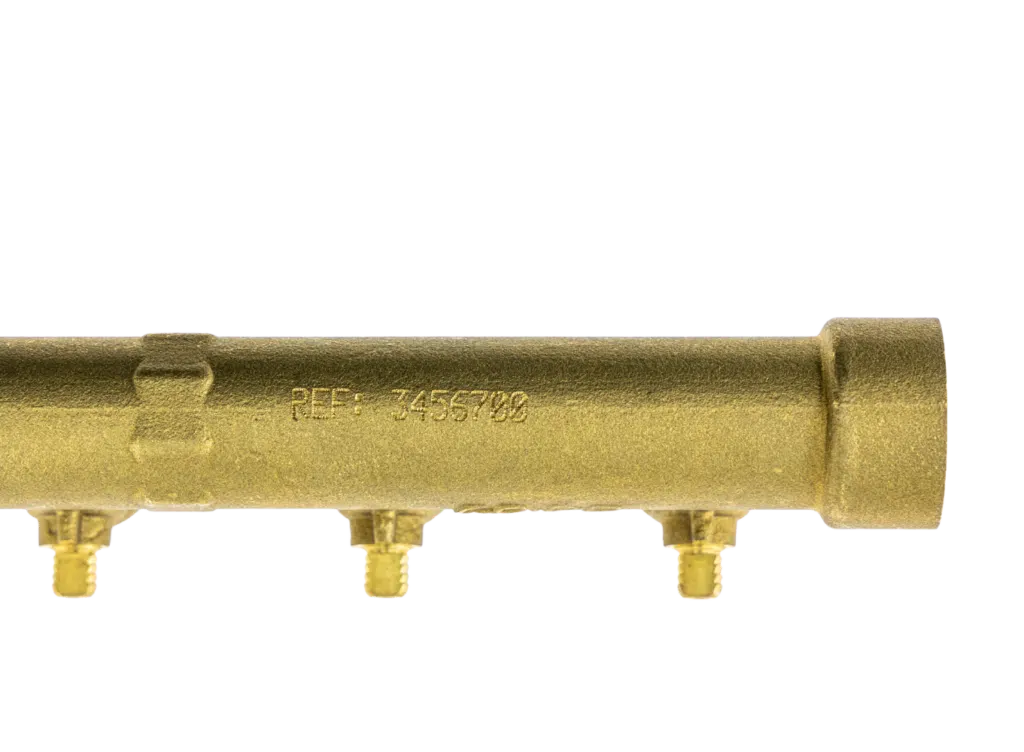

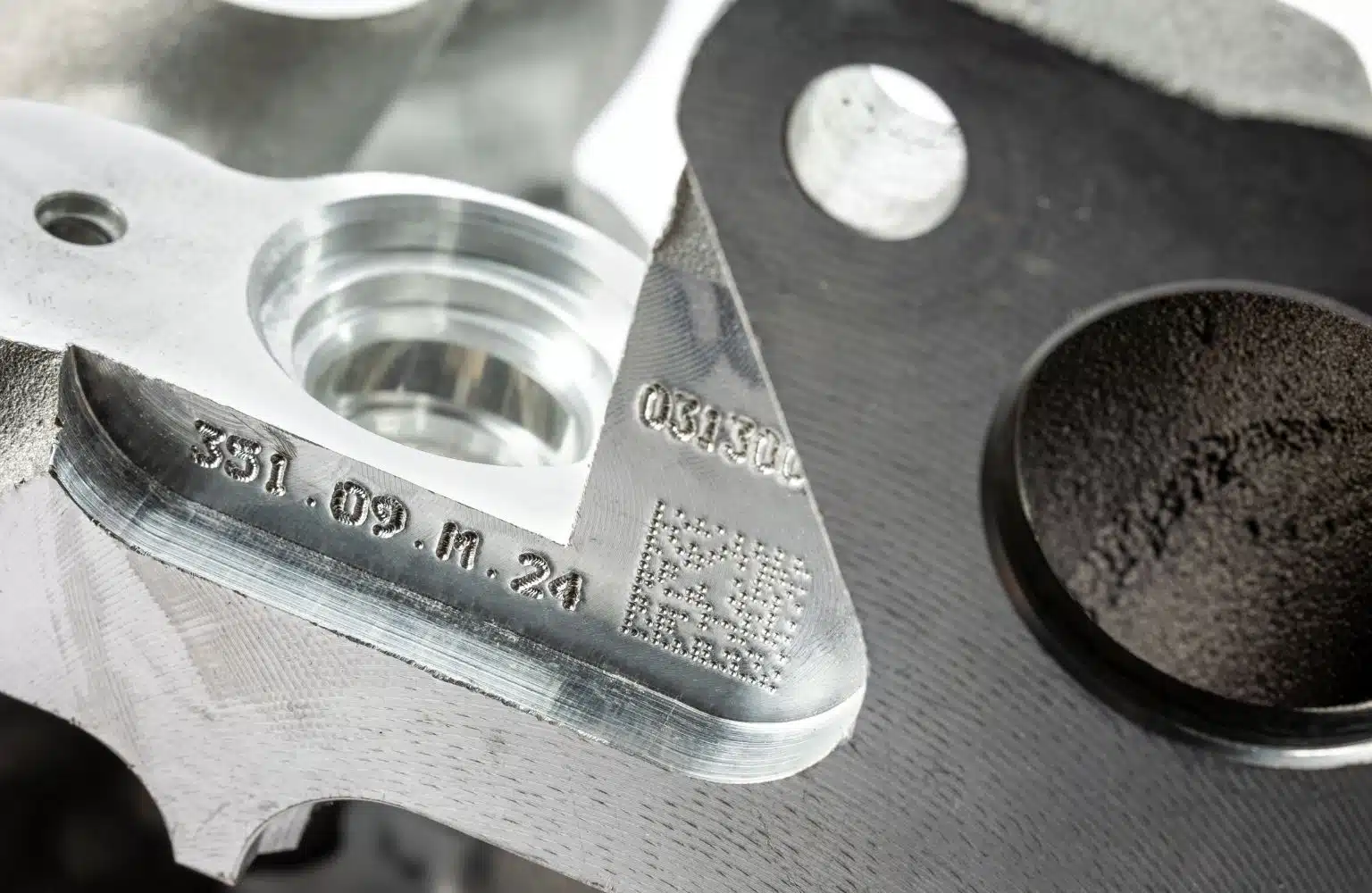

The tungsten carbide stylus deforms the material by creating a series of indents in the surface to be marked. The EC1 can engrave alphanumeric text, logos, 2D Data Matrix codes or QR codes.

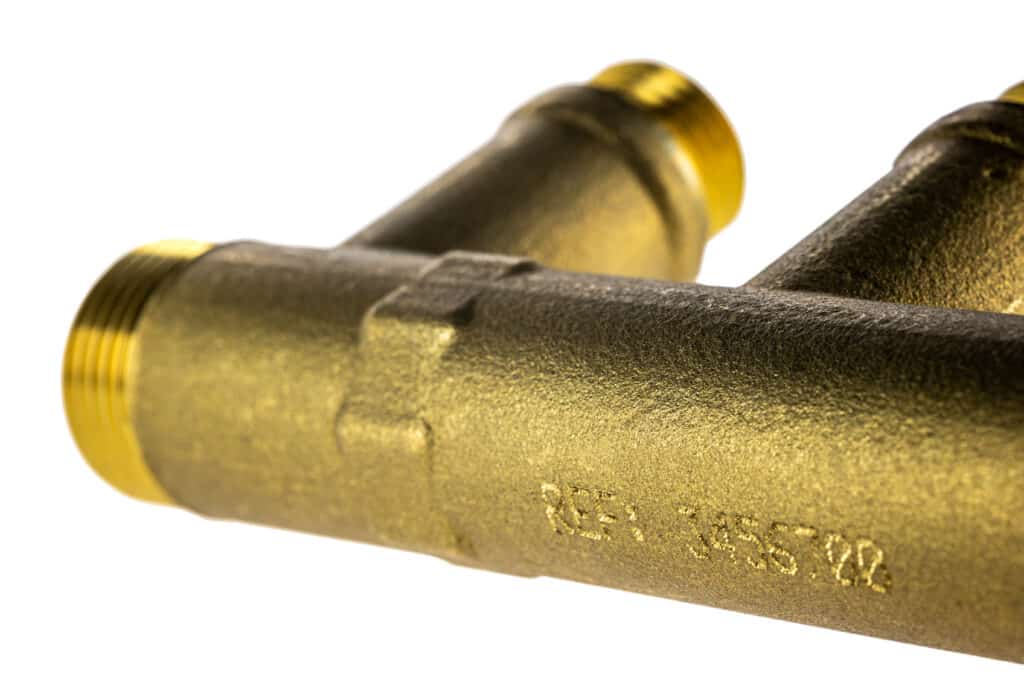

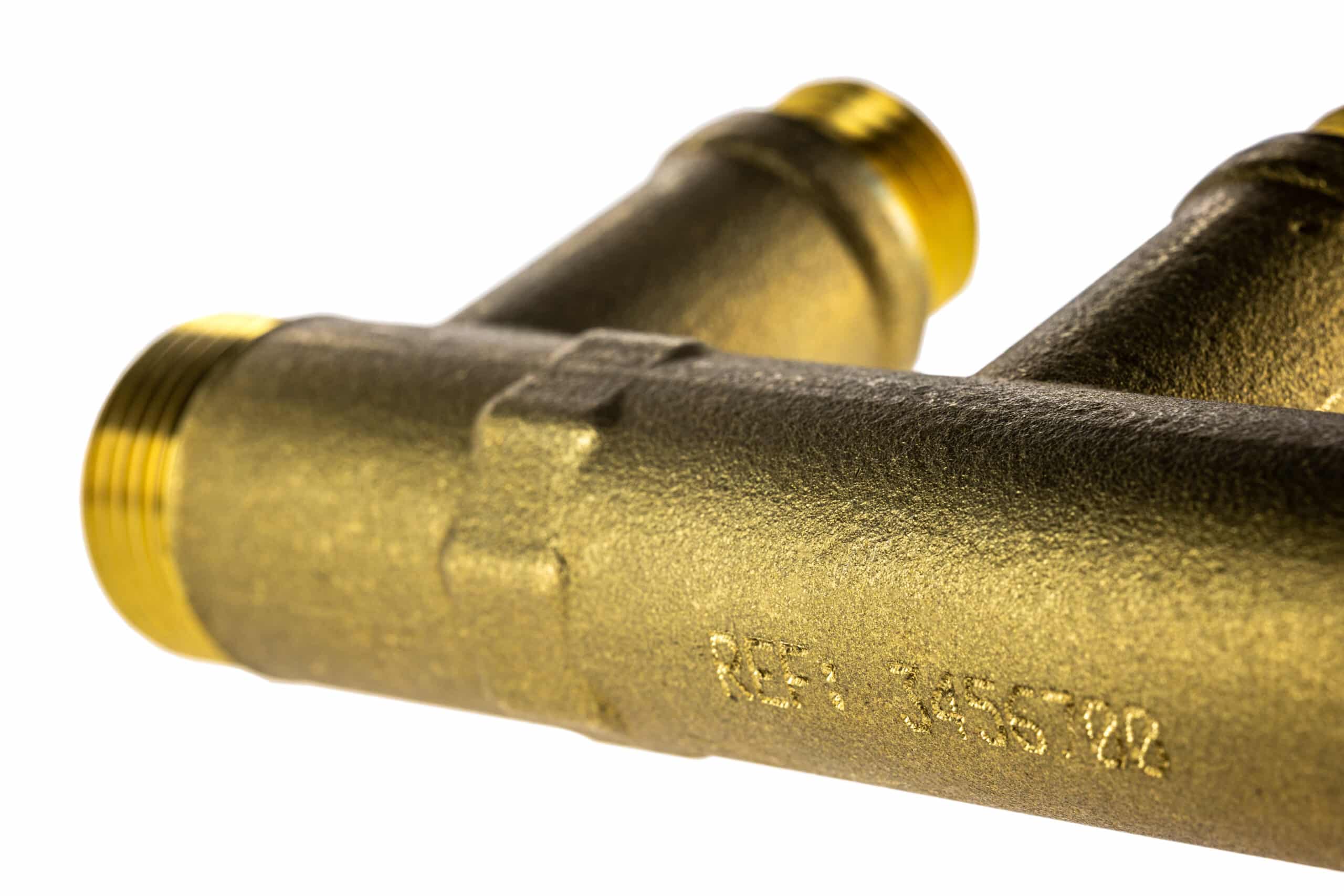

Dot peen marking technology with electromagnetic control enables parts with various shapes and surface finishes to be marked: plane, concave, convex, circular, raw and machined surfaces.
It only needs an electrical power supply.

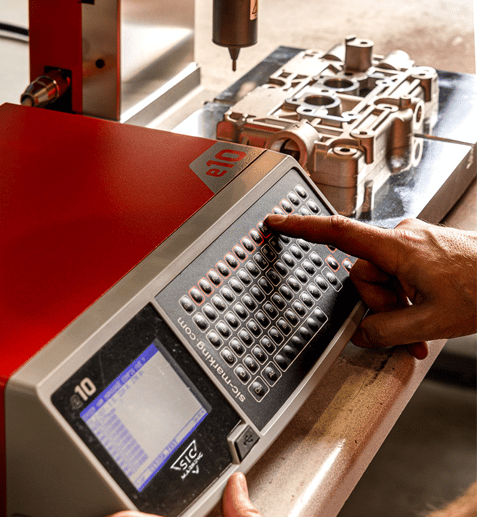

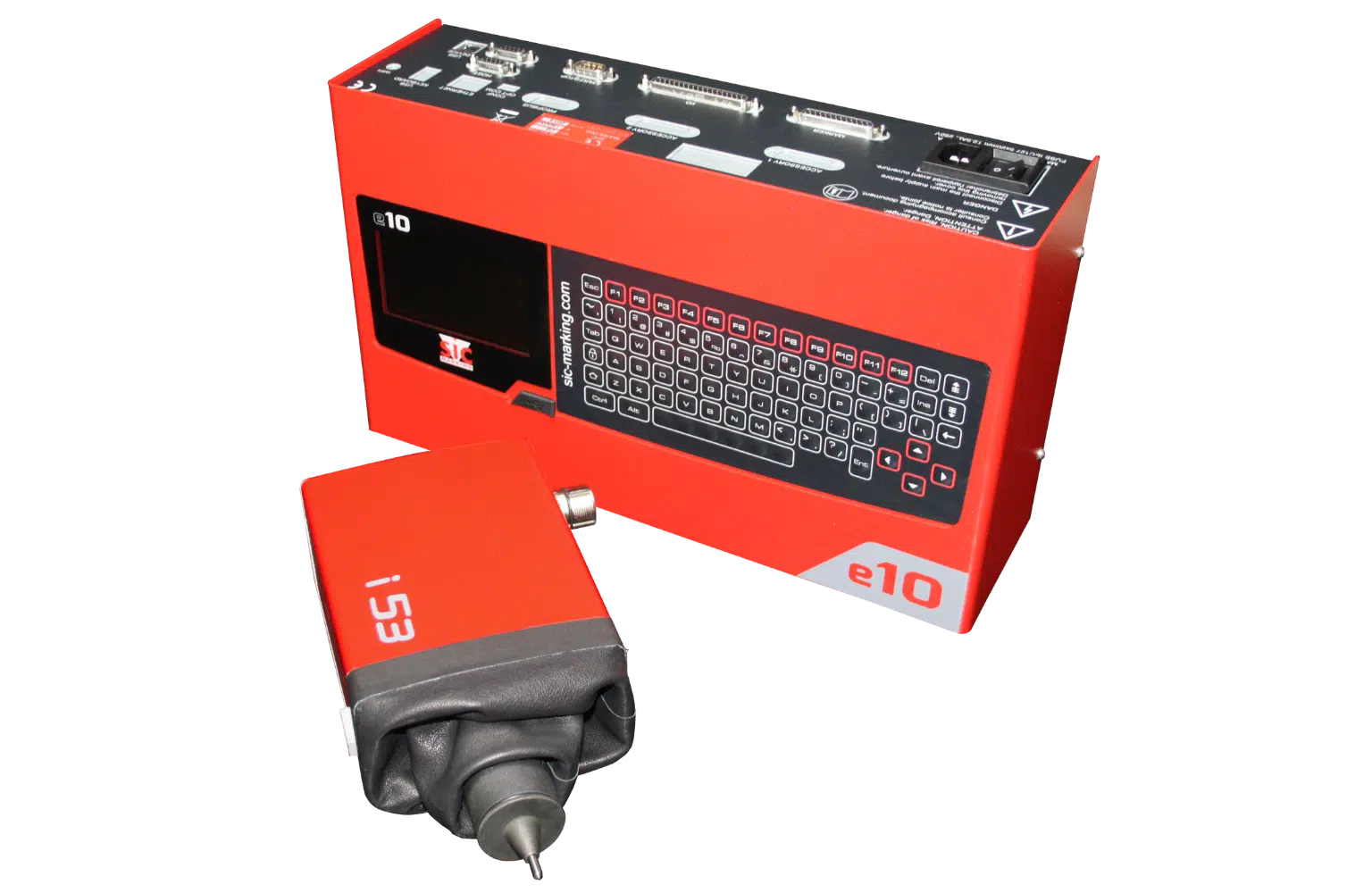

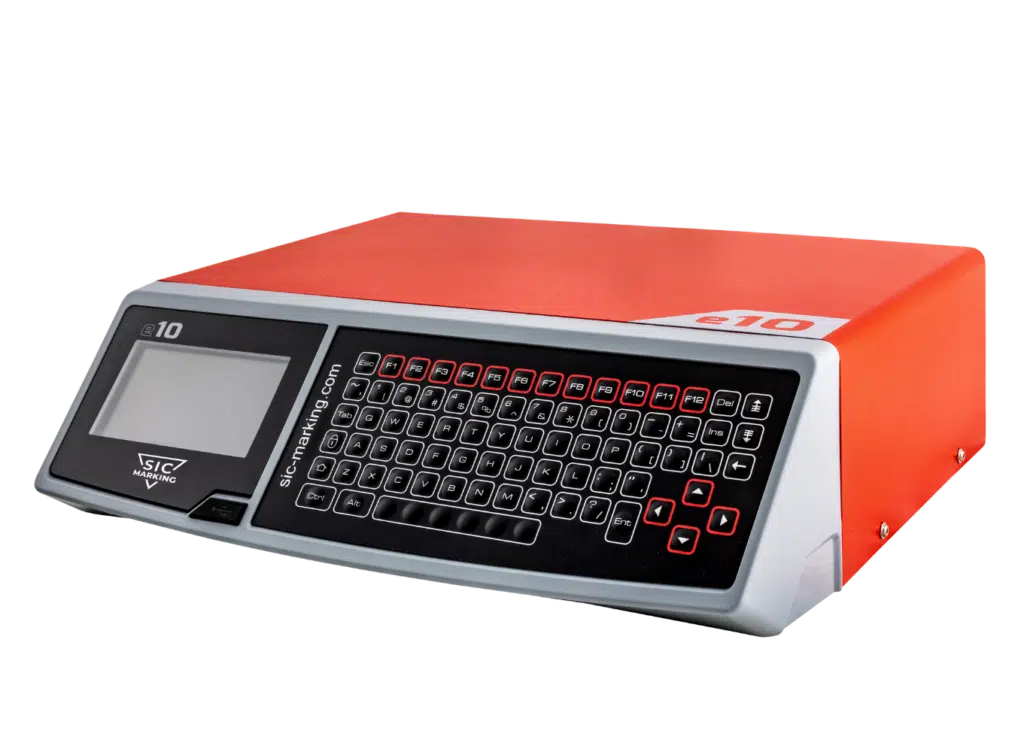

The E 10 is complete and powerful, and can be completed with optional supplementary boards, such as Profinet, Profibus or Ethernet IP communication boards
or axis control boards (translation or rotation)
The E 10 R variant is ideal for the integrable range, due to its small size and vertical mounting, which allow it to be installed in a standard electrical cabinet.
50 x 20 mm
230 x 130 x 70 mm
2.6 kg
5 m to 15 m on option
Carbide 60 mm
Leather
112 x 380 x 222 mm or 140 x 380 x 222 mm with DIN rail kit (option)
5 kg
95 x 54 mm
Qwerty with waterproof membrane
300 W
Single phase, 85 to 260 V AC, 50-60Hz
2 (3rd and 4th on option)
More than 2000
7110 KB
Serial numbering, date/time tags
Creation from the PC software
Up to 348 characters, 48 x 48 cells
Arial, Courier, OCR and OCRA
Angular, Radial, Inverted and Mirror
Up to 5 characters per second
From 0.1 mm to 99 mm
9 levels
Up to 0.5 mm
0.05 mm
Up to 8 mm
Maximum 10
3 security levels
Password protected
Self-Diagnostic component
17
RS232, RS422, USBx2, RS485, Profibus and Ethernet on option
16
USB
5V-0.5A and 24V-0.5A
Creation and transfer software
PC software or USB memory stick

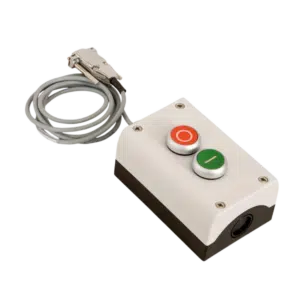

Option

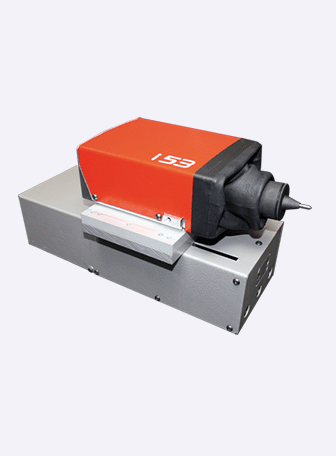

NUMERICAL Z AXIS 50-250 mm
The numerical Z axis allows the marking head to reach zones that are difficult to access or to mark a piece at several levels in one cycle.
The option is available in different approach strokes: 50, 100 and 250 mm.
Equipment necessary:
Controller e10 contains a 3-4 axis board.
This board feeds and controls the numerical Z axis.
The benefits:
The Z approach value can be configured in the marking file.
COMMUNICATION BOARDS
SIC Marking laser marking machines can be connected to an industry network.
Our systems come equipped with many connection possibilities (digital I/O, Ethernet TCP/IP, RS232), and they also offer many possibilities for dialogue with all the elements of their environment.
Our machines can very easily be integrated and interfaced in all production lines that use Profinet, Profibus or Ethernet IP field buses, through optional communication boards and simple software solutions.
The benefits:
This solution allows fast integration into an automatic systems structure based on standard industrial networks.
E10 R CONTROLLER
The E10 R controller provides a very fast startup and navigation, through a latest generation micro-controller.
The E10 R offers the same functions as the E10.
In addition, it can be directly integrated on a chassis or mounted in the vertical position.
With the DIN rail mounting kit it can be integrated directly in an electrical cabinet.
The benefits:
– Connections facing upwards
– Connections downwards simply by turning the cover over.
