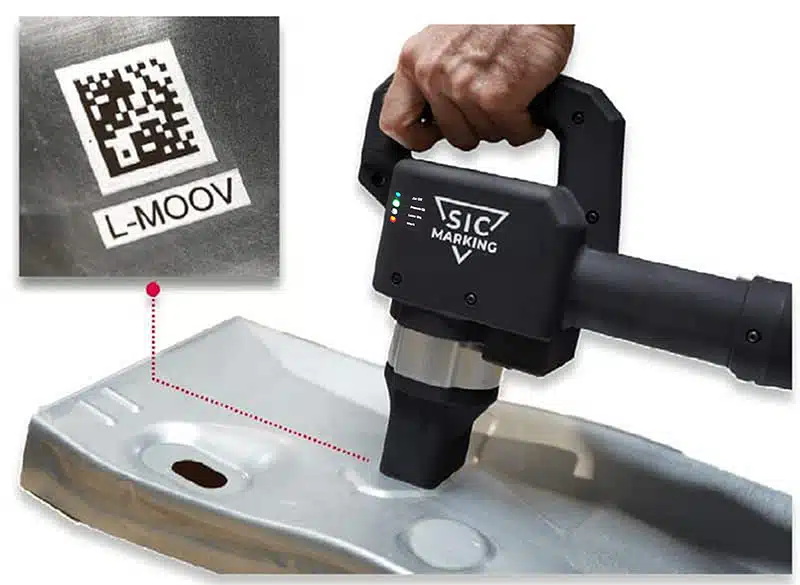

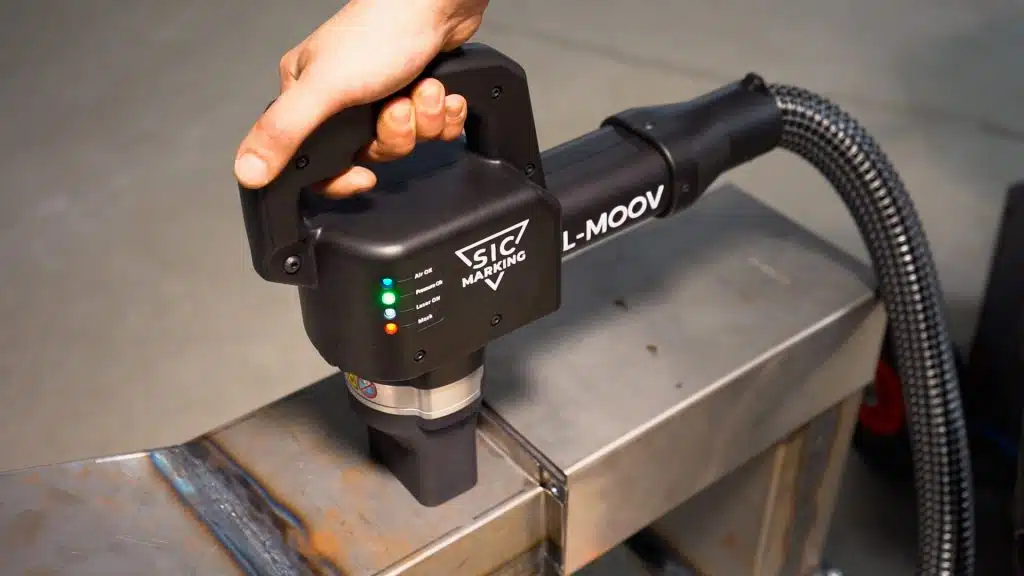

Portable marking laser L-MOOV , secure handheld laser marking engraver

Designed to meet the most demanding industrial requirements, the L-MOOV is a Class 1 portable laser marking machine.

It adapts to all types of parts, offering the flexibility and versatility needed to mark your products with ease.

Thanks to laser marking technology, the L-MOOV handheld laser marking machine delivers high-contrast, attractive marks.

It can mark various types of content, including alphanumeric text, logos, and 1D/2D codes.

Its excellent marking quality ensures optimal readability of DataMatrix codes and QR codes.

Laser technology	Fiber
Power	20W / 30W
Electrical Supply	100 - 240 V AC
Compressed Air Supply	Compressed air 3 to 7 bars
Weight of the marking head	2.5kg
Cable length between the head and the controller	2.40m

Installed on a trolley, the L-MOOV becomes fully mobile, allowing parts to be marked directly at their location within the production workshop. It also contains storage spaces to store the various accessories.

The marking station was designed for marking small parts. It contains a motorized plate to ensure the adjustment of the distance between the part and the laser.

The integrated Panel PC with a touchscreen offers an intuitive and ergonomic interface for easy control and configuration of the laser station. It ensures a smooth and quick user experience for managing marking tasks.

The barcode reader allows automatic and fast selection of the file and content to be marked, eliminating the possibility of input errors. It can read 1D and 2D codes, including QR and Datamatrix codes. It features a Bluetooth connection, ensuring wireless communication with the machine.
