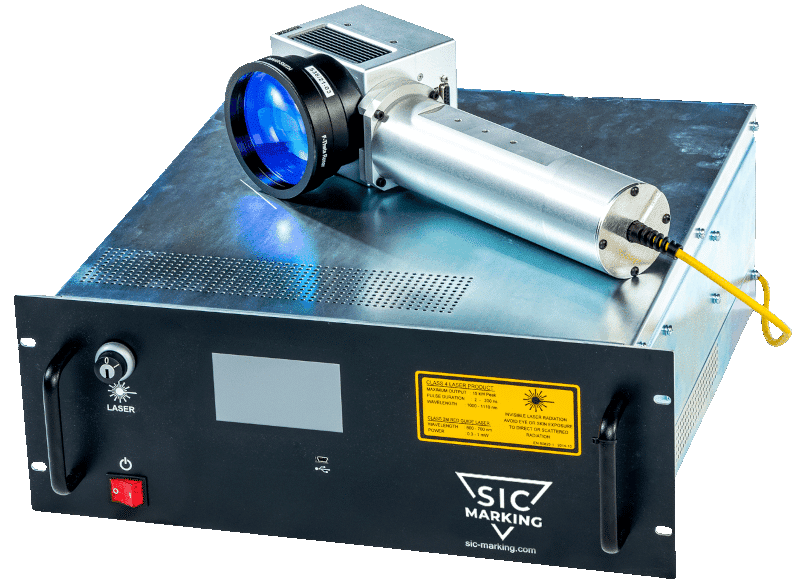

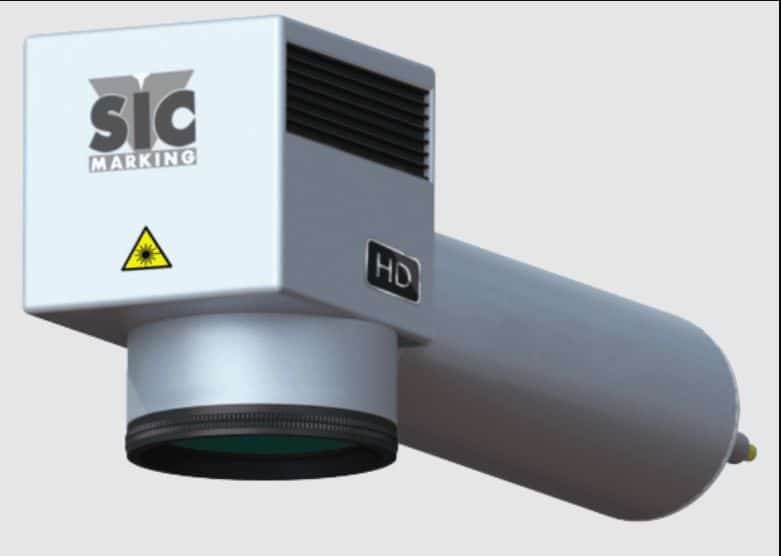

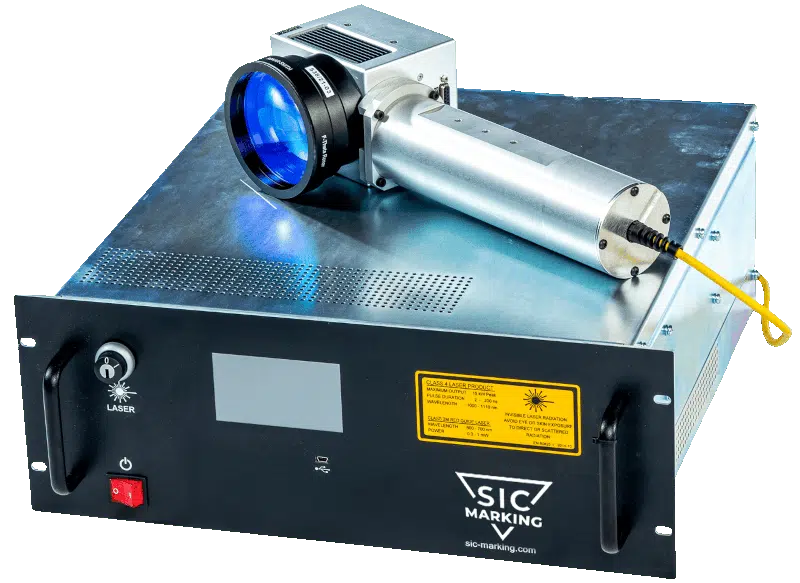

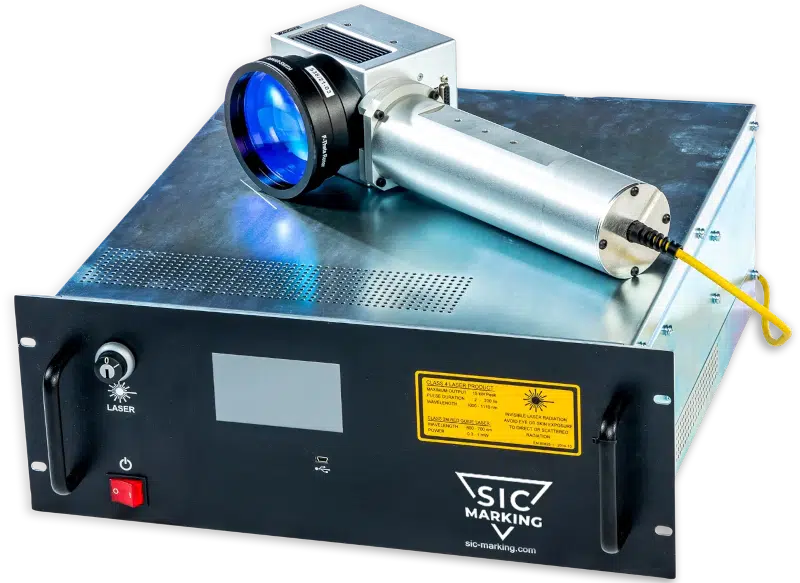

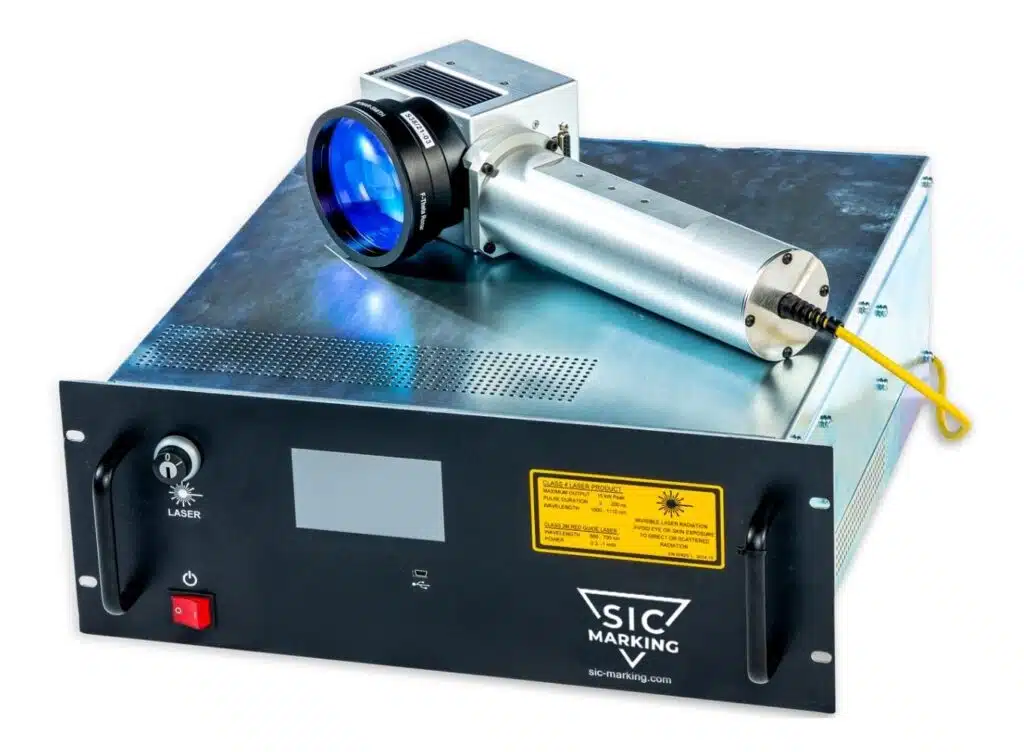

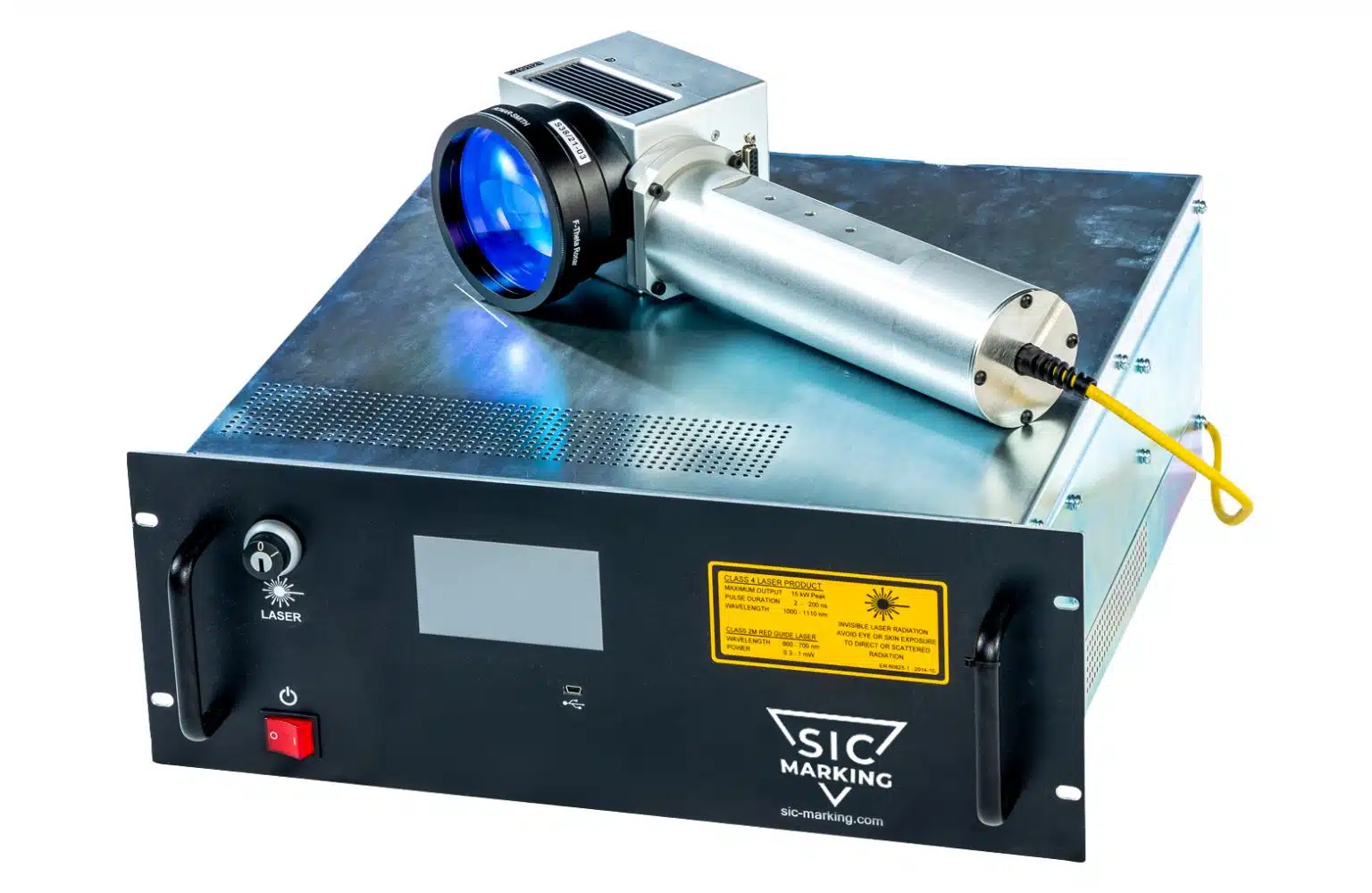

In order to meet the need for shorter cycle times or deeper marking, SIC MARKING has developed a range of high power laser marking machines.
Our high power fibre lasers have power ratings up to 500W.

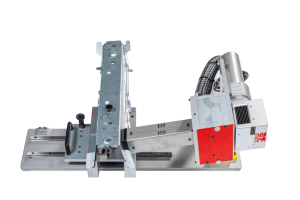

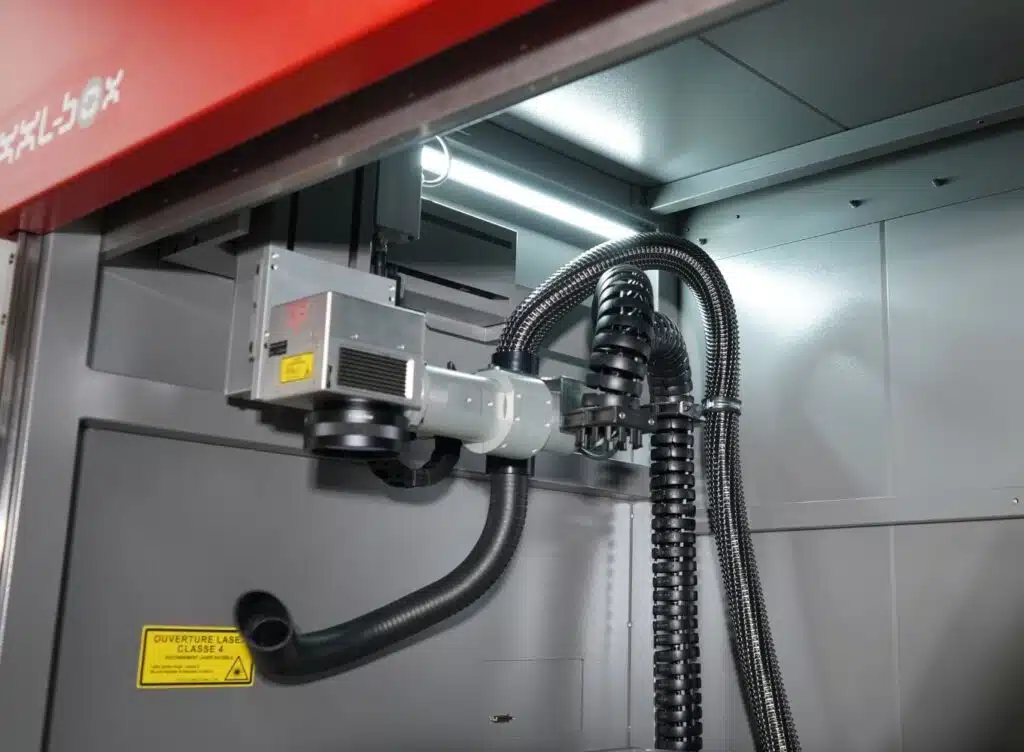

They can be supplied in integrable laser format, or integrated in our class 1 security marking cells, or in our F.I.T LASER.
Connecting a high power laser to your PLC is extremely simple.
A single Profinet, Profibus or Ethernet IP type connection provides quick and easy integration.
To guarantee both performance and life cycle in demanding production environments, SIC MARKING also supplies specific accessories, such as, for example, an efficient fume evacuation system that is essential for this type of laser.

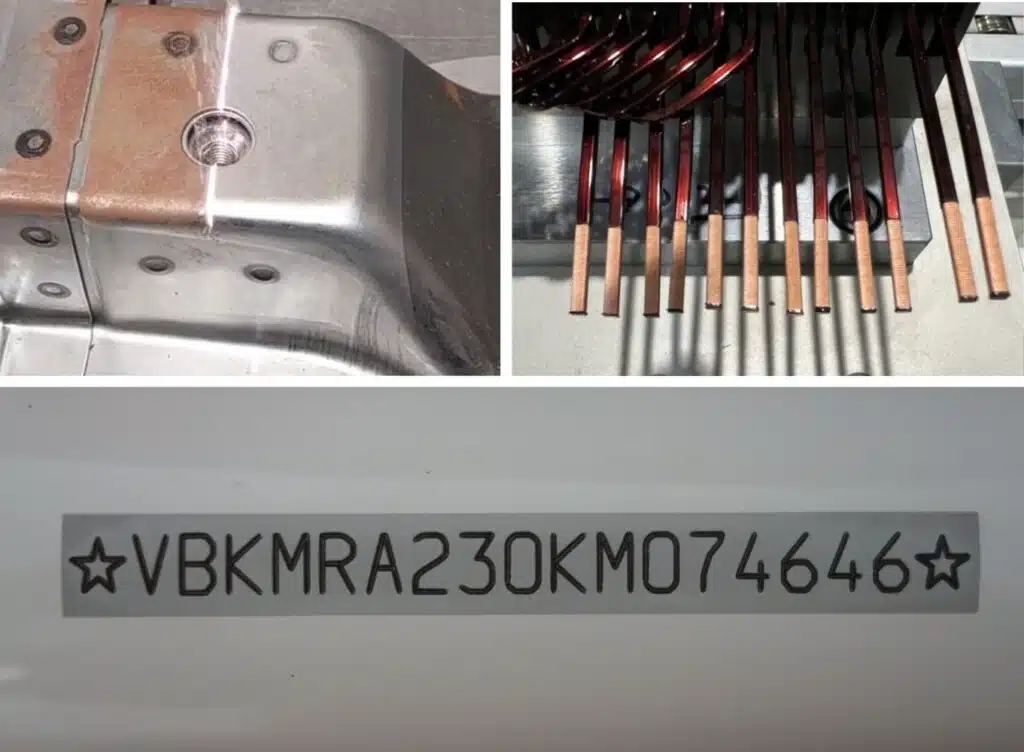

This type of laser has many applications:

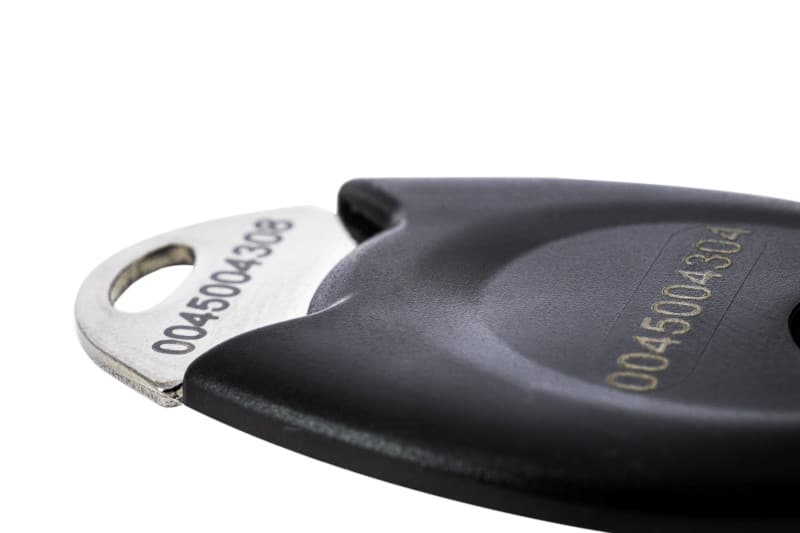

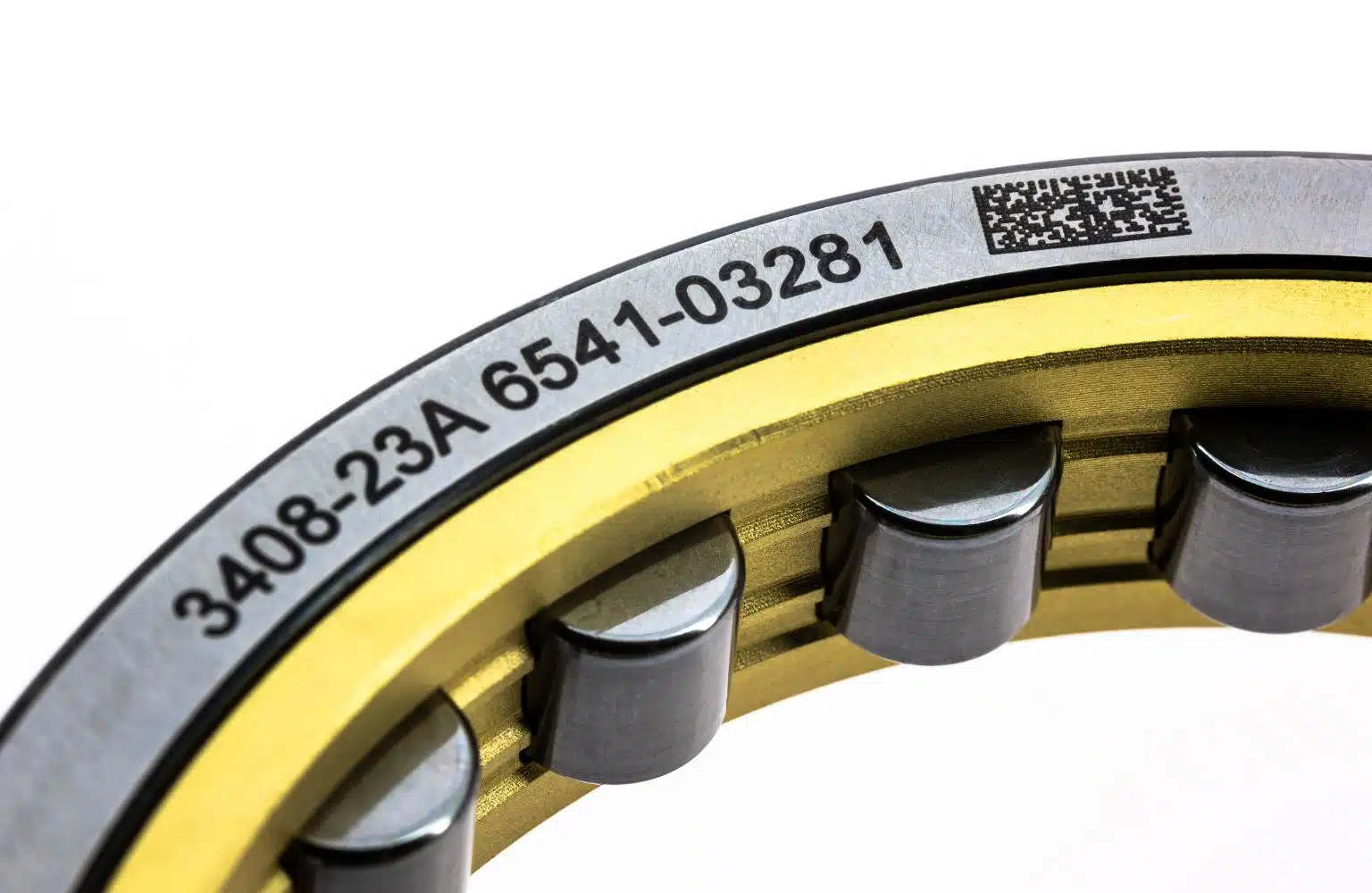

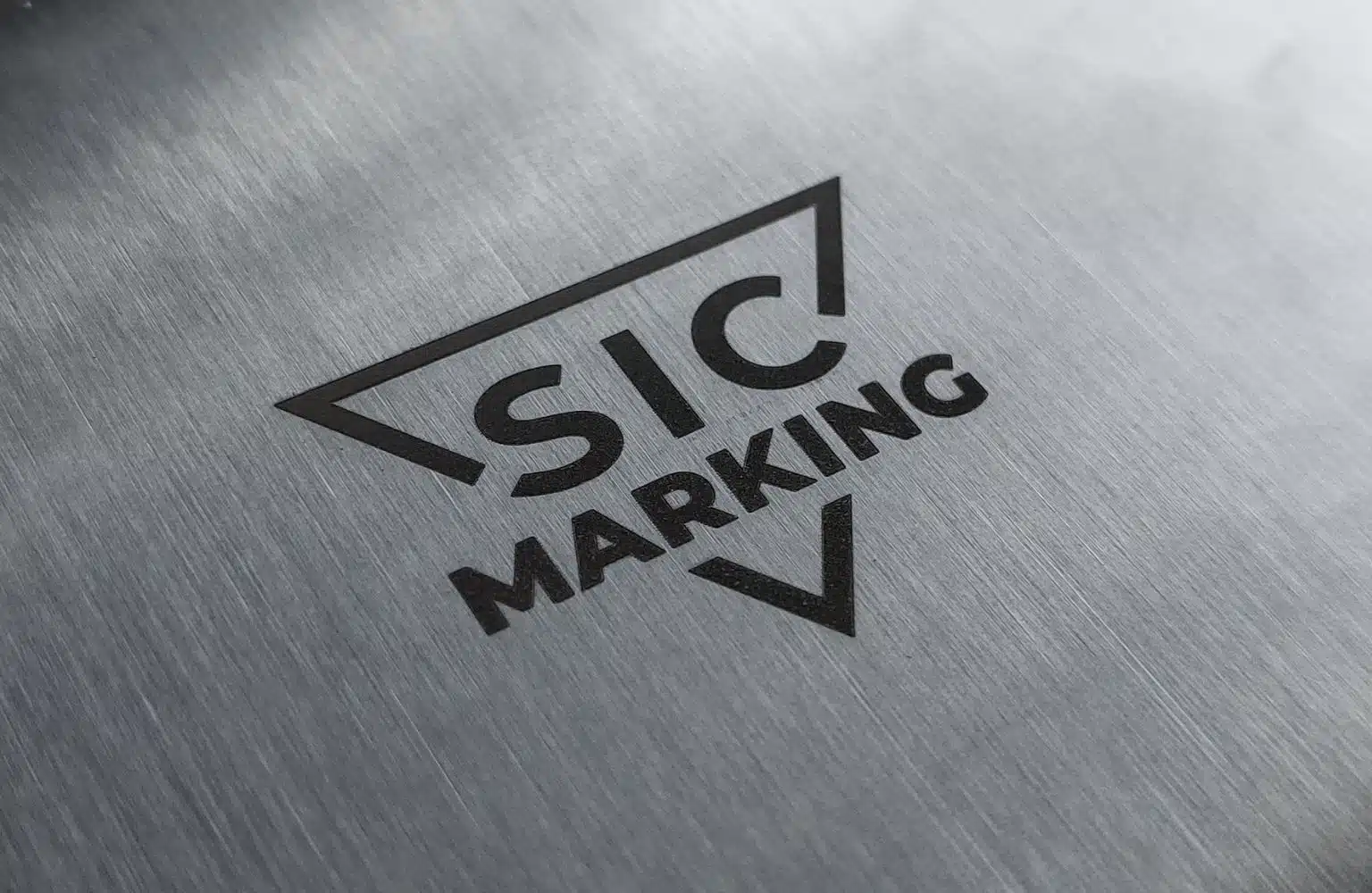

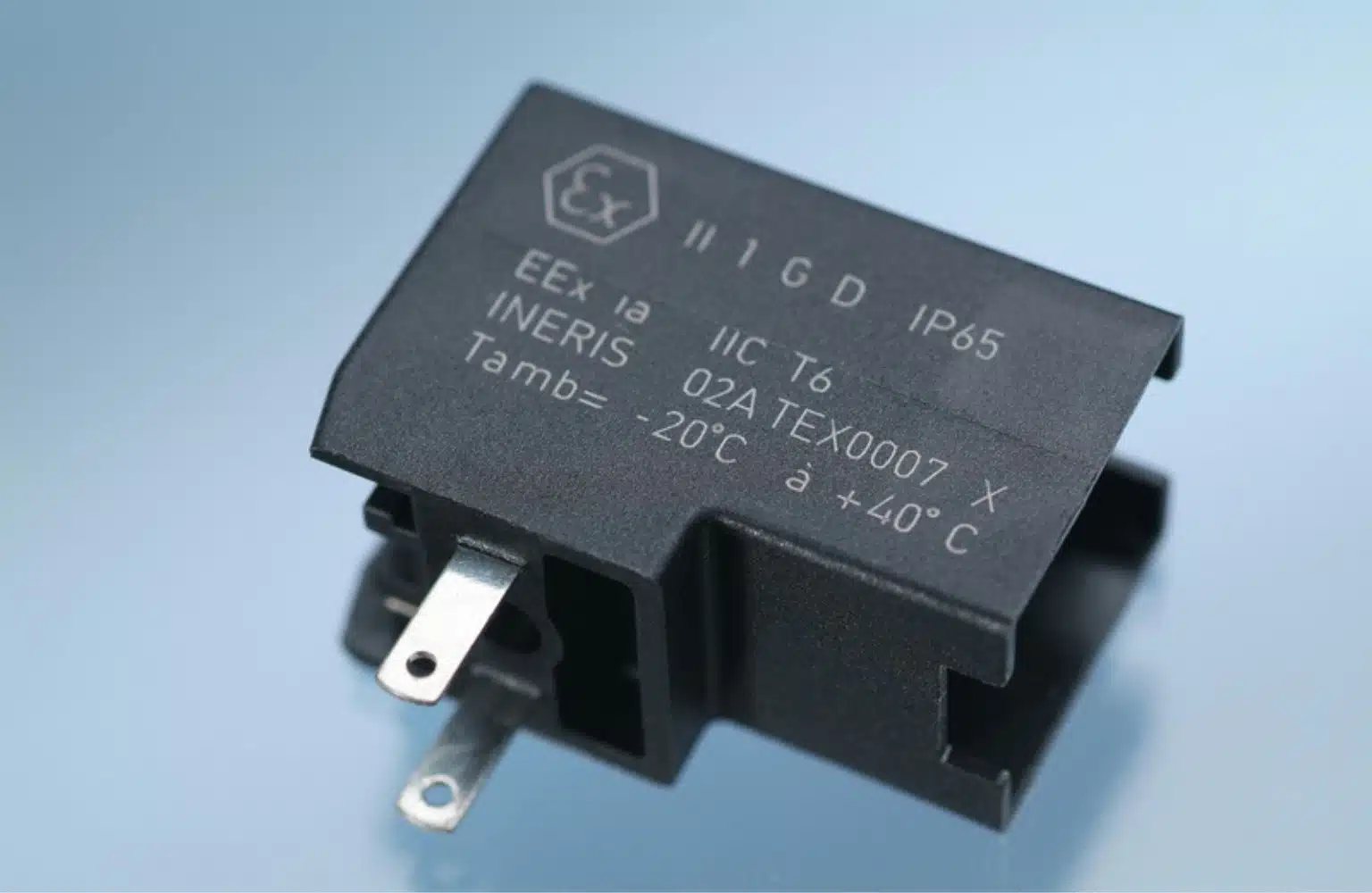

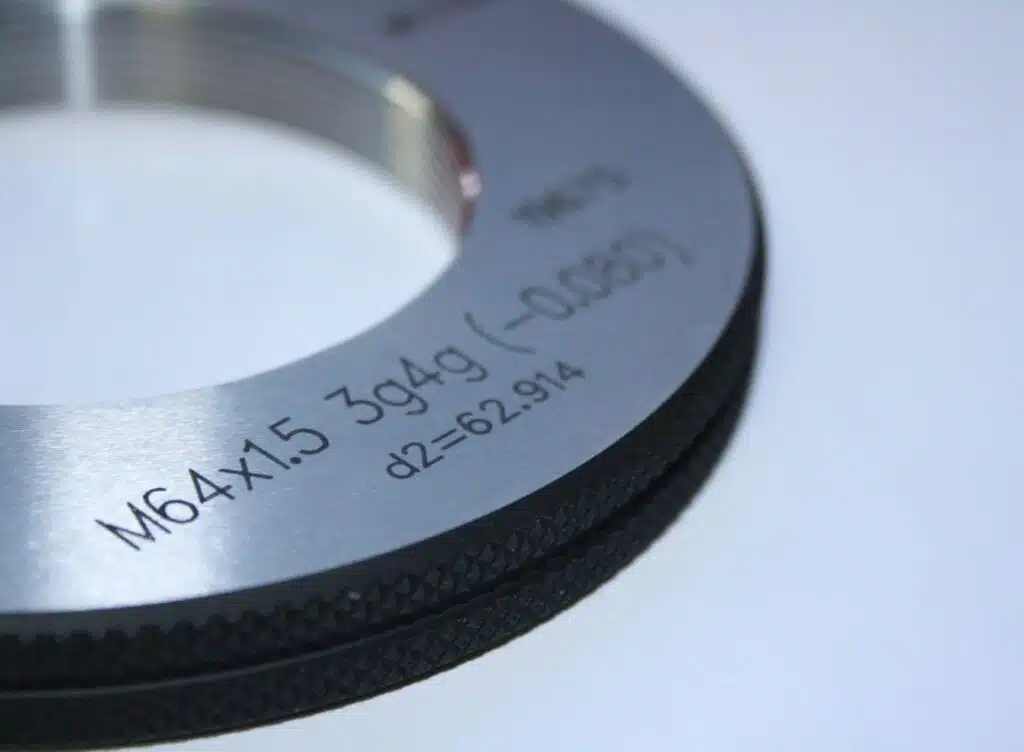

– deep marking, that remains readable after shot blasting, surface treatment or the application of a coating (paint, anti-corrosion protection, etc.).
– texturing, which voluntarily changes or roughens the surface of a metal or plastic piece in order to change its appearance or properties like, for example, to clean a battery cell, roughen a surface to prevent unscrewing, remove the coating from a metal part to ensure conductivity, etc.
– regulatory marking of the VIN (Vehicle Identification Number) on the chassis of motor vehicles, to a minimum depth of 0.2 mm and in a cycle time that is often around 20 seconds.
– finally, the stripping of electrical wires, which is becoming increasingly used with the development of electric motors. This involves removing various insulation materials from part of the wire, to enable connection.
Mechanical specifications
60 x 60*mm – 100 x 100 mm – 170 x 170 mm – 220 x 220*mm
300 x 300*mm (*consult us)
See downloadable data sheet
Fibre control unit: 25 kg – i103 Easy marking head: 5kg
Configuration class 4 (standard EN60825-1)
Without PC (Standalone mode)
Electronic specifications
SIC Marking ytterbium-enhanced fibre laser
Pulsed (variable frequency)
1064 nm
3 m
20W, available in 30W
7 kW
Integral laser pointer
Air cooled only
Control software
SIC Marking ytterbium-enhanced fibre laser
Pulsed (variable frequency)
1064 nm
3 m
20W, available in 30W
7 kW
Integral laser pointer
Air cooled only
Options
COMMUNICATION BOARDS
SIC Marking laser marking machines can be connected to an industry network.
Our systems come equipped with many connection possibilities (digital I/O, Ethernet TCP/IP, RS232), and they also offer many possibilities for dialogue with all the elements of their environment.
Our machines can very easily be integrated and interfaced in all production lines that use Profinet, Profibus or Ethernet IP field buses, through optional communication boards and simple software solutions.
The benefit:
This solution allows fast integration into an automatic systems structure based on standard industrial networks.

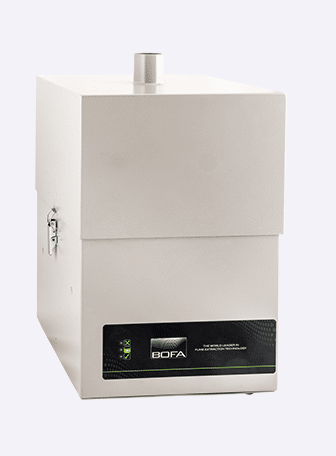

FUME EVACUATION SYSTEM
The evacuation system is a fume extractor that is directly connected to the laser station through a suction pipe.
This is necessary to treat the toxic fumes generated by the laser.
It is equipped with a pre-filter, a high-efficiency very fine air filter (less than 1 µm) and an activated carbon filter.
There are two types of fume evacuation system:
The vacuum system measures 310 x 320 x 460 mm.
The vacuum system measures 365 x 501 x 740 mm.
Fumes and particles collection is mandatory.
This protects both personnel and also the equipment required.
The benefits:

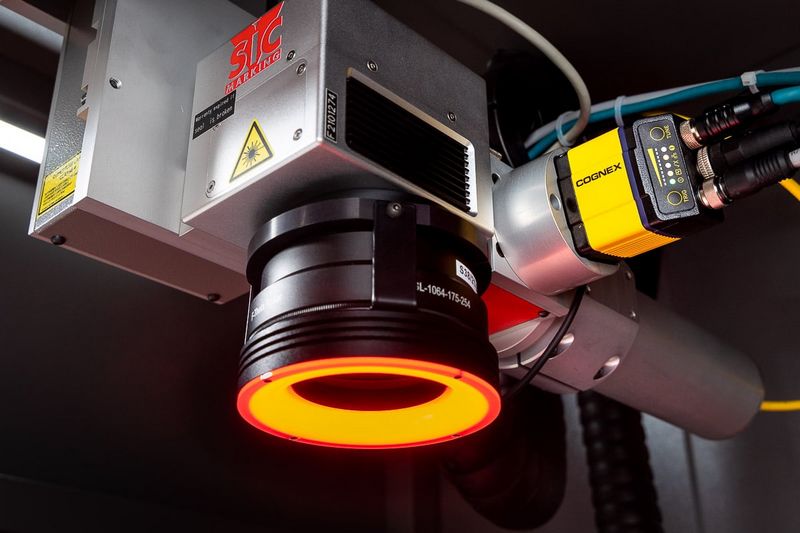

DATAMATRIX READER FOR INTEGRATION
